4-20ma 0.5-4.5V Water Level Sensor Submersible For River Sewage
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Certification: | CE/ROHS |
Model Number: | WNK8010-T |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $55.00 - $70.00/Pieces |
Packaging Details: | Each set into one individual carton, packed with foam protection |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 1000 Piece/Pieces per Week Water Tank Level Sensor |
Detail Information |
|||
Grade: | Industrial | Warranty: | 1 Year |
---|---|---|---|
Customized Support: | OEM, ODM | Pressure Range: | 0-200 Metres |
Accuracy: | 0.2%FS, 0.5%FS | Output Signal: | 4-20mA, 0-5V, 0-10V |
Application: | Liquid, Water | Pressure Type: | Guage Pressure |
Power Supply: | 12~36VDC | Working Temperature: | -40~85 ℃ |
Process Connection: | G1/2, Customization | Compensation Temperature: | -20~70℃ |
Keywords: | Hydrostatic Level Sensor/ Water Tank Level Sensor | Port: | Shanghai, Ningbo, Other Ports In China |
High Light: | 0.5-4.5V Water Level Sensor,4-20ma Water Level Sensor,River Sewage Submersible Level Transmitter |
Product Description

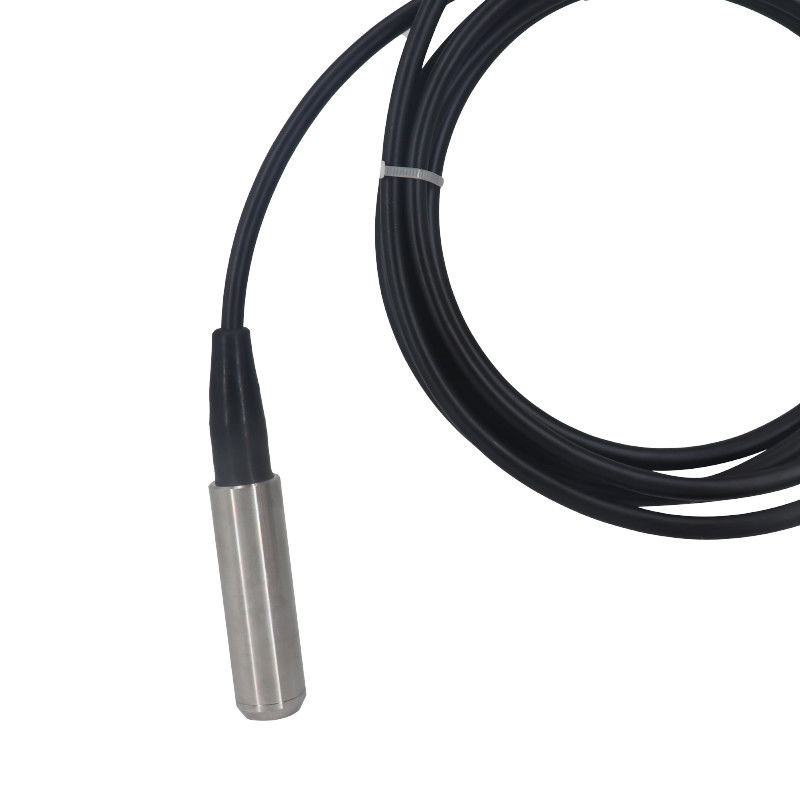

4-20ma 0.5-4.5V Water Level Sensor /Submersible Level Transmitter For River Sewage
WNK 4-20ma i2C Submersible Level Transmitter
WNK 8010 throw-in type level transmitter (also called static pressure type level transmitter) uses imported anti-corrosion diaphragm sensitive components and fit the chip into a stainless steel (or PTFE) housing. The top steel cap acts as a protective sensor diaphragm and also allows water to contact the diaphragm smoothly. The product adopts special waterproof ventilation cable, which makes the pressure chamber of the pressure sensitive membrane communicate with the atmosphere well. Meanwhile the measurement liquid level is not affected by the change of external atmospheric pressure, the measurement is accurate with long term stability and excellent sealing and anti-corrosion performance . It can be put directly into water, oil and other liquids (including corrosive liquids) for a long time. The outer casing and cable of PTFE material can measure a variety of highly corrosive liquids.
Applications:
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features:
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
