WNK 4-20ma 0.5-4.5V Intelligent Submersible Level Transmitter Sensor For Liquid Water

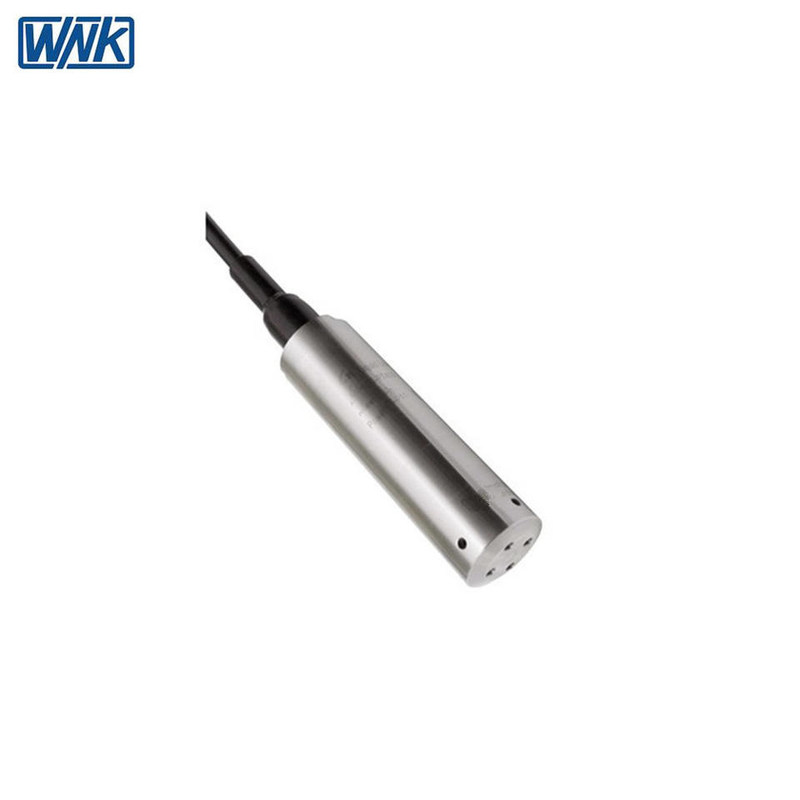

WNK Intelligent Submersible Level Transmitter
- WNK8010 is submersible stainless steel water level sensor ideal for measuring hydrostatic water level.
- The water level sensor is built with inside high performance diffused silicon piezoresistive pressure sensor element.
- Level ranges from 0 up to 200 metres water column and a 4-20mA current loop output signal.
Other signal output can be customized based on certain quantity
| Product Datas |
| Output | 4-20mA, 0-5V, 1-5V, customization |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Applicable media | Liquid, Water |
| Accuracy | ≤ ±0.2%FS, |
| Long Term Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Operating temperature | -30~85℃ |
| Compensation temperature | -20~70℃ |
| Protection class | IP68 |
| Applications |
- Liquid-level testing and control in industrial process
- Monitor and control the water levels in massive water reservoirs
- Build Automation System and constant pressure water supply system
- Urban water supply and wastewater treatment
- Measure and control liquid-level in other automation systems
- Open tank, waste water, fire fighting water tank, reservoir water level, fuel tank and etc.
| Technica Drawing |
| Ordering Code |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
