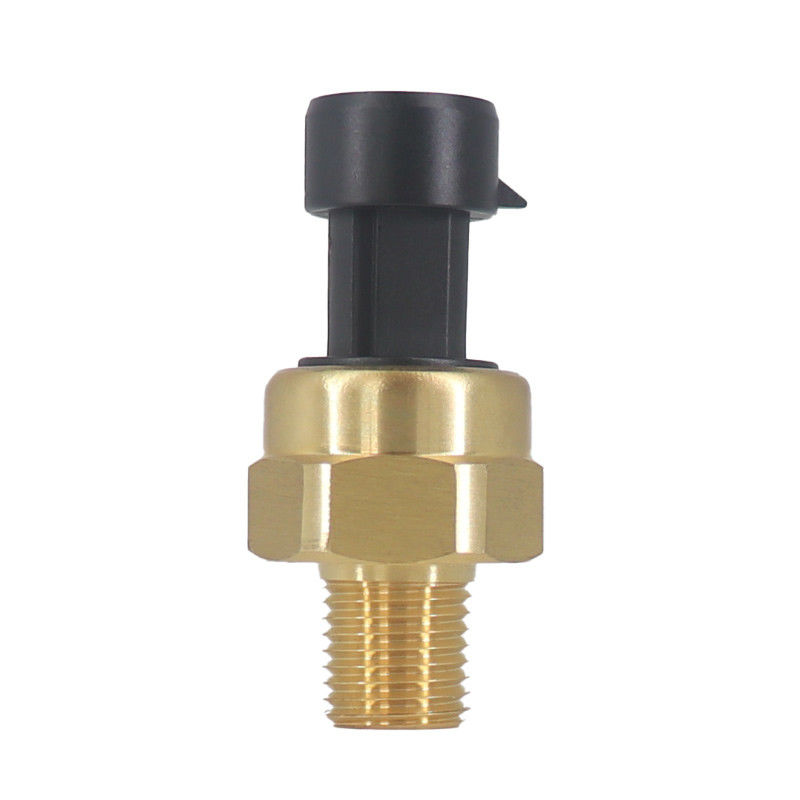

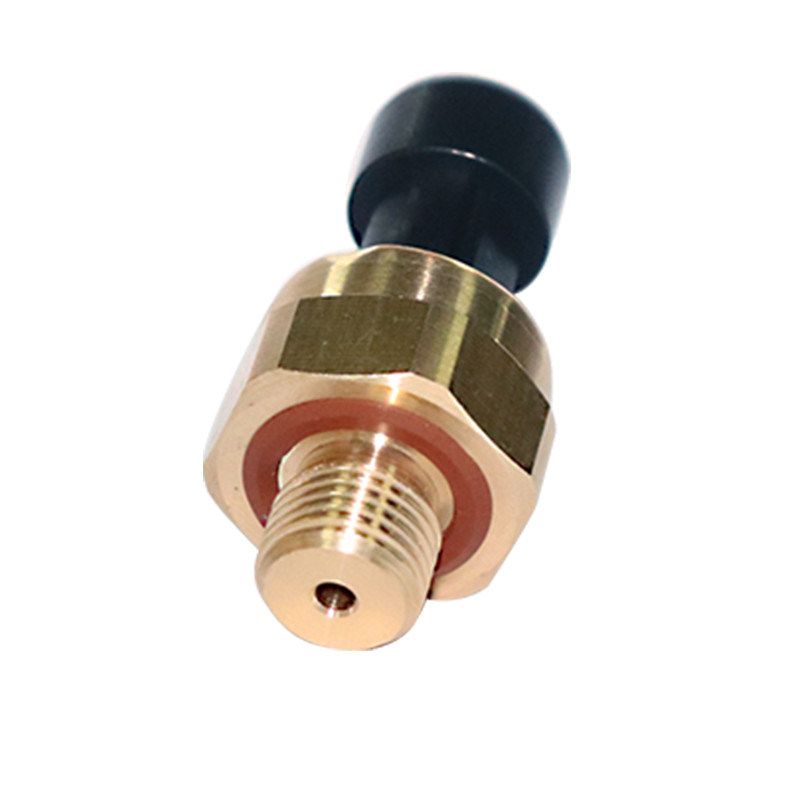

WNK Brass Water Air Gas Pressure Sensor IP65 0.5 - 4.5V
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK83mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $6.50/Sets |
Packaging Details: | standard export carton box for WNK83MA pressure sensor or as per your |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 5000/ Piece/ Month |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Accuracy: | ±1%F.S. | Measured Media: | Liquid, Gas |
Output: | 0.5-4.5VDC | Input: | 4.75-5.2VDC |
Storage Temperature: | -40~110°C | Work Temperature: | -20~70°C |
Electrical Connection: | Packard Or Cable Outlet | Mechanical Connection: | 1/4NPT Or G1/4 |
IP Rate: | IP65 | Housing Material: | Brass |
High Light: | Brass Air Pressure Sensor,Gas Pressure Sensor IP65,Brass Water Pressure Sensor |
Product Description
WNK Low Cost 0.5-4.5V Brass Pressure Sensor For Water Air Gas
WNK Low Cost Brass Pressure Sensor
Applicable media | Liquid, gas, steam |
Pressure range | 0-10bar, 0-20bar |
Cell | Ceramic capacitive pressure sensor |
Pressure measurement | Gauge pressure, sealing pressure, absolute pressure |
Output | 0.5-4.5VDC |
Power supply | 4.75-5.25VDC |
Accuracy(linearity, hysteresis and repeatability) | 1%F.S. |
Work temperature | -20~70ºC |
Ambient temp | -40~110ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |

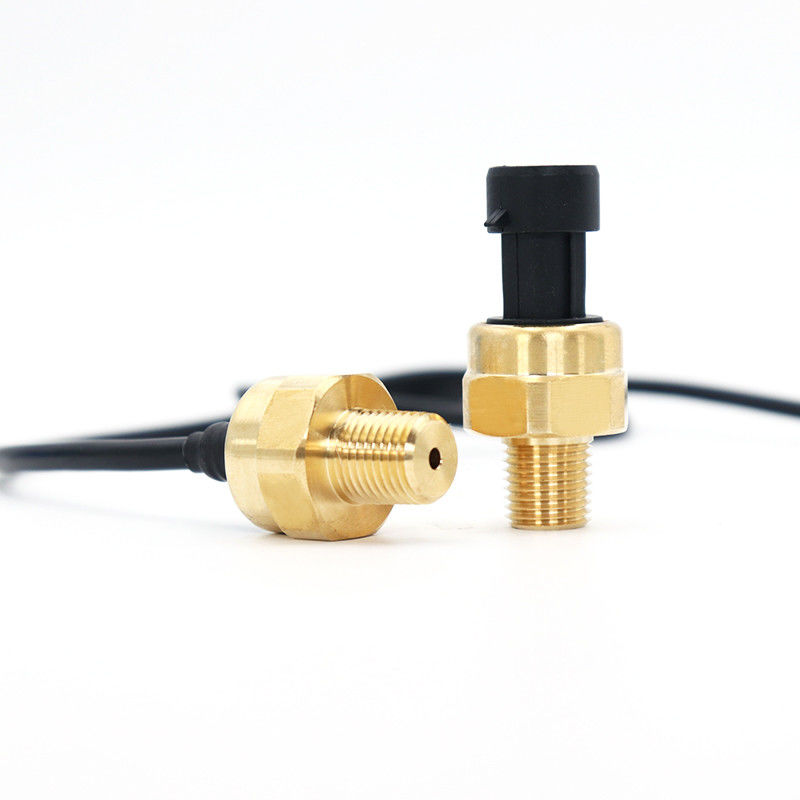

Electrical connection | Cable outlet/ Packard |
Mechanical connection | 1/4NPT G1/4 |
Housing material | Brass |
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment
pressure measurement.
Mechanical Dimension:
