Submersible Hydrostatic Water Level Sensor 4-20mA 0.5-4.5V
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Certification: | CE |
Model Number: | WNK8010-TT |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $35.00 - $50.00/Pieces |
Packaging Details: | Each set into one individual carton, packed with foam protection; |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 3000 Set/Sets per Week water level transmitter |
Detail Information |
|||
Grade: | DIY, Industrial | Warranty: | 1 YEAR |
---|---|---|---|
Customized Support: | OEM, ODM | Measuring Range: | 0...1~200 Meters |
Accuracy: | 0.25%FS, 0.5%FS, | Analog Output: | 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V |
Application Field: | Wells, Water Tank, Liquid, Sea Water | Ingress Protection: | IP68 |
Power Supply: | 12~30V DC | Digital Output: | RS485, IIC, I2C |
Cable Material: | PF, PTFE (anti-corrosive) | Housing: | 304SS, 316L |
Type: | Water Level Transmitter | Port: | Shanghai, Ningbo, Shenzhen, Guangzhou |
High Light: | IP68 Submersible Liquid Level Transmitter,IP68 Hydrostatic Water Level Sensor,Submersible Hydrostatic Water Level Sensor |
Product Description

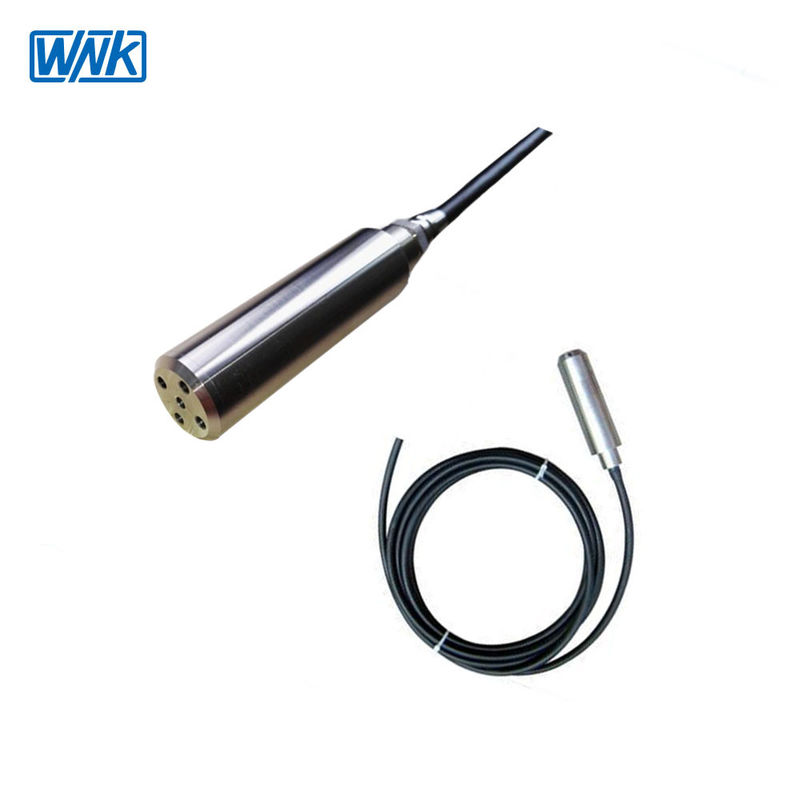

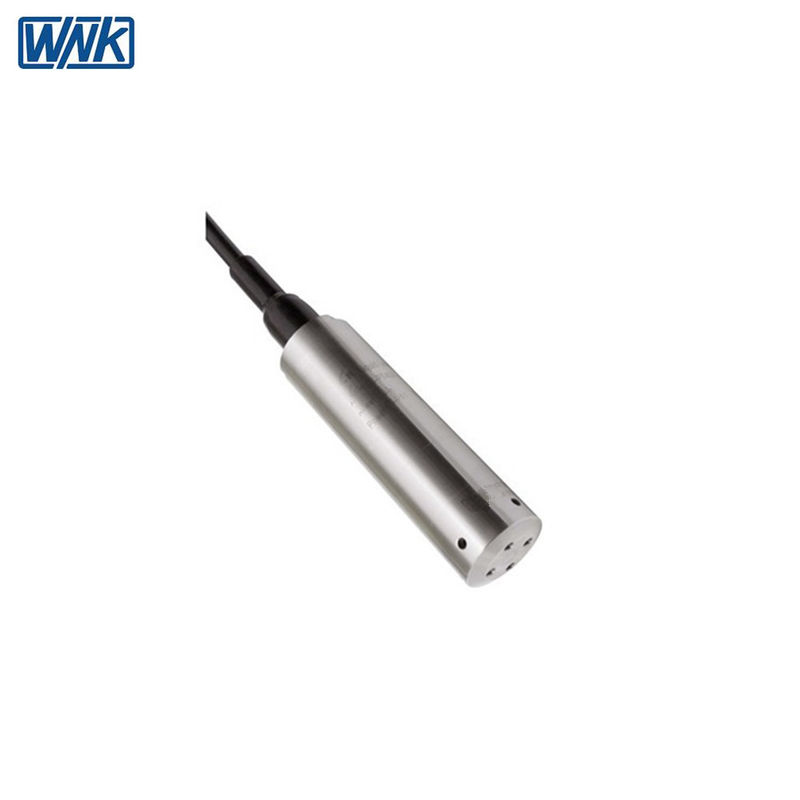

4-20mA 0.5-4.5V Submersible Liquid Level Transmitter/Hydrostatic Water Level Sensor
wnk 4-20mA 0.5-4.5V Submersible Level Transmitter
- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
