|Working Pressure:||0~3.6MPa (range Can Be Adjusted)||Accuracy:||±1.0%F.S. (Linearity, Hysteresis, Repeatability)|
|Operating Temperature:||-40℃~+135℃||Storage Temperature:||-40℃~+150℃|
|Protection Pressure:||5.4Mpa||Burst Pressure:||10Mpa|
|Working Medium:||Engine Oil, POE Oil, Refrigerant||Service Life:||3 Million Full-scale Cycles|
|Protection Class:||IP65||Output Voltage:||0.5-4.5VDC (adjustable Within 5V Range)|
WNK Oil Temperature Pressure Sensor,
IP65 Oil Pressure And Temp Sensor,
IP65 Oil Temperature Pressure Sensor

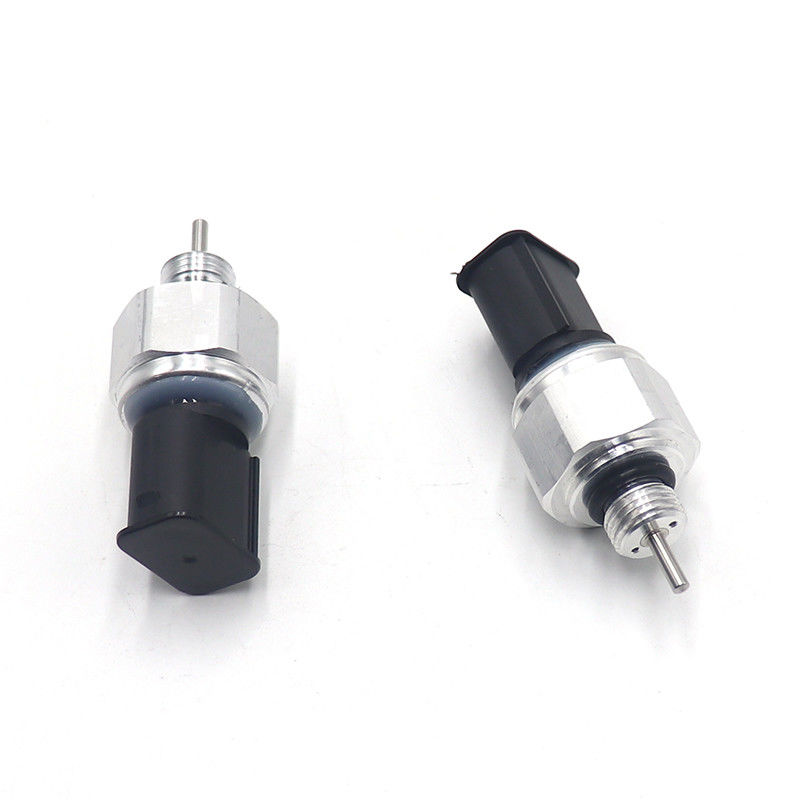

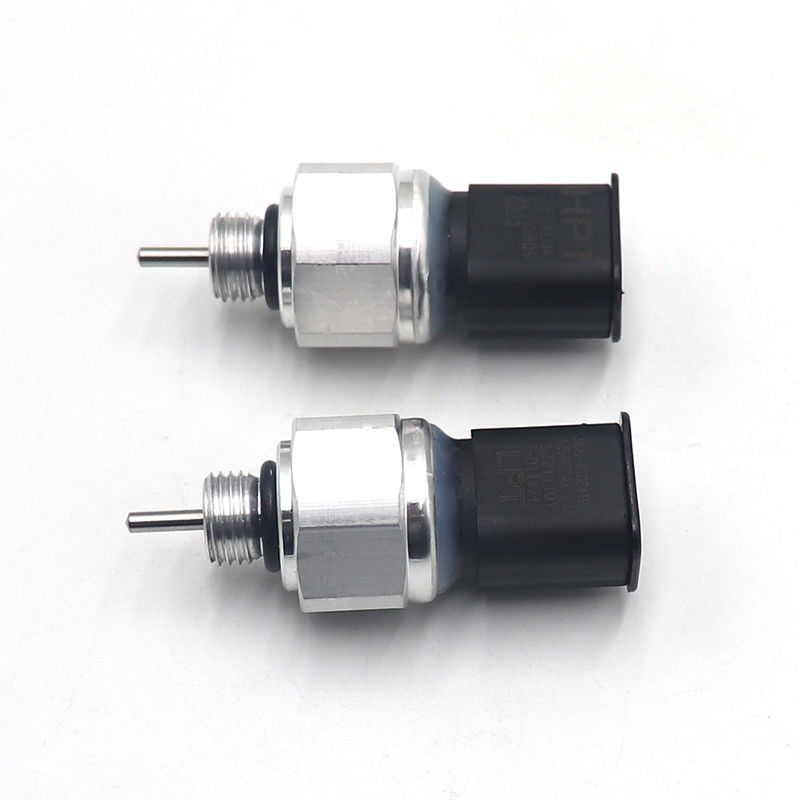

WNK 0.5-4.5V Engine Oil Temperature Pressure Sensor
0~3.6MPa Temperature Pressure Sensor
Working pressure: 0~3.6MPa (range can be adjusted)
Accuracy: ±1.0%F.S. (Linearity, Hysteresis, Repeatability)
Full error band: ±2.3%F.S. (-40℃~+135℃)
Also available in high precision version
Operating temperature: -40℃~+135℃
Storage temperature: -40℃~+150℃
Protection pressure: 5.4Mpa
Burst pressure: 10Mpa
Working medium: engine oil, POE oil, refrigerant
Service life: 3 million full-scale cycles
Vibration: 13g (100~400Hz)
Protection class: IP65
Supply voltage: 5.0±0.25VDC
Output voltage: 0.5-4.5VDC (adjustable within 5V range)
Supply current: 10mA (maximum)
Load Impedance: 10KQ (typ.)
Output response time: 3mS
Overvoltage Protection: 40VDC
Reverse Voltage: -40VDC
Short circuit protection: yes
EMC (1MHz-400MHz): 100V/m
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
