High Performance Engine Oil Pressure Temperature Sensor IP65
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK84TP |
Payment & Shipping Terms:
| Price: | $25.00-30/Pieces |
|---|---|
| Packaging Details: | paper carton or as per clients' requirement |
|
Detail Information |
|||
| Working Pressure: | 0~3.6MPa (range Can Be Adjusted) | Accuracy: | ±1.0%F.S. (Linearity, Hysteresis, Repeatability) |
|---|---|---|---|
| Operating Temperature: | -40℃~+135℃ | Storage Temperature: | -40℃~+150℃ |
| Protection Pressure: | 5.4Mpa | Burst Pressure: | 10Mpa |
| Working Medium: | Engine Oil, POE Oil, Refrigerant | Service Life: | 3 Million Full-scale Cycles |
| Protection Class: | IP65 | Output Voltage: | 0.5-4.5VDC (adjustable Within 5V Range) |
| High Light: | IP65 Oil Pressure Temperature Sensor,3.6MPa Oil Pressure Temperature Sensor,IP65 Protection IOT Pressure Sensor |
||
Product Description

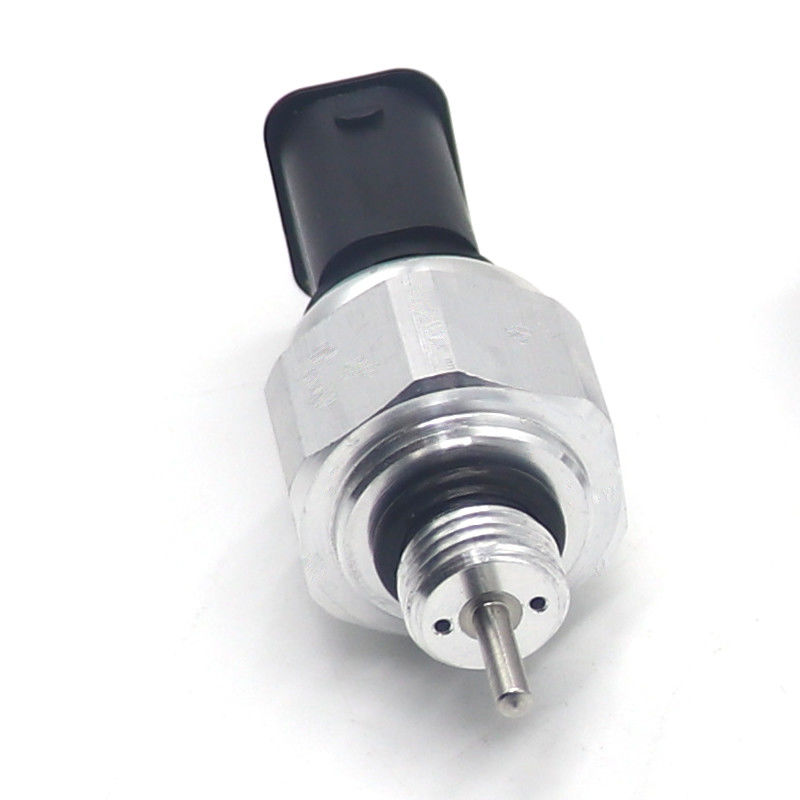

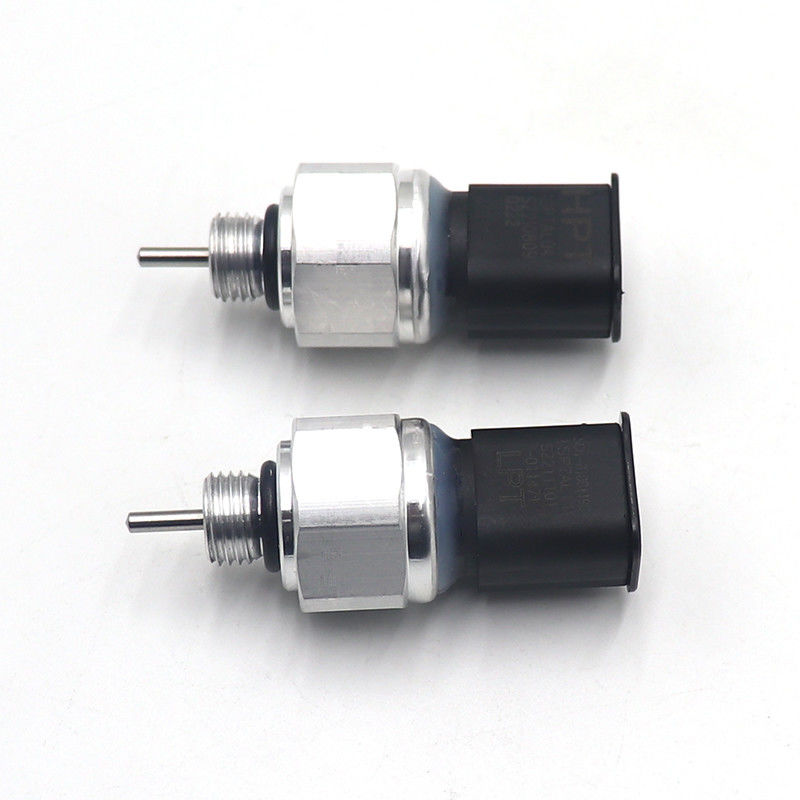

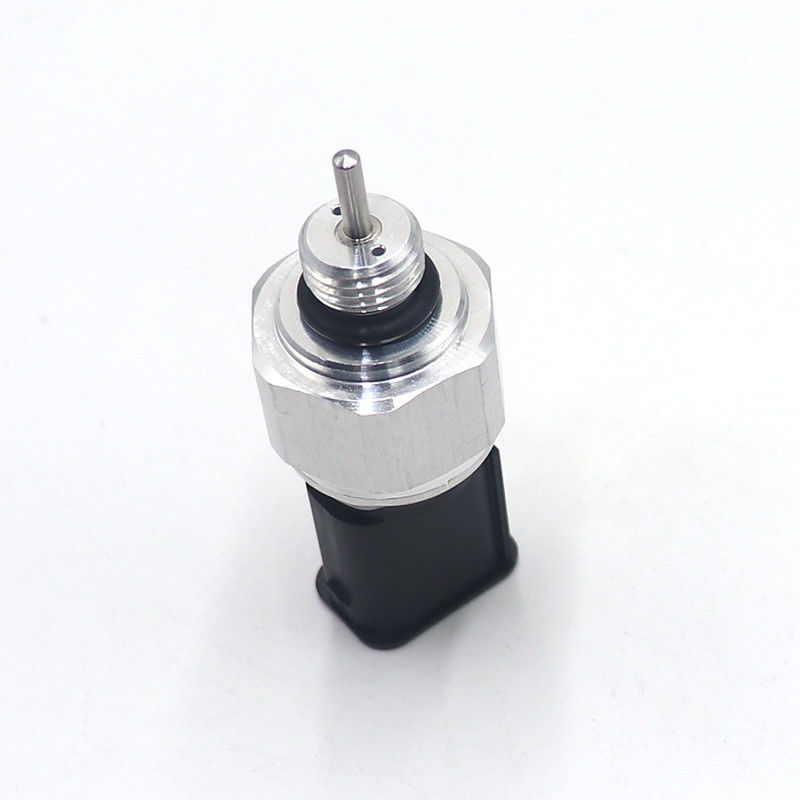

High Performance Engine Oil Pressure Temperature Sensor
WNK Engine Oil Pressure Temperature Sensor
Working pressure: 0~3.6MPa (range can be adjusted)
Accuracy: ±1.0%F.S. (Linearity, Hysteresis, Repeatability)
Full error band: ±2.3%F.S. (-40℃~+135℃)
Also available in high precision version
Operating temperature: -40℃~+135℃
Storage temperature: -40℃~+150℃
Protection pressure: 5.4Mpa
Burst pressure: 10Mpa
Working medium: engine oil, POE oil, refrigerant
Service life: 3 million full-scale cycles
Vibration: 13g (100~400Hz)
Protection class: IP65
Supply voltage: 5.0±0.25VDC
Output voltage: 0.5-4.5VDC (adjustable within 5V range)
Supply current: 10mA (maximum)
Load Impedance: 10KQ (typ.)
Output response time: 3mS
Overvoltage Protection: 40VDC
Reverse Voltage: -40VDC
Short circuit protection: yes
EMC (1MHz-400MHz): 100V/m
ESD: 15KV
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
