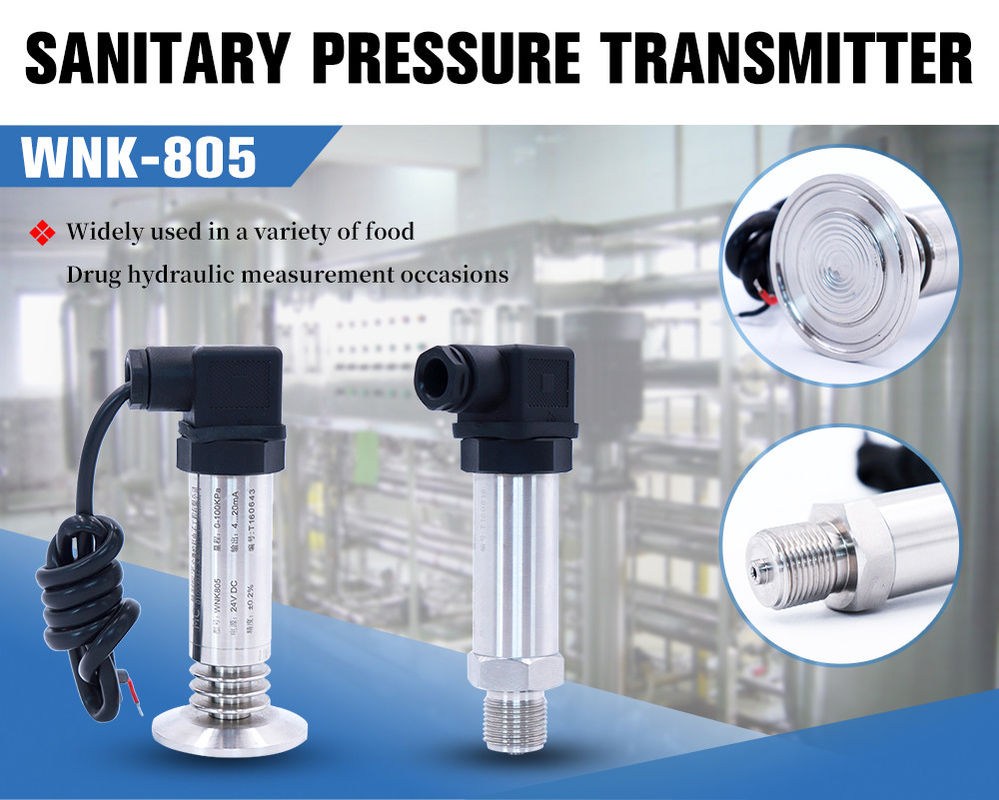

Sanitary Flush Diaphragm Pressure Transmitter 4 - 20ma

Sanitary Flush Diaphragm Pressure Transmitter 4 - 20ma

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK805

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $45.00 - $65.00/Pieces
Packaging Details: Each piece into individual carton with foam protection<br>Or as per client's request
Supply Ability: 2000 Piece/Pieces per Month hydraulic pressure regulator
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Accuracy: 0.5% FS, 0.5% FS Output Signal: 4~20mA, 1-5V
Pressure Range: -100Kpa ~ 60 MPa Operating Temperature: -20~85 ℃
Power Supply: 10.5-55V DC, 10.5-30V DC Housing Material: 304/316SS
Measured Media: Liquid, Gas, Steam Ex-proof: ExiaII CT4/CT6, ExidIICT6
Type: Diffused Silicon Pressure Transmitter Product Name: 2-Wire Signal Output Hydraulic Pressure Transmitter With LCD Display
Port: Shanghai/Ningbo
High Light:

20ma Flush Diaphragm Pressure Transmitter

,

Sanitary Flush Diaphragm Pressure Transmitter

Product Description

4-20ma Sanitary Flush Diaphragm Pressure Transmitter Price
Flush Diaphragm Pressure Transmitter





1. High performance piezoresistive silicon pressure sensor

2. Optional 4~20mA, 0~5V, 1~5V, 0~10V outputs

3. OEM, ODM & customization available

4. Stainless steel 316L housing

5. Intrinsic safety and explosion-proof, ISO9001:2015 certificates

6. High protection: IP65

7. Suitable for air, steam, water and fuel oil application

WNK805 small size pressure transmitter adopts imported high accuracy and high stability chips and excellent assembly technology, by taking precise temperature compensation, and puts circuit board in safe stainless steel housing. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.


WNK805 is widely applied in gauge or absolute pressure measurement in fields of aerospace, communication, irrigation works, oil, chemical, power, meteorology, laboratory and etc. It could also be used for measuring negative pressure, vacuum degree and etc.

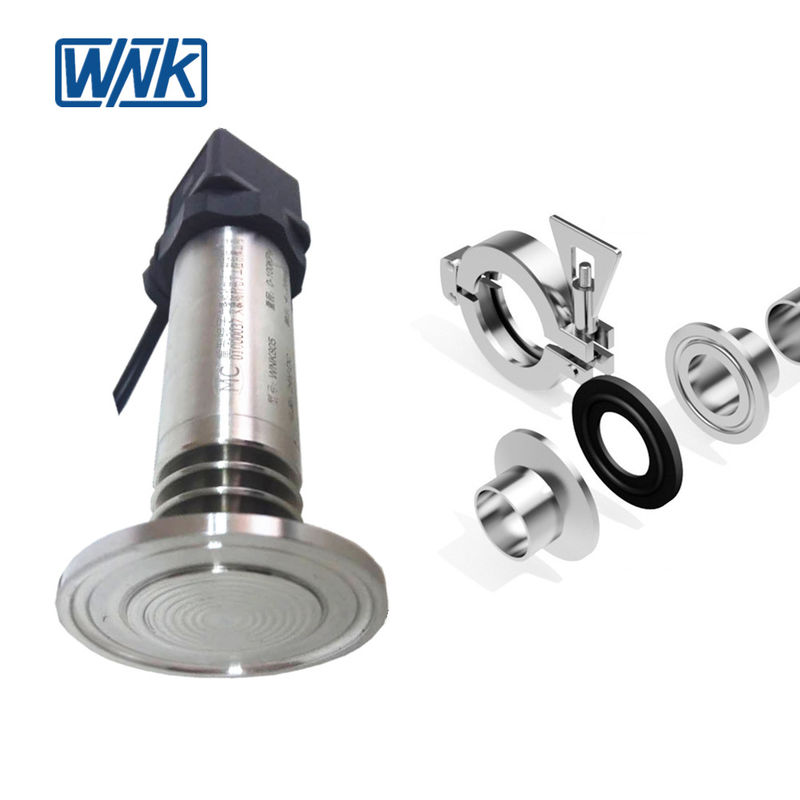

High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals
Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy
0.25%, 0.5%, 1.0%FS
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304SS, 316L
Mechanical connection
Clamp,Flush and Flange

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃



Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media






805

compact  pressure sensor.jpg

WNK805-4-20mA-Pressure-Transmitter-for-Compressor(4)

WNK805-4-20mA-Pressure-Transmitter-for-Compressor

4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter
4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
