High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK805 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $45.00 - $65.00/Pieces |
| Packaging Details: | Each piece into individual carton with foam protection<br>Or as per client's request |
| Supply Ability: | 2000 Piece/Pieces per Month hydraulic pressure regulator |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Accuracy: | 0.5% FS, 0.5% FS | Output Signal: | 4~20mA, 1-5V |
| Pressure Range: | -100Kpa ~ 60 MPa | Operating Temperature: | -20~85 ℃ |
| Power Supply: | 10.5-55V DC, 10.5-30V DC | Housing Material: | 304/316SS |
| Measured Media: | Liquid, Gas, Steam | Ex-proof: | ExiaII CT4/CT6, ExidIICT6 |
| Type: | Diffused Silicon Pressure Transmitter | Product Name: | 2-Wire Signal Output Hydraulic Pressure Transmitter With LCD Display |
| Port: | Shanghai/Ningbo | ||
| High Light: | High Temperature Flush Diaphragm Pressure Transmitter,Sanitary Application Flush Diaphragm Pressure Transmitter |
||
Product Description

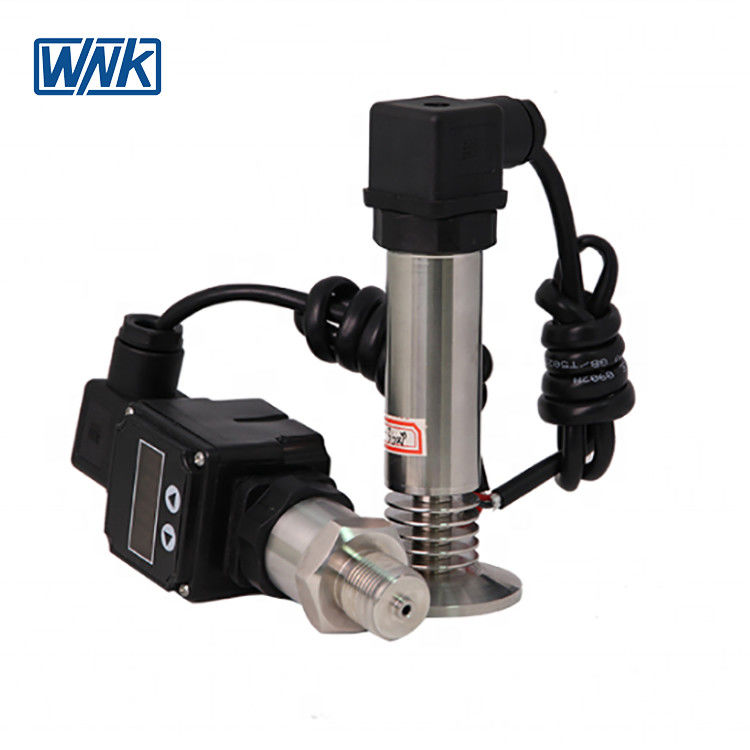

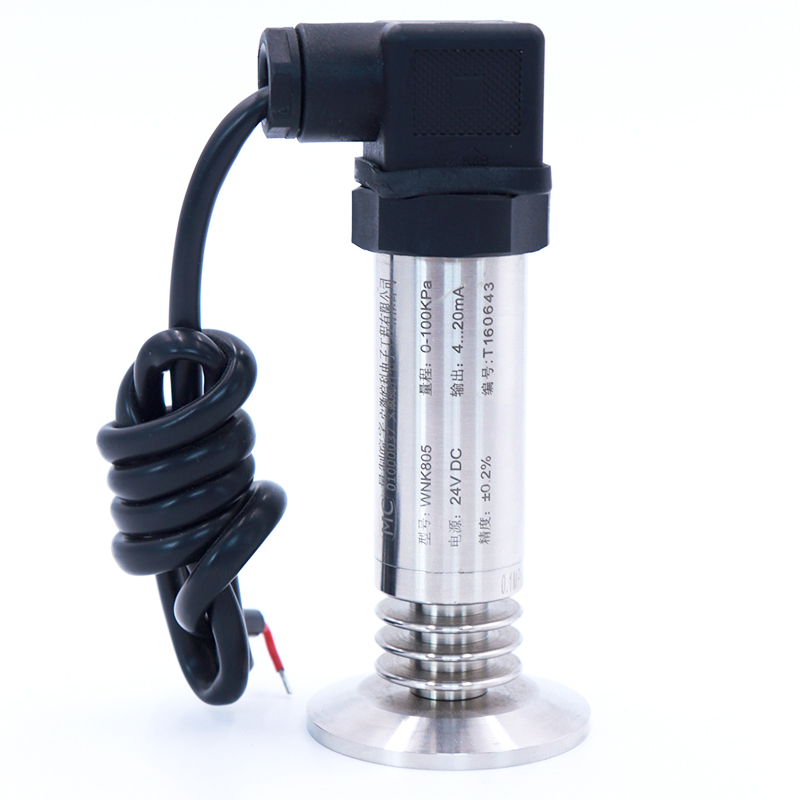

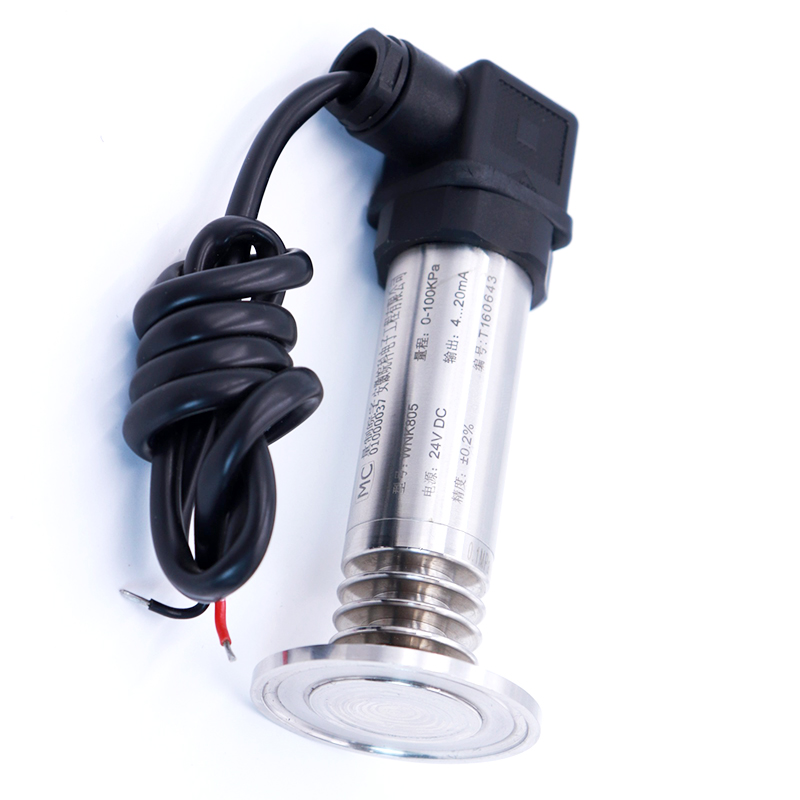

WNK High Temperature Flush Diaphragm Pressure Transmitter For Sanitary Application
wnk Flush Diaphragm Pressure Transmitter
Specifications

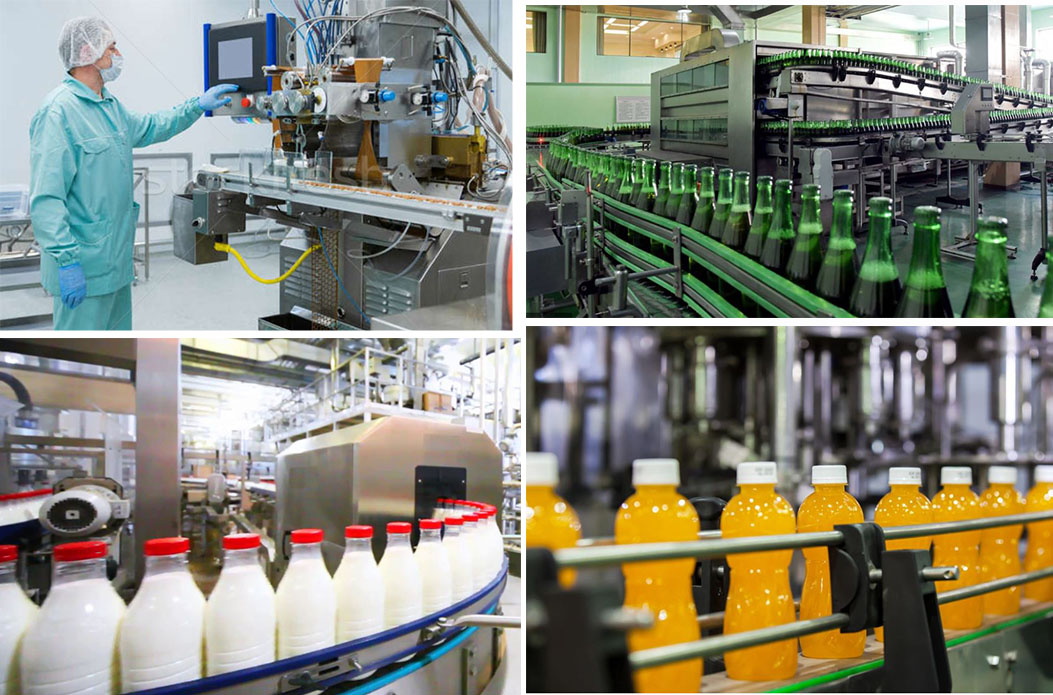

The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

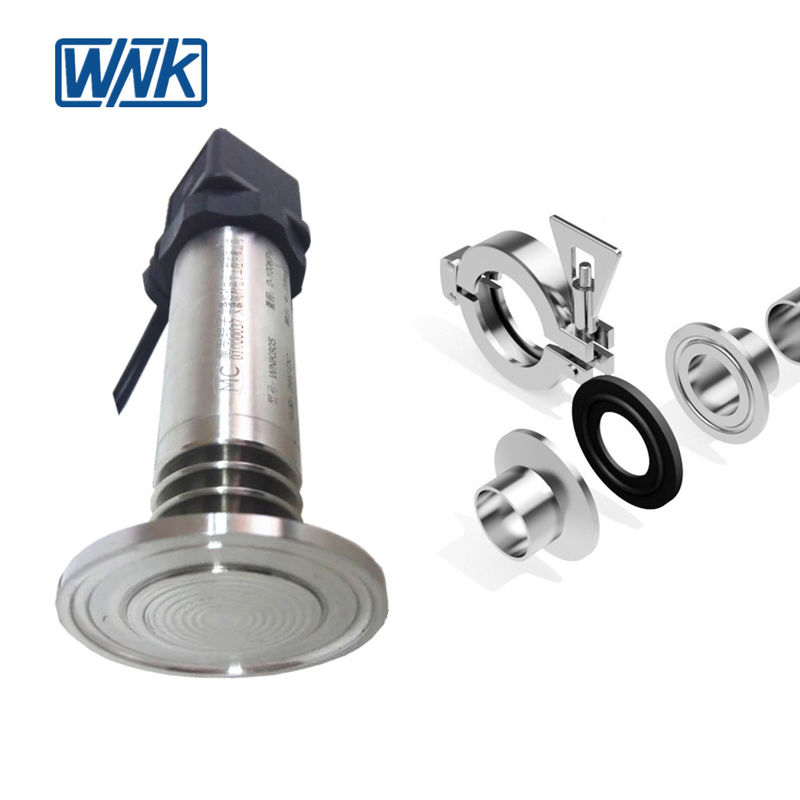

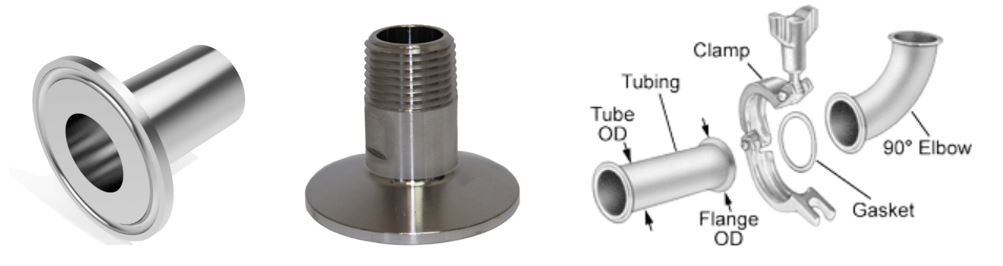

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.
It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.
Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.
It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.
| Features |
| - Standard ranges from vacuum to 60Mpa |
| - Accuracy up to ±0.25% |
| - 4-20 mA 2-wire output signal, others available |
| - Highly resistant to pressure spikes and vibration |
| - Stainless steel case and wetted parts |
| - Full range of process and electrical connections |
| - Assemble to diaphragm seals for special applications |
| - Suitable for gas, liquid, steam pressure measurement |
| - Intelligent digital circuit with precise temperature characteristic compensation |
| - Tantalum sensor contact for option for pressure measurement with corrosive media |

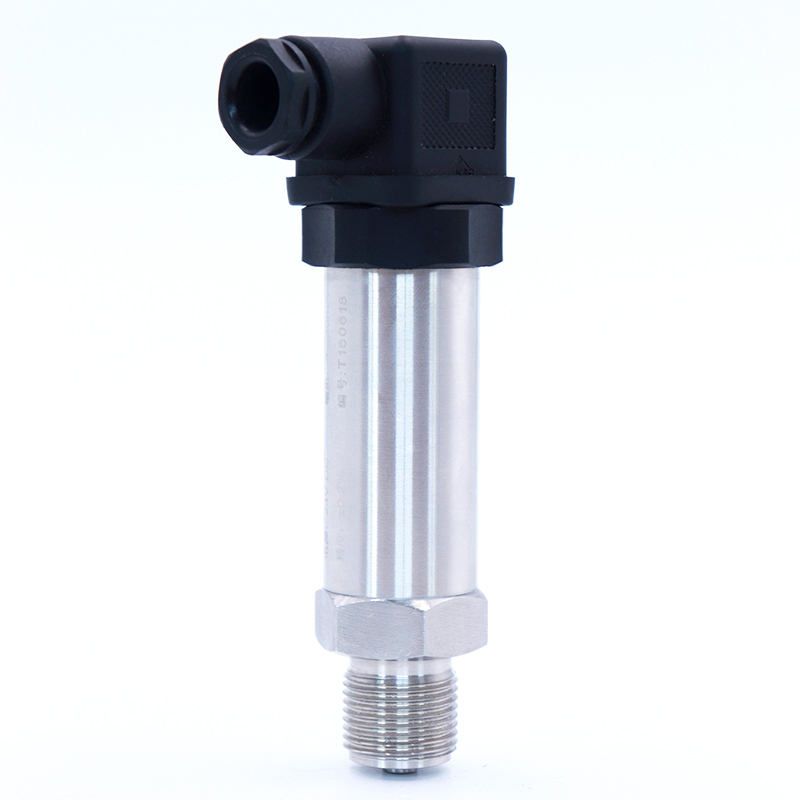

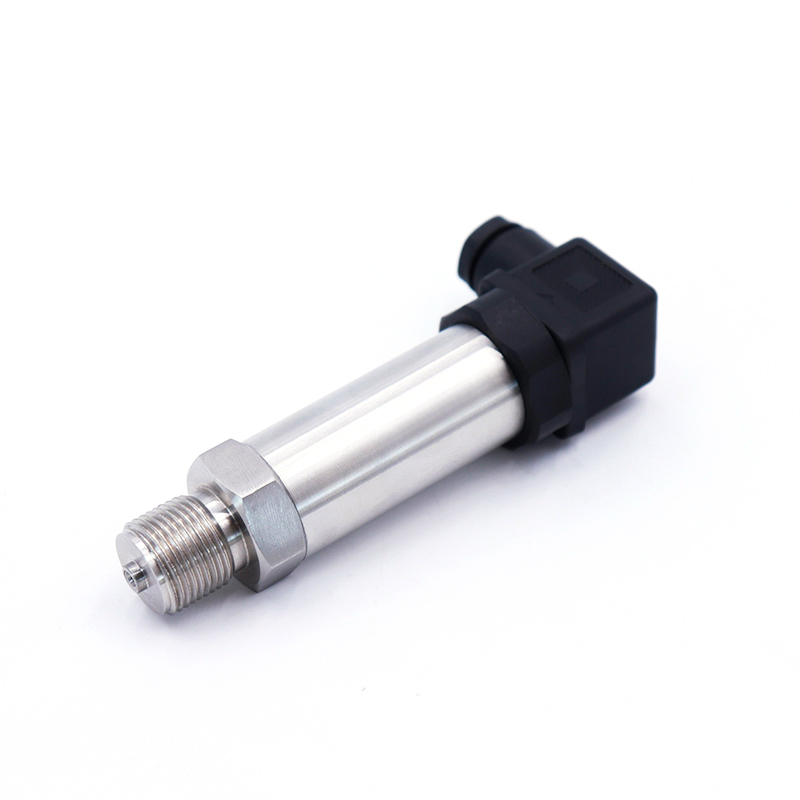

Product Show
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
