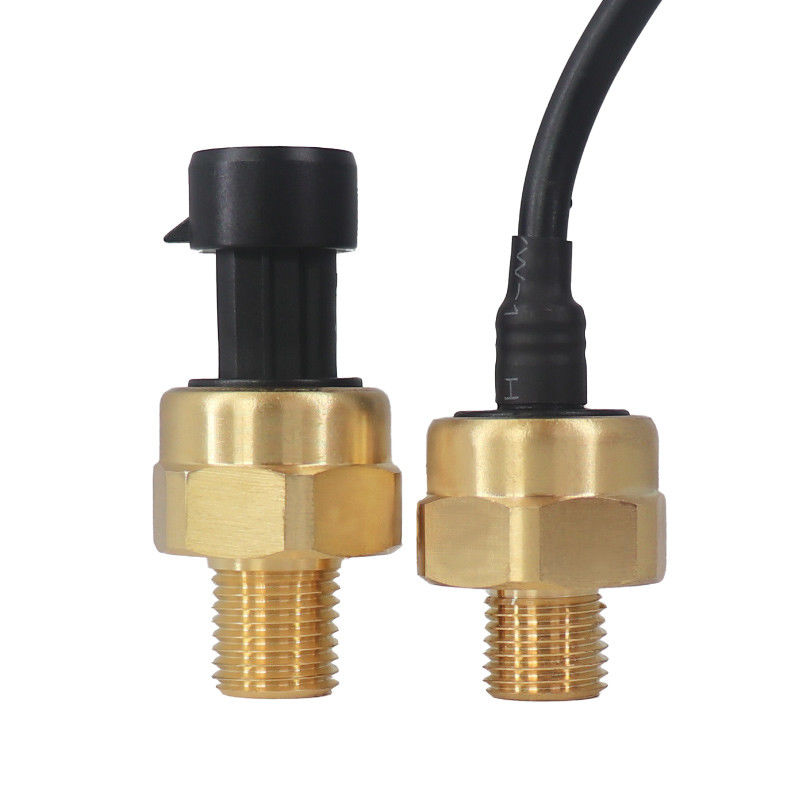

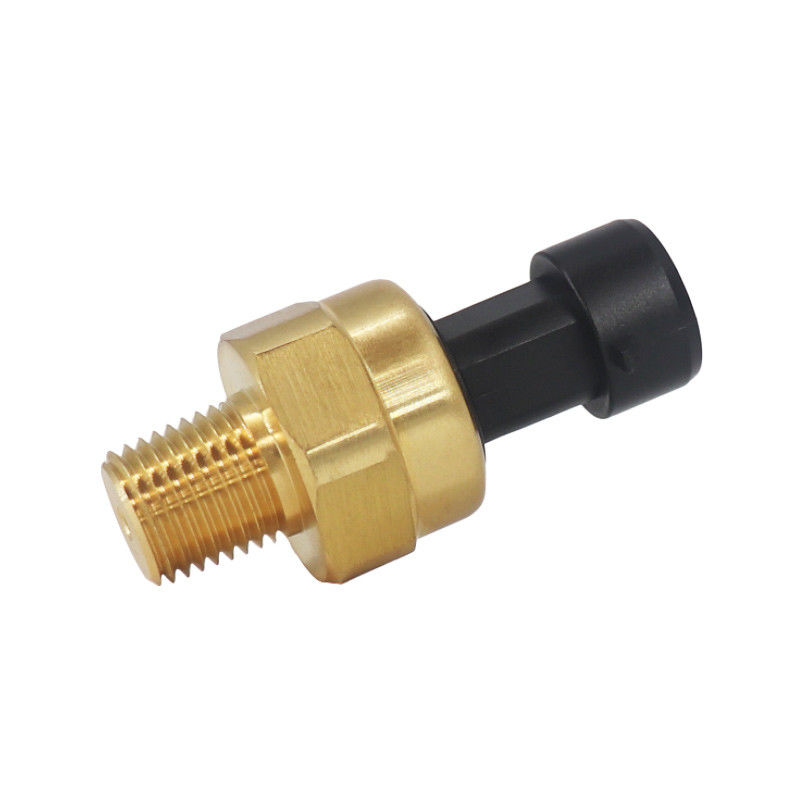

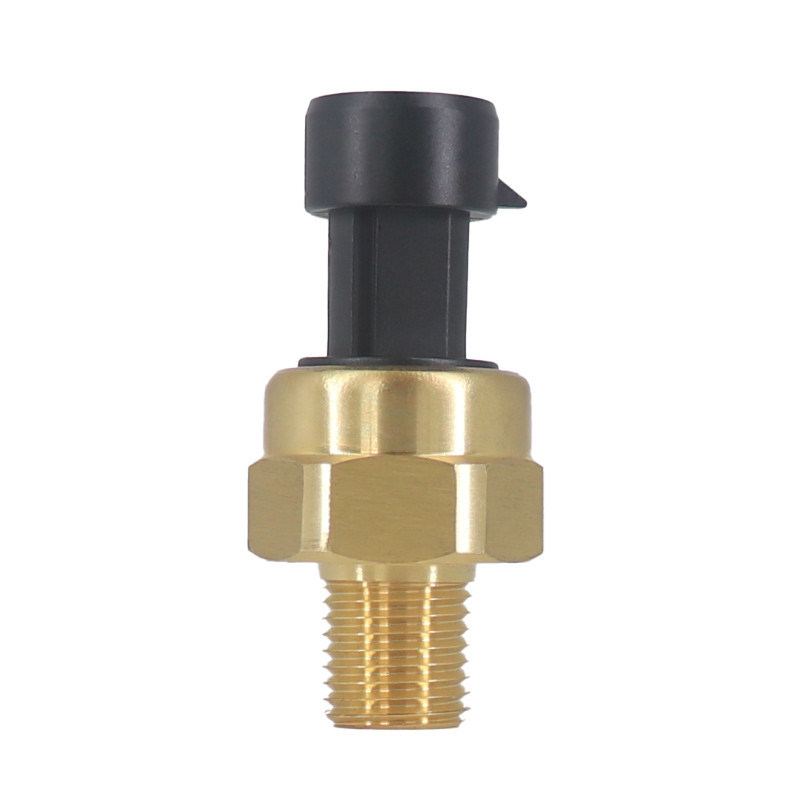

WNK 0 - 10bar 1/4NPT Brass Pressure Sensor Air Water Oil
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK83mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $6.50/Sets |
Packaging Details: | standard export carton box for WNK83MA pressure sensor or as per your |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 5000/ Piece/ Month |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Accuracy: | ±1%F.S. | Measured Media: | Liquid, Gas |
Output: | 0.5-4.5VDC | Input: | 4.75-5.2VDC |
Storage Temperature: | -40~110°C | Work Temperature: | -20~70°C |
Electrical Connection: | Packard Or Cable Outlet | Mechanical Connection: | 1/4NPT Or G1/4 |
IP Rate: | IP65 | Housing Material: | Brass |
High Light: | 10bar Electronic Water Pressure Sensor,Water Pressure Sensor Brass Housing,Electronic Water Pressure Sensor 1/4NPT |
Product Description
WNK 0-10bar 1/4NPT Brass Pressure Sensor Air Water Oil
0-10bar Brass Pressure Sensor Air Water Oil
Specification
WNK83MA Gauge/Sealing Pressure Sensor
|
|
|
Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-10bar, 0-20bar
|
|
Pressure measurment
|
Gauge Pressure, Sealing pressure
|
|
Output
|
0.5-4.5V
|
|
Power supply
|
4.75-5.25VDC
|
|
Supply current
|
15mA Max
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
±1%F.S.
|
|
Total error band
|
±3%
|
|
Max pressure
|
2 times
|
|
Burst pressure
|
3 times
|
|
power(electrical) connection
|
Parkard connector, Direct cable outlet(50cm)
|
|
Process connection
|
G1/4, 1/4NPT
|
|
Housing material
|
Brass
|
|
Protection
|
IP65
|
|
Working temperature
|
-20~70℃
|
|
Storge temperature
|
-40~110℃
|
Application
WNK83MA is solution for below applications: •Pressure measurement of gas or liquid in various areas; •Liquid level measurement; •Integrated in a variety of user-defined solutions; •Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

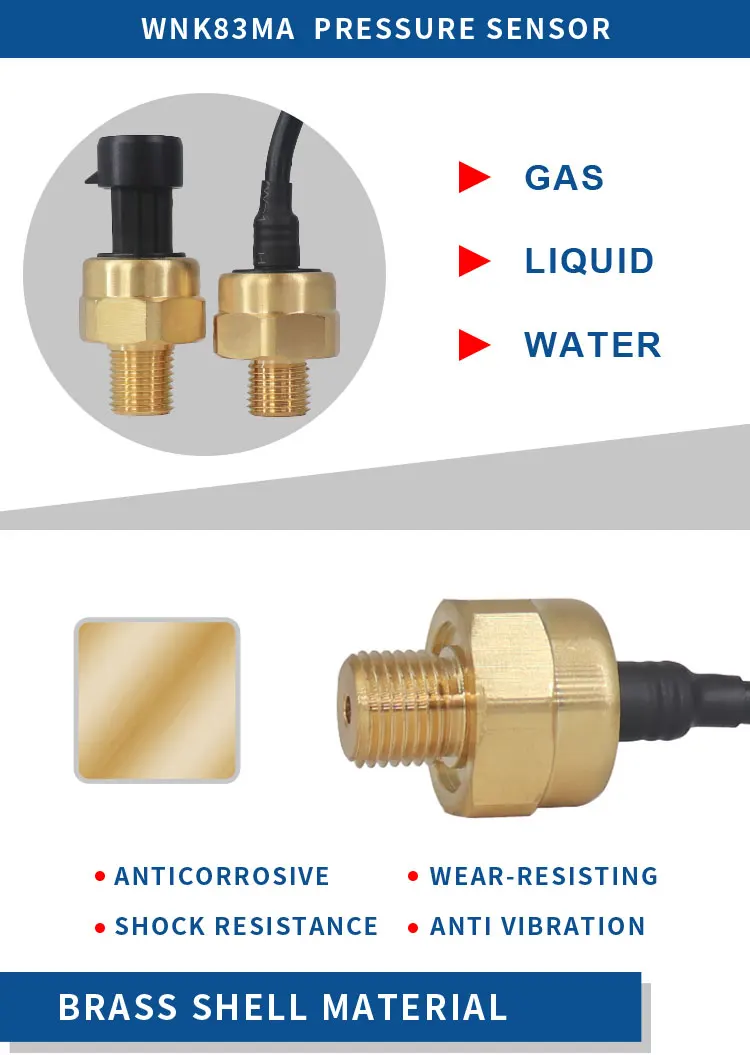

WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.


Applicable media | Liquid, gas and steam |
Pressure range | 0-2000kPa |
Cell | Ceramic capacitive pressure sensor |
Pressure measurment | Gauge Pressure, Sealing pressure |
Output | 0.5-4.5V |
Power supply | 4.75-5.25 VDC |
Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
Working temperature | -20~70ºC |
Ambient temperature | -40~110ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
Electrical connection | Packard/ Cable Outlet |
Mechanical connection | 1/4 NPT, G1/4 |
Housing material | Brass |













FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
