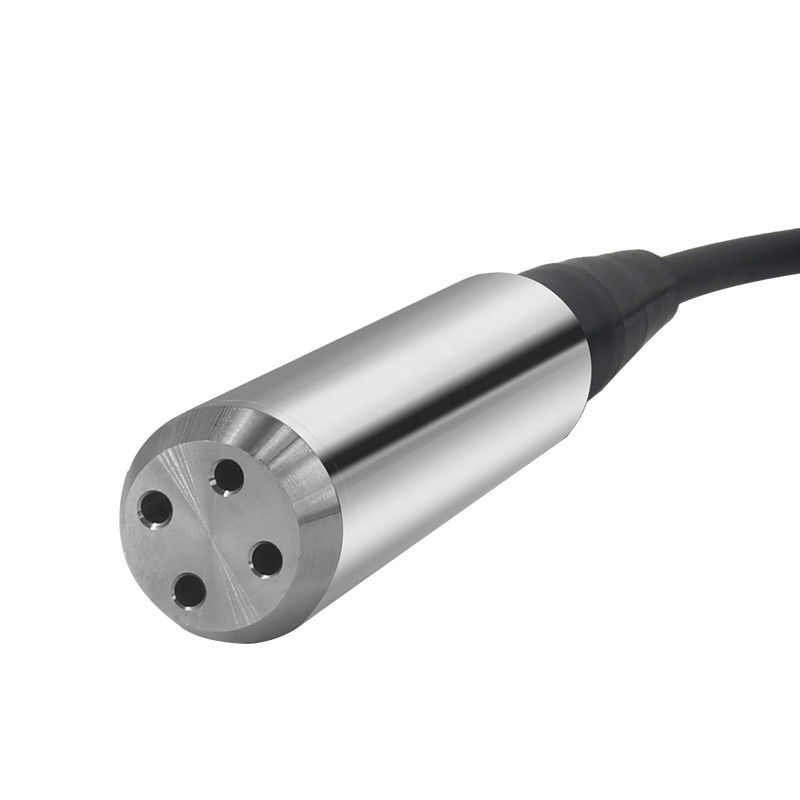

Submersible 4 - 20mA 0.5 - 4.5V Water Level Transmitter With RS485
|Place of Origin:||Anhui, China|
|Model Number:||WNK 8010|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Price:||$35.00 - $50.00/Pieces|
|Delivery Time:||5-8 work days|
|Payment Terms:||T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||3000 Piece/Pieces per Month|
|Warranty:||1 Year||Customized Support:||OEM, ODM|
|Output Signal:||4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V||Accuracy:||0.2%FS, 0.5%FS|
|Pressure Type:||Gauge||Power Supply:||12~36VDC|
|Housing Material:||304SS, 316L||Measuring Medium:||Rainwater, Drinking Water,Wastewater, Sewage, Oil|
|Overload:||1.5 Times||Working Temperature:||-40~85 ℃|
RS485 Water Level Transmitter,
4.5V Water Level Transmitter,
IP68 Protection Water Level Transmitter
Submersible 4-20mA 0.5-4.5V Water Level Transmitter With RS485
4-20mA 0.5-4.5V Water Level Transmitter
Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element, With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or bsolute pressure of measurement medium to standard voltage or current signal. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
