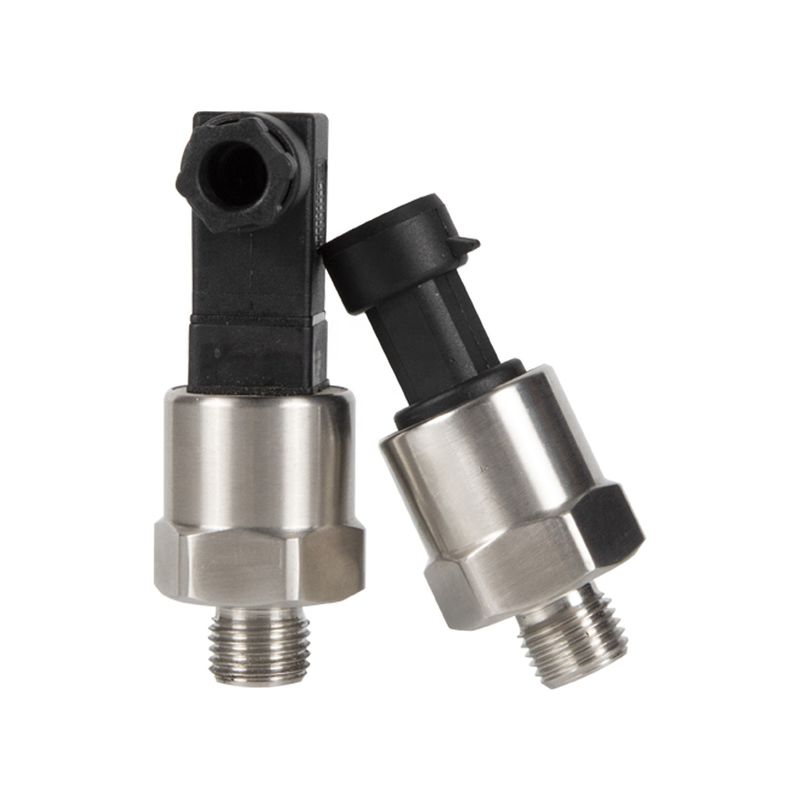

Food Grade 304SS Housing Relative Pressure Sensor For Coffee Machine
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Certification: | CE, ROHS |
Model Number: | WNK80mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | $12.00 - $19.00/Pieces |
Packaging Details: | each product in one inner paper box with protection; |
Supply Ability: | 2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Measured Media: | Liquid, Gas And Steam | Output Signals: | 4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C |
Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | 0-60bar |
Protection Class: | IP65 | Ex-proof: | ExiaII CT4/CT6, ExidIICT6 |
Housing Material: | 304SST | Power Supply: | 24VDC/12VDC/5VDC/3.3V |
Electrical Connection: | Packard, M12, DIN43650, Cable | Keywords: | Pressure Sensor/ Air Pressure Sensor |
Port: | Shanghai Port | ||
High Light: | 4.5V Relative Pressure Sensor,20mA Relative Pressure Sensor,304SS Housing Electronic Water Pressure Sensor |
Product Description
4-20ma 0.5-4.5V Food Grade Housing Pressure Transmitters For Coffee Machine Pressure Sensors
WNK Coffee Machine Pressure Sensors
Mems Assembled 0.5-4.5V 0-10V Relative Pressure Sensor for Coffee Machine
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 100 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Input | |
Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
Pressure Range | 0-6Mpa |
Accuracy | 1% |
Power Supply | 5VDC, 12-30VDC |
Measuring Media | Gas, Steam, Liquid, Oil |
Output | |
Analog | 4-20mA, 0.5-4.5V / 1-5V / 0-5V |
Digital | I2C |
Operation Condition and Temperature | |
Compensation Temperature | -20...75℃ |
Storage Temperature | -45 ... 85℃ |
Ambient Temperature | -45 ... 85℃ |
Medium Temperature | -40 ... 125℃ |
Material and Protection | |
Ingress Protection | IP65, IP67 |
Housing Material | 304SS, 316L |
>>> Applications |
- Automobile, Compressor and Refrigeration Industry |
- Engineering machinery |
- Pressure control and monitor |
- Water treatment system |
- Hydraulic and Pneumatics |
- HAVC and BAS Control |
- Pump, fitness equipment, household appliances |
- Factory Automation |
- Fluid Control and Instrumentation Systems |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
