Diffused Silicon Electronic Water Pressure Sensor For Air Gas
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Certification: | CE, ROHS |
Model Number: | WNK81mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | $12.00 - $19.00/Pieces |
Packaging Details: | each product in one inner paper box with protection; |
Supply Ability: | 2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor |
Detail Information |
|||
Accuracy: | 0.5% | Output Signal: | 4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Other |
---|---|---|---|
Operating Temperature: | -40~85 ℃ | Pressure Range: | -100Kpa ~ 60MPa |
Power Supply: | 24VDC 12VDC 5VDC 8-30VDC | Material: | 304 SS, 316L |
Media: | Water, Liquid, Gas, Steam, Oil, Lubricant | Type: | Gauge, Absolute, Seal, Vacuum |
High Light: | 60Mpa Electronic Water Pressure Sensor,Silicon Electronic Water Pressure Sensor,I2C Digital Water Pressure Sensor |
Product Description

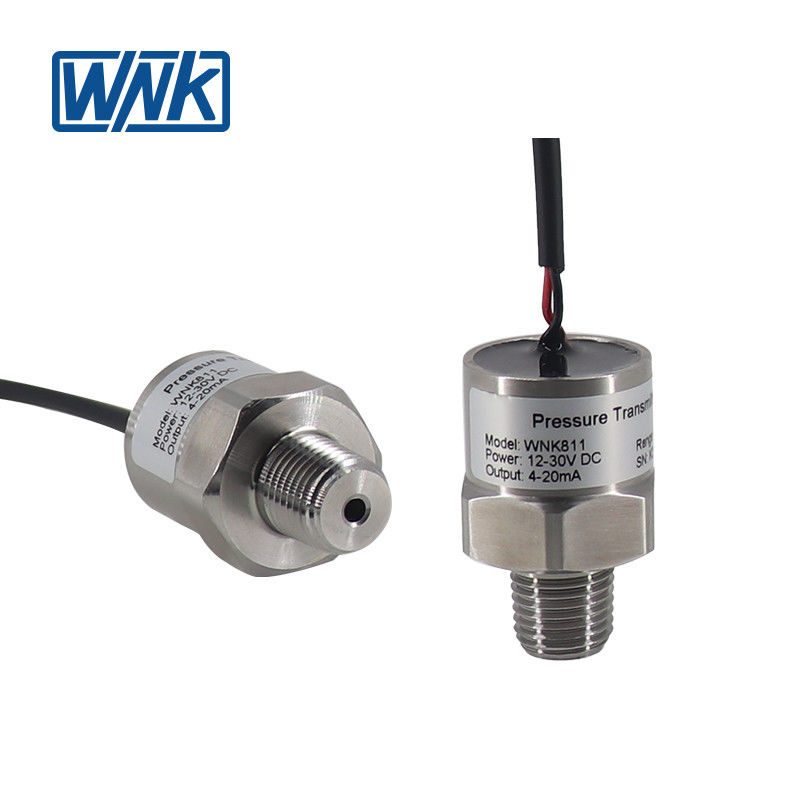

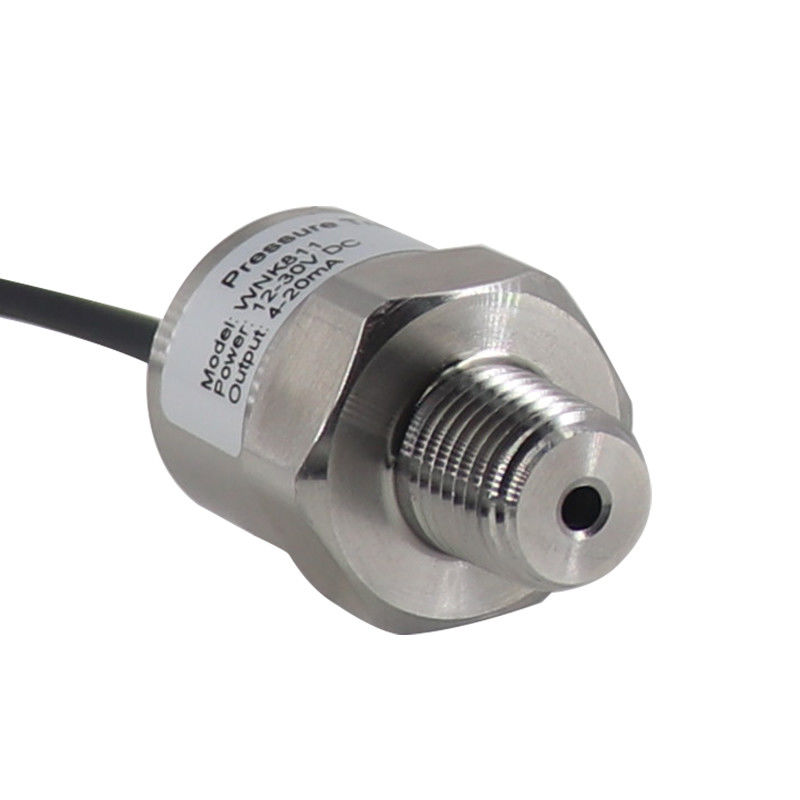

WNK811 Diffused Silicon Water Pressure Sensor For Air Gas
Pressure sensor is mainly used to complete the closed-loop control of force in hydraulic system. When the control spool suddenly moves, in a very short time will form several times the system operating pressure peak pressure. In typical walking machinery and industrial hydraulics, any pressure sensor can be quickly destroyed if such extreme conditions are not considered in the design.It is necessary to use impact resistant pressure sensor. There are two main methods for pressure sensor to achieve impact resistance. One is strain exchange type chip, the other is external coils.In addition, there is another reason that the pressure sensor is also subjected to continuous pressure pulsation from the hydraulic pump.
WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Specifications
Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
Pressure Range | -1 - 60Mpa |
Accuracy | 0.5%FS |
Power Supply | 5VDC, 12-32VDC |
Measuring Media | Gas, Steam, Liquid, Oil |
Output | |
Analog | 4-20mA, 0.5-4.5V, Other |
Digital | I2C, |
Operation Condition and Temperature | |
Compensation Temperature | -40...75℃ |
Medium Temperature | -45 ... 85℃ |
Storage Temperature | -45 ... 85℃ |
Material and Protection | |
Ingress Protection | IP65, IP67 |
Housing Material | 304SS, 316L |
- Automobile, Compressor and Refrigeration Industry |
- Engineering machinery |
- Pressure control and monitor |
- Water treatment system |
- Hydraulic and Pneumatics |
- HAVC and BAS Control |
- Pump, fitness equipment, household appliances |
- Factory Automation |
- Fluid Control and Instrumentation Systems |
Pressure Port
