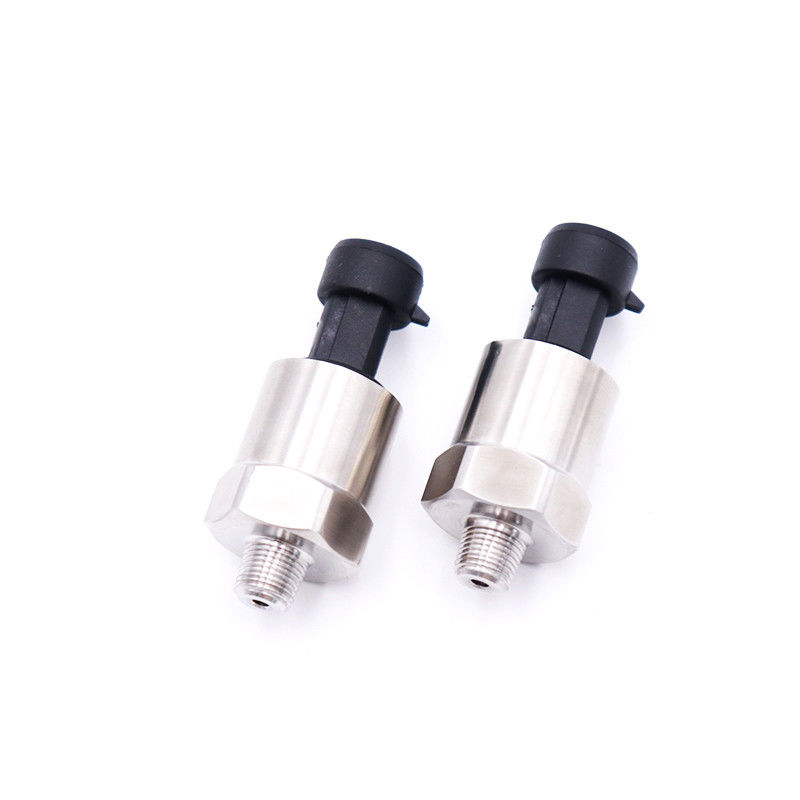

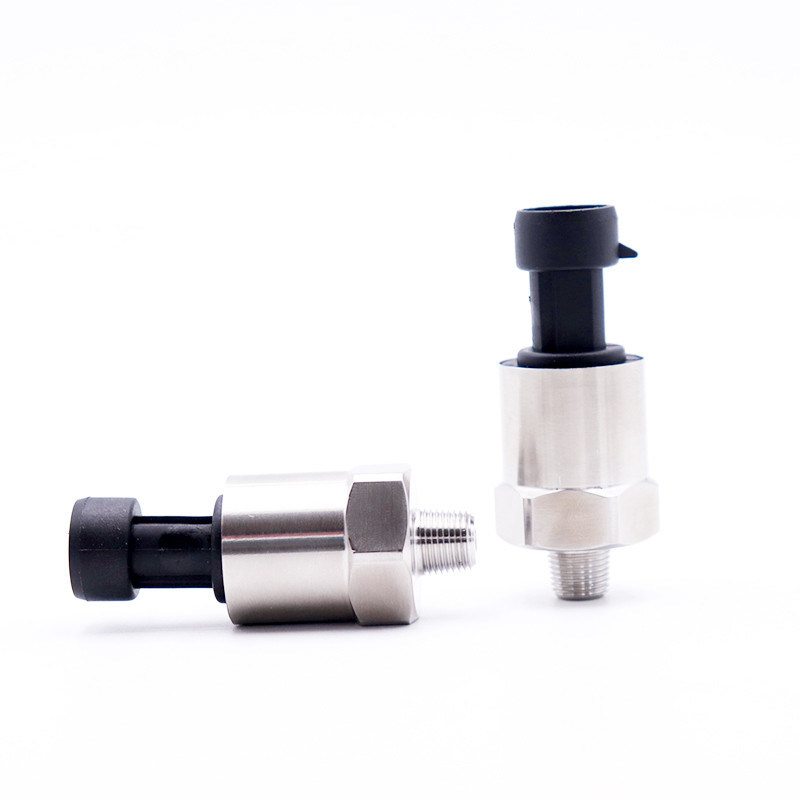

10 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 304SS 4-20mA I2C

10 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 304SS 4-20mA I2C

20mA Hydraulic Pressure Sensor

304SS Hydraulic Pressure Sensor

304SS Pneumatic Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

CE, ROHS

Model Number:

WNK81mA

Contact Us
Request A Quote
Product Details
Accuracy:
0.5% , 1.0% FS
Output Signal:
4- 20mA, 0.5-4.5V, 0-5V, 1-5V, I2c, Other
Operating Temperature:
-40~85 ℃
Pressure Range:
-100Kpa ~ 60MPa
Power Supply:
24VDC 12VDC 5VDC 8-30VDC
Material:
304 SS, 316L
Media:
Water, Liquid, Gas, Steam, Oil, Lubricant
Type:
Gauge, Absolute, Seal, Vacuum
Highlight:

20mA Hydraulic Pressure Sensor

,

304SS Hydraulic Pressure Sensor

,

304SS Pneumatic Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
$12.00 - $19.00/Pieces
Packaging Details
each product in one inner paper box with protection;
Supply Ability
2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
Product Description

Mens 10 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 4-20mA I2C 0-5V Output

Pneumatic Hydraulic Pressure Sensor 4-20mA I2C 0-5V Output



Pressure sensor is mainly used to complete the closed-loop control of force in hydraulic system. When the control spool suddenly moves, in a very short time will form several times the system operating pressure peak pressure. In typical walking machinery and industrial hydraulics, any pressure sensor can be quickly destroyed if such extreme conditions are not considered in the design.It is necessary to use impact resistant pressure sensor. There are two main methods for pressure sensor to achieve impact resistance. One is strain exchange type chip, the other is external coils.In addition, there is another reason that the pressure sensor is also subjected to continuous pressure pulsation from the hydraulic pump.



10 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 304SS 4-20mA I2C 010 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 304SS 4-20mA I2C 110 Bar 100 Bar Pneumatic Hydraulic Pressure Sensor 304SS 4-20mA I2C 2



Certification

 3




FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
