Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output

Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK83mA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $6.50/Sets
Packaging Details: standard export carton box for WNK83MA pressure sensor or as per your
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000/ Piece/ Month
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Accuracy: ±1%F.S. Measured Media: Liquid, Gas
Output: 0.5-4.5VDC Input: 4.75-5.2VDC
Storage Temperature: -40~110°C Work Temperature: -20~70°C
Electrical Connection: Packard Or Cable Outlet Mechanical Connection: 1/4NPT Or G1/4
IP Rate: IP65 Housing Material: Brass
High Light:

Brass Refrigerant Pressure Sensor

,

HVAC Refrigerant Pressure Sensor

,

4.5V Output Refrigerant Pressure Sensor

Product Description

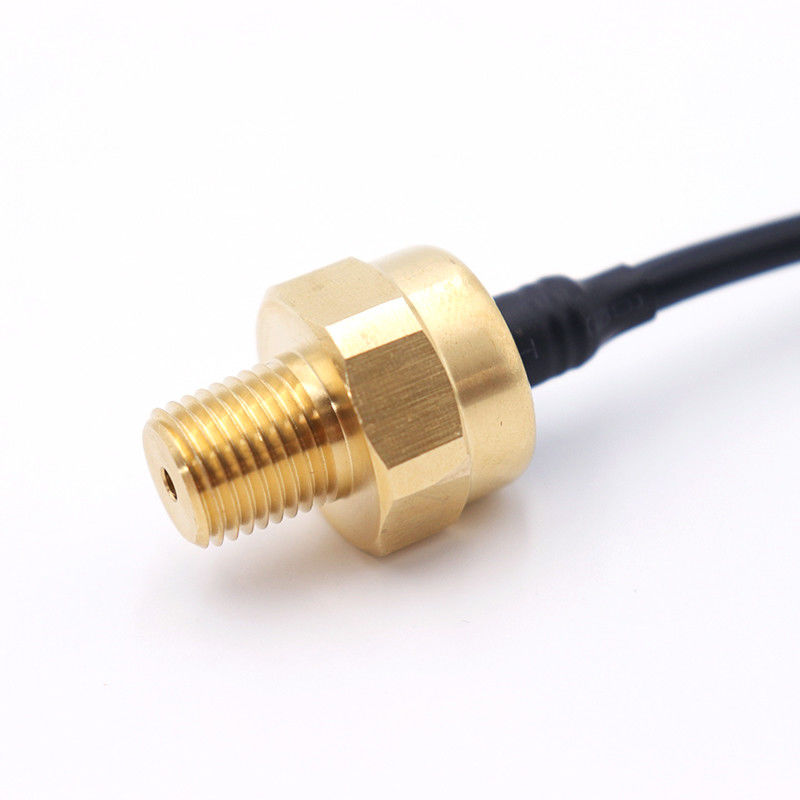

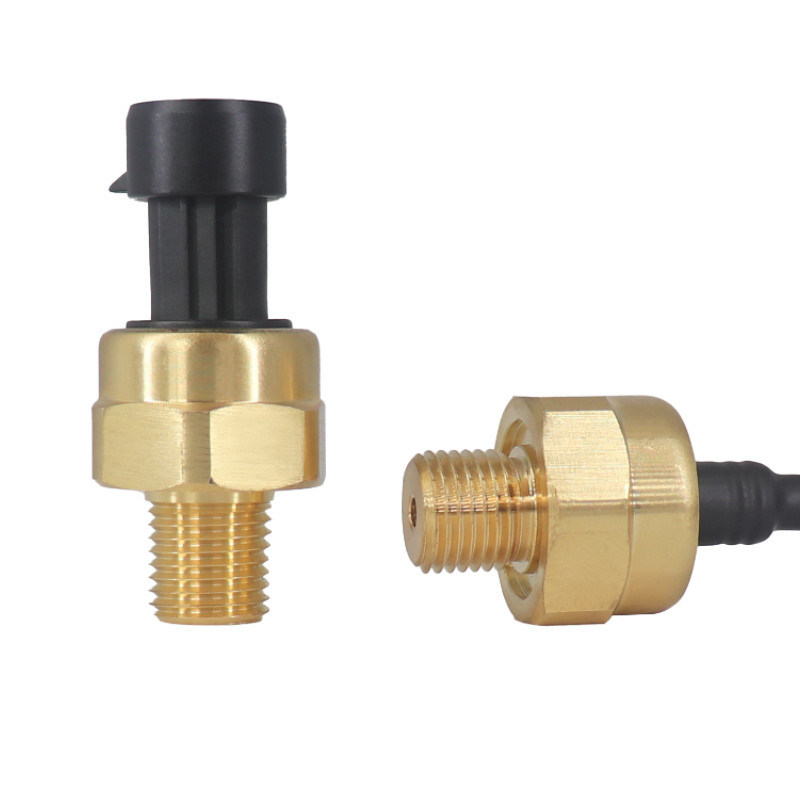

0.5-4.5V Output Brass Pressure Sensor For Refrigerant HVAC Application

WNK83MA Gauge/Sealing Pressure Sensor
Applicable media Liquid, Gas
Pressure range 0-10bar, 0-20bar
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25VDC
Supply current 15mA Max
Accuracy(linearity,Hysteresis and Repeatability) ±1%F.S.
Total error band ±3%
Max pressure 2 times
Burst pressure 3 times

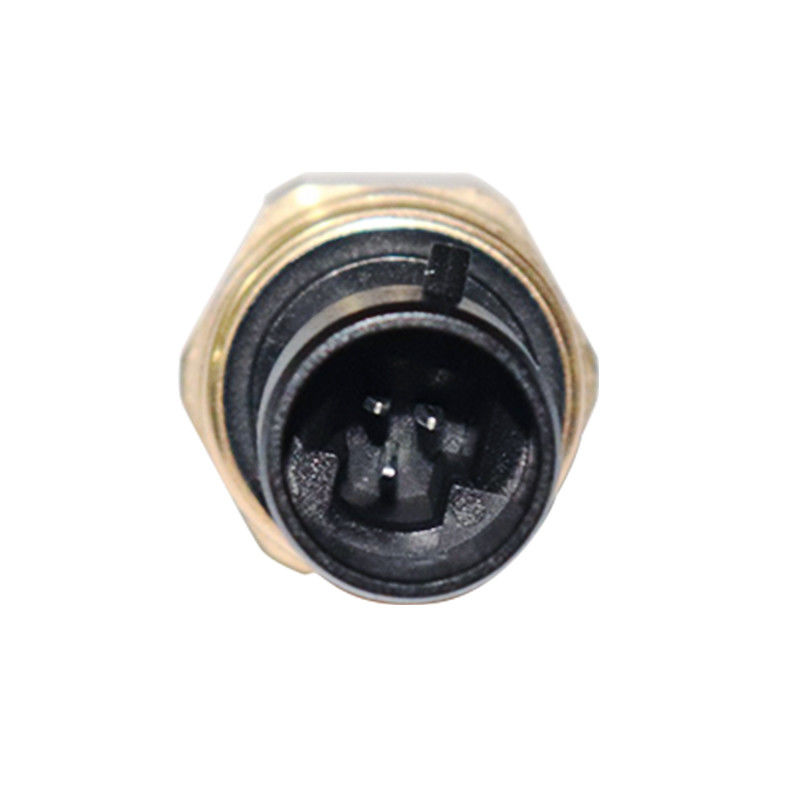

power(electrical) connection Parkard connector, Direct cable outlet(50cm)
Process connection G1/4, 1/4NPT
Housing material Brass
Protection IP65
Working temperature -20~70℃
Storge temperature -40~110℃

Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 0
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 1



Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 3






Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 5
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 7
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 10
Brass Pressure Sensor For Refrigerant HVAC Application 0.5V 4.5V Output 12
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
