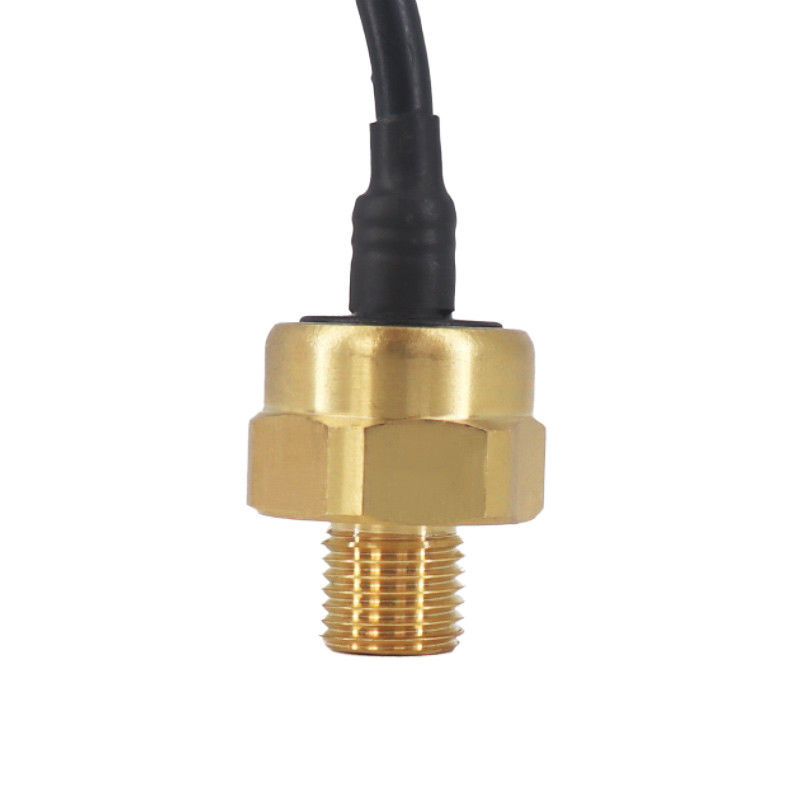

0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

IP65 Ceramic Capacitive Pressure Sensor

Brass Ceramic Capacitive Pressure Sensor

Ceramic Capacitive Electronic Water Pressure Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK83mA

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Accuracy:
±1%F.S.
Measured Media:
Liquid, Gas
Output:
0.5-4.5VDC
Input:
4.75-5.2VDC
Storage Temperature:
-40~110°C
Work Temperature:
-20~70°C
Electrical Connection:
Packard Or Cable Outlet
Mechanical Connection:
1/4NPT Or G1/4
IP Rate:
IP65
Housing Material:
Brass
Highlight:

IP65 Ceramic Capacitive Pressure Sensor

,

Brass Ceramic Capacitive Pressure Sensor

,

Ceramic Capacitive Electronic Water Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$6.50/Sets
Packaging Details
standard export carton box for WNK83MA pressure sensor or as per your
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000/ Piece/ Month
Product Description

0.5-4.5V Low Cost Brass Ceramic Capacitive Pressure Sensor For Liquid Gas

WNK83MA Gauge/Sealing Pressure Sensor
Applicable media Liquid, Gas
Pressure range 0-10bar, 0-20bar
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25VDC
Supply current 15mA Max
Accuracy(linearity,Hysteresis and Repeatability) ±1%F.S.
Total error band ±3%
Max pressure 2 times
Burst pressure 3 times
power(electrical) connection Parkard connector, Direct cable outlet(50cm)
Process connection G1/4, 1/4NPT
Housing material Brass
Protection IP65
Working temperature -20~70℃
Storge temperature -40~110℃
Application
WNK83MA is solution for below applications: •Pressure measurement of gas or liquid in various areas; •Liquid level measurement; •Integrated in a variety of user-defined solutions; •Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 0
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 2



High Specific Performance Hvac 0.5-4.5V Brass Water Pressure Sensor For Air Gas
High Specific Performance Hvac 0.5-4.5V Brass Water Pressure Sensor For Air Gas
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 6
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 7
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 8
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 9
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 10

High Specific Performance Hvac 0.5-4.5V Brass Water Pressure Sensor For Air Gas
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 13
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 15
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 18
0.5V 4.5V Brass Ceramic Capacitive Pressure Sensor For Liquid Gas 20
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
