Hvac Brass Housing Electronic Water Pressure Sensor For Air Gas 0.5V 4.5V
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK83mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $6.50/Sets |
Packaging Details: | standard export carton box for WNK83MA pressure sensor or as per your |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 5000/ Piece/ Month |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Accuracy: | ±1%F.S. | Measured Media: | Liquid, Gas |
Output: | 0.5-4.5VDC | Input: | 4.75-5.2VDC |
Storage Temperature: | -40~110°C | Work Temperature: | -20~70°C |

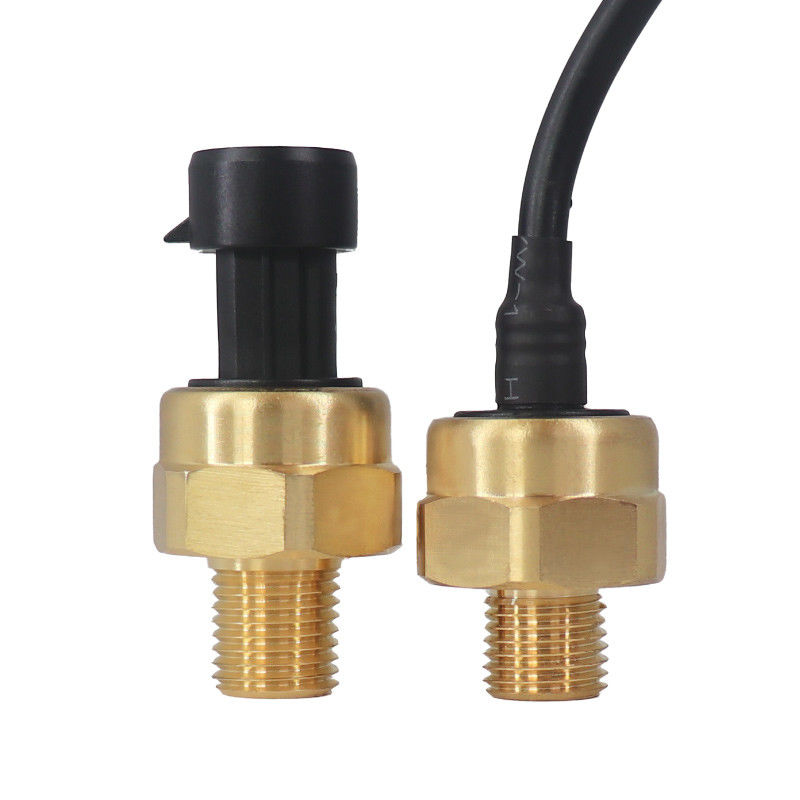

Electrical Connection: | Packard Or Cable Outlet | Mechanical Connection: | 1/4NPT Or G1/4 |
IP Rate: | IP65 | Housing Material: | Brass |
High Light: | 4.5VDC Electronic Water Pressure Sensor,Brass Housing Electronic Water Pressure Sensor,Electronic Water Pressure Sensor IP65 |
Product Description

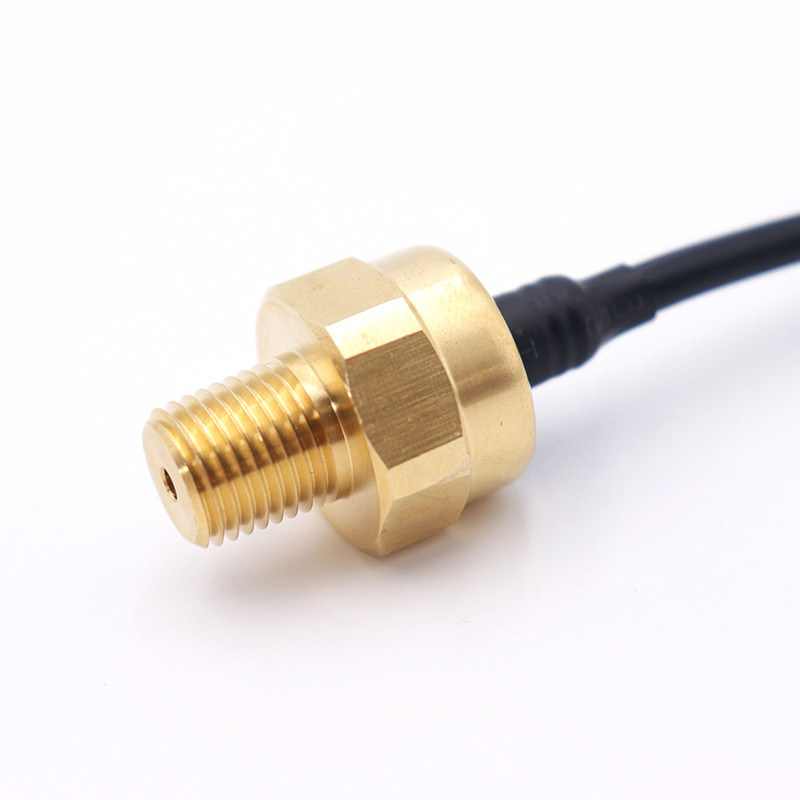

0.5-4.5V Brass Industrial Water Pressure Sensor For Liquid Gas
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion,anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Specification
WNK83MA Gauge/Sealing Pressure Sensor
|
|
|
Applicable media
|
Liquid, Gas
|
|
Pressure range
|
0-10bar, 0-20bar
|
|
Pressure measurment
|
Gauge Pressure, Sealing pressure
|
|
Output
|
0.5-4.5V
|
|
Power supply
|
4.75-5.25VDC
|
|
Supply current
|
15mA Max
|
|
Accuracy(linearity,Hysteresis and Repeatability)
|
±1%F.S.
|
|
Total error band
|
±3%
|
|
Max pressure
|
2 times
|
|
Burst pressure
|
3 times
|
|
power(electrical) connection
|
Parkard connector, Direct cable outlet(50cm)
|
|
Process connection
|
G1/4, 1/4NPT
|
|
Housing material
|
Brass
|
|
Protection
|
IP65
|
|
Working temperature
|
-20~70℃
|
|
Storge temperature
|
-40~110℃
|
Application
WNK83MA is solution for below applications: •Pressure measurement of gas or liquid in various areas; •Liquid level measurement; •Integrated in a variety of user-defined solutions; •Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;


High Specific Performance Hvac 0.5-4.5V Brass Water Pressure Sensor For Air Gas
Applicable media | Liquid, gas and steam |
Pressure range | 0-2000kPa |
Cell | Ceramic capacitive pressure sensor |
Pressure measurment | Gauge Pressure, Sealing pressure |
Output | 0.5-4.5V |
Power supply | 4.75-5.25 VDC |
Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
Working temperature | -20~70ºC |
Ambient temperature | -40~110ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
Electrical connection | Packard/ Cable Outlet |
Mechanical connection | 1/4 NPT, G1/4 |
Housing material | Brass |













FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days. Large orders are recommended to ship by sea
