3.6V IOT Wireless Pressure Sensor For Timer Button Alarm Wake
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK-WXXN |
Payment & Shipping Terms:
| Price: | $15.00/Pieces 1-99 Pieces |
|---|---|
| Packaging Details: | paper carton or as per clients' requirement |
|
Detail Information |
|||
| Power Supply: | 3.6V DC, 14Ah High Performance Lithium Battery | Protection Class: | IP67 |
|---|---|---|---|
| Material: | Cast Aluminum And 304 Stainless Steel | Installation Method: | Threaded, Pipe Or Wall |
| Operating Temperature: | -40 To 80 ° C | Communication System: | NB-Iot |
| Power Consumption: | Sleep Current ≤20uA ,Sending Current ≤70mA @ 0dBm | Wake Up: | Timer, Button, Alarm Wake |
| Parameter Settings: | Button Configuration, Remote Configuration | Keywords: | Wireless Pressure Sensor/Iot Wireless Pressure Sensor |
| High Light: | 3.6V IOT Wireless Pressure Sensor,Timer Wake Up IOT Pressure Sensor,IP67 Iot Wireless Temperature Sensor |
||
Product Description
The WNK-WXXN series wireless sensors can solve the following measurement problems:
• Municipal water and fire control;
• Building fire management;
• Community water control, fire management network;
• Fire pipe network in factories and special places;
• Pressure measurement of fire waterways;
• Monitoring of fire protection facilities such as fire hydrants;
• Can be integrated into a variety of user-defined solutions.
Characteristics
Product Function:
• Precise positioning for the fire department to quickly find the water source;
• Real-time monitoring of fire hydrant water pressure;
• Internal integrated temperature monitoring unit to monitor water temperature changes in real time;
• The temperature and pressure measurement unit jointly determines the working status of the fire hydrant such as:
police work, water stealing, and water leakage.

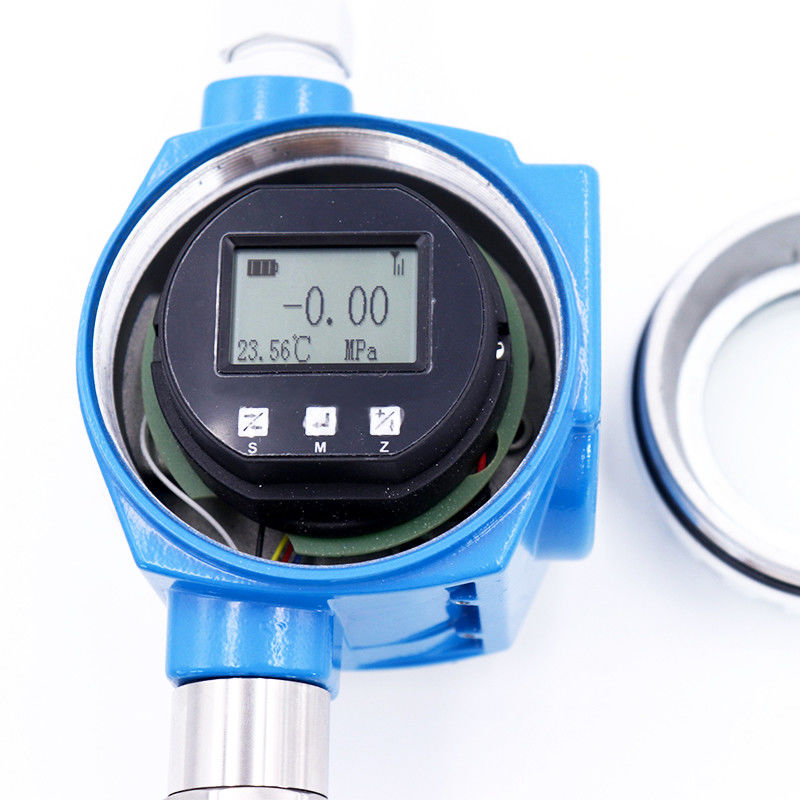

WNK-WXXN series wireless sensor is a new generation NB-IOT wireless pressure sensor developed by Hefei WNK Smart Technology Co., Ltd. for "Smart City", "Smart Water" and "Smart Fire". It is a wireless measurement terminal device with ultra-low power consumption, LCD display, button setting, wireless communication, pressure detection and temperature detection. The product uses a low-power processor, which can be used to set the sampling period, data reporting period, and alarm upper and lower limits by button or remote configuration. At the same time, the temperature and pressure data can be displayed through the LCD screen, which is convenient for users. The product is battery-powered and is suitable for pressure detection environments that do not have power supply conditions. It can be used in urban water supply, fire detection, storage tank pressure detection, industrial process control and other fields.
