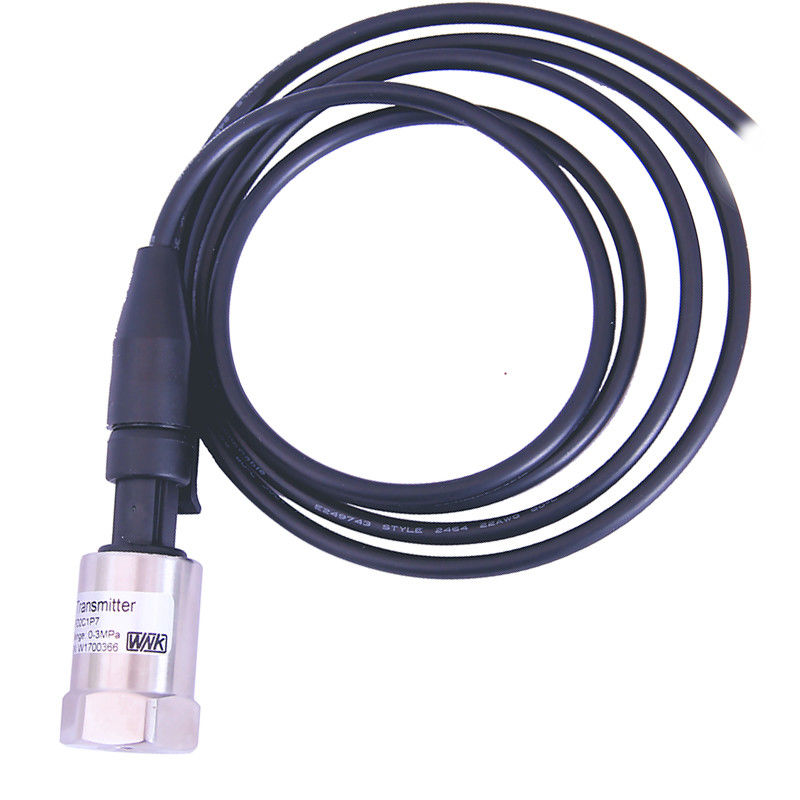

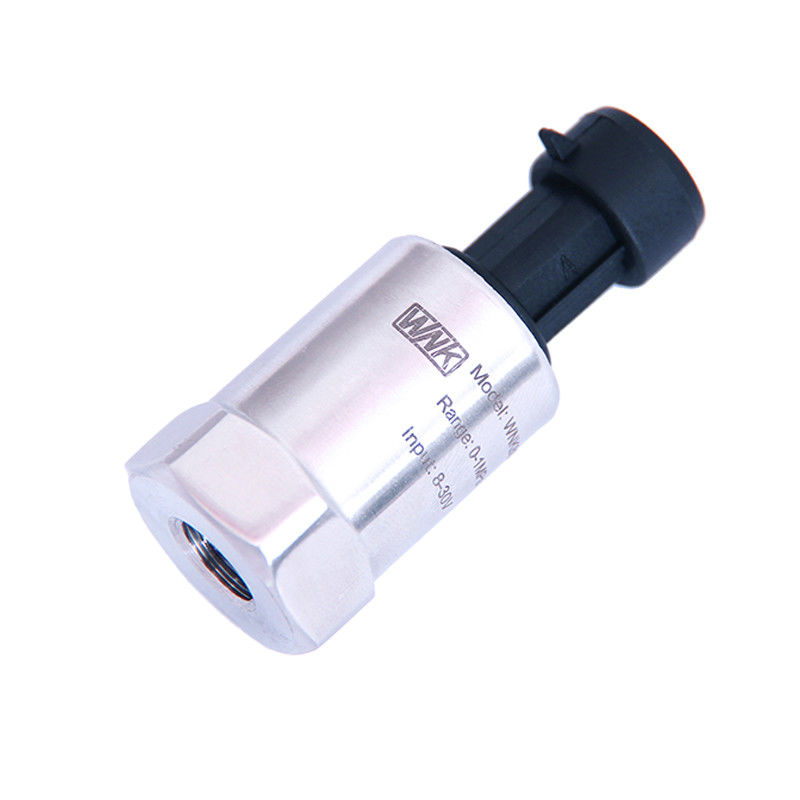

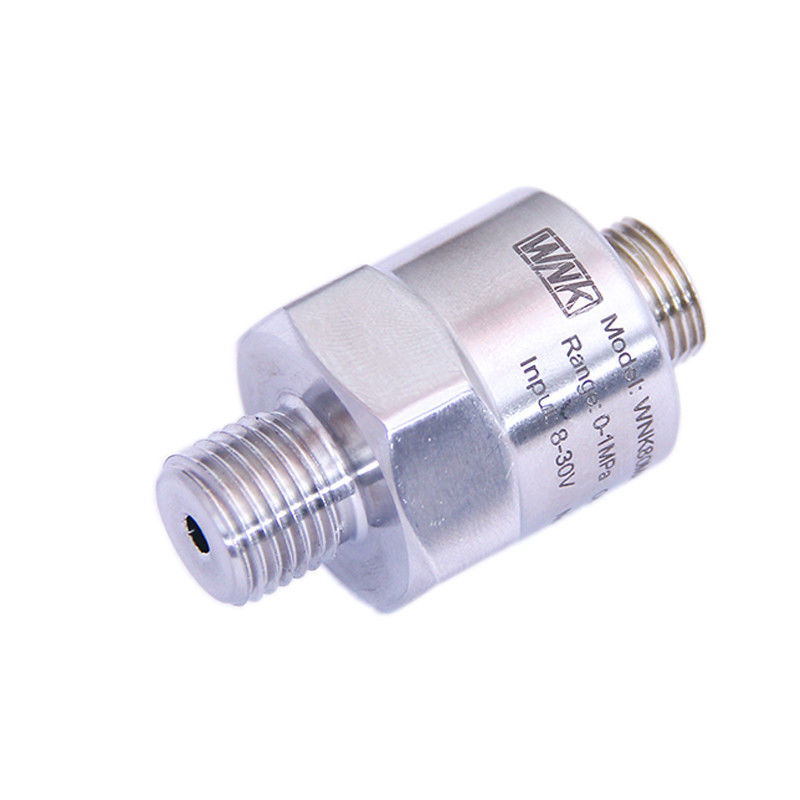

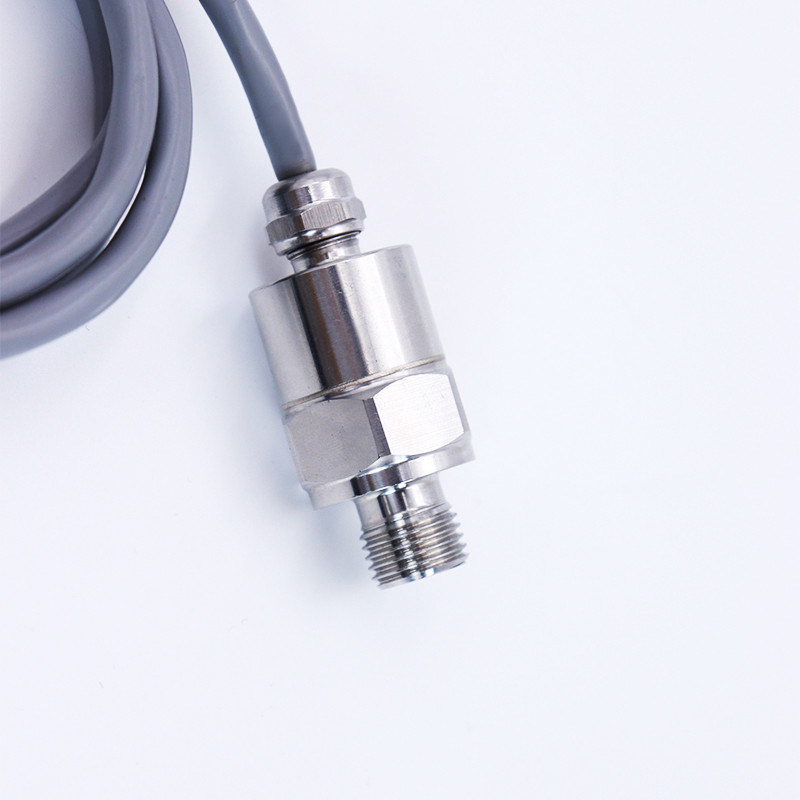

Water Pressure Air Pressure Transmitter For Refrigerant HVAC 4-20mA 0.5-4.5V
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Certification: | CE, ROHS |
Model Number: | WNK80mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | $12.00 - $19.00/Pieces |
Packaging Details: | each product in one inner paper box with protection; |
Supply Ability: | 2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Measured Media: | Liquid, Gas And Steam | Output Signals: | 4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C |
Accuracy: | 0.2%F.S, 0.5%F.S | Pressure Range: | 0-300KPa~10MPa |
Protection Class: | IP65 | Ex-proof: | ExiaII CT4/CT6, ExidIICT6 |
Housing Material: | 304SST | Power Supply: | 24VDC/12VDC/5VDC/3.3V |
Electrical Connection: | Packard, M12, DIN43650, Cable | Keywords: | Pressure Sensor/ Air Pressure Sensor |
Port: | Shanghai Port | ||
High Light: | 20mA Water Pressure Sensor,Refrigerant HVAC Air Pressure Transmitter,IP65 Air Pressure Transmitter |
Product Description
WNK has 17-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.
>> Quick information |
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female
>> Dimensions |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
