• 0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam
  • 0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam

0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE, ROHS
Model Number: WNK80mA

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $12.00 - $19.00/Pieces
Packaging Details: each product in one inner paper box with protection;
Supply Ability: 2000 Piece/Pieces per Week Steam Pressure Sensor/ Air Pressure Sensor
Get Best Price Contact Now

Detail Information

Warranty: 1 YEAR Customized Support: OEM, ODM
Measured Media: Liquid, Gas And Steam Output Signals: 4-20mA, 1-5V, 0-10V, 0.5V-4.5V, I2C
Accuracy: 0.2%F.S, 0.5%F.S Pressure Range: 0-300KPa~10MPa
Protection Class: IP65 Ex-proof: ExiaII CT4/CT6, ExidIICT6
Housing Material: 304SST Power Supply: 24VDC/12VDC/5VDC/3.3V
Electrical Connection: Packard, M12, DIN43650, Cable Keywords: Pressure Sensor/ Air Pressure Sensor
Port: Shanghai Port
High Light:

IP65 Small Pressure Sensor

,

IIC Small Pressure Sensor

,

304SS Small Pressure Transducer

Product Description

0.5V-4.5V IIC Small Pressure Sensor For Liquid Gas And Steam
Product Description
WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65

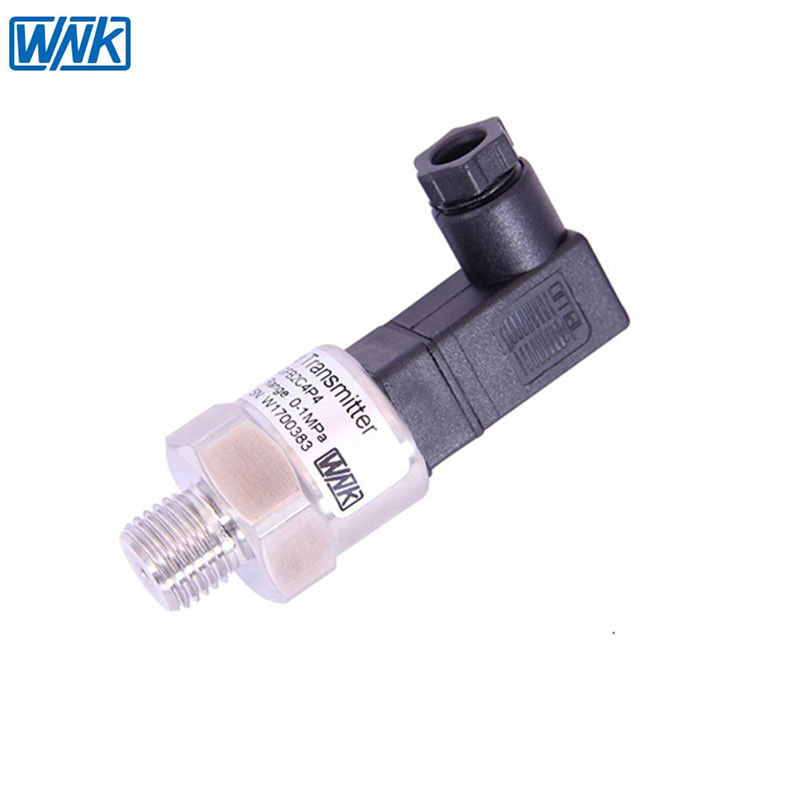

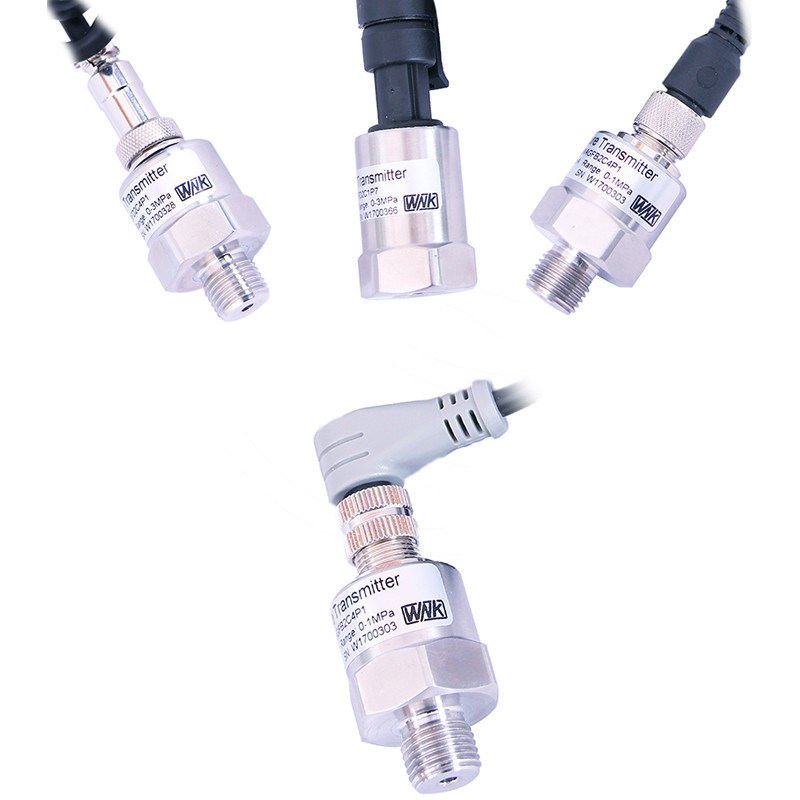

Product Show

0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 0

0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 1
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 2
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 3
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 4
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 5
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 6
0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 7
Hot Product



0.5V 4.5V IIC Small Pressure Sensor For Liquid Gas And Steam 8



Company Information

123456


FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
