20mA 4.5V Submersible Water Level Sensor With Rs485 Modbus
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE |
| Model Number: | wnk8010 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $35.00 - $50.00/Pieces |
| Packaging Details: | Each set into one individual carton, protection with foam. Then into master carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 3000 Set/Sets per Week water level sensor |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | 1 YEAR |
|---|---|---|---|
| Customized Support: | OEM, ODM | Pressure Range: | 0...1~200 Metres |
| Accuracy: | 0.2%FS, 0.5%FS, | Output Signal: | 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V |
| Application: | Rainwater, Drinking Water,Wastewater, Car Washes, Seawater | Ingress Protection: | IP68 |
| Power Supply: | 12~36VDC | Working Temperature: | -40~85 ℃ |
| Pressure Type: | Gauge | Housing Material: | 304SS, 316L |
| Sensor Contact: | 316L | Port: | Shanghai, Ningbo, Shenzhen, Guangzhou |
| High Light: | 4.5V Submersible Water Level Sensor,20mA Submersible Water Level Sensor,Rs485 Modbus Submersible Level Transmitter |
||
Product Description

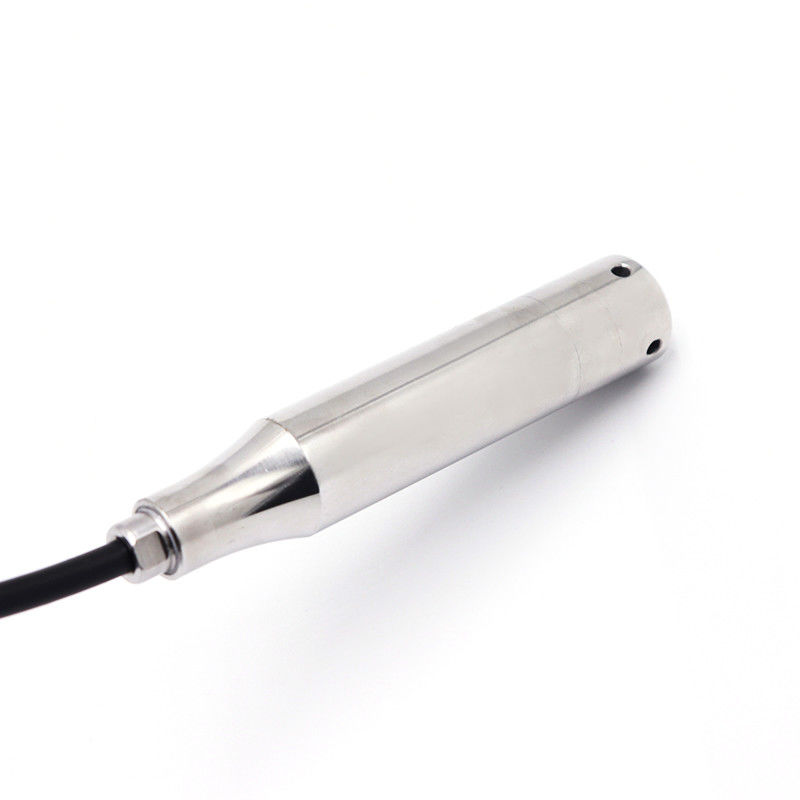

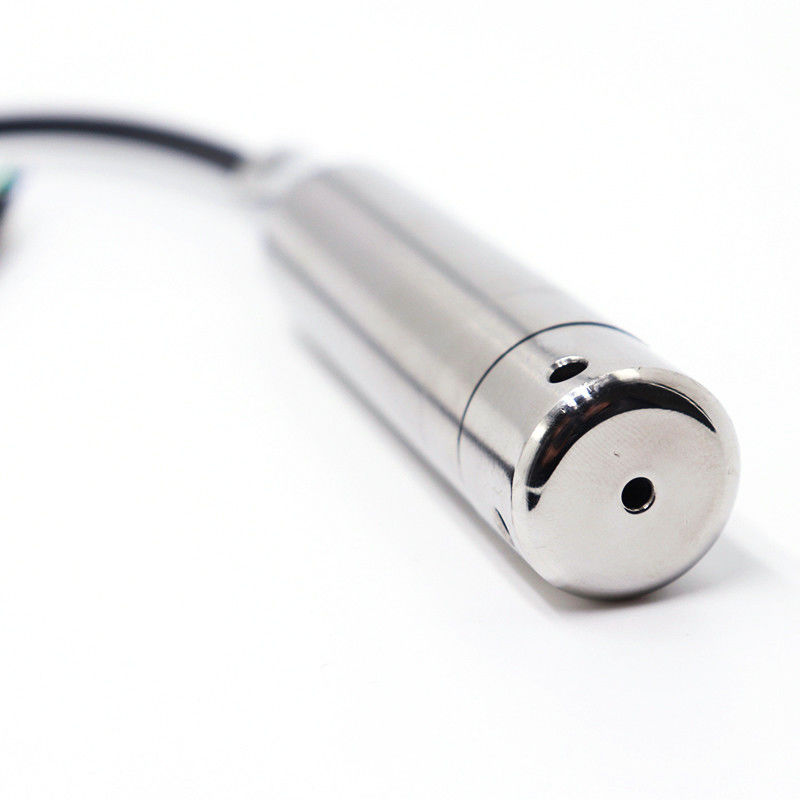

4-20mA 0.5-4.5V Submersible Water Level Sensor With Rs485 Modbus
Submersible Water Level Sensor With Rs485 Modbus
- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
