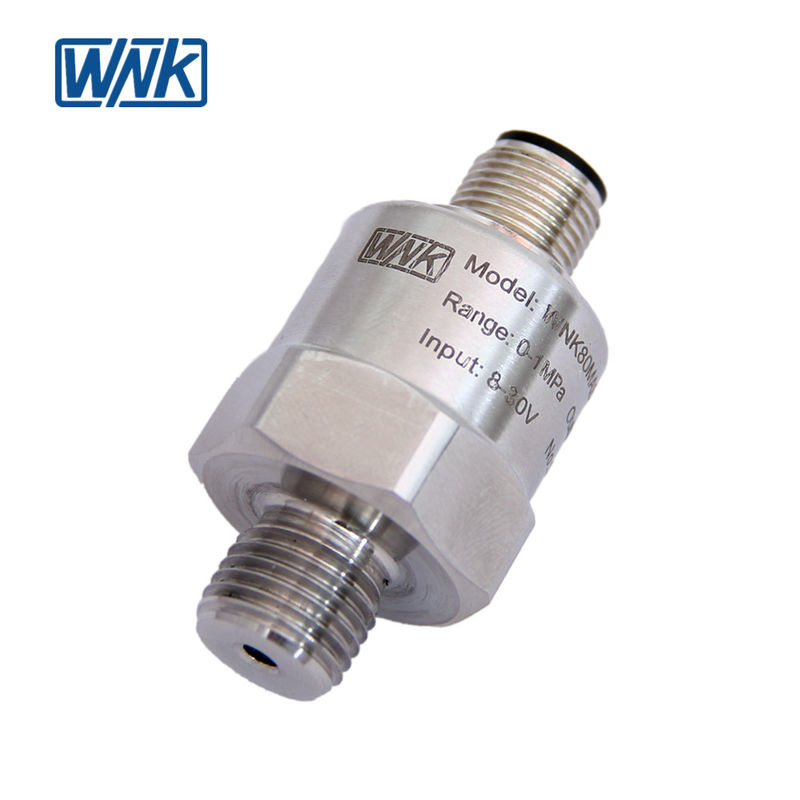

Differential IOT Pressure Sensor I2c Small Dimensions For IIOT
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Certification: | CE, ROHS |
| Model Number: | WNK80MA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $12.00 - $19.00/Pieces |
| Packaging Details: | paper carton or as per clients' requirement |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Range: | 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa | Comprehensive Accuracy: | 0.1, 0.25, 0.5, 1.0 |
| Output: | 4~20mA; 0~20mA; 0~10mA; 0~20V; 1~5V | Protection Class: | IP65 |
| Housing Material: | Ss316 | Approvals: | Ex-proof, ISO9001-2015 |
| Pressure Type: | Gauge, Absolute, Vacuum, Negative Pressure | OEM Service: | OEM, ODM, Customization Available |
| Application: | Oil&gas, Petrol, Petrochemical, Chemical Industry | Port: | Shanghai, Ningbo, Shenzhen Etc |
| High Light: | IIOT IOT Pressure Sensor,Differential IOT Pressure Sensor |
||
Product Description
Cheap 3.3V Mini Air Water Pressure Sensor I2C SPI 0.2-2.9v Output For IOT IIOT
WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.
After two years of research, development and repeatedly testings, our ceramic capacitive sensors have entered big quantity production stage. For different applications and installation methods, we offer OEM, ODM and customization services.
Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.
| >> Quick information |
1. Temperature range: -20 to 85℃
2. Wide operation temperature range -40~125℃
3. High performance ceramic capacitive pressure sensor
4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available
5. Small dimensions, dimension customizble
6. Optional packard, M12, Small Hirschman connectors
7. OEM, ODM, customization service available
8. Process connector: G1/4, M12*1.5, 1/4NPT, 7/16-20UNF female
| >> Dimensions |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
