WNK IP65 Digital Water Flow Meter Turbine Type 4-20mA High Accuracy
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK-LWGY |
Payment & Shipping Terms:
| Price: | $200.00 - $450.00/Sets |
|---|---|
| Packaging Details: | One set in per carton |
| Supply Ability: | 2000 Set/Sets per Week Turbine flow meter/ Water Turbine Flow Meter |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Type: | Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters | Maximum Flow Rate: | 15m/s |
| Ambient Temperature: | : -20~60℃; 5%~90%RH | Accuracy: | 0.5%, 0.2% |
| Fluid Maximum Temperature: | 120℃ | Signal Electrode Form: | DN15-DN2600,DN300-DN1600 |
| Electrode Material: | SS304, SS316 Or Customize | Connection: | Thread / Flange / Clamp / Insertion |
| Explosion-proof Grade: | Ex Ia IIC T4 | Protection: | IP65/68 |
| Product Name: | Turbine Flow Meter | Port: | Shanghai |
| High Light: | IP65 Digital Water Flow Meter,WNK Digital Water Flow Meter,4 20mA Turbine Type flow meter |
||
Product Description

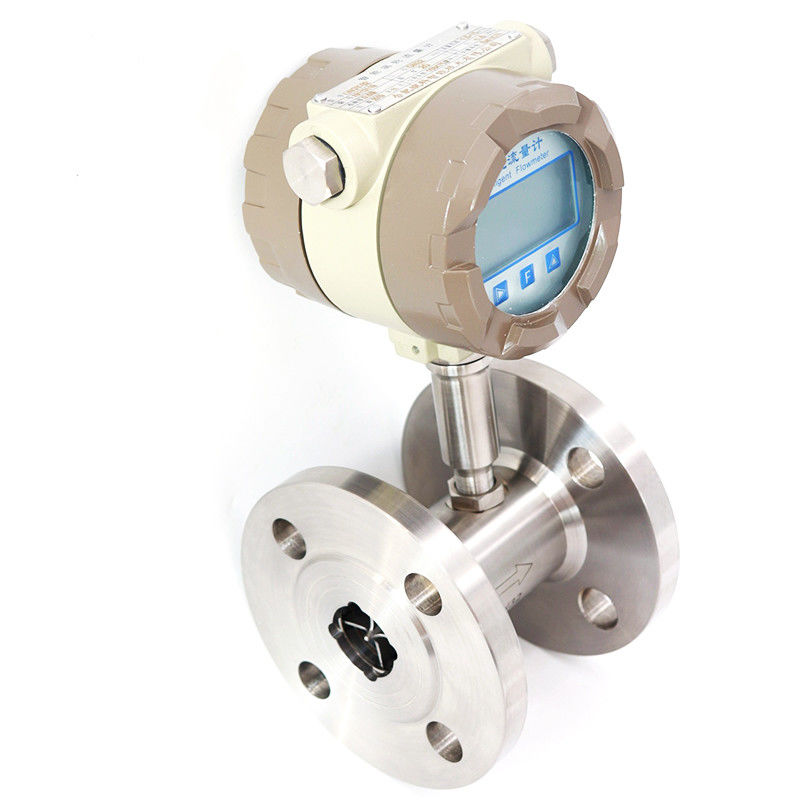

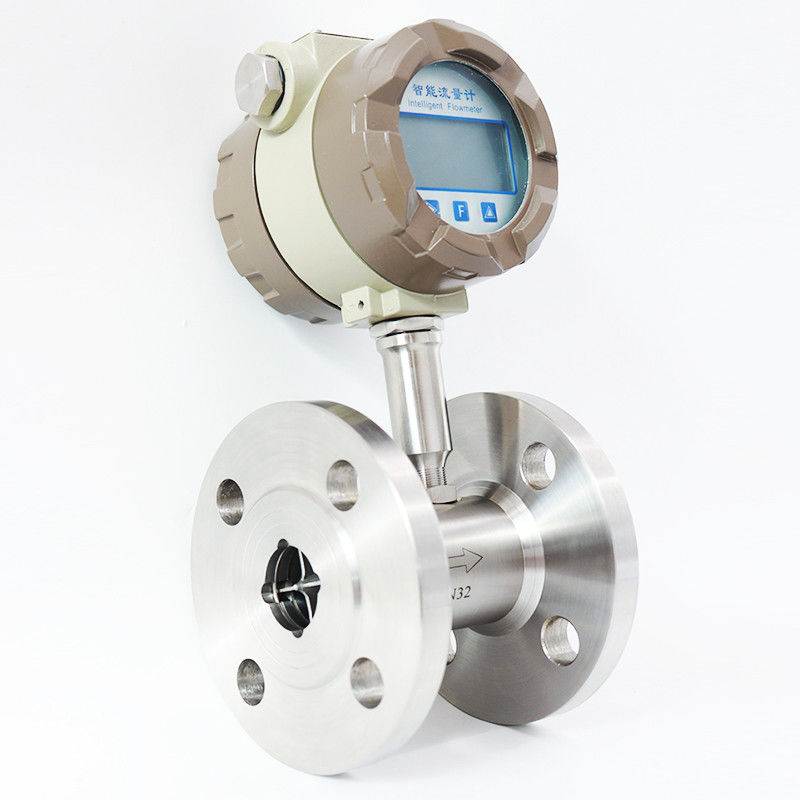

IP65/68 WNK 4-20mA High Accuracy Liquid Water Turbine Type Flow Meter
LWGY series Turbine Flowmeter draw the leading technology integrating with advanced design to produce the new generation of turbine flowmeter with the features of simple structure, light weight, high accuracy, good repeatability, flexible reaction, convenient installation/maintenance/application etc.. It is widely applied to measuring the liquid of which kinematic viscosity is under 5*10-6m2/s and have no impurity of fiber, grain etc., and no corrosive interaction with the stainless steel 1Cr18Ni9Ti,2Cr13,and A12O3, and hard alloy in seal pipes. The liquid of kinematic above 5*10-6m2/s can be measured after real liquid calibration of flowmeter. It can be used in value control, siren when excess, if co-ordination with special display instrument. So it is the ideal instrument of measuring flow value and saving energy.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
