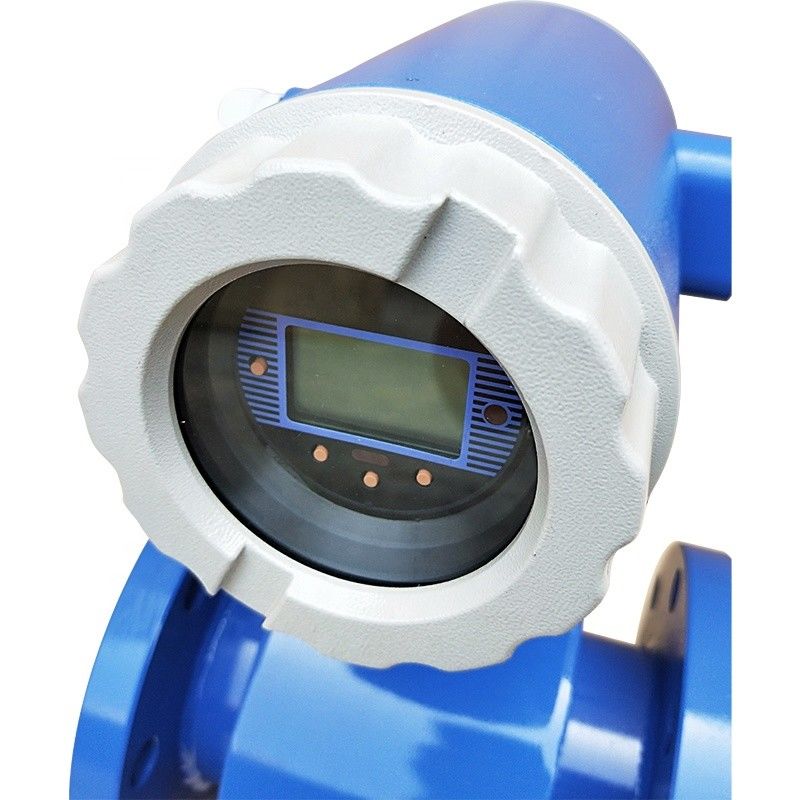

• Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

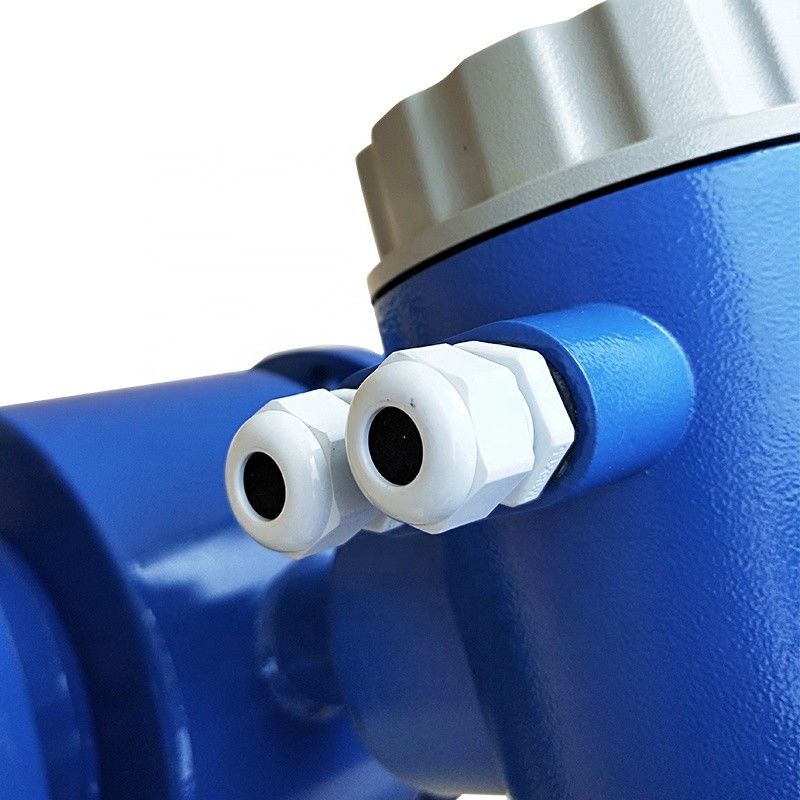

  • Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

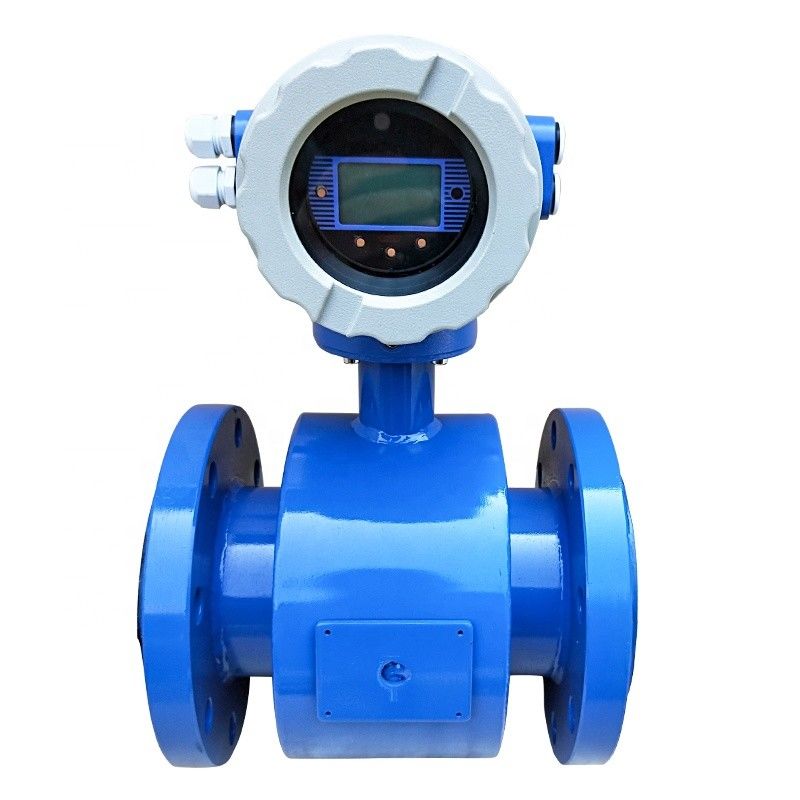

  • Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

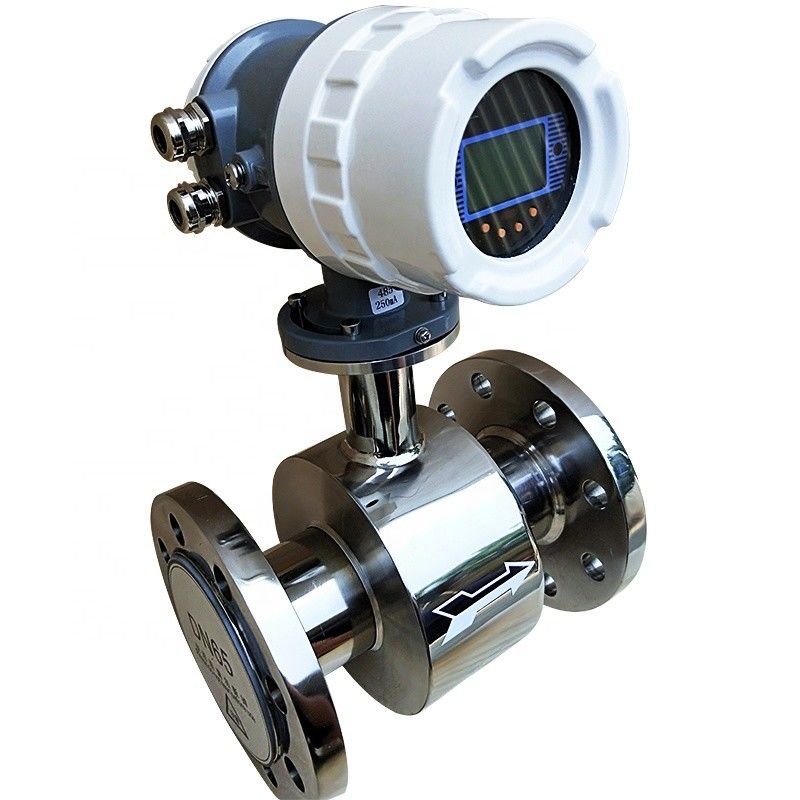

  • Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

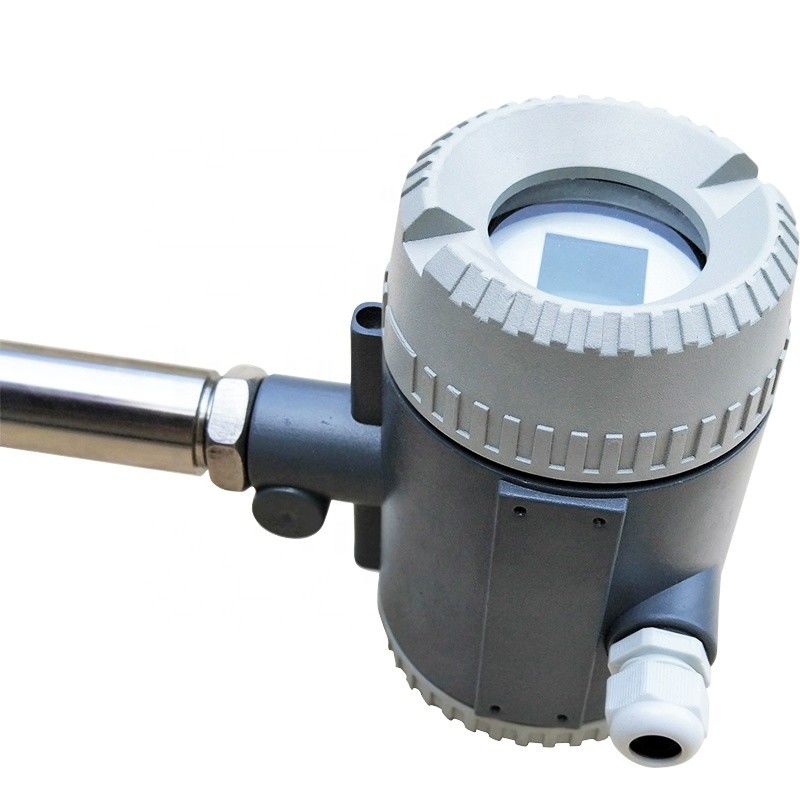

  • Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

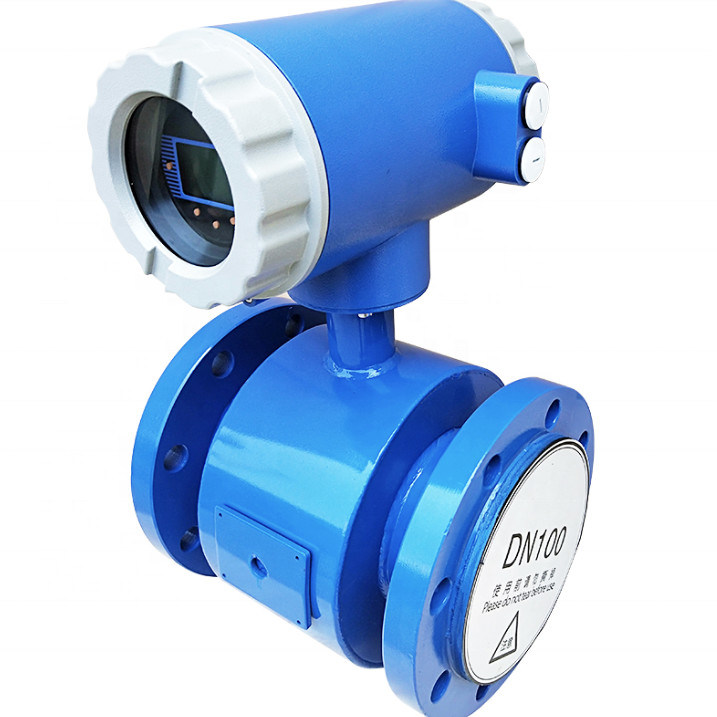

  • Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WLD

Payment & Shipping Terms:

Price: $480.00/Pieces >=1 Pieces
Packaging Details: One set in per carton, standard packing
Supply Ability: 1000 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Type: Variable Area Water Flowmeters Maximum Flow Rate: 15m/s
Fluid Conductivity: ≥5μs/cm Ambient Temperature: -25~60℃,-10~60℃
Liner Material: PTFE/PVF/F46/Neoprene/PUR Fluid Maximum Temperature: 100℃,150℃
Signal Electrode Form: DN15-DN2600,DN300-DN1600 Electrode Material: SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium
Connecting Flange Material: Carbon Steel Grounding Flange Material: SST 1Cr18Ni9Ti
Protection: IP65/68 Port: Shanghai
High Light:

15m/S Digital Flow Meter

,

4 20mA Digital Water Flow Sensor

,

Chemical Field Digital Water Flow Sensor

Product Description

Product Description



4-20mA Output Digital Water Flow Sensor For Chemical Field



WLD electromagnetic flowmeter is manufactured with the latest technology with the following defects:




- Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity;




- Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections;




- Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials;




- The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be1500:1




- The converter can be integrated or separated from the sensor;




- The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming;




- Explosion-proof instruments can be used in corresponding explosion-proof places;




- The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions;




Specifications
Maximum Flow Rate

15m/s


Nominal Pressure

DN15~DN150

4.0Mpa


DN15~DN600

1.6Mpa


DN200~DN1000

1.0Mpa


DN700~DN3000

0.6Mpa
Ambient Temperature

Sensor

-25~60℃


Coverter

-10~60℃
Liner material and fluid maximum temperature

Liner material
Separate type
Integrated type


PTFE
100℃;150℃
70℃


PVF
100℃;150℃
70℃


FEP
100℃;150℃
70℃


Neoprene
80℃;120℃
70℃


PUR
80℃
70℃
Signal electrode form

Fixed (DN15~DN2600) Scraper(DN300-DN1600)


Electrode material

SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium


Connecting flange Material

Carbon Steel


Grounding flange material

SST 1Cr18Ni9Ti


Imported prodective flange material

DN15~DN600

SST 1Cr18Ni9Ti


DN700-DN3000

Carbon Steel
Protection

DN15-DN150 Separate rubber and polyurethane liner sensors

IP65.68(Special customize)


DN200-DN2600 Separate rubber and polyurethane liner sensors

IP68 under water 10 meters


Other sensor converter

IP65
Spacing(separate type )

The Spacing Less than or equal to 100 meters or need Special customize


Product Application

Water supply system

Used in the water treatment station to the whole plant water supply, achieve the flow of quantitative control

Sewage treatment industry

The electromagnetic flowmeter can record the instantaneous or accumulated time of the sewage flow value, achieve the real-time monitoring and control.
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 0
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 2
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 4
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 6
Product Show
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 8
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 10
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 12
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 14
Hot Products
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 16
Our Company
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 18
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 20
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 22
Packing&Shipping
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 24
Max 15m/s Digital Flow Meter , 4-20mA Digital Water Flow Sensor For Chemical Field 26
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
