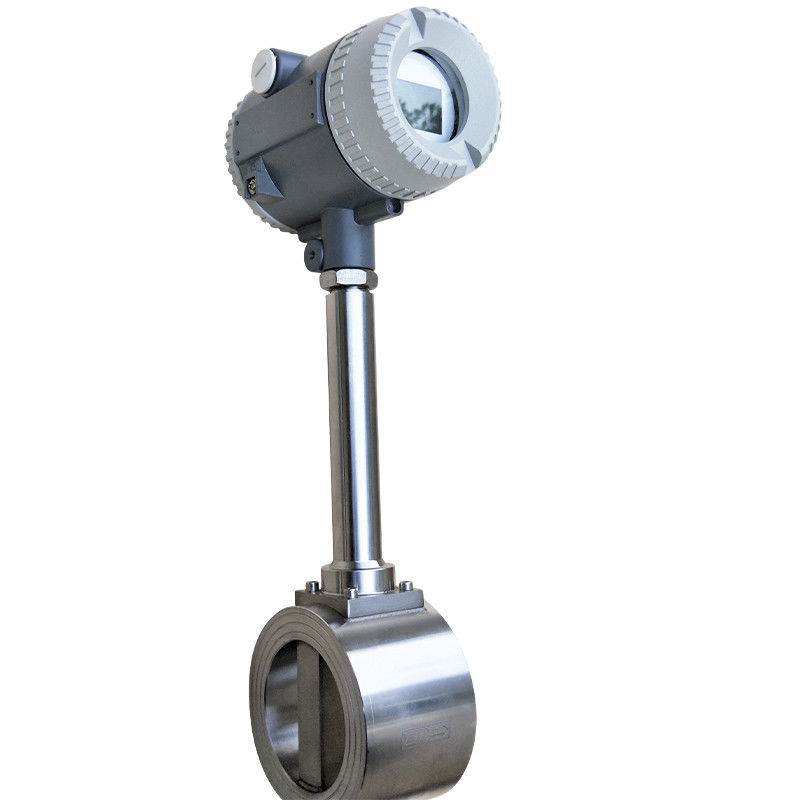

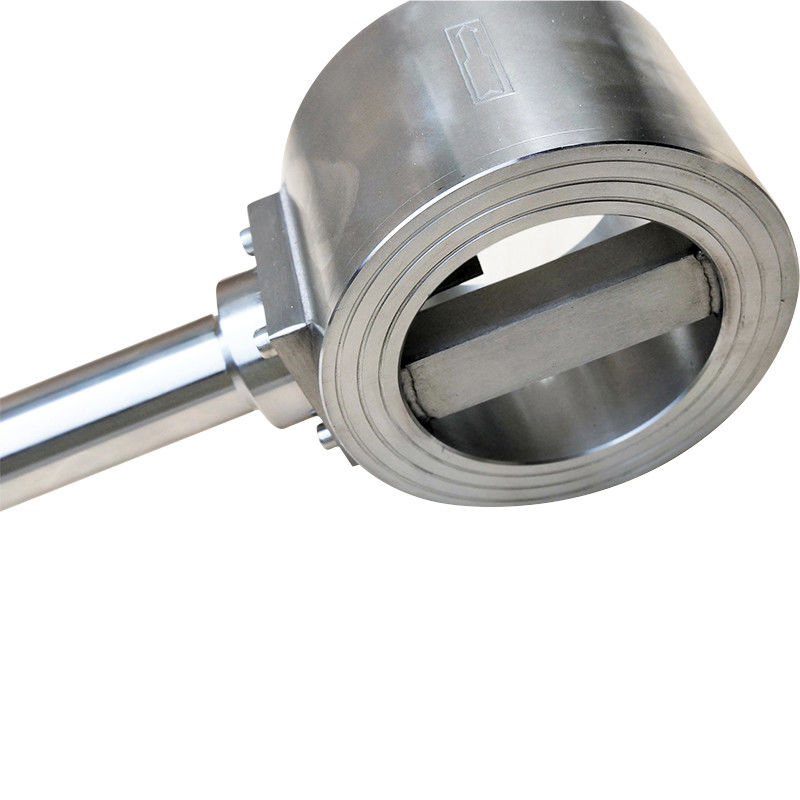

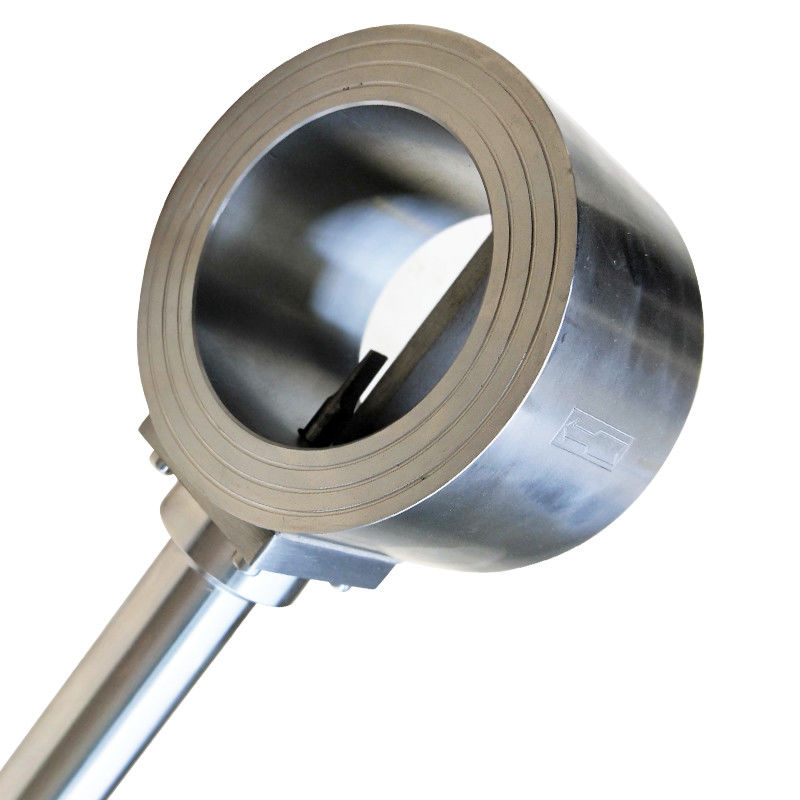

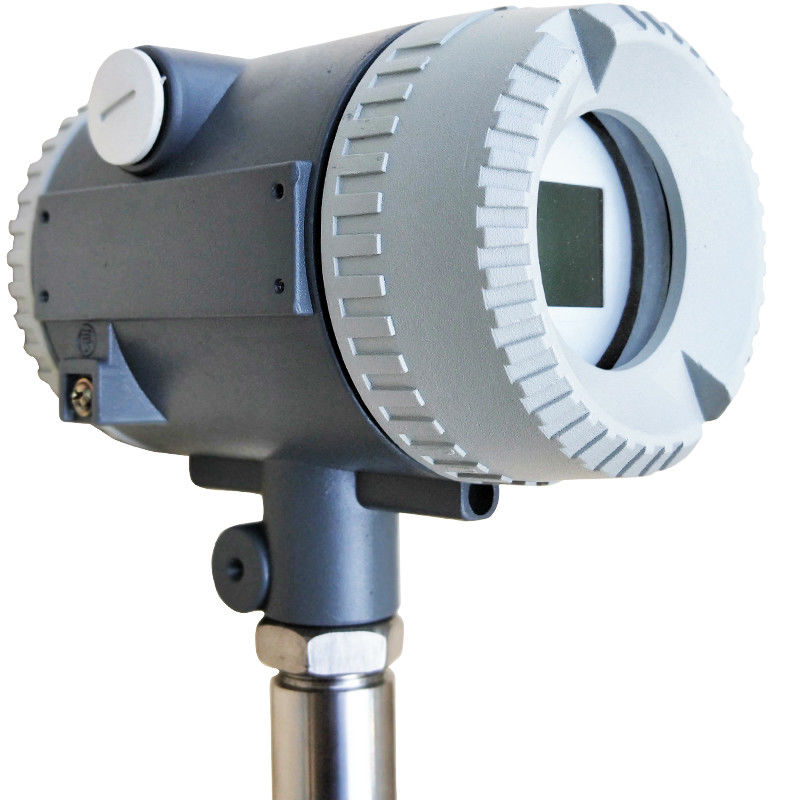

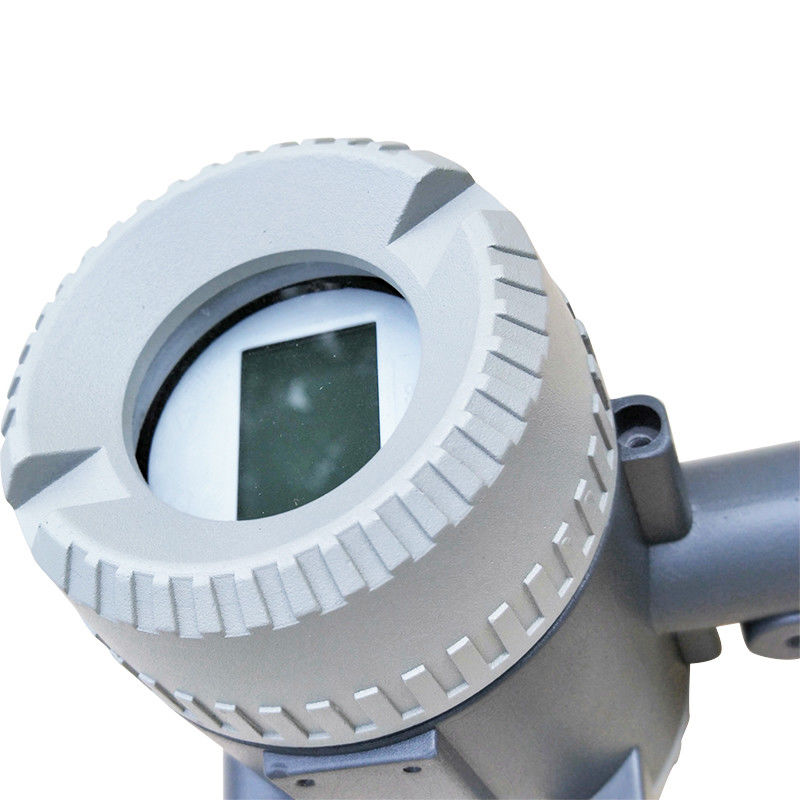

IP68 Digital Flow Meter 4-20mA RS485 With Local Display
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WLC |
Payment & Shipping Terms:
| Price: | $350.00/Sets >=1 Sets |
|---|---|
| Supply Ability: | 100 Set/Sets per Week |
|
Detail Information |
|||
| Type: | Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters | Pipe Diameter: | 300-3000mm |
|---|---|---|---|
| Flow Rate Range: | 0.1-10m/s | Sensor Material: | Stainless Steel |
| Conductivity: | >50uS/m | Straight Pipe: | Front5DN,Behind3DN |
| Medium Temperature: | -20℃-/+130℃ | Ambient Temperature: | -20℃-/+60℃ |
| Withstand Voltage: | 1.6Mpa | Protection Class: | IP65(Integrated) IP68(Split Type) |
| Signal Output: | 4-20mA;RS485;HART;MODBUS | Port: | Shanghai |
| High Light: | IP68 Digital Flow Meter,4 20mA Digital Flow Meter |
||
Product Description
IP68 Digital Flow meter local display 4-20mA RS485
After adopting the technology of pressure opening and pressure installation, the plug-in electromagnetic flowmeter can be installed without stopping water, and can also be installed on cast iron pipes and cement pipes. The successful development of plug - in electromagnetic flowmeter provides a new method for fluid flow measurement.
|
WLC insert type electromagnetic flowmeter is manufactured with the following advantages: |
| 1.Automatic range switching function. |
| 2.Flow meter forward or reverse metering |
| 3.Upper and lower limits of alarm. |
| 4.ATC alarm. |
| 5.Power off protection. |
| 6.Small signal excision function. |
| 7.The instrument USES the principle of "automatic return to zero" to eliminate electrochemical interference signals and stabilize the zero point. |
| 8.Converters and sensors are available in a variety of protection levels and installation modes, including IP68 for submersible installation. |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
