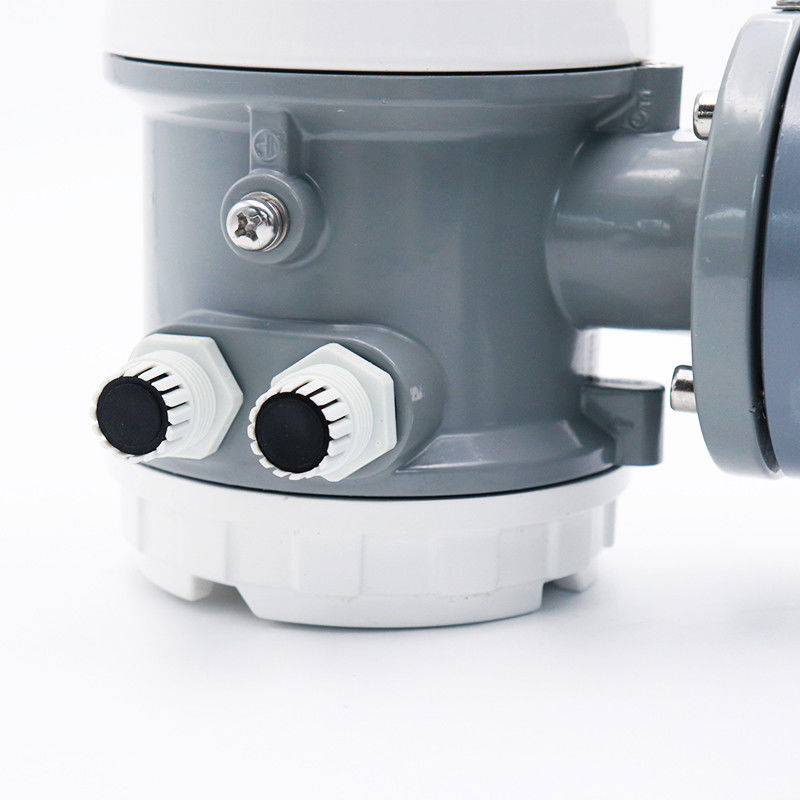

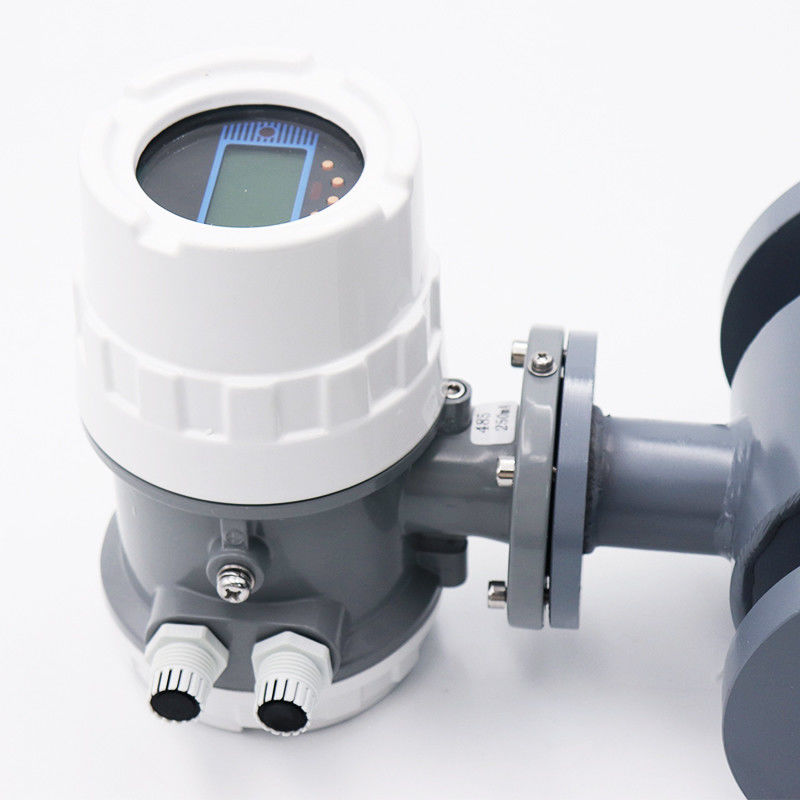

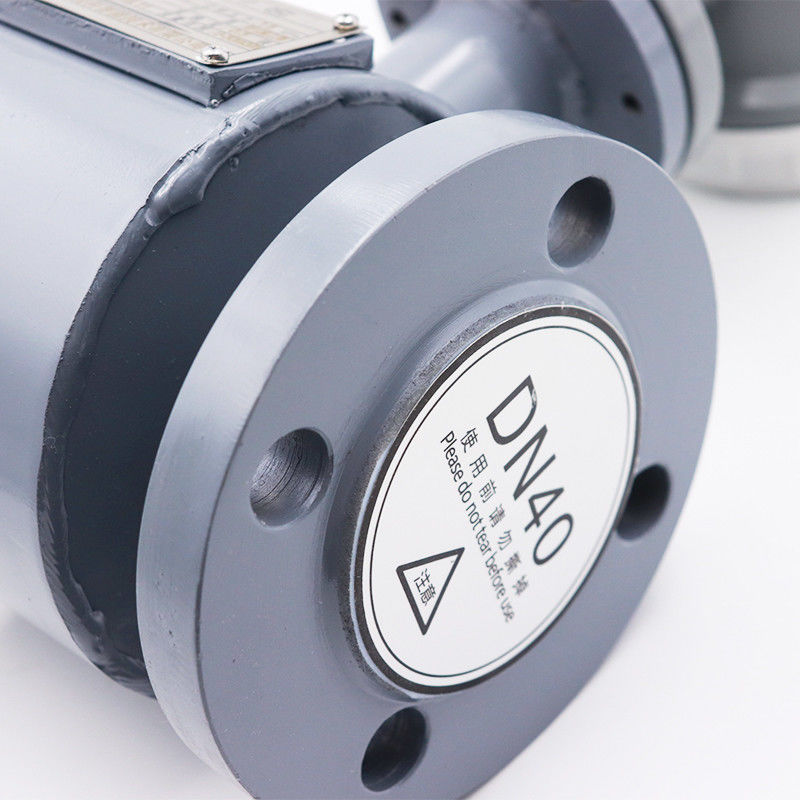

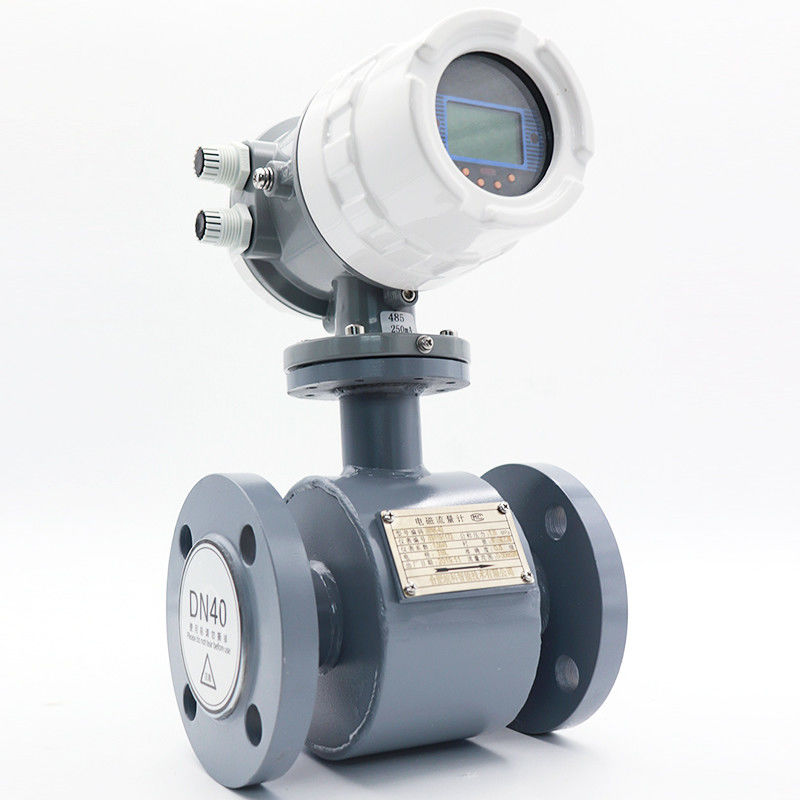

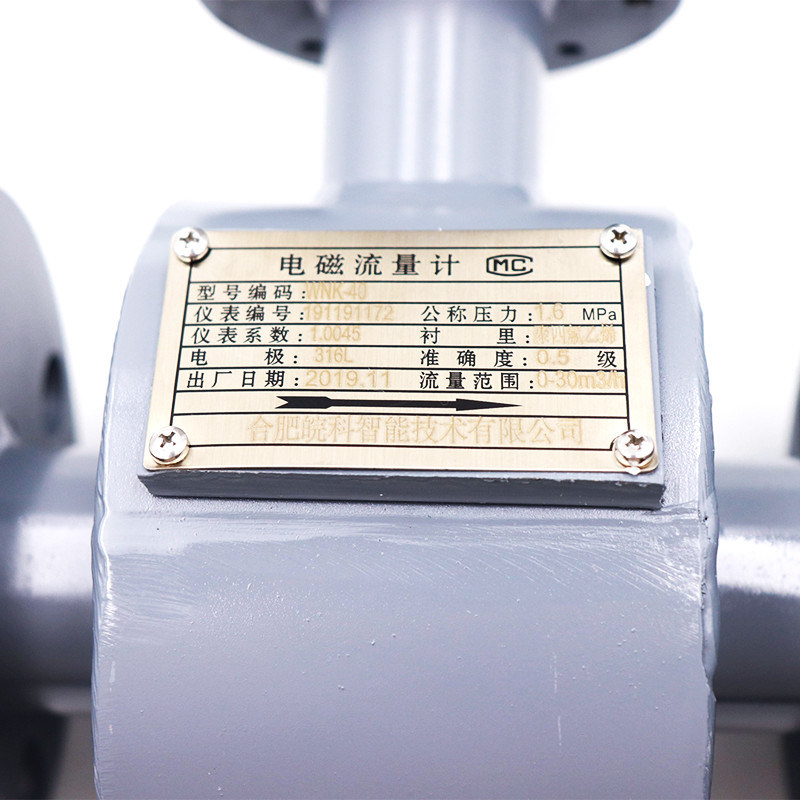

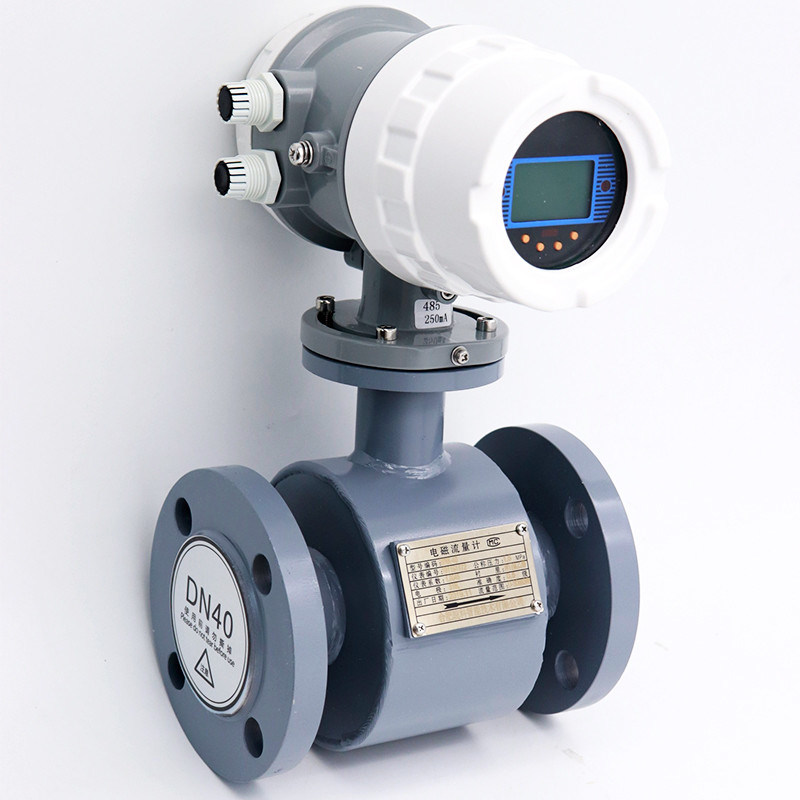

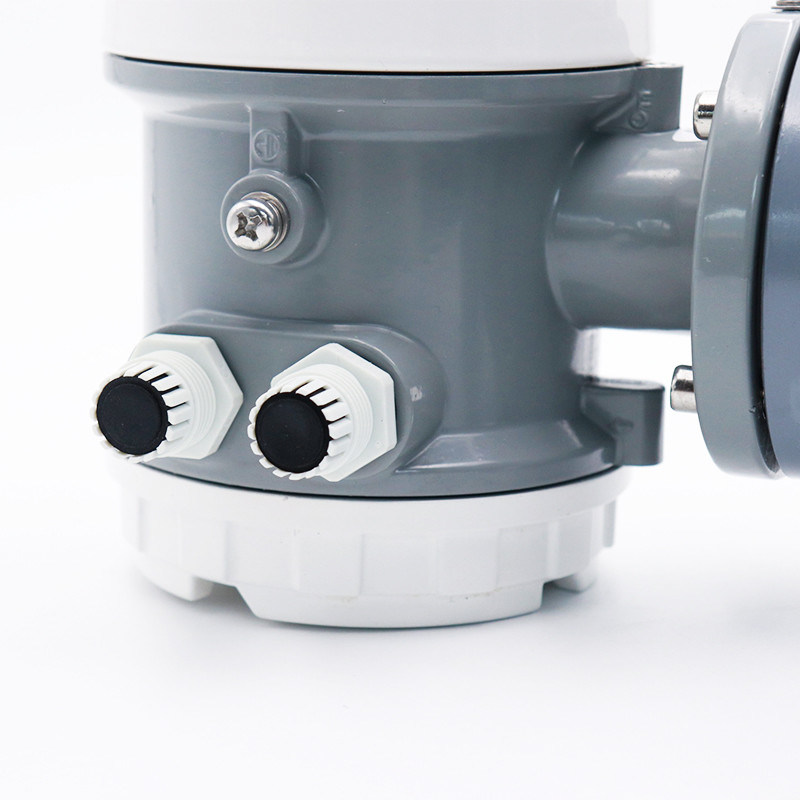

HART Protocol Sewage Water Flow Meter With Digital Display SS316L Electrode
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WLD |
Payment & Shipping Terms:
| Price: | $480.00/Sets >=1 Sets |
|---|---|
| Packaging Details: | One set in per carton |
| Supply Ability: | 100 Piece/Pieces per Week 4-20ma flow meter |
|
Detail Information |
|||
| Type: | Variable Area Water Flowmeters | Maximum Flow Rate: | 15m/s |
|---|---|---|---|
| Fluid Conductivity: | ≥5μs/cm | Ambient Temperature: | -25~60℃,-10~60℃ |
| Liner Material: | PTFE/PVF/F46/Neoprene/PUR | Fluid Maximum Temperature: | 100℃,150℃ |
| Signal Electrode Form: | DN15-DN2600,DN300-DN1600 | Electrode Material: | SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium |
| Connecting Flange Material: | Carbon Steel | Grounding Flange Material: | SST 1Cr18Ni9Ti |
| Protection: | IP65/68 | Port: | Shanghai |
| High Light: | HART Protocol Water Flow Meter,SS316L Electrode Sewage Water Flow Meter,SS316L Water Flow Meter With Digital Display |
||
Product Description
Sewage HART Protocol Water Electromagnetic Flow meter magnetic flowmeter with LED Display
| WLD electromagnetic flowmeter is manufactured with the latest technology with the following defects: |
| - Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity; |
| - Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections; |
| - Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials; |
| - The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be 1500:1; |
| - The converter can be integrated or separated from the sensor; |
| - The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming; |
| - Explosion-proof instruments can be used in corresponding explosion-proof places; |
| - The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions; |
Specifications
Product Show
Hot Product
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
Want to Know more details about this product
