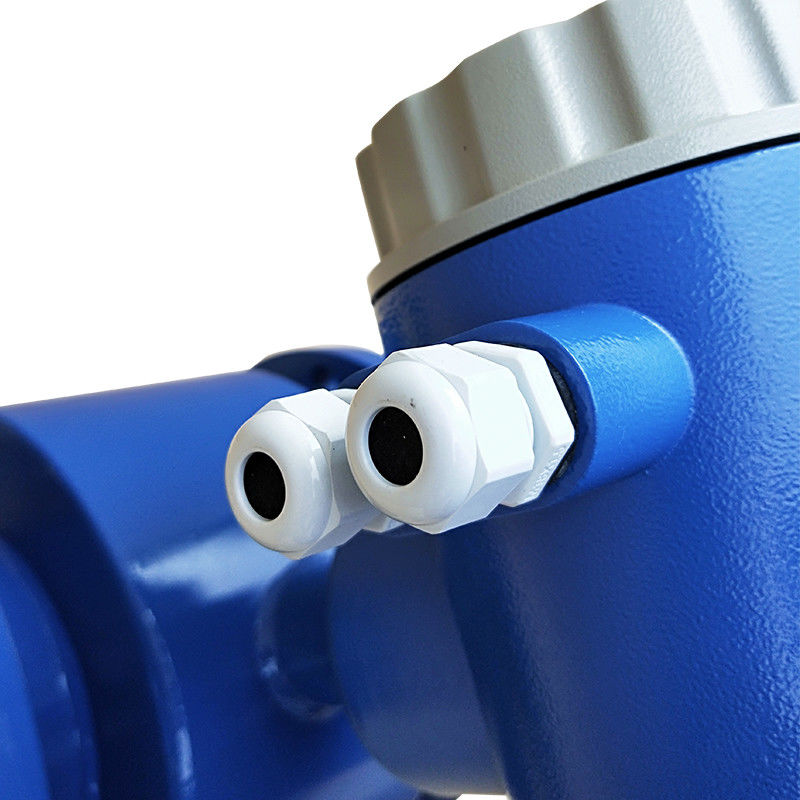

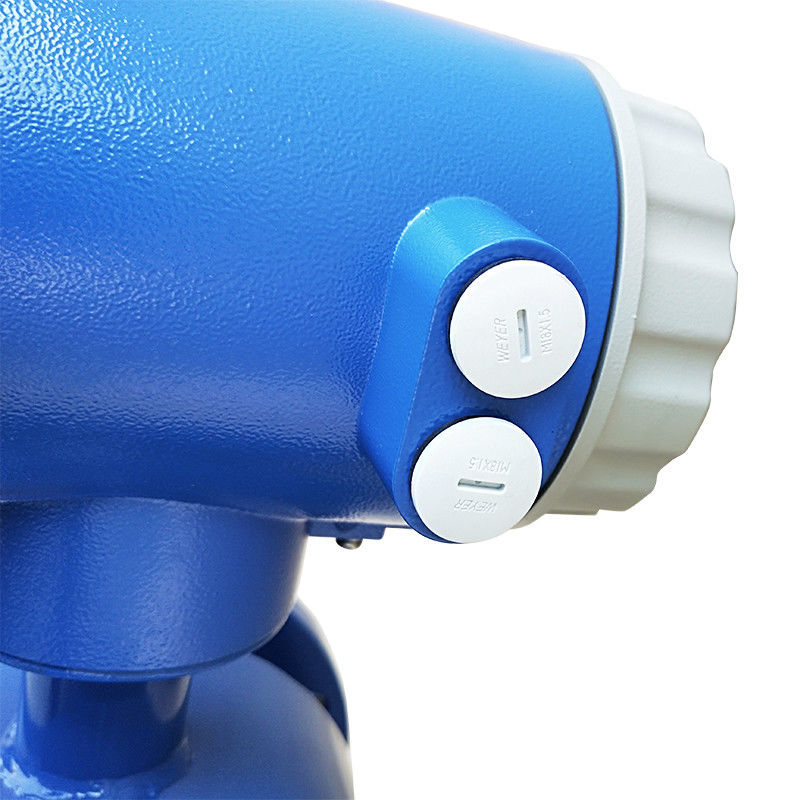

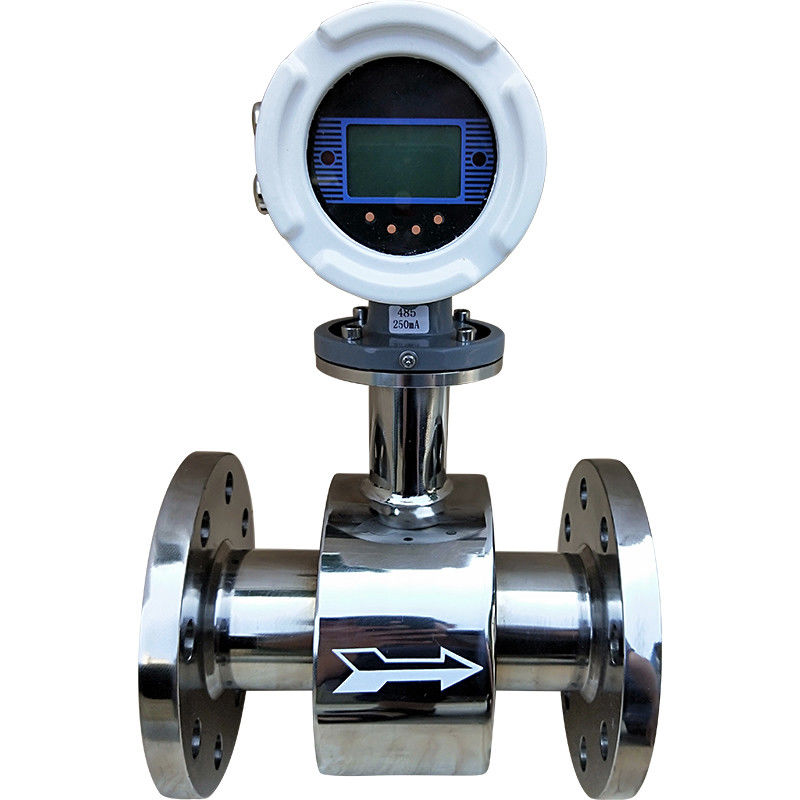

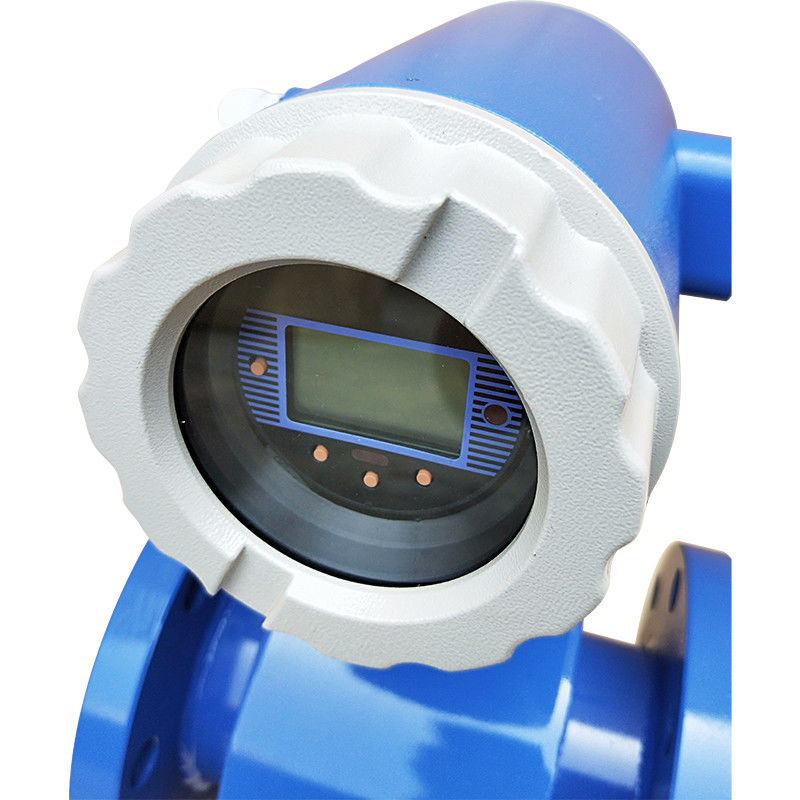

Electromagnetic Digital Flow Meter , Variable Area 50mm Water Flow Meter
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WLD |
Payment & Shipping Terms:
| Price: | $480.00/Pieces >=1 Pieces |
|---|---|
| Packaging Details: | One set in per carton, standard packing |
| Supply Ability: | 1000 Piece/Pieces per Month Water Flow Meter |
|
Detail Information |
|||
| Type: | Variable Area Water Flowmeters | Maximum Flow Rate:: | 15m/s |
|---|---|---|---|
| Fluid Conductivity:: | ≥5μs/cm | Ambient Temperature:: | -25~60℃,-10~60℃ |
| Liner Material:: | PTFE/PVF/F46/Neoprene/PUR | Fluid Maximum Temperature:: | 100℃,150℃ |
| Signal Electrode Form:: | DN15-DN2600,DN300-DN1600 | Electrode Material:: | SS316L,Hastelloy C,Hastelloy B,Titanium,Tantalum,Platinum Iridium |
| Connecting Flange Material:: | Carbon Steel | Grounding Flange Material:: | SST 1Cr18Ni9Ti |
| Protection:: | IP65/68 | Port: | Shanghai |
| High Light: | Electromagnetic Digital Flow Meter,Variable Area 50mm water flow meter,Variable Area Digital Flow Meter |
||
Product Description
EXW Price Electromagnetic Flow Meter 50mm Water Flow Meter Sensor
WLD electromagnetic flowmeter is manufactured with the latest technology with the following defects:
- Measurements are not affected by changes in fluid density, viscosity, temperature, pressure and conductivity;
- Unobstructed flow components in the measuring tube, no pressure loss, low requirements for straight pipe sections;
- Series nominal diameter DN3-DN3000. There are many options for sensor liner and electrode materials;
- The converter adopts novel excitation mode, low power consumption, stable zero point and high precision. The flow range can be 1500:1;
- The converter can be integrated or separated from the sensor;
- The converter adopts 16-bit high-performance microprocessor, 2X16LCD display, convenient parameter setting and reliable programming;
- Explosion-proof instruments can be used in corresponding explosion-proof places;
- The converter uses surface mount technology (SMT) with self-test and self-diagnosis functions;
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
