1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool

1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool

Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK 8010

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $55.00 - $70.00/Pieces
Packaging Details: cartons
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 1500 Piece/Pieces per Month
Get Best Price Contact Now

Detail Information

Warranty: 1 Year Customized Support: OEM, ODM
Output Signal: 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V Accuracy: 0.2%FS, 0.5%FS
Pressure Type: Gauge Power Supply: 12~36VDC
Housing Material: 304SS, 316L Measuring Medium: Rainwater, Drinking Water,Wastewater, Sewage, Oil
Stability: 0.2%FS/year Protection Class: IP68
Overload: 1.5 Times Working Temperature: -20~85℃
Port: Shanghai
High Light:

Firefighting Pool Hydrostatic Water Level Sensor

,

1.5 Times Hydrostatic Water Level Sensor

,

Firefighting Pool sewage water level sensor

Product Description

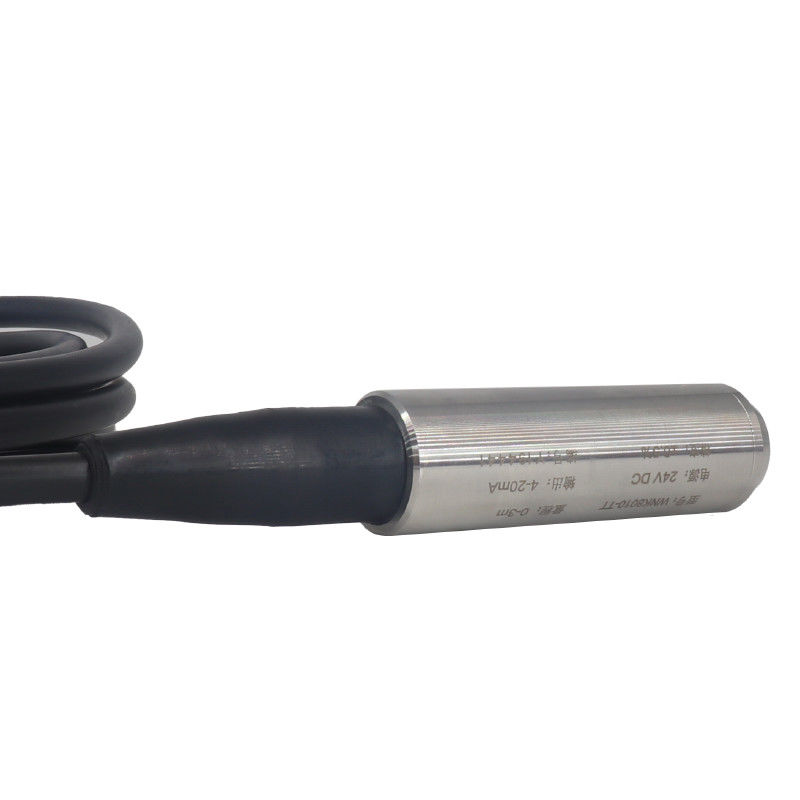

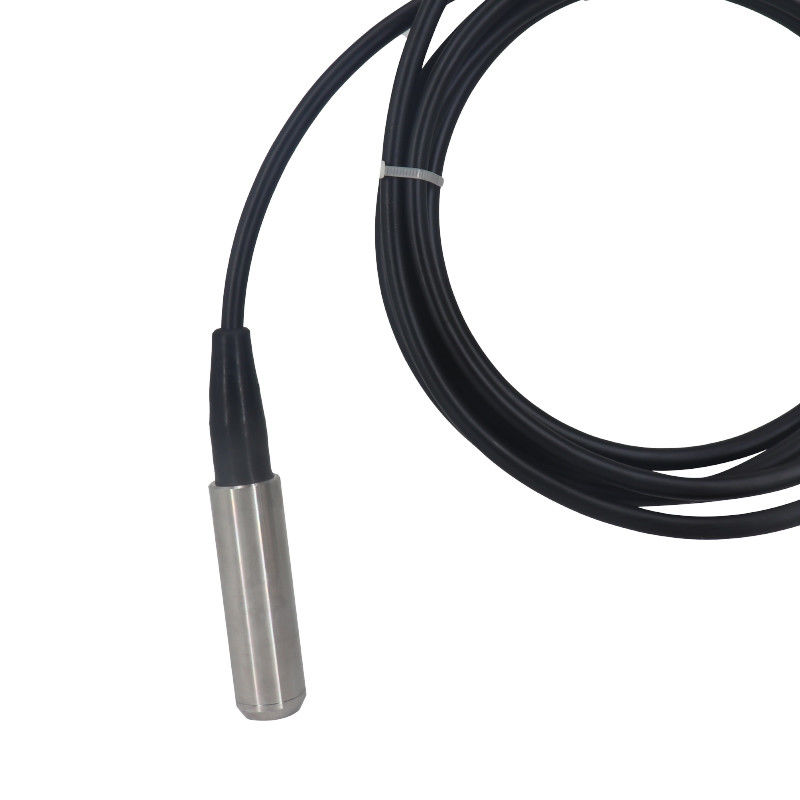

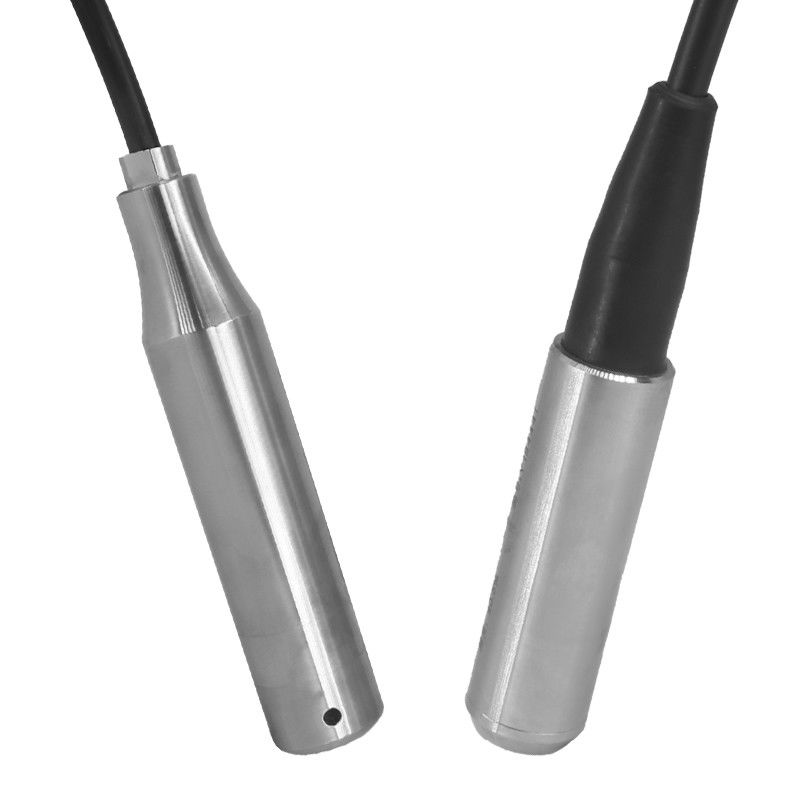

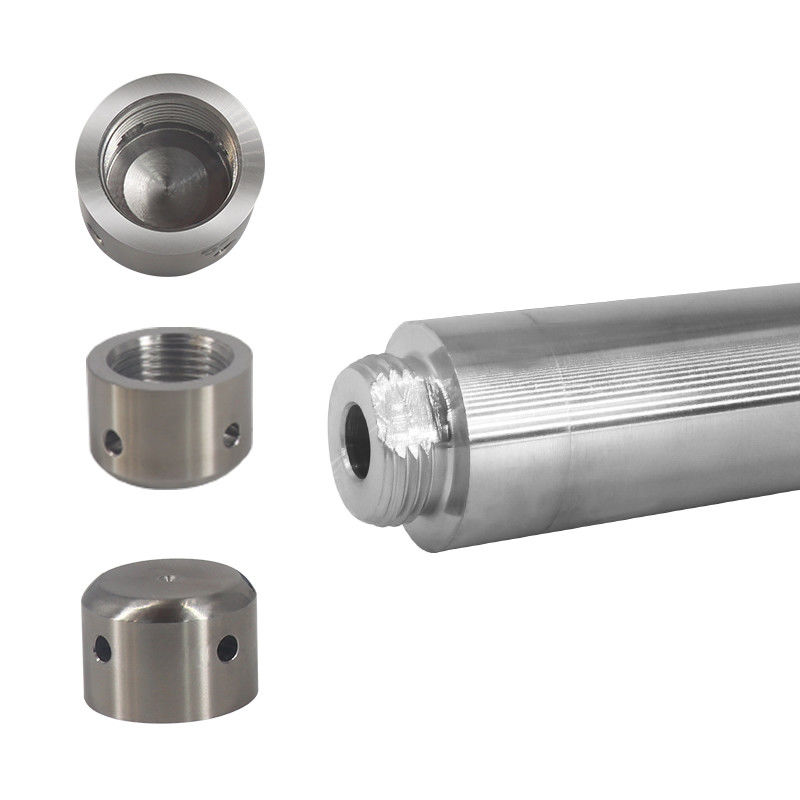

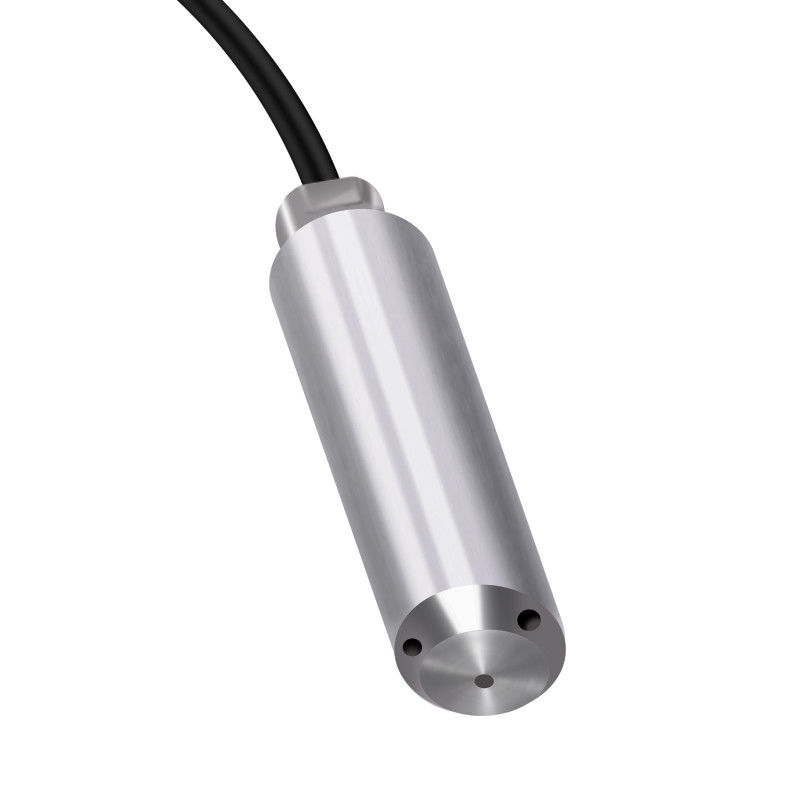

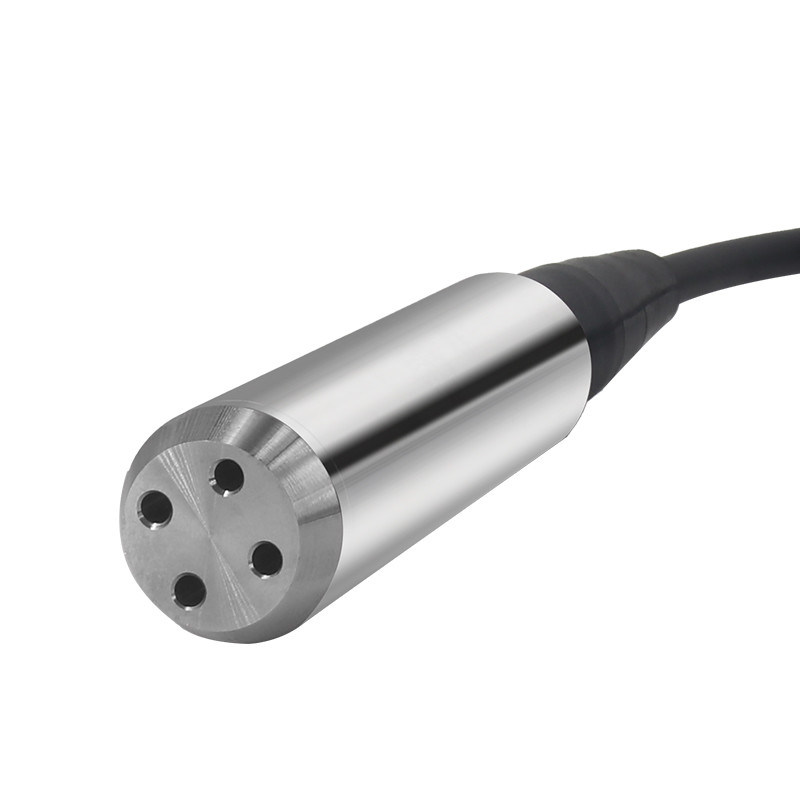

  0.5-4.5V Submersible Water Level Transmitter Sensor for Sewage Firefighting Pool



 Our WNK8010 liquid leve probe with high performance diffused silicon piezoresistive pressure sensor as the measuring element, With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or bsolute pressure of measurement medium to standard voltage or current signal. This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Output signal 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Accuracy 0.2%FS, 0.5%FS
Pressure type Gauge
Power supply 12~36VDC
Housing Material 304SS, 316L
Measuring medium Rainwater, Drinking water,Wastewater, Sewage, Oil
Stability 0.2%FS/year
Protection class IP68
Overload 1.5 times
Working temperature -20~85℃



1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 01.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 21.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 41.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 61.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 81.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 10





Specification



Applications

•   Water tank level measurement and control.

•   Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

•   Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

•  Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



 Features

•   Adopting diffusion silicon oil-filled sensor

•   Max measure range up to 200 meters or more

•   High Stability, provide 0.1, 0.2, 0.5 accuracy for option

•   Factory direct price

1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 12

Company Information


 1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 141.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 161.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 181.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 20

Certifications

1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 22

Packaging & Shipping

1.5 Times Hydrostatic Water Level Sensor For Sewage Firefighting Pool 24

FAQ

Q: Are you manufacturer or trading company?

A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.



Q: What’s your quality control system?

A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.



Q: Is there MOQ with your product?

A: We have no MOQ limits, 1pc for testing purpose is acceptable.



Q: Can we print our logo on the products? Do you provide customized products?

A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.



Q: What is the warranty of your products? And after-sales service?

A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.



Q: What is lead time of your product?

A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
