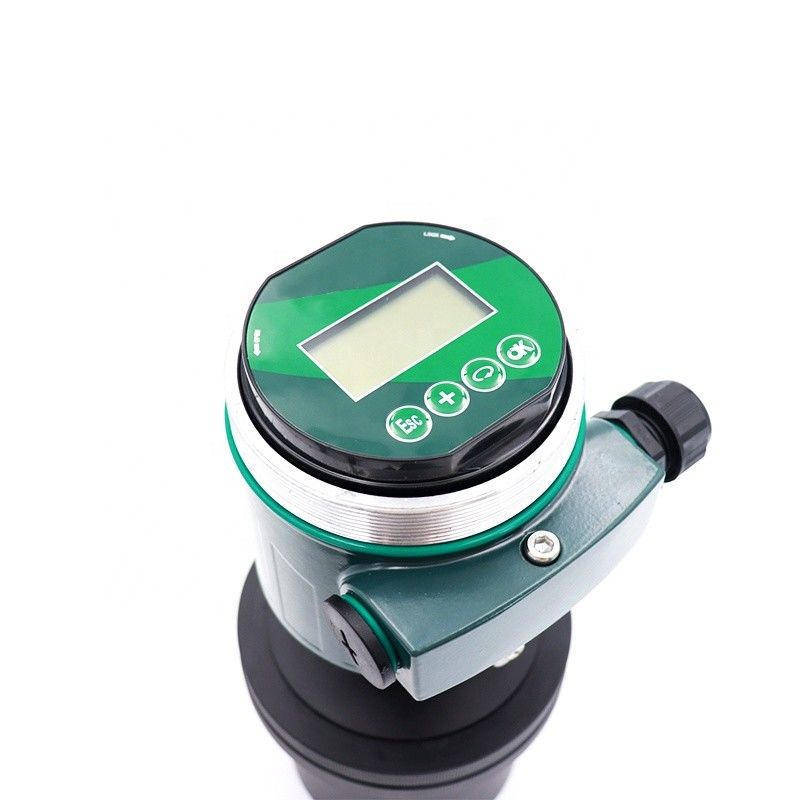

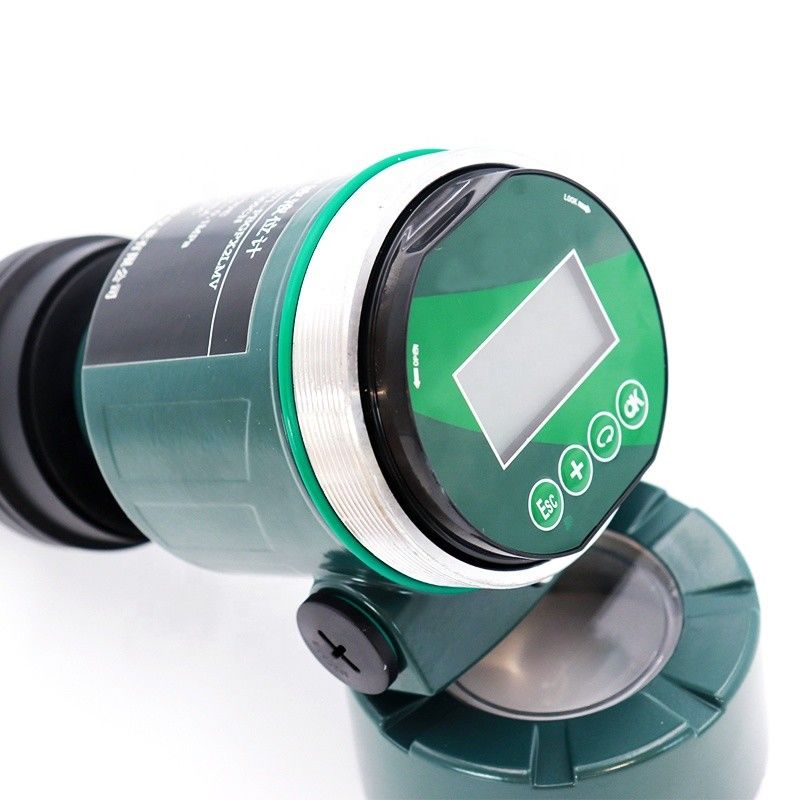

IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor

IP 67 Ultrasonic Liquid Level Transmitter

4 20mA Oil Tank Level Sensor

4 20mA Ultrasonic Liquid Level Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

PWCS72

Contact Us
Request A Quote
Product Details
Grade:
Industrial
Warranty:
1 Year
Customized Support:
OEM, ODM
Product Name:
4-20mA Oil Tank Level Sensor Ultrasonic Liquid Level Transmitter
Measuring Range:
0.3-10m
Process Connection:
G1 1/2A Or Flange, Bracket
Housing Material:
Aluminum/ABS
Accuracy:
0.25%FS
Transducer Material:
PA66+GF30/PVDF
Process Temperature:
-40-70℃
Process Pressure:
-0.02-0.1MPa
Output:
4-20 MA/HART/RS485/Modbus
Explosion-proof Grade:
Exia IIB T6 Ga
Port:
Shanghai
Highlight:

IP 67 Ultrasonic Liquid Level Transmitter

,

4 20mA Oil Tank Level Sensor

,

4 20mA Ultrasonic Liquid Level Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$160.00 - $250.00/Pieces
Packaging Details
Cartons
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
5000 Piece/Pieces per Month Ultrasonic Liquid Level Transmitter
Product Description

4-20mA Oil Tank Level Sensor Ultrasonic Liquid Level Transmitter

Product Parameters
Product number
PWCS71
PWCS72
PWCS73
Measuring range
0.25-5m
0.3-10m
0.4-10m
Process temperature
(-40 ~ 70)℃
(-40 ~ 70)℃
(-40 ~ 70)℃
Process pressure
(-0.02 ~ 0.1)MPa
(-0.02 ~ 0.1)MPa
(-0.02 ~ 0.1)MPa
Precision
±0.25% (full range)
±0.25% (full range)
±0.25% (full range)
Process connection
M66×2 or flange transducer
M66×2 or flange transducer
M95×2 or flange
Signal output
(4-20)mA/HART protocol (24V DC two-wire system/four-wire system)
(4-20)mA/HART protocol
(24V DC two-wire system/four-wire system)
(4-20)mA/HART protocol
(24V DC two-wire system/four-wire system)
Protection grade
IP 67
IP 67
IP 67
Explosion-proof grade
Exia IIB T6 Ga
Exia IIB T6 Ga
Exia IIB T6 Ga
Shell material
PA66+GF30 or PVDF
PA66+GF30 or PVDF
PA66+GF30 or PVDF
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 0

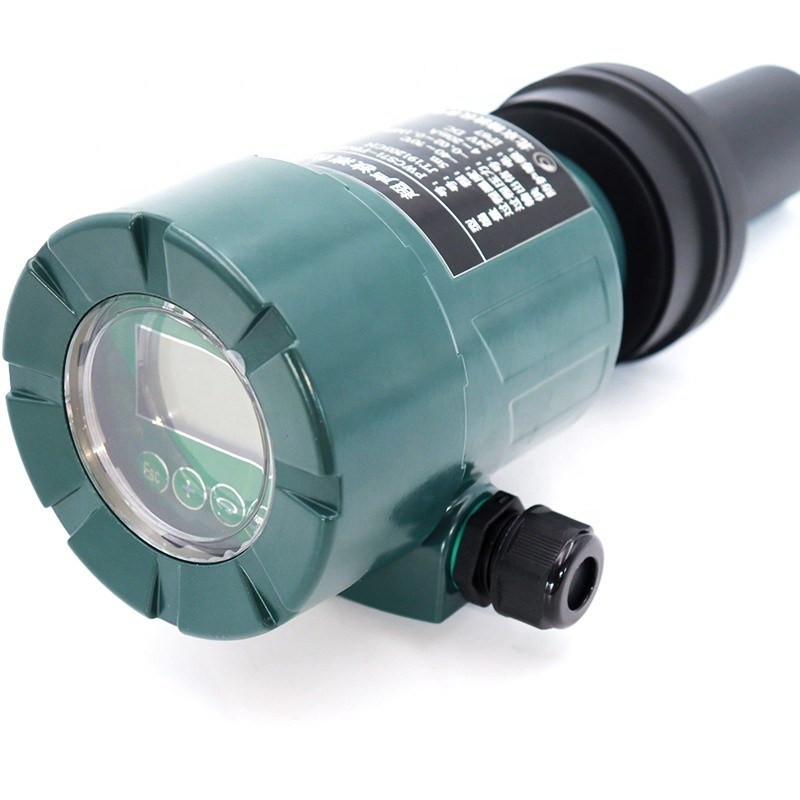

Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function

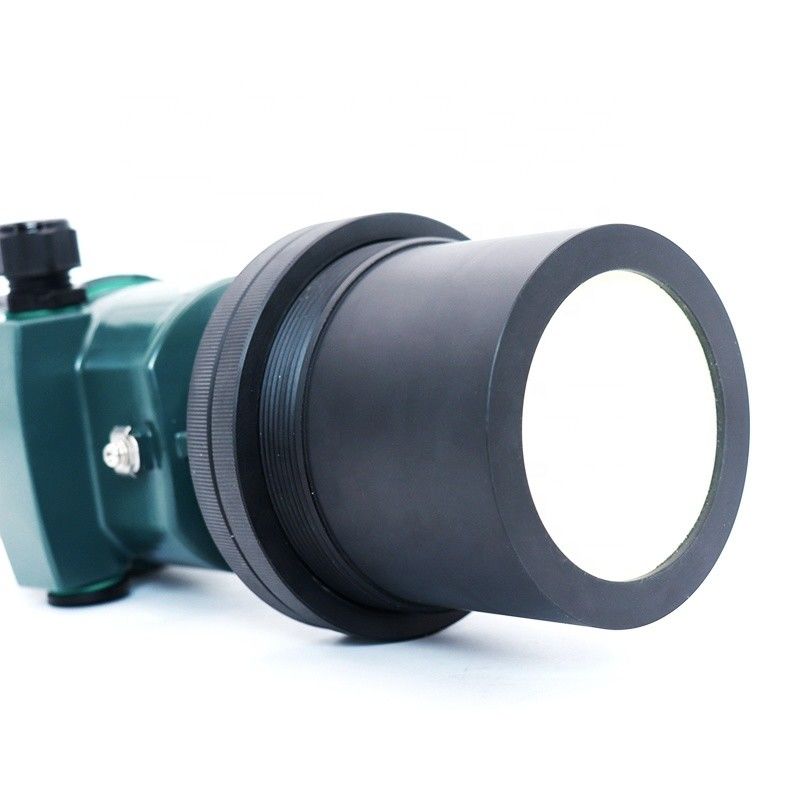

Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 2
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 4

High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction





Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 6
Application Case
Commonly used to measure water levels in wells,boreholes and water level stubs ,it is particularly suitable for the observation of water table in hydropower projects or the artificial inspection of the dam body immersion line of the earth and stone dam body
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 8
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 10
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 12
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 14
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 16
Product Warehouse
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 18
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 20
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 22
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 24
Company Profile
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 26
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 28
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 30
Packing&Shipping
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 32
IP 67 Ultrasonic Liquid Level Transmitter , 4 20mA Oil Tank Level Sensor 34
FAQ
Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
