Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: wnk8010

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $39.00 - $70.00/Pieces
Packaging Details: Each set into one individual carton, packed with foam protection;
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 3000 Piece/Pieces per Week water level sensor
Get Best Price Contact Now

Detail Information

Grade: Industrial Warranty: 1 YEAR
Customized Support: OEM, ODM Pressure Range: 0...1~200 Metres
Accuracy: 0.2%FS, 0.5%FS, Output Signal: 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application: Rainwater, Drinking Water,Wastewater, Car Washes, Seawater Ingress Protection: IP68
Power Supply: 12~36VDC Working Temperature: -40~85 ℃
Process Connection: G1/2, Customization Pressure Type: Gauge
Housing: 304SS, 316L Port: Shanghai, Ningbo, Shenzhen, Guangzhou

Product Description

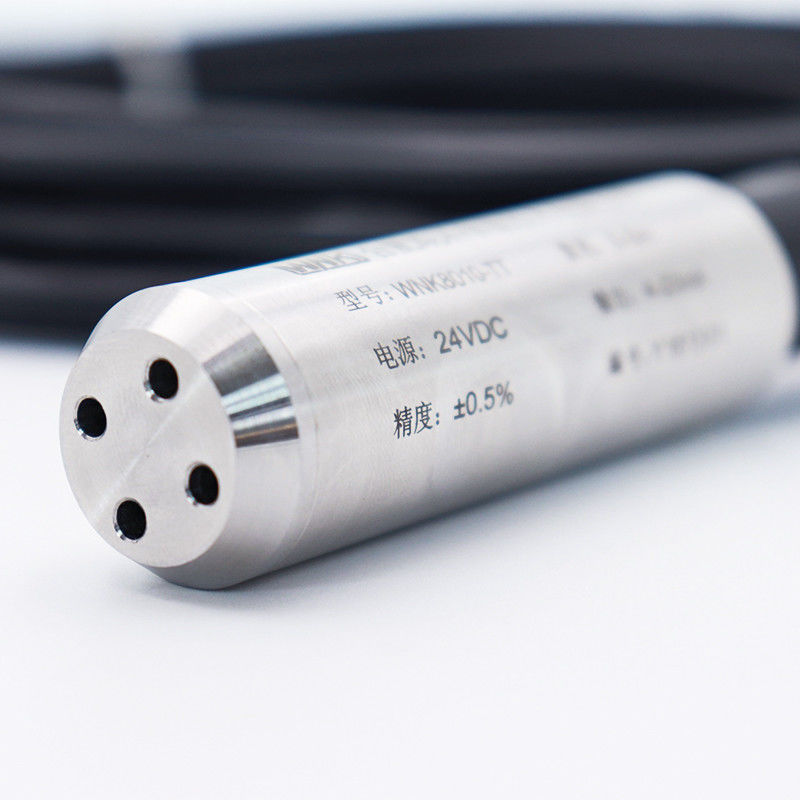

IOT Diesel Tank Level Measurement Submersible Level Sensor







Product Show


-  Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

-   With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

 This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Applications

•   Water tank level measurement and control.

•   Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

•   Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

•  Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



 Features

•   Adopting diffusion silicon oil-filled sensor

•   Max measure range up to 200 meters or more

•   High Stability, provide 0.1, 0.2, 0.5 accuracy for option

•   Factory direct price



0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 1

0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 30...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 5









  Low Submersible Liquid Level Sensor for Water/Boiler/Fuel Tank



Specifications




0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 7

Ordering Code

 0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 9

0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 11





Company Information



 0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 13



Exhibition

 0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 15





Certification

 0...1~200 metres IOT Diesel Tank Level Measurement Submersible Level Sensor 17

FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
