Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE
Model Number: WNK8010-TT

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $35.00 - $50.00/Pieces
Packaging Details: Each set into one individual carton, packed with foam protection;
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 3000 Set/Sets per Week water level transmitter
Get Best Price Contact Now

Detail Information

Grade: DIY, Industrial Warranty: 1 YEAR
Customized Support: OEM, ODM Measuring Range: 0...1~200 Meters
Accuracy: 0.25%FS, 0.5%FS, Analog Output: 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application Field: Wells, Water Tank, Liquid, Sea Water Ingress Protection: IP68
Power Supply: 12~30V DC Digital Output: RS485, IIC, I2C
Cable Material: PF, PTFE (anti-corrosive) Housing: 304SS, 316L
Type: Water Level Transmitter Port: Shanghai, Ningbo, Shenzhen, Guangzhou
High Light:

24VDC Submersible Level Sensor

,

IP68 Water Level Transmitter

,

RS485 water level transmitter

Product Description

4-20mA Submersible Level Sensor Water Level Transmitter RS485 Output

-  Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

-   With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

 This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Output

4~20mA, 0-10mA, 0-5V, 1-5V, customization

Level range

0-0.5~200mH2O

Overload

150% of sensor range

Measuring medium

Liquid

Accuracy

±0.2%FS, ±0.5%FS

Stability

0.25%FS/ year

Housing material

Stainless steel

Cable material

Polyvinyl Fluoride, PTFE

Power Supply

24VDC

Ambient temperature

-20~85

Process temperature

-20~85

Compensation temperature

-20~85

Protection class

IP68





Applications

•   Water tank level measurement and control.

•   Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

•   Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

•  Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



 Features

•   Adopting diffusion silicon oil-filled sensor

•   Max measure range up to 200 meters or more

•   High Stability, provide 0.1, 0.2, 0.5 accuracy for option

•   Factory direct price





 Dimensions



24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 0

Product Show

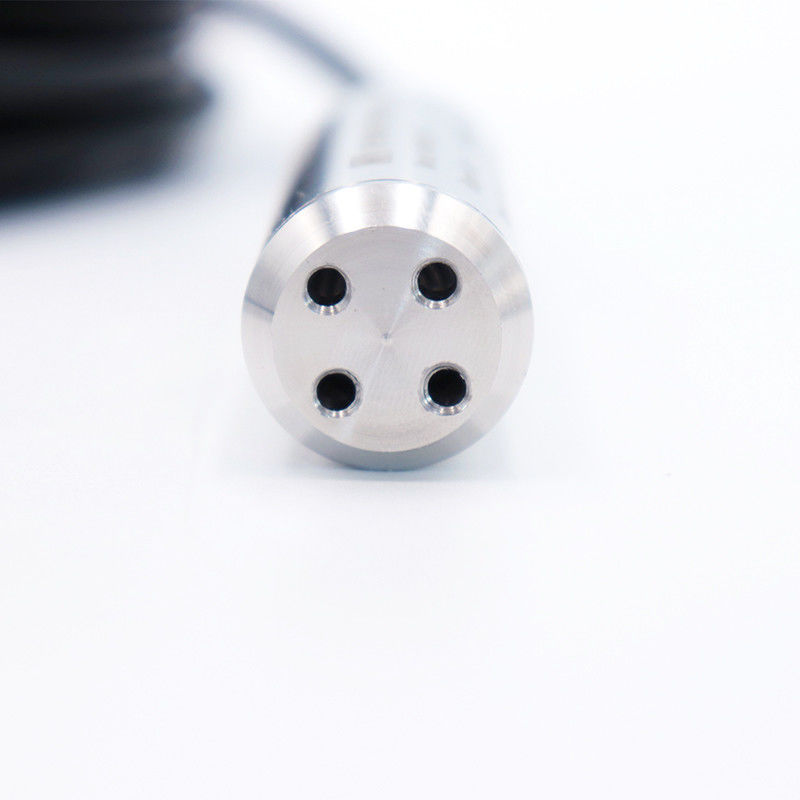

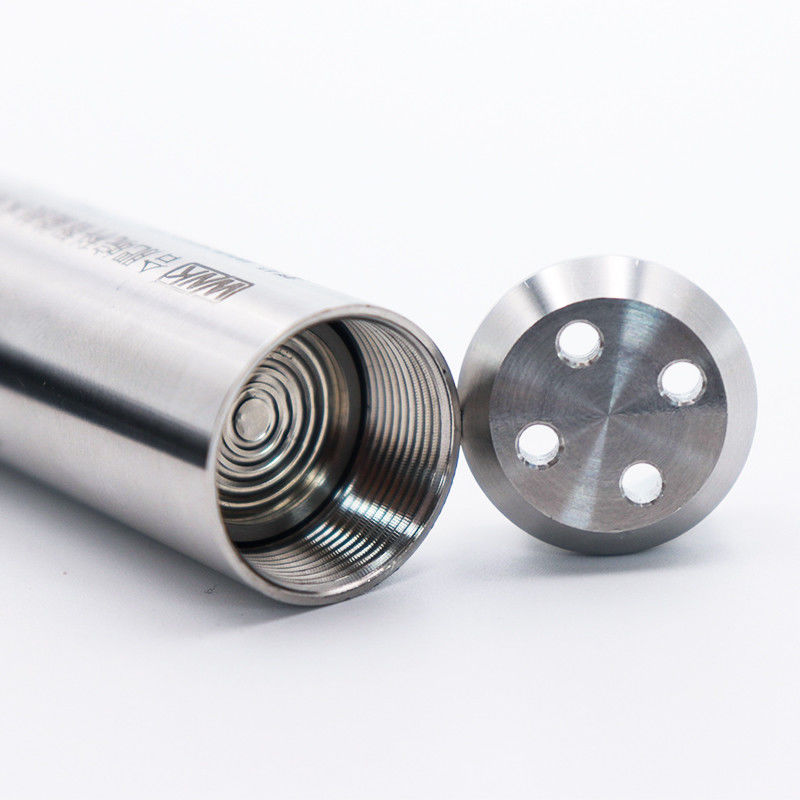

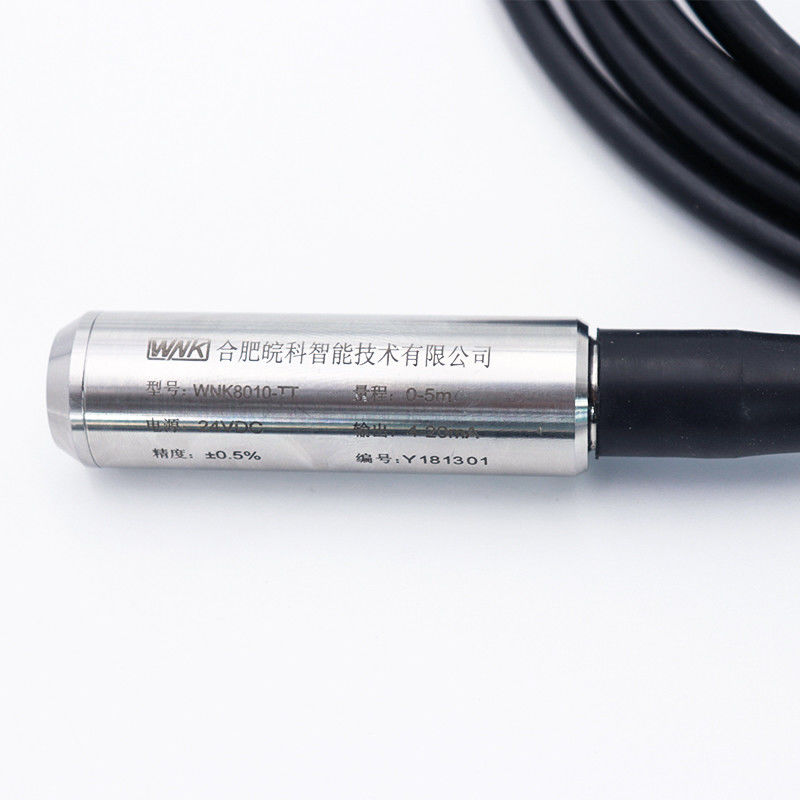

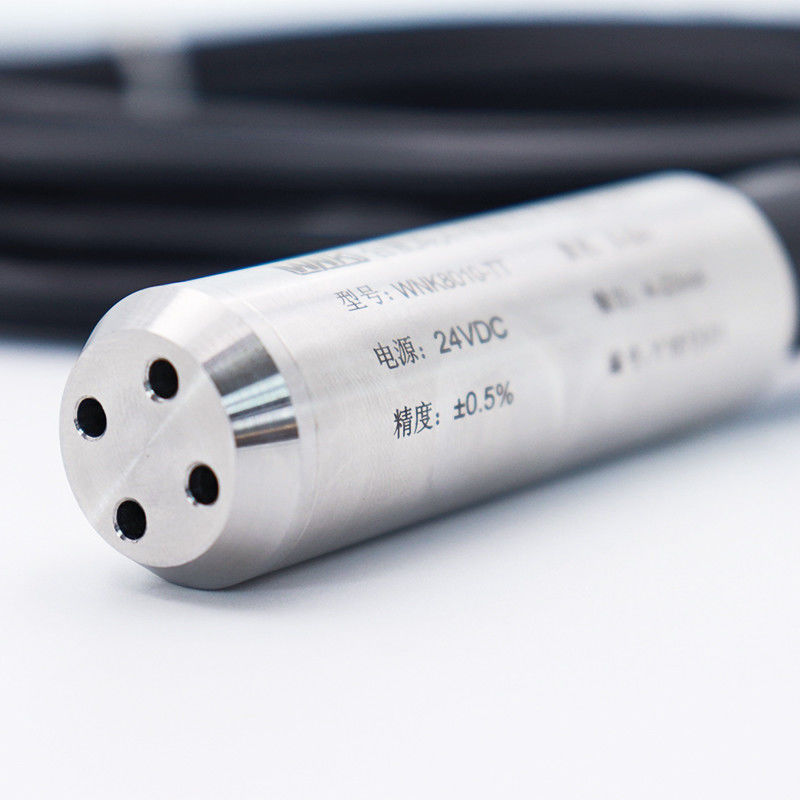

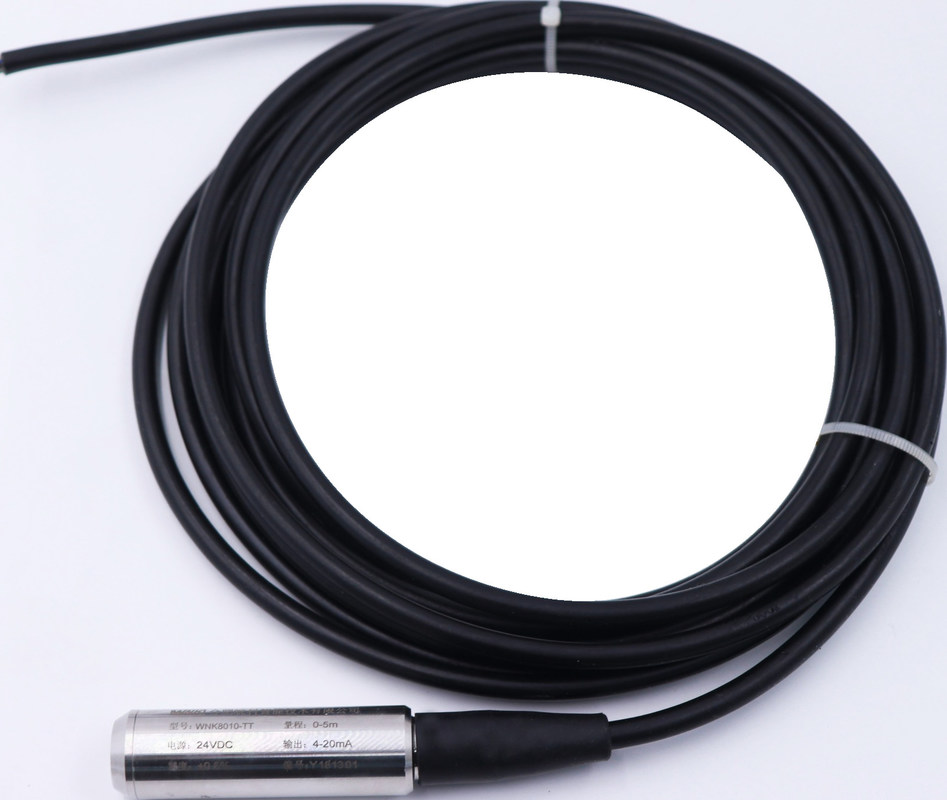

24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 324VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 5

 24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 724VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 924VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 1124VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 13

24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 15





Company Information

 24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 17

Exhibition

 24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 19



Certification

24VDC Submersible Level Sensor , IP68 RS485 Water Level Transmitter 21



FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
