The integrated ultrasonic liquid level gauge is a low-cost measuring device for measuring liquid, slurry and solids on the industrial site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries
 |

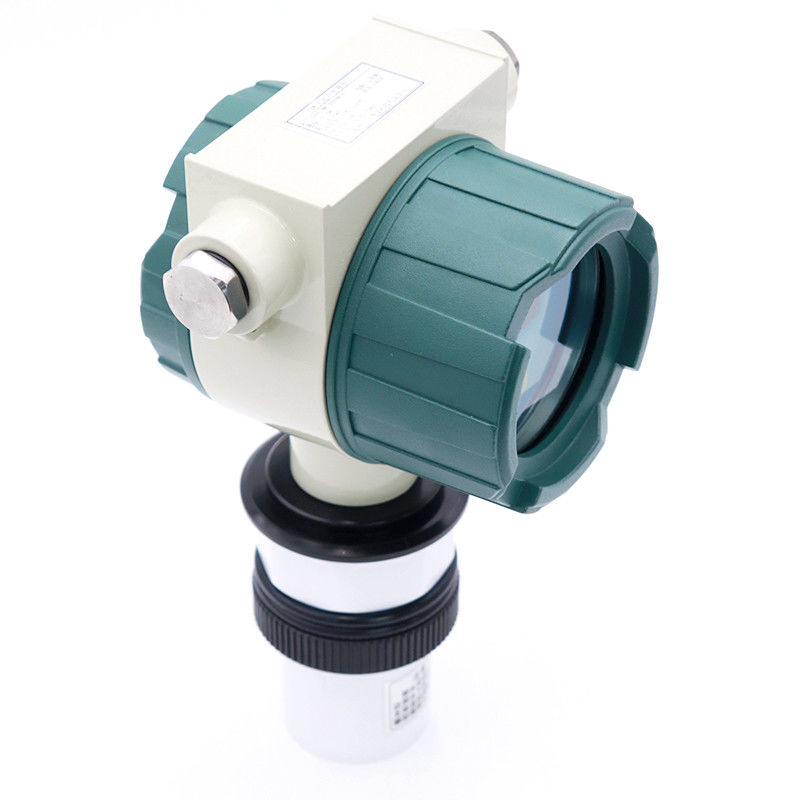

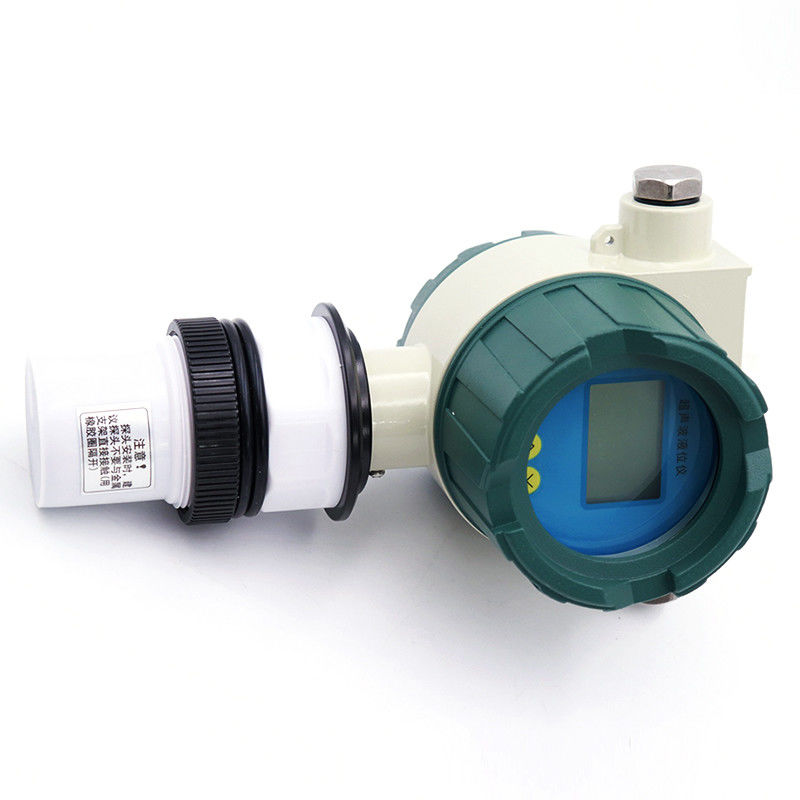

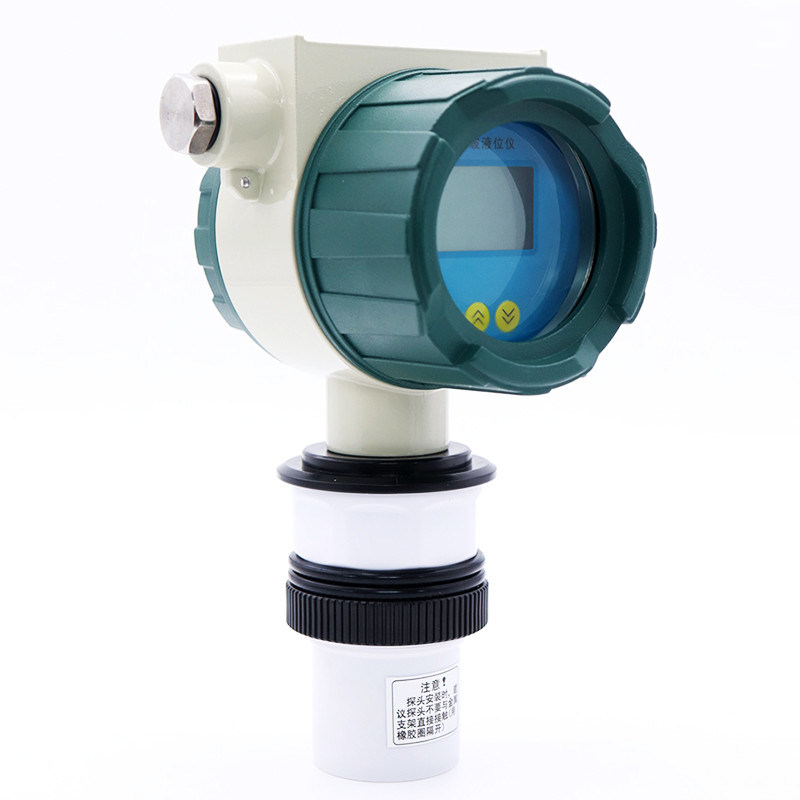

IP68 Probe Ultrasonic Water Level Sensor integrated with LCD display
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK-YTS56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $90.00 - $245.00/Units |
| Packaging Details: | Neutral carton packing or as per your requirement. |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 Unit/Units per Month |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | 1 YEAR |
|---|---|---|---|
| Customized Support: | OEM, ODM | Measuring Range: | 0.5%~1.0% |
| Resolution: | 3mm Or 0.1% | Analog Output: | 2-wire 4 ~ 20mA / 250Ω Load, 4-wire 4 ~ 20mA / 510Ω Load |
| Digital Output: | 485,232 | Power Supply: | 24V DC |
| Ambient Temperature: | Display Instrument -20 ~ + 60 ℃, Probe -20 ~ + 80 ℃ | Process Pressure: | -0.02-0.1MPa |
| Installation Size: | Thread Or Flange | Protection Class: | Display Instrument IP65, Probe IP68 |
| MOQ: | 1 Unit | Port: | Any Ports In China |
| High Light: | IP68 Probe Ultrasonic Water Level Sensor,Integrated Ultrasonic Water Level Sensor,LCD Display ultrasonic water sensor |
||
Product Description
IP68 Probe Liquid Universal 4-20mA Ultrasonic Level Gauge/Level Transmitter
Product Category
Integrated ultrasonic level gauge
Ultrasonic level gauge is a kind of low cost measuring equipment for measuring liquid, slurry and solid on site. A large number of applications in water treatment, municipal, chemical, machinery manufacturing industries
The split ultrasonic level gauge has a separate sensor from the host, which is more suitable for installation on storage tanks, silos and brackets. It is a low-cost measuring device for measuring liquids, slurries, and solids on the industrial site. A large number of applications in the metallurgical and mechanical manufacturing industries
Product Paramenters
|
Features
|
Integrated
|
|
|
|
|||
|
Range
|
5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m
|
|
|
|
|||
|
Measurement Accuracy
|
0.5%~1.0%
|
|
|
|
|||
|
Resolution
|
3mm or 0.1% (whichever is greater)
|
|
|
|
|||
|

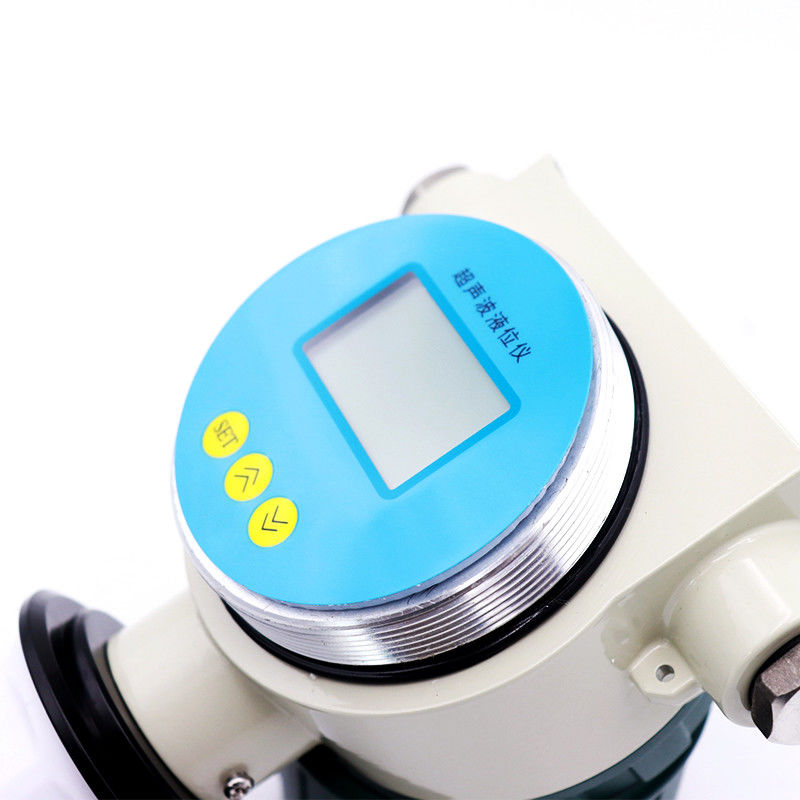

Display
|
Chinese LCD or English LCD
|
|
|
|
|||
|
Analog Output
|
2 wire 4 ~ 20mA / 25Ω load, 4 wire 4 ~ 20mA / 510Ω load
|
|
|
|
|||
|
Digital Output
|
Optional 485, 232
|
|
|
|
|||
|
Relay Output
|
Optional 2 sets of AC 250V / 5A or DC 30V / 5A
|
|
|
|
|||
|
Powered
|
Standard 24VDC, optional 220V AC + 15% 50HZ
|
|
|
|
|||
|
Ambient Temperature
|
Display instrument -20 ~ + 60 ℃, probe -20 ~ + 80 ℃
|
|
|
|
|||
|
Protection Class
|
Display instrument IP65, probe IP68
|
|
|
|
|||
|
Probe Cable
|
No
|
|
|
|
|||
|
Installation Size
|
Thread or flange
|
|
|
|
|||
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
The installation position shall avoid obstacles as much as possible
Application Case
