4-20mA Digital Water Level Sensor PTFE Cable material For Underwater
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK8010-TT |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $45.00/Pieces |
Packaging Details: | Paper carton or as client's requirement; |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 5000/ Piece/ Month |
Detail Information |
|||
Grade: | Industrial | Warranty: | 1 YEAR |
---|---|---|---|
Customized Support: | OEM, ODM | Output: | 4~20mA |
Level Range: | 0-200m H2O | Overload: | 150% Times |
Measuring Medium: | Liquid | Accuracy: | 0.2%FS, 0.5%fs |
Stability: | 0.25%FS | Housing Material: | Stainless Steel |
Cable Material: | Polyvinyl Fluoride, PTFE | Power Supply: | 24VDC |
Ambient Temp: | -20~85℃ | ||
High Light: | 4 20mA Digital Water Level Sensor,PTFE Cable Digital Water Level Sensor |
Product Description

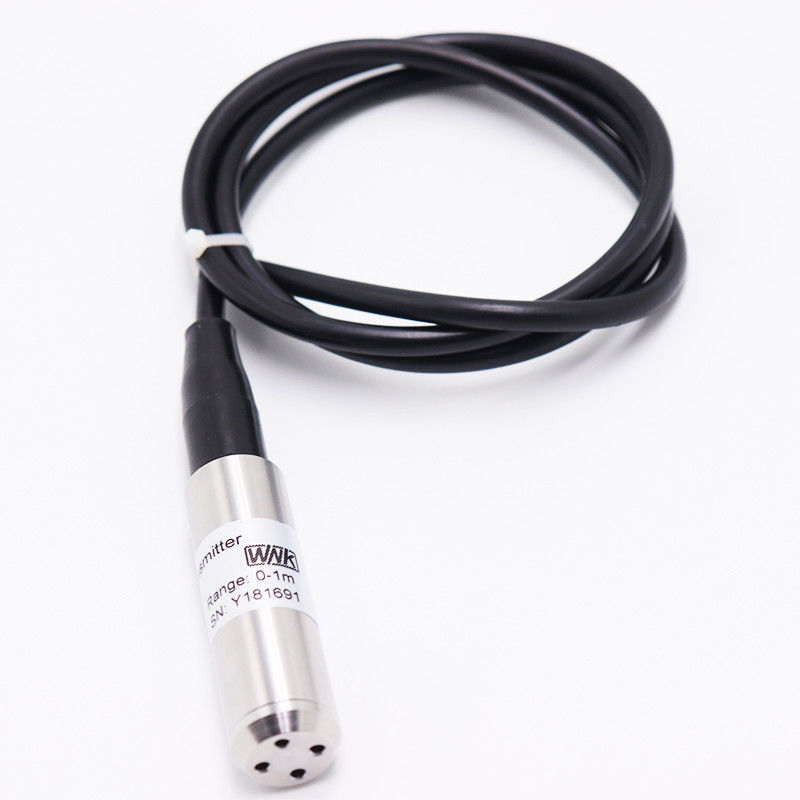

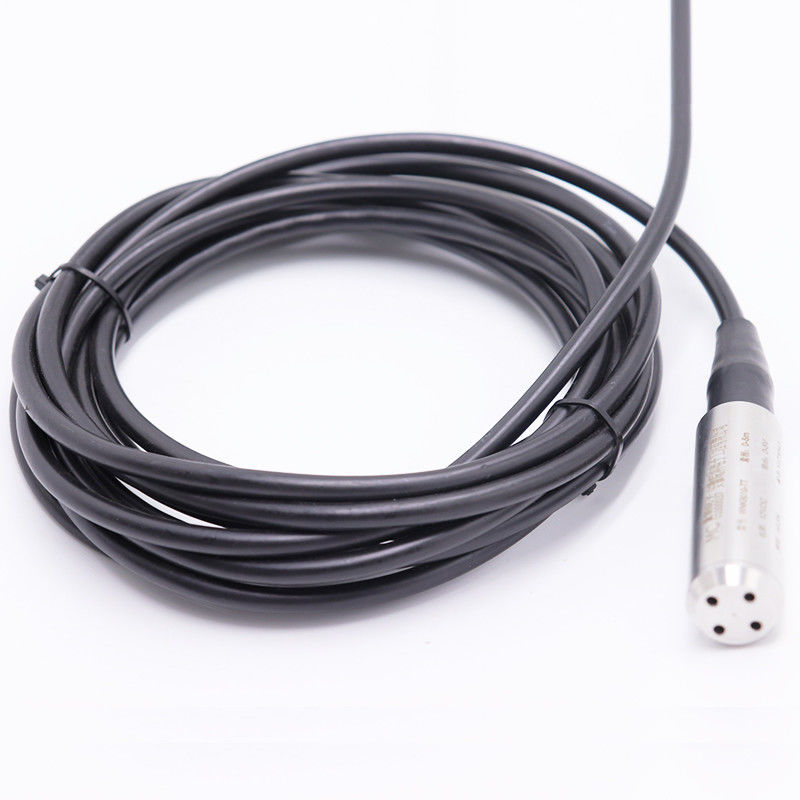

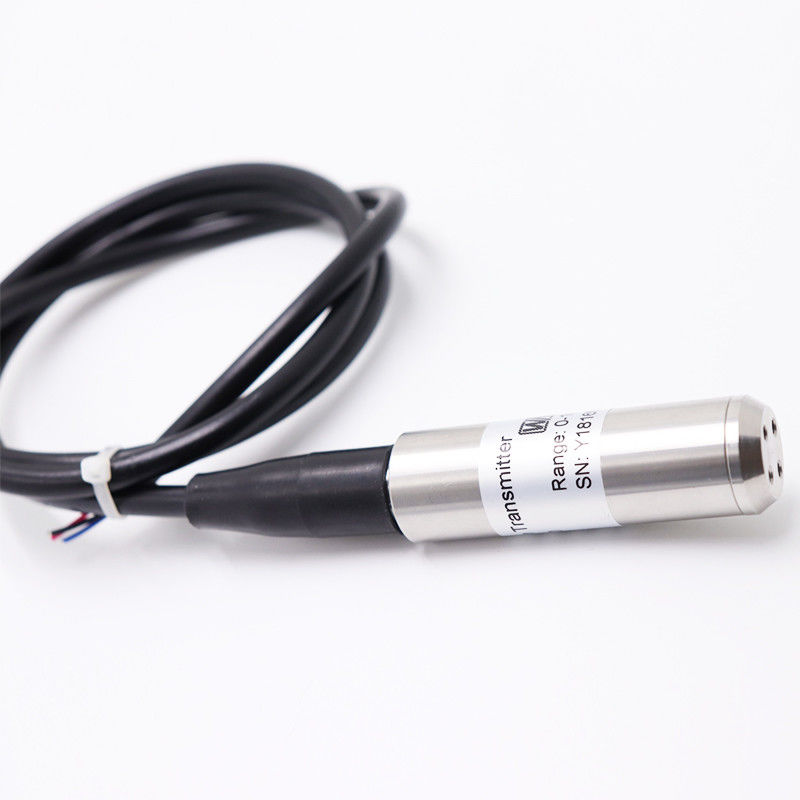

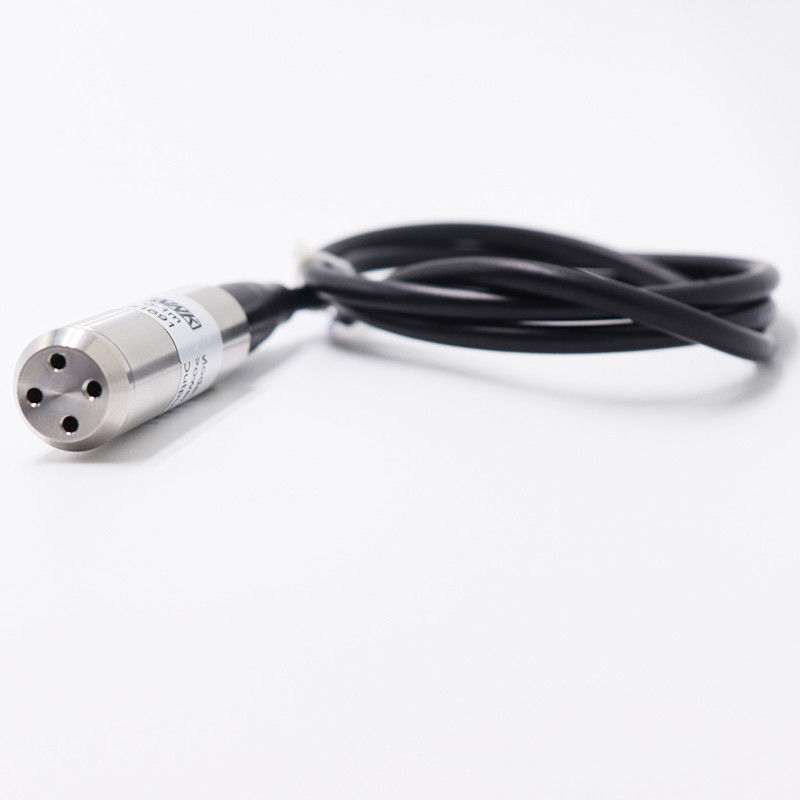

4-20mA Digital Water Level Sensor / Liquid Level Sensor For Underwater

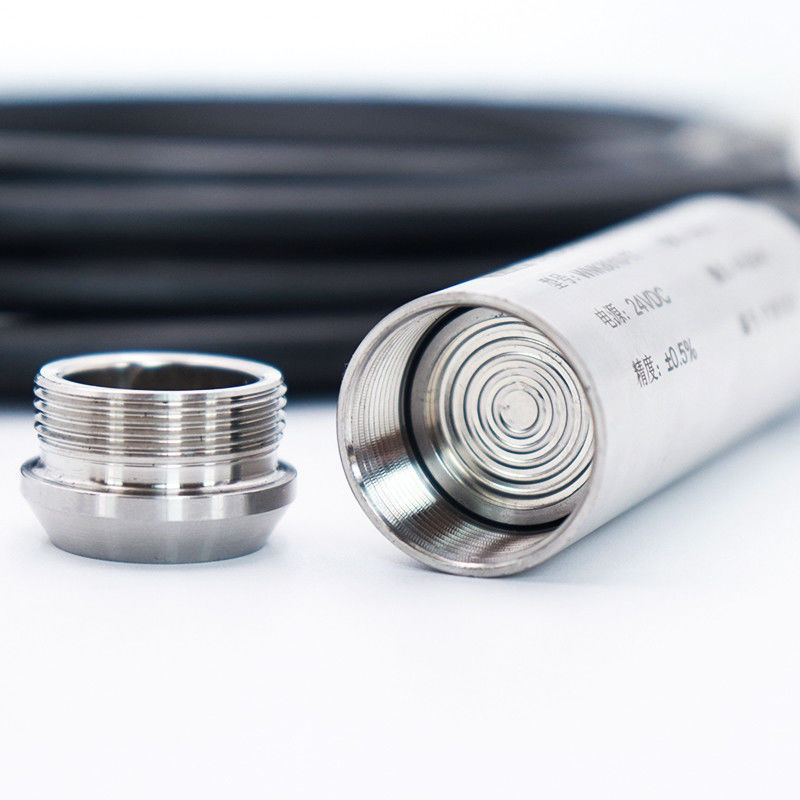

- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by
customized.)
Specification
Output
|
4~20mA, 0-10mA, 0-5V, 1-5V, customization
|
Level range
|
0-0.5~200mH2O
|
Overload
|
150% of sensor range
|
Measuring medium
|
Liquid
|
Accuracy
|
±0.2%FS, ±0.5%FS
|
Stability
|
0.25%FS/ year
|
Housing material
|
Stainless steel
|
Cable material
|
Polyvinyl Fluoride, PTFE
|
Power Supply
|
24VDC
|
Ambient temperature
|
-20~85℃
|
Process temperature
|
-20~85℃
|
Compensation temperature
|
-20~85℃
|
Protection class
|
IP68
|
Hot Products
Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile



FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
Want to Know more details about this product
