Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output

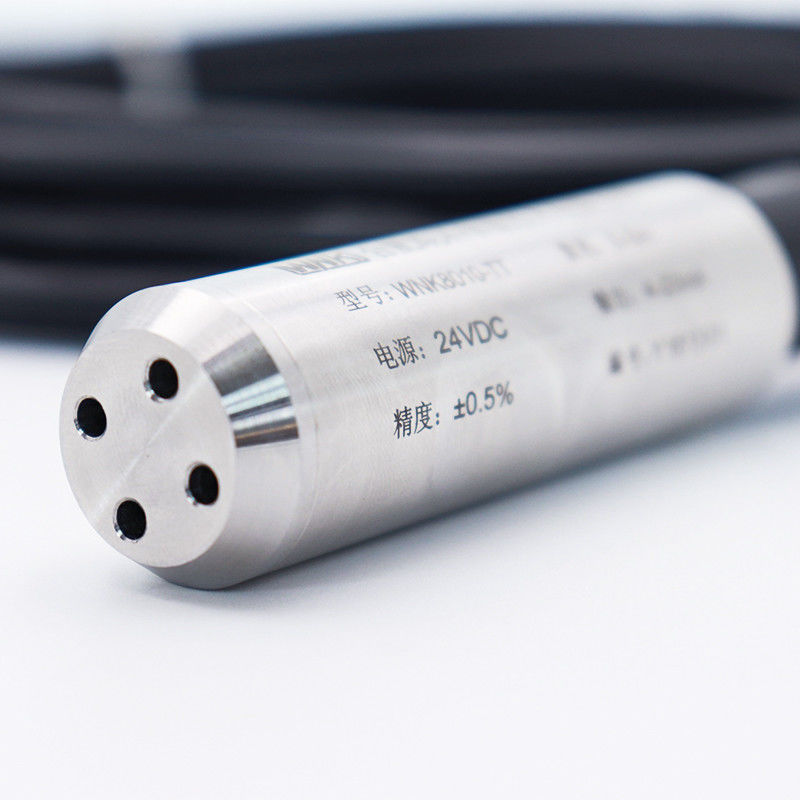

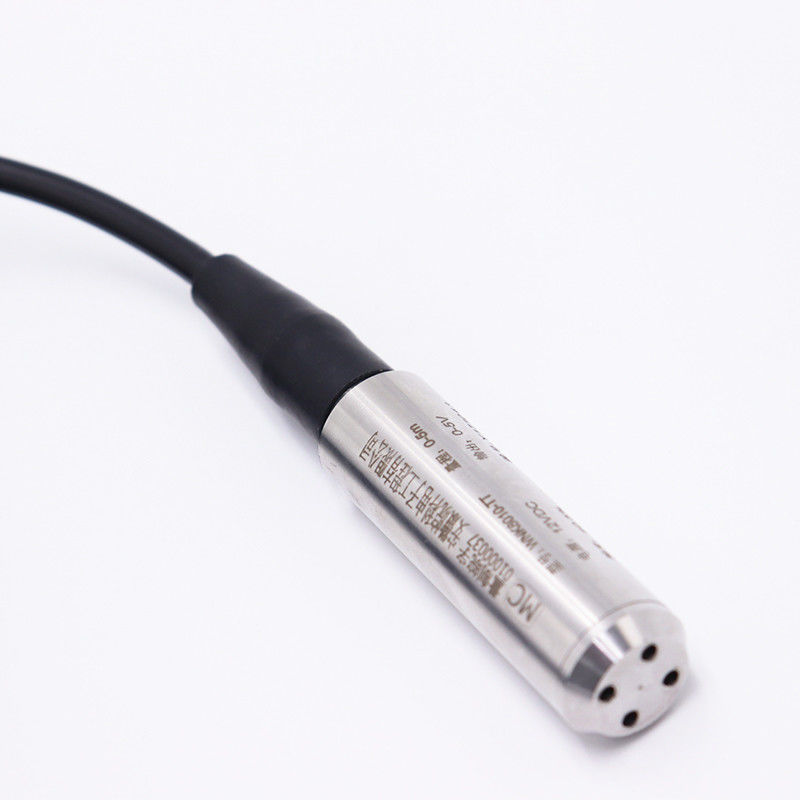

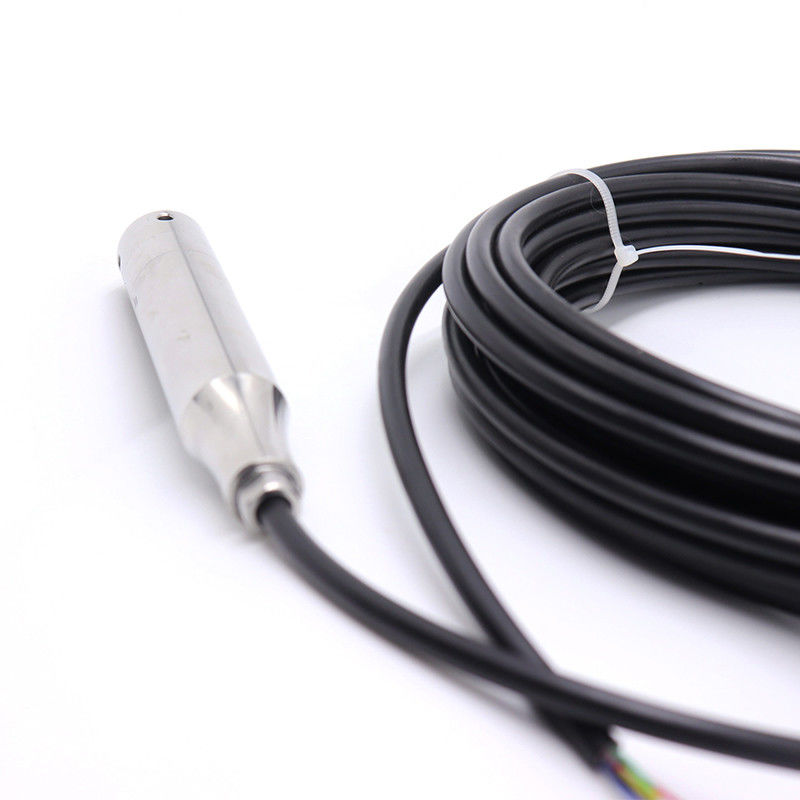

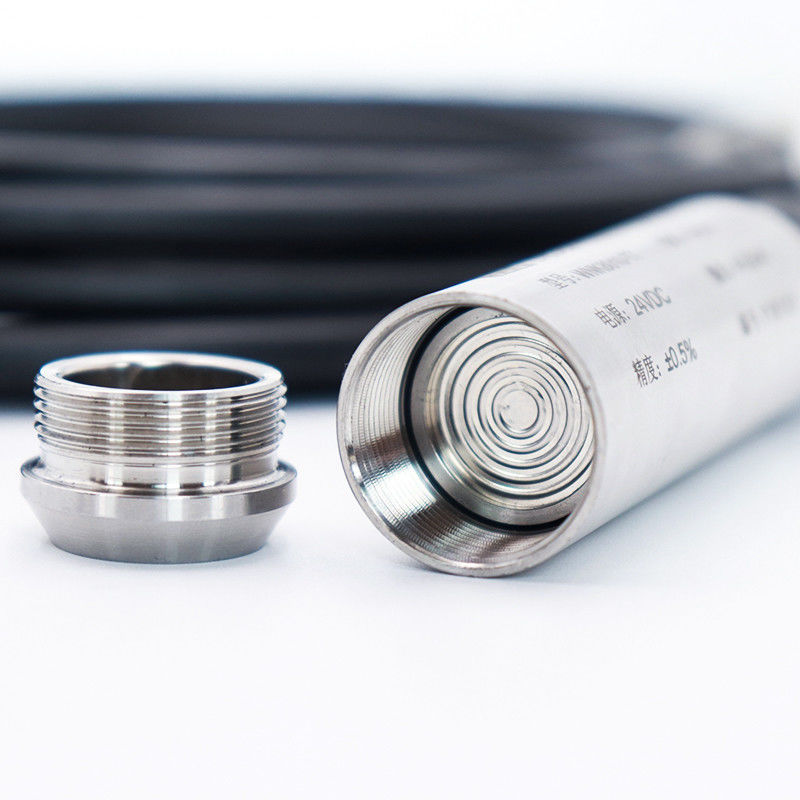

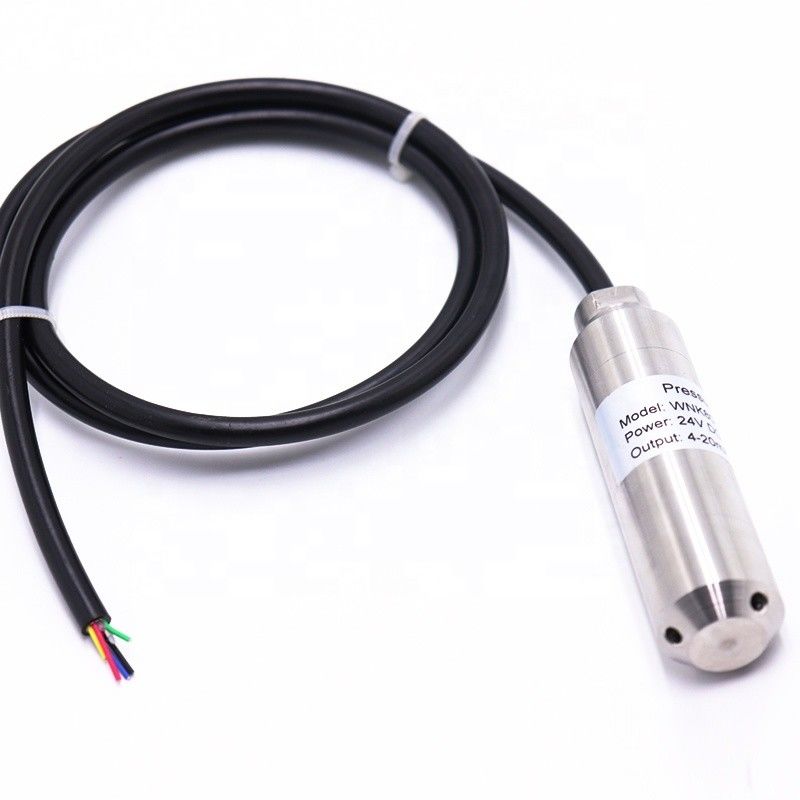

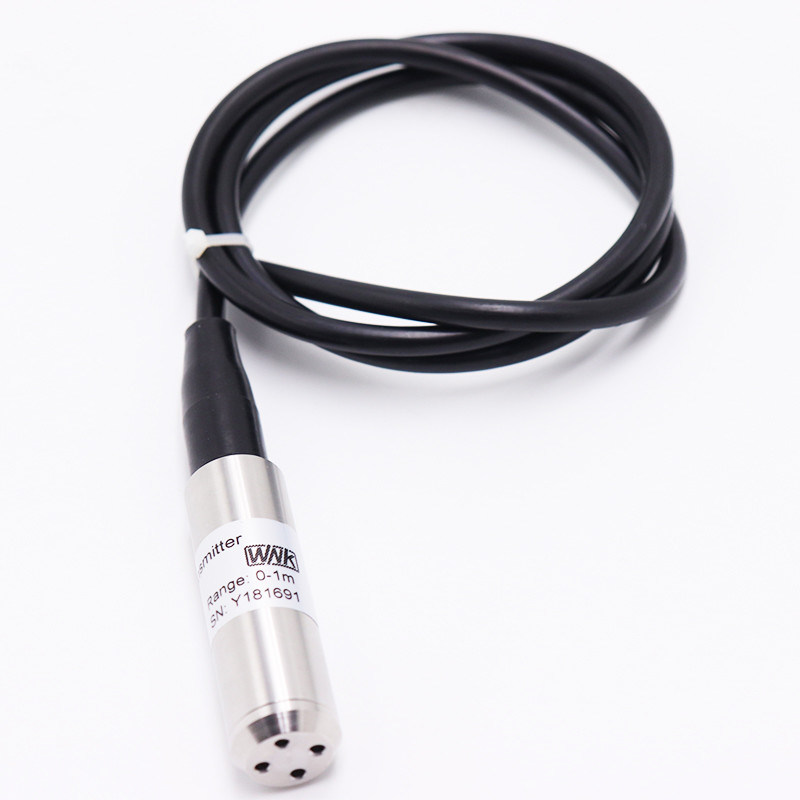

Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output

304SS Waterproof Water Level Sensor

RS485 Swimming Pool Water Level Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK8010-TT

Contact Us
Request A Quote
Product Details
Grade:
Industrial
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Measuring Range:
0...1~200 Meters
Accuracy:
0.25%FS, 0.5%FS,
Analog Output:
4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V
Application Field:
Wells, Water Tank, Liquid, Sea Water
Ingress Protection:
IP68
Power Supply:
12~30V DC
Digital Output:
RS485, IIC, I2C
Cable Material:
PF, PTFE (anti-corrosive)
Housing:
304SS, 316L
Type:
Water Level Transmitter
Port:
Shanghai, Ningbo, Shenzhen, Guangzhou
Highlight:

304SS Waterproof Water Level Sensor

,

RS485 Swimming Pool Water Level Sensor

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
$35.00 - $50.00/Pieces
Packaging Details
Each set into one individual carton, packed with foam protection;
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union, MoneyGram, Paypal
Supply Ability
3000 Set/Sets per Week water level transmitter
Product Description

304SS Swimming Pool Water Level Sensor With 4-20mA I2C RS485 Output







-  Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

-   With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

 This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Output

4~20mA, 0-10mA, 0-5V, 1-5V, customization

Level range

0-0.5~200mH2O

Overload

150% of sensor range

Measuring medium

Liquid

Accuracy

±0.2%FS, ±0.5%FS

Stability

0.25%FS/ year

Housing material

Stainless steel

Cable material

Polyvinyl Fluoride, PTFE

Power Supply

24VDC

Ambient temperature

-20~85

Process temperature

-20~85

Compensation temperature

-20~85

Protection class

IP68





Applications

•   Water tank level measurement and control.

•   Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

•   Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

•  Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



 Features

•   Adopting diffusion silicon oil-filled sensor

•   Max measure range up to 200 meters or more

•   High Stability, provide 0.1, 0.2, 0.5 accuracy for option

•   Factory direct price





 Dimensions



Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 0


Product Show



Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 3Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 5

 Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 7Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 9Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 11Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 13

Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 15





Company Information

 Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 17

Exhibition

 Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 19



Certification

Waterproof Swimming Pool Water Level Sensor 304SS With I2C RS485 Output 21



FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
