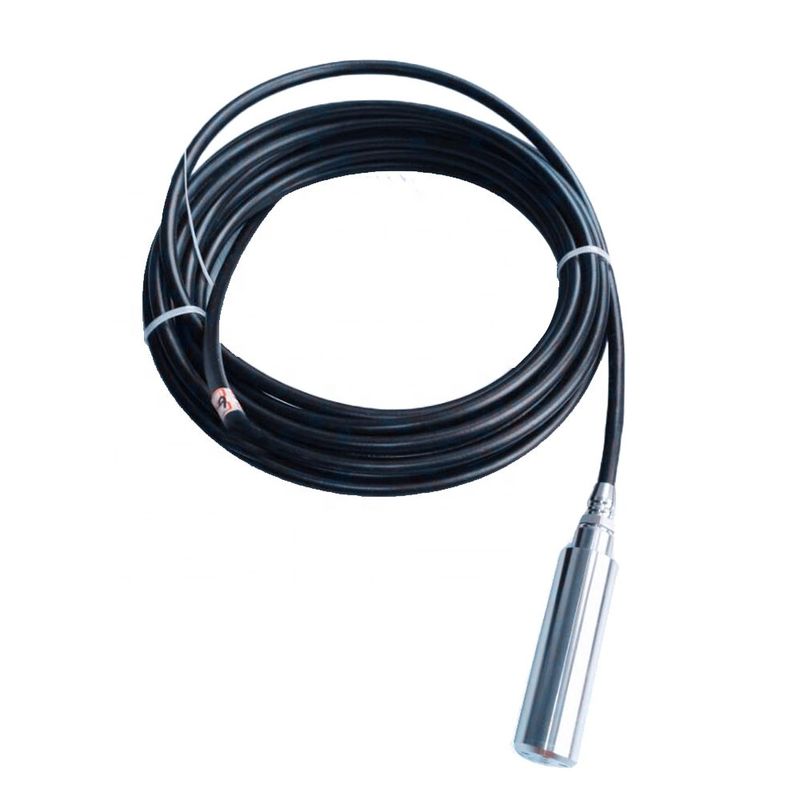

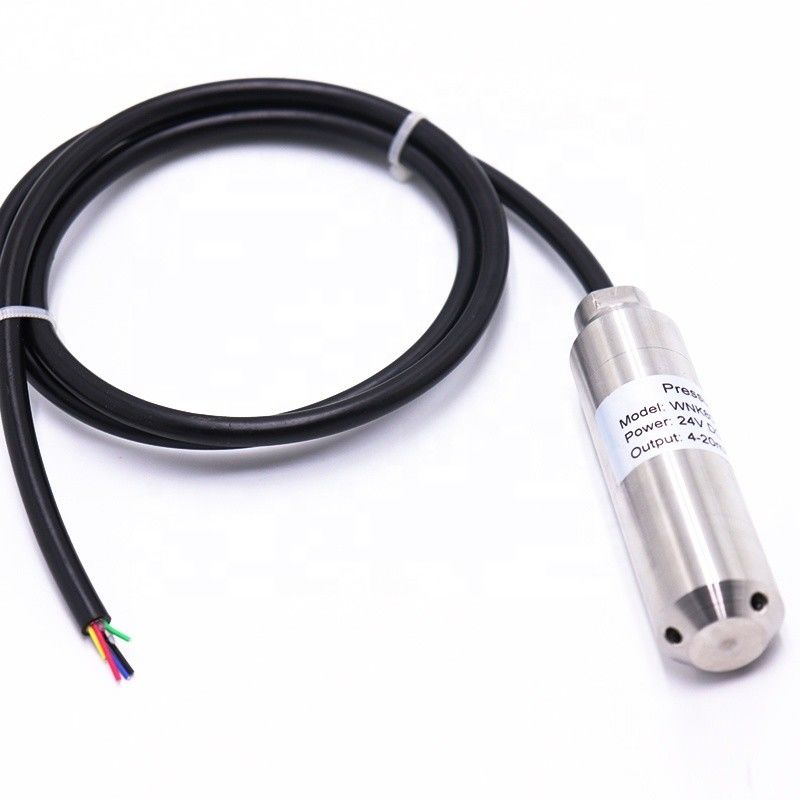

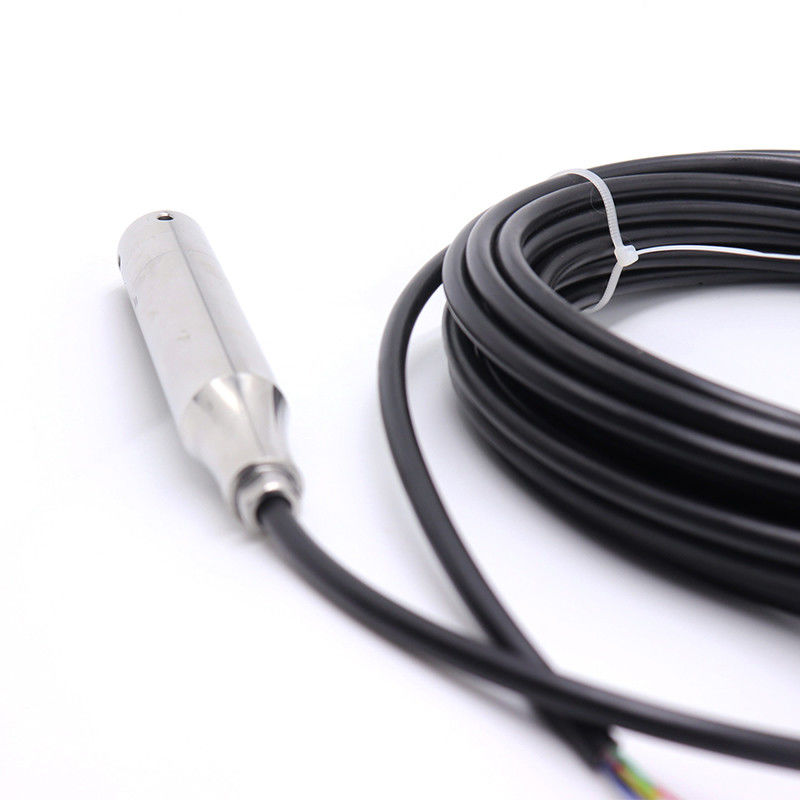

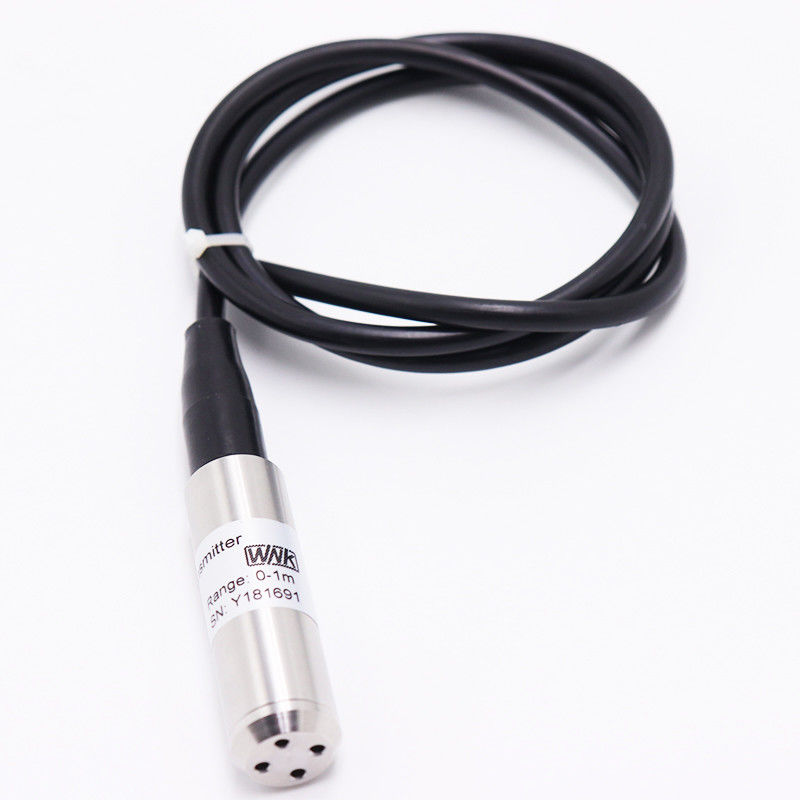

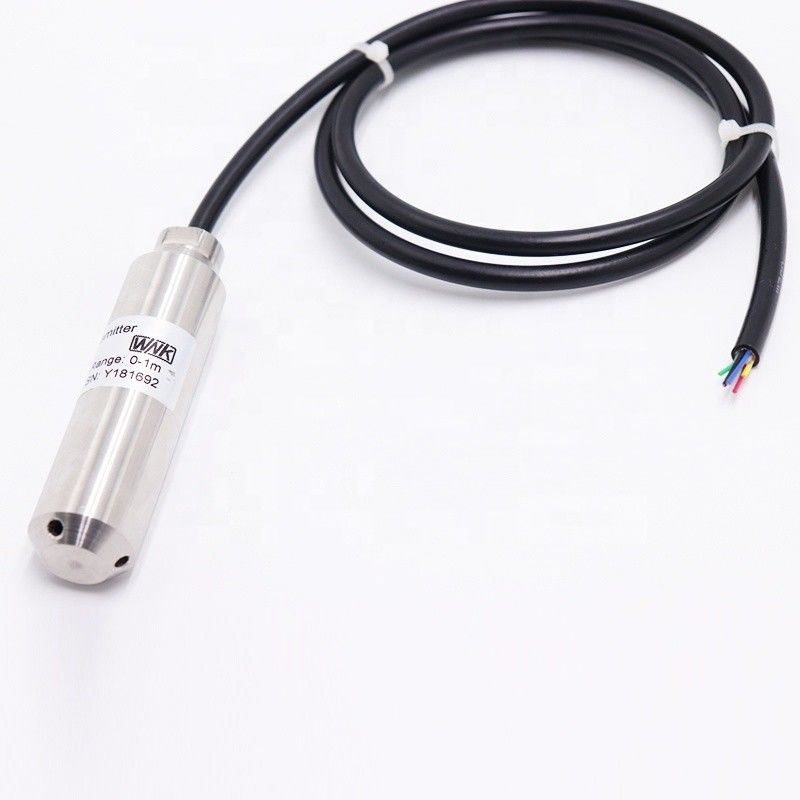

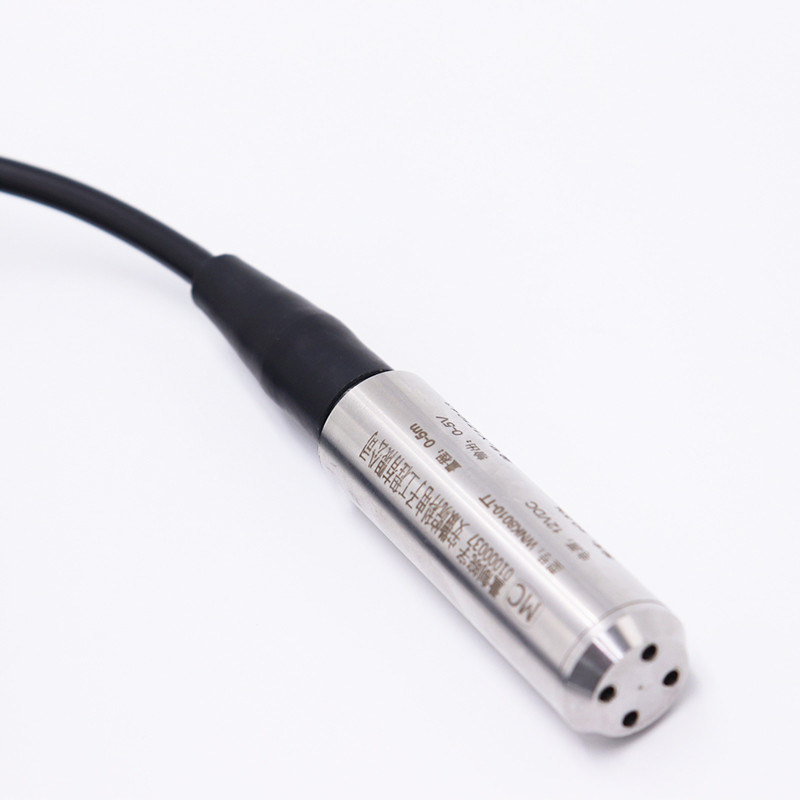

3.3V Submersible Pump Water Level Sensor For Digital I2C Output
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK8010-TT |
Payment & Shipping Terms:
| Price: | $35.00 - $50.00/Pieces |
|---|---|
| Packaging Details: | Each set into one individual carton, packed with foam protection; |
| Supply Ability: | 3000 Set/Sets per Week water level transmitter |
|
Detail Information |
|||
| Grade: | Industrial | Warranty: | 1 YEAR |
|---|---|---|---|
| Customized Support: | OEM, ODM | Measuring Range: | 0...1~200 Meters |
| Accuracy: | 0.25%FS, 0.5%FS, | Analog Output: | 4-20mA, 0-5V, 1-5V, 0.5-4.5V, 0-10V |
| Application Field: | Wells, Water Tank, Liquid, Sea Water | Ingress Protection: | IP68 |
| Power Supply: | 12~30V DC | Digital Output: | RS485, IIC, I2C |
| Cable Material: | PF, PTFE (anti-corrosive) | Housing: | 304SS, 316L |
| Type: | Water Level Transmitter | Port: | Shanghai, Ningbo, Shenzhen, Guangzhou |
| High Light: | 3.3V submersible pump water level sensor,I2C Submersible Pump Water Level Sensor,water level sensor for submersible pump |
||
Product Description
3.3V Submersible 4-20ma Water Level Sensor For Digital I2C Output
|
Output |
4~20mA, 0-10mA, 0-5V, 1-5V, customization |
|
Level range |
0-0.5~200mH2O |
|
Overload |
150% of sensor range |
|
Measuring medium |
Liquid |
|
Accuracy |
±0.2%FS, ±0.5%FS |
|
Stability |
0.25%FS/ year |
|
Housing material |
Stainless steel |
|
Cable material |
Polyvinyl Fluoride, PTFE |
|
Power Supply |
24VDC |
|
Ambient temperature |
-20~85℃ |
|
Process temperature |
-20~85℃ |
|
Compensation temperature |
-20~85℃ |
|
Protection class |
IP68 |
- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Dimensions
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
