The Housing is made of aluminum with specific explosion-proof function
15m Long Range Ultrasonic Level Sensor with Fast Delivery Time
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | PWCS72 |
Payment & Shipping Terms:
Price: | $200.00/Units 1-49 Units |
---|
Detail Information |
|||
Product Name: | Ultrasonic Level Meter | Measuring Range: | 0.3-10m |
---|---|---|---|
Process Connection: | G1 1/2A Or Flange, Bracket | Housing Material: | Aluminum/ABS |
Accuracy: | 0.25%FS | Transducer Material: | PA66+GF30/PVDF |
Process Temperature: | -40-70℃ | Process Pressure: | -0.02-0.1MPa |
Output: | 4-20 MA/HART/RS485/Modbus | Explosion-proof Grade: | Exia IIB T6 Ga |
Product Description
Products Description

Aluminum Housing material

Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment

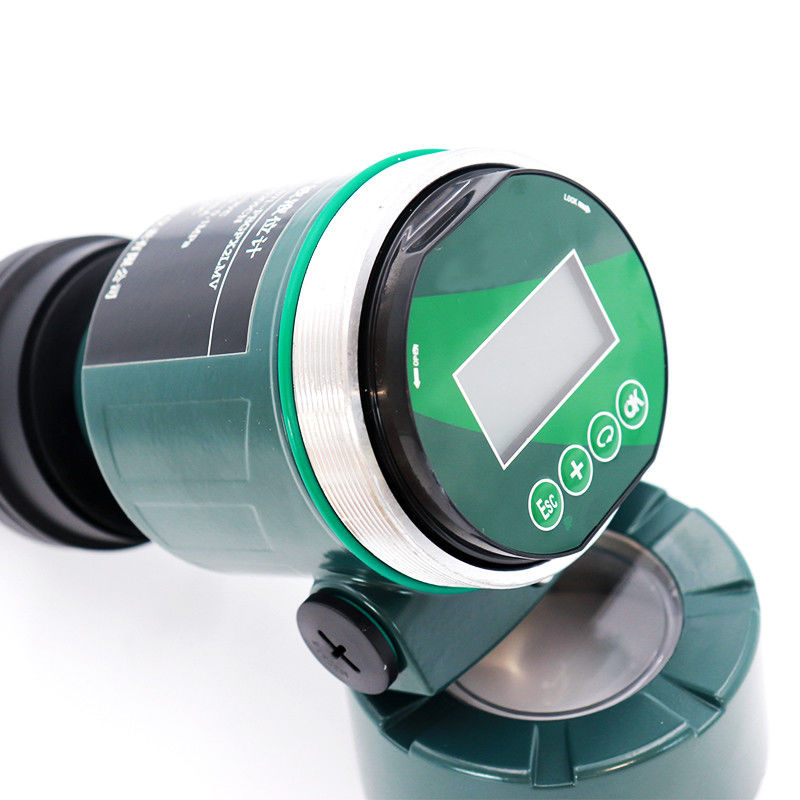

Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction

Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
Application Case



Model | Measuring Range | Process Connection | Transducer Material |
PWCS71 | 0.25-5m | G11/2"A/Flange/Bracket | PA66+GF30/PVDF |
PWCS72 | 0.3-10m | G2"A/Flange/Bracket | PA66+GF30/PVDF |
PWCS73 | 0.4-10m | M66*2/Flange/Bracket | PA66+GF30/PVDF |
PWCS74 | 0.5-20m | M95*2/Flange/Bracket | PA66+GF30 |
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
The installation position shall avoid obstacles as much as possible
