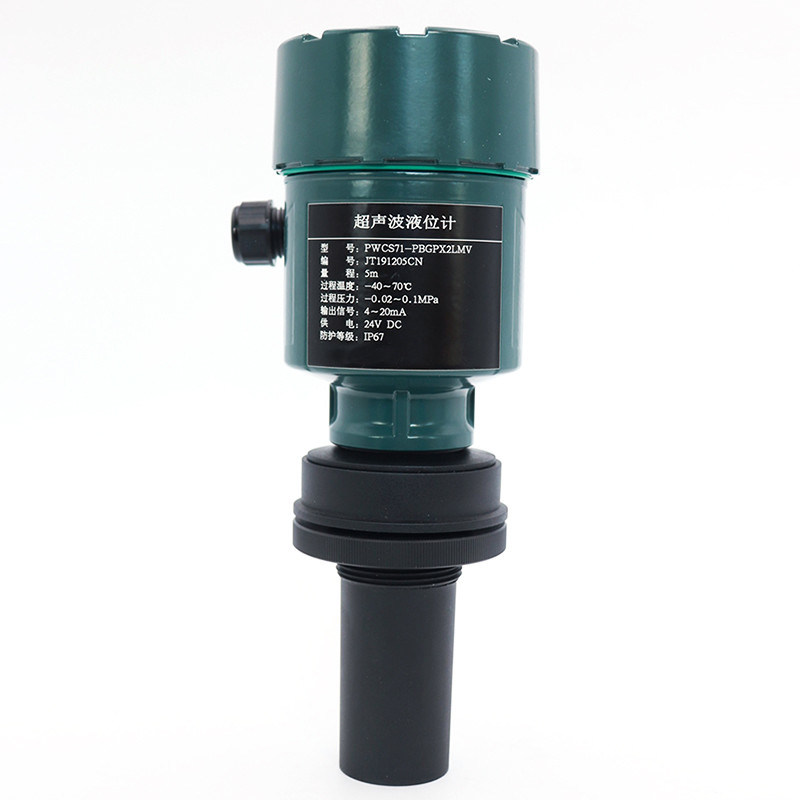

High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor

High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

PWCS72

Contact Us
Request A Quote
Product Details
Grade:
Industrial
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Product Name:
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor
Measuring Range:
0.3-10m
Process Connection:
G1 1/2A Or Flange, Bracket
Housing Material:
Aluminum/ABS
Accuracy:
0.25%FS
Transducer Material:
PA66+GF30/PVDF
Process Temperature:
-40-70℃
Process Pressure:
-0.02-0.1MPa
Output:
4-20 MA/HART/RS485/Modbus
Explosion-proof Grade:
Exia IIB T6 Ga
Payment & Shipping Terms
Price
$200.00/Units 1-49 Units
Product Description
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 0

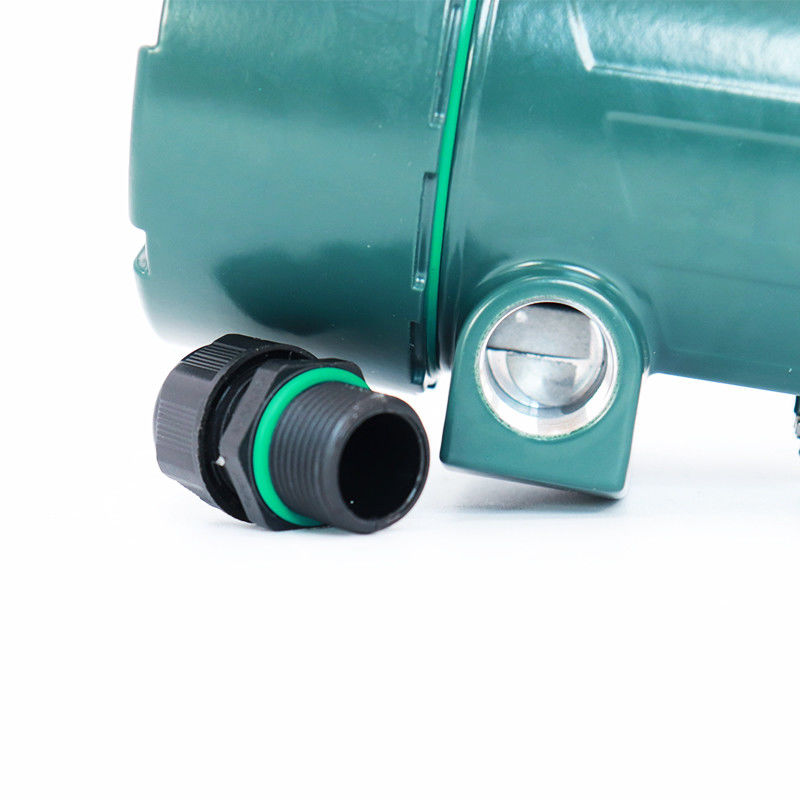

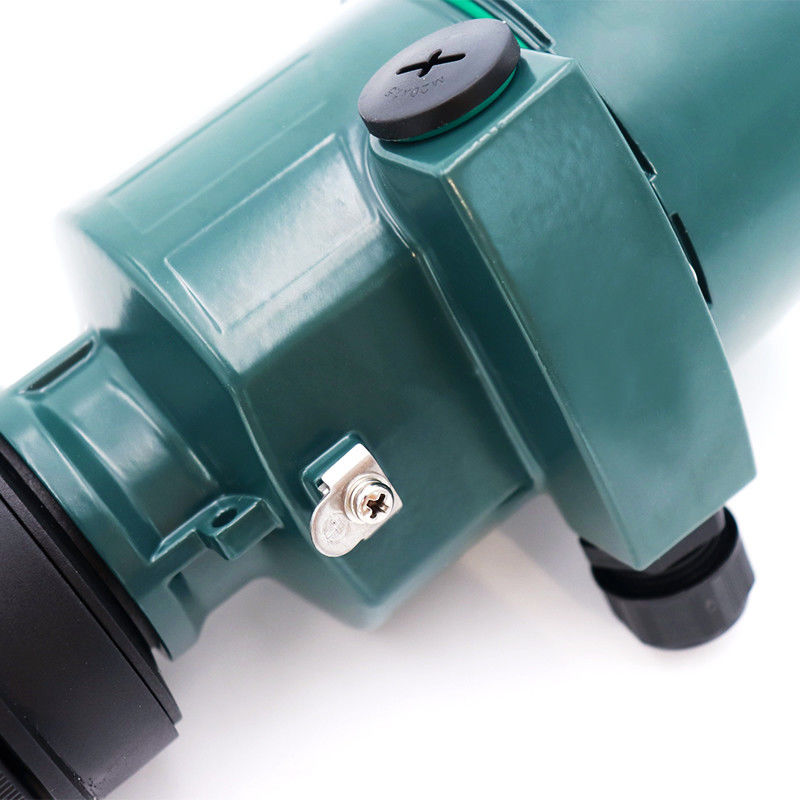

Aluminum Housing material
The Housing is made of aluminum with specific explosion-proof function
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 2

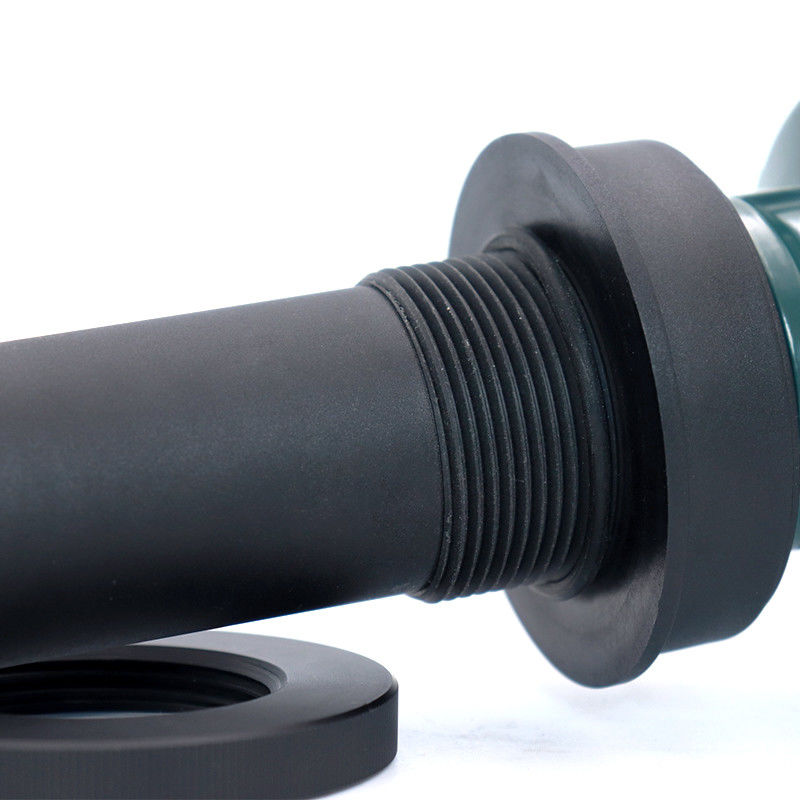

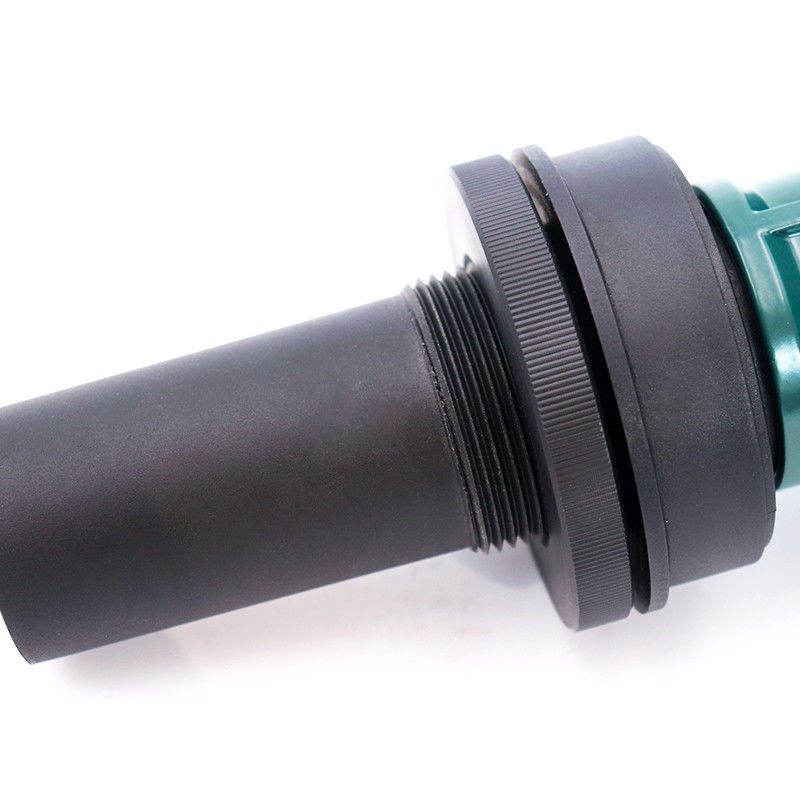

Two transducer options
Different transducers can be selected for different measuring media, standard transducer can be selected for common environment and anticorrosive sealed transducer can be selected for special environment
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 4


High Technology Functions
Echo curve display function
False echo storage function
Frequency adjustment function
Noise filteringfunction
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 6


Wide Measuring Range and High Accuracy
Mesuring range can reach 20m while measuring the liquid with 0.25% high accuracy
Application Case
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 8
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 10
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 12
Model
Measuring Range
Process Connection
Transducer Material
PWCS71
0.25-5m
G11/2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS72
0.3-10m
G2"A/Flange/Bracket
PA66+GF30/PVDF
PWCS73
0.4-10m
M66*2/Flange/Bracket
PA66+GF30/PVDF
PWCS74
0.5-20m
M95*2/Flange/Bracket
PA66+GF30
Installation Guide
The transducer shall be vertical to the medium surface
The equipment shall not be installed in the middle of the tank top
The installation position shall avoid obstacles as much as possible
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 14
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 16
Hot Products
Packing&Shipping
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 18
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 20
Company Profile
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 22
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 24
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 26
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 28
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 30
High Stable Factory EXW Price Ultrasonic Water Level Meter Sensor 32

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.

Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.

Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?

A: 12 month from shipment date, for non-man-made damages.

Q: SHIPPING AND DELIVERY

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
