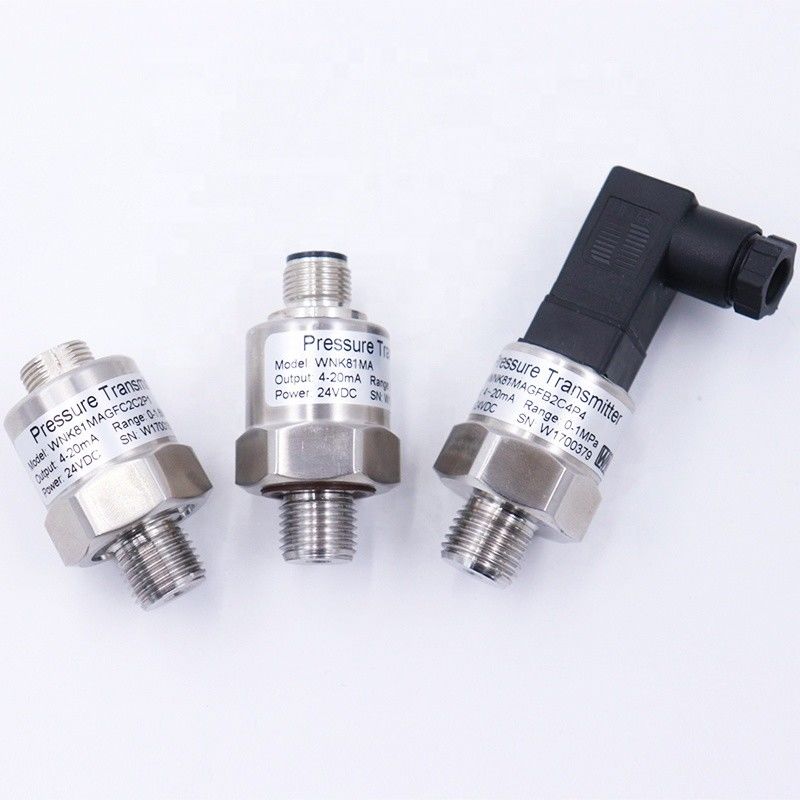

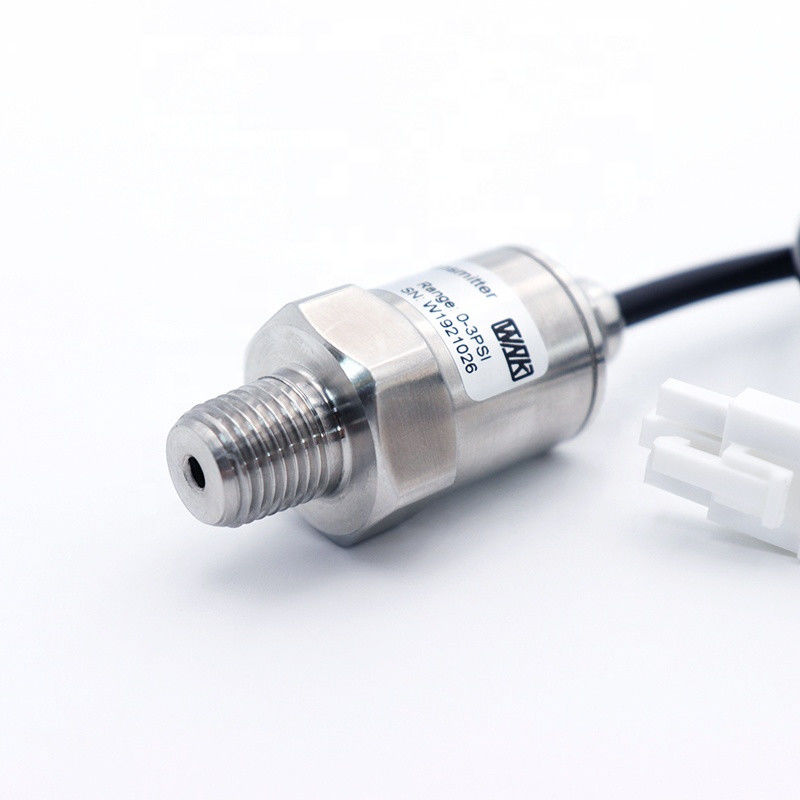

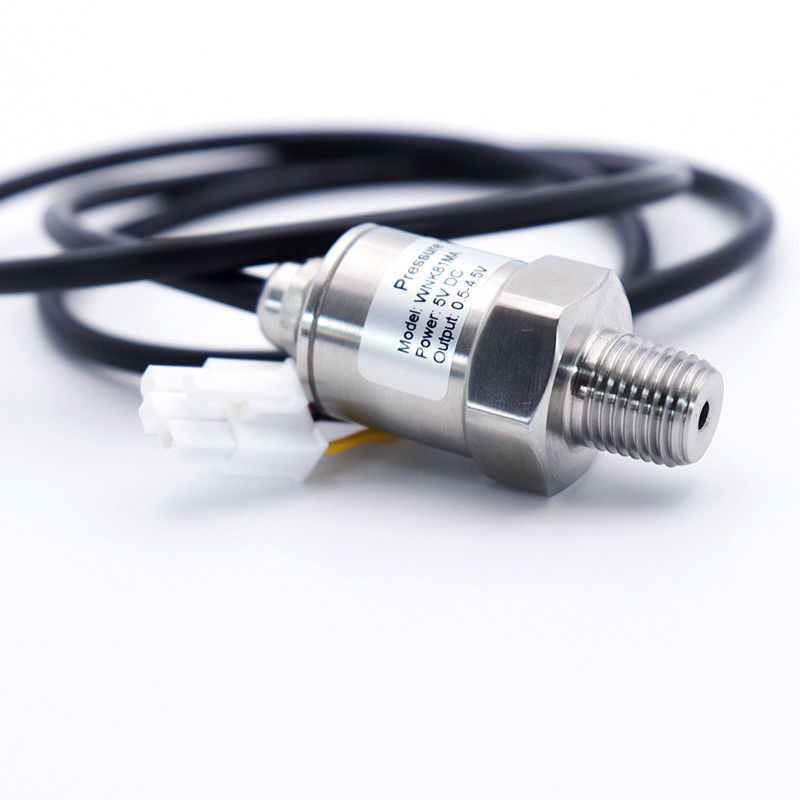

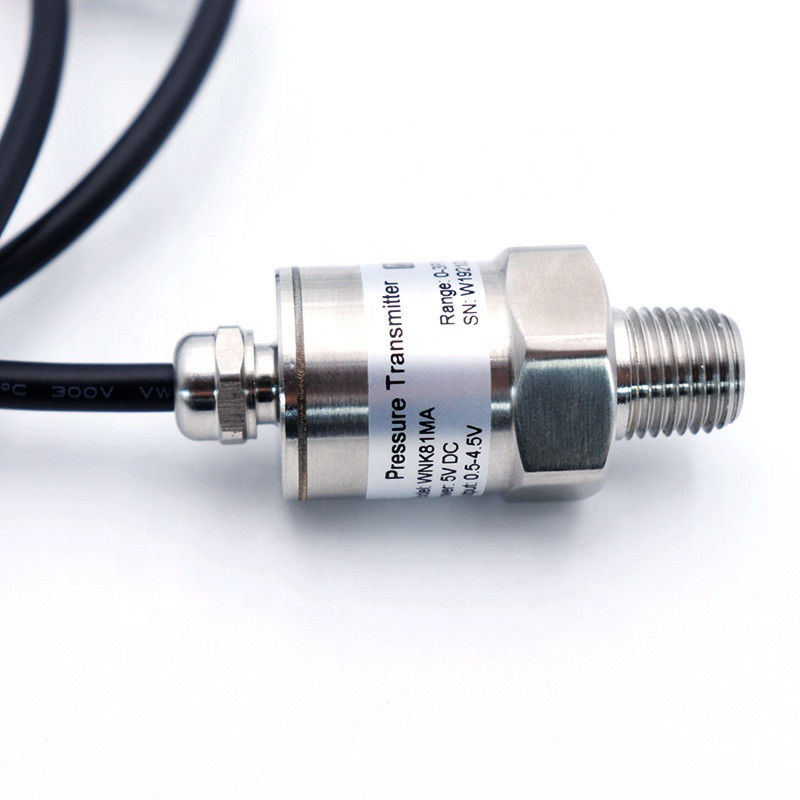

OEM 1% FS Compact Pressure Transducer for Natural Gas controlling
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK 81MA |
Payment & Shipping Terms:
Price: | $12.00 - $19.00/Pieces |
---|---|
Packaging Details: | Cartons |
Supply Ability: | 400 Piece/Pieces per Month |
Detail Information |
|||
Warranty: | 1 Year | Customized Support: | OEM, ODM |
---|---|---|---|
Output Signal: | 4- 20mA, 0.5-4.5V | Accuracy: | 0.2%FS, 0.5%FS , 1.0% FS |
Housing Material: | 304SST | Power Supply: | 24VDC/12VDC/5VDC |
Pressure Type: | Gauge, Absolute, Seal, Vacuum | Measuring Range: | -100Kpa ~ 60MPa |
Electrical Connection: | Packard,M12*1P,Cable Outlet,MINI DIN43650 | Process Connection: | G1/4,1/4-18NPT,1/8-27NPT,M14*1.5,M12*1.5,1/4-19NPT |
Protection Class: | IP65/IP67 | OEM Service: | OEM, ODM, Customization Available |
Port: | Shanghai | ||
High Light: | 1% FS Compact Pressure Transducer,OEM natural gas pressure transducer,Natural Gas Controlling Compact Pressure Transducer |
Product Description
OEM 4-20ma Compact Pressure Transmitter Sensor for Natural Gas controlling
Output signal | 4- 20mA, 0.5-4.5V |
Accuracy | 0.2%FS, 0.5%FS , 1.0% FS |
Housing material | 304SST |
Power supply | 24VDC/12VDC/5VDC |
Pressure type | Gauge, Absolute, Seal, Vacuum |
Measuring range | -100Kpa ~ 60MPa |

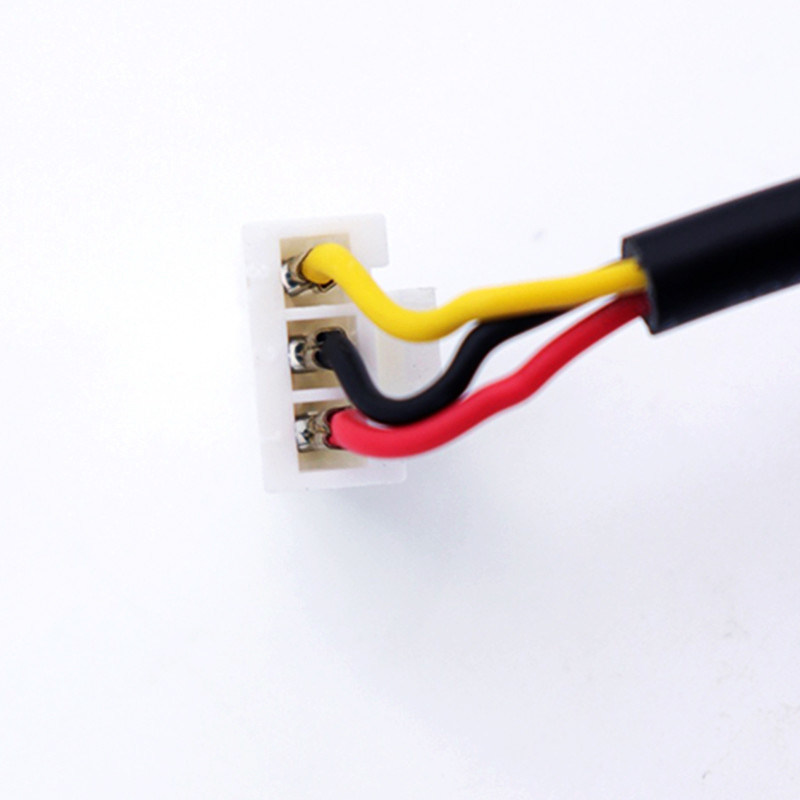

Electrical connection | Packard,M12*1P,Cable outlet,MINI DIN43650 |
Process connection | G1/4,1/4-18NPT,1/8-27NPT,M14*1.5,M12*1.5,1/4-19NPT |
Protection class | IP65/IP67 |
OEM service | OEM, ODM, customization available |
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
