10.5V 45VDC Diff Pressure Transmitter , OEM Wind Pressure Measuring Instrument
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK 808B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $21.00 - $45.00/Pieces |
| Packaging Details: | cartons |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 3000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Output Signal: | 4-20mA, 1-5V | Accuracy: | 0.2%FS, 0.5%FS |
| Pressure Type: | Gauge/Differential Pressure | Power Supply: | 10.5~45VDC |
| Housing Material: | Aluminum14 | Measuring Medium: | Air, Gas |
| Working Temperature: | -10~70℃ | Protection ClassIP65: | IP65 |
| Measurement Range: | -10Pa~100Pa, -100kPa~+100kPa | Stability: | 0.8%F.S./Year |
| Port: | Shanghai | ||
| High Light: | 45VDC Diff Pressure Transmitter,OEM Wind Pressure Measuring Instrument,10.5V Wind Pressure Measuring Instrument |
||
Product Description

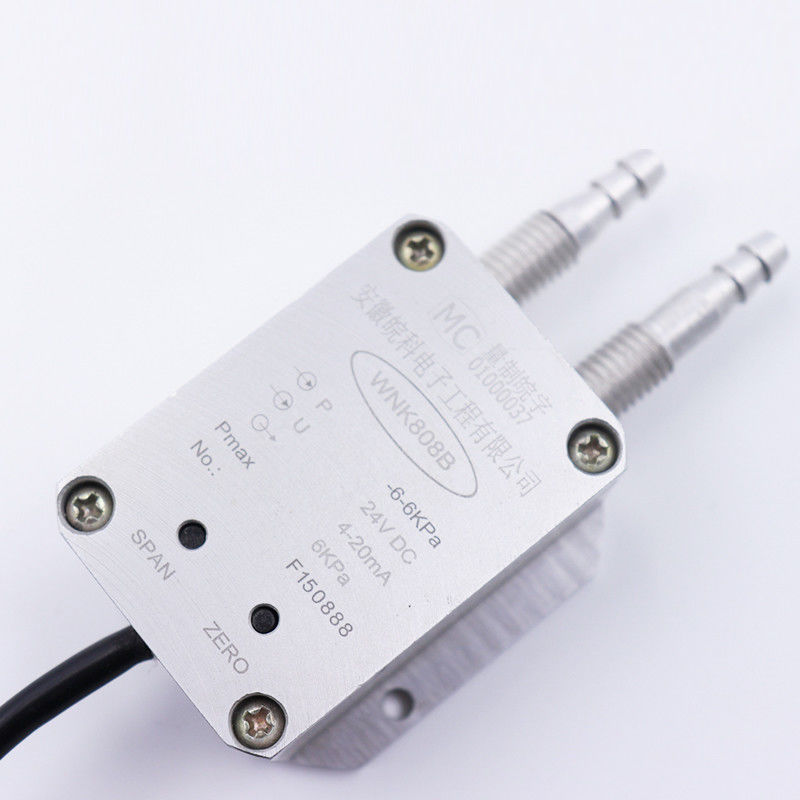

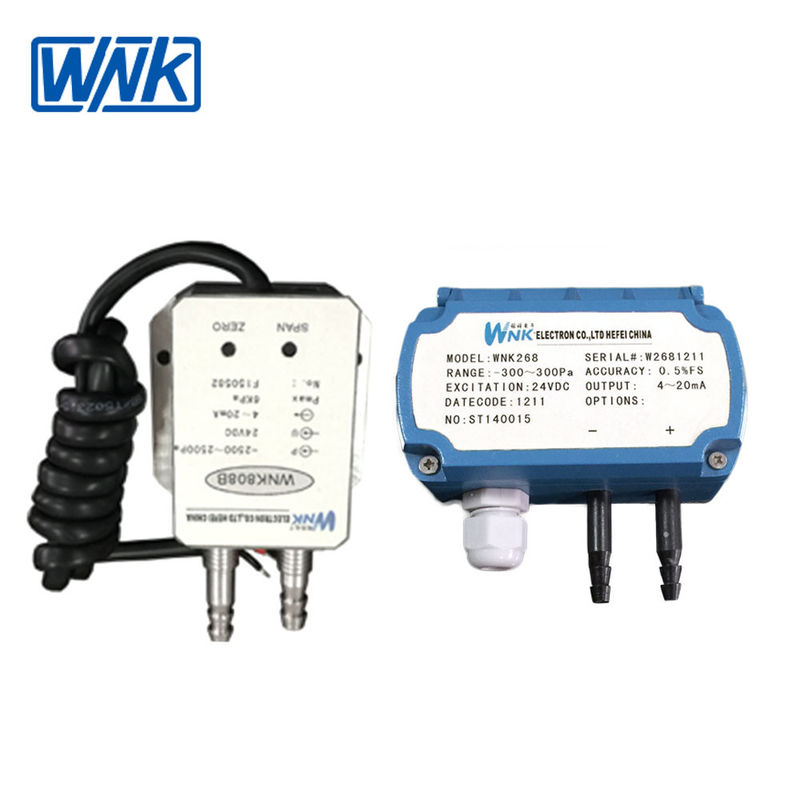

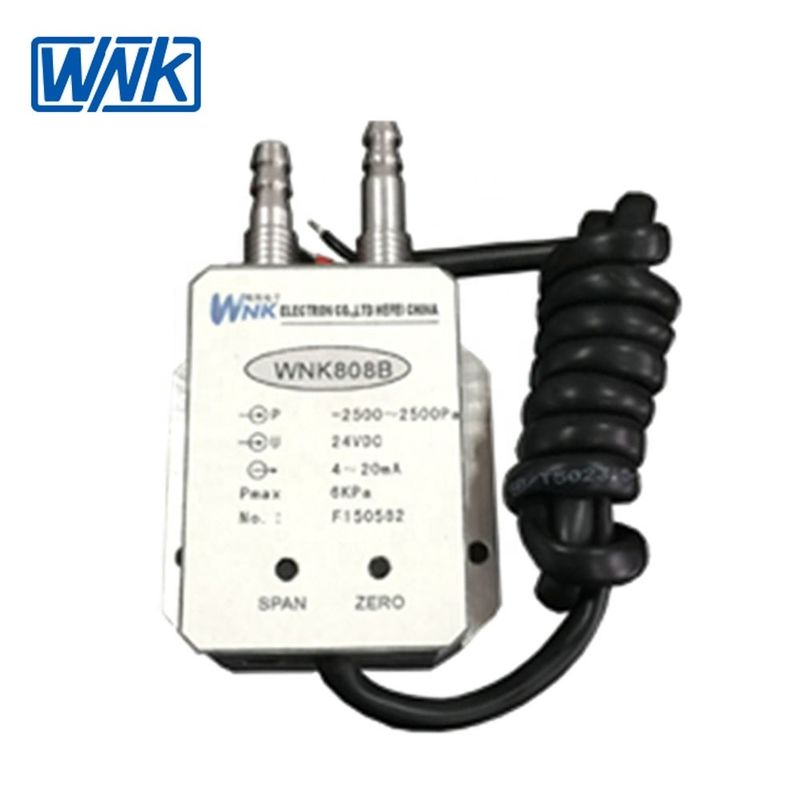

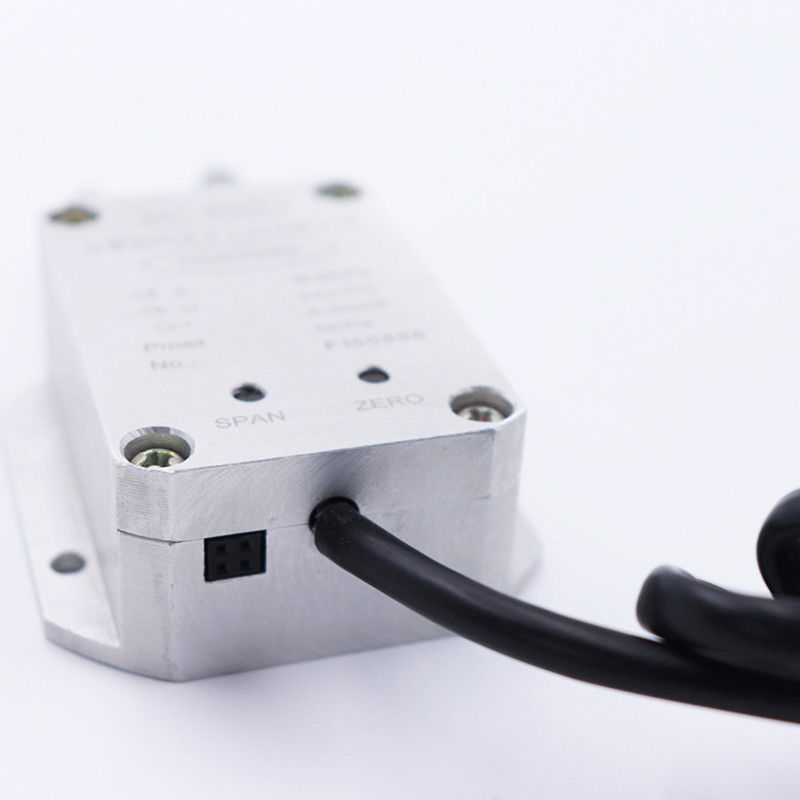

Ex-proof 10.5~45VDC power supply Wind Differential Pressure sensor Transmitter
WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
Applications
It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
| Output signal | 4-20mA, 1-5V |
| Accuracy | 0.2%FS, 0.5%FS |
| Pressure type | Gauge/Differential pressure |
| Power supply | 10.5~45VDC |
| Housing Material | Aluminum14 |
| Measuring medium | Air, Gas |
| Working temperature | -10~70℃ |
| Protection class | IP65 |
| Measurement range | -10Pa~100Pa, -100kPa~+100kPa |
| Stability | 0.8%F.S./Year |
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
