intelligent Micro Differential Pressure Sensor iaIICT4 Anti explosion
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK 268/268MR |
Payment & Shipping Terms:
| Price: | $46.00 - $56.00/Pieces |
|---|---|
| Packaging Details: | cartons |
| Supply Ability: | 200 Piece/Pieces per Week |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Product Name: | Micro Differential Wind Pressure Transmitter | Output Signal: | 4-20mA, 1-5V |
| Accuracy: | 0.2%F.S; 0.5%F.S; | Measure Range: | -10Pa~100Pa, -100kPa~+100kPa |
| Anti-explosion Rating: | IaIICT4 | Power Supply: | 10.5~45V DC |
| Measured Media: | Air, Gas | Housing Material: | Aluminum14 |
| Protection Class: | IP65 | Working Temperature: | -10~70℃ |
| Port: | Shanghai | ||
| High Light: | Intelligent Micro Differential Pressure Sensor,IaIICT4 Micro Differential Pressure Sensor |
||
Product Description

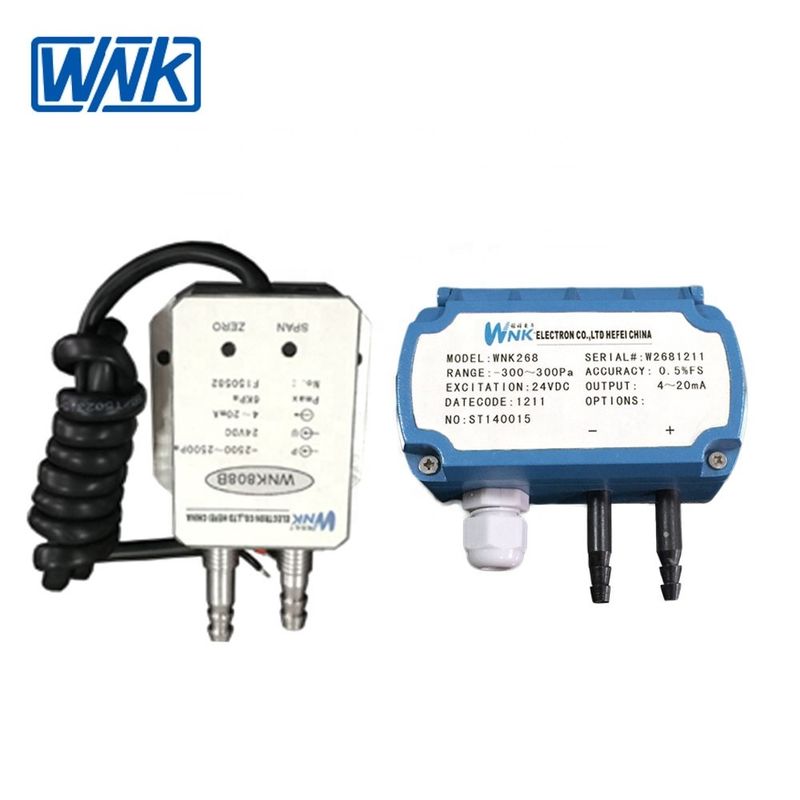

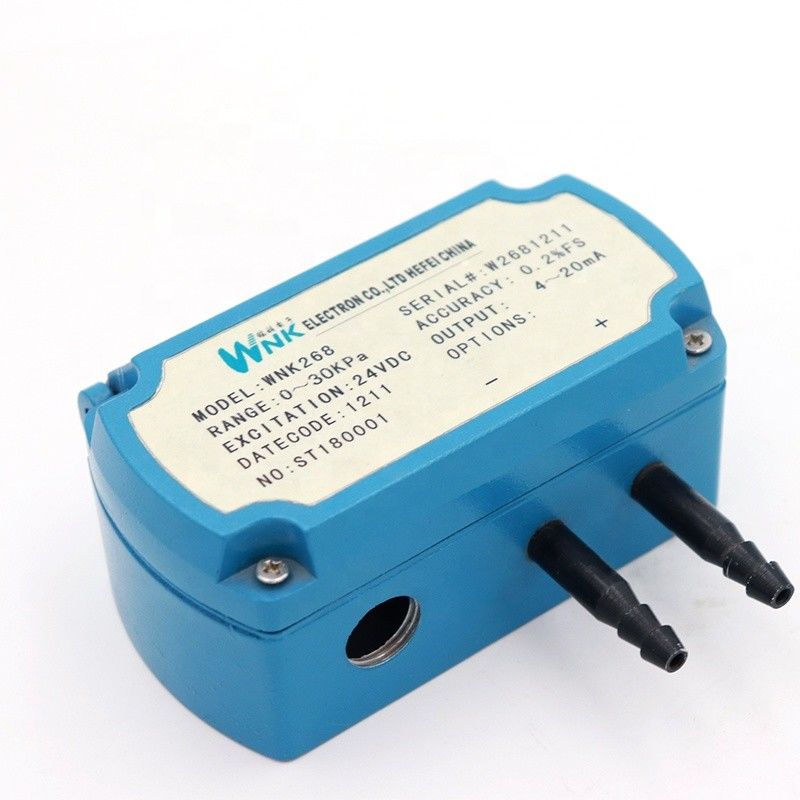

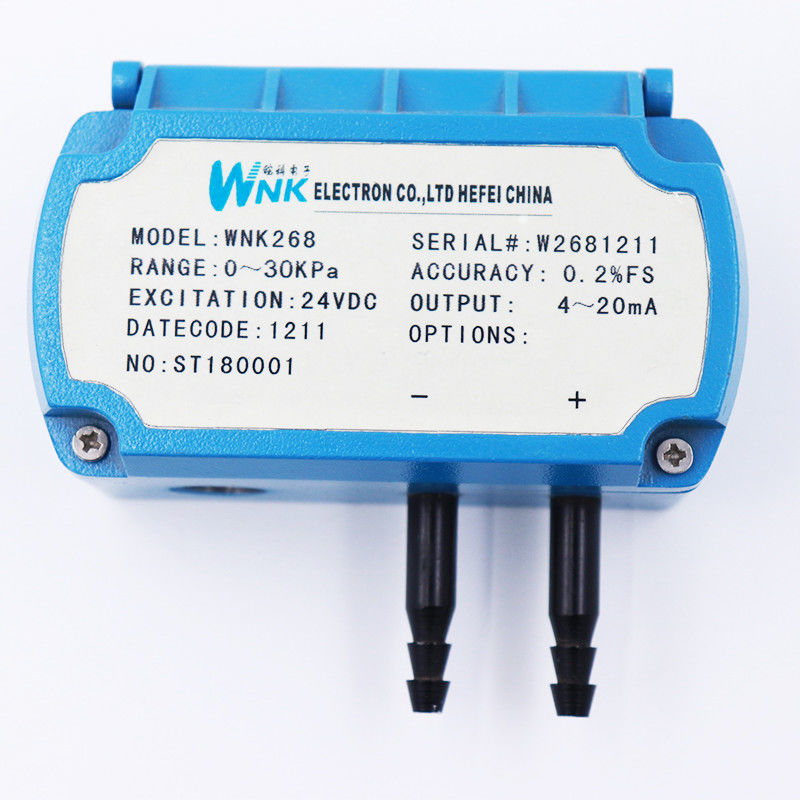

4-20mA Micro Differential Wind Pressure Transmitter Sensor for Gas Pipeline Controlling Air Pressure
WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
| Product name | Micro Differential Wind Pressure Transmitter |
| Output signal | 4-20mA, 1-5V |
| Accuracy | 0.2%F.S; 0.5%F.S; |
| Measure range | -10Pa~100Pa, -100kPa~+100kPa |
| Anti-explosion rating | iaIICT4 |
| Power supply | 10.5~45V DC |
| Measured media | Air, Gas |
| Housing material | Aluminum14 |
| Protection class | IP65 |
| Working temperature | -10~70℃ |
Applications
It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
| >> Certifications |
| >> Exhibitions |
Q: Are you manufacturer or trading company?
A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
