WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

WNK83MA High Temperature Pressure Transmitter Brass Ceramic 0-20 Bar

Brass Ceramic High Temperature Pressure Transmitter

20 bar High Temperature Pressure Transmitter

WNK83MA High Temperature Pressure Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK83MA

Contact Us
Request A Quote
Product Details
Warranty:
1 Year
Customized Support:
OEM, ODM
Pressure Type:
Gauge, Sealing, Absolute Pressure
Measure Range:
0-10bar, 0-20bar
Analog:
0.5-4.5V
Accuracy:
1%FS
Supply Voltage:
4.75-5.25 VDC
Electrical Connection:
Packard/ Cable Outlet
Process Connection:
1/4 NPT, G1/4
Material:
Brass
Cell:
Ceramic Capacitive Pressure Sensor
Keywords:
Low Cost Pressure Sensor/ Brass Pressure Sensor
Highlight:

Brass Ceramic High Temperature Pressure Transmitter

,

20 bar High Temperature Pressure Transmitter

,

WNK83MA High Temperature Pressure Transmitter

Payment & Shipping Terms
Price
$6.50/Pieces
Packaging Details
Each five pcs in one paper box 100 pcs in one carton
Product Description

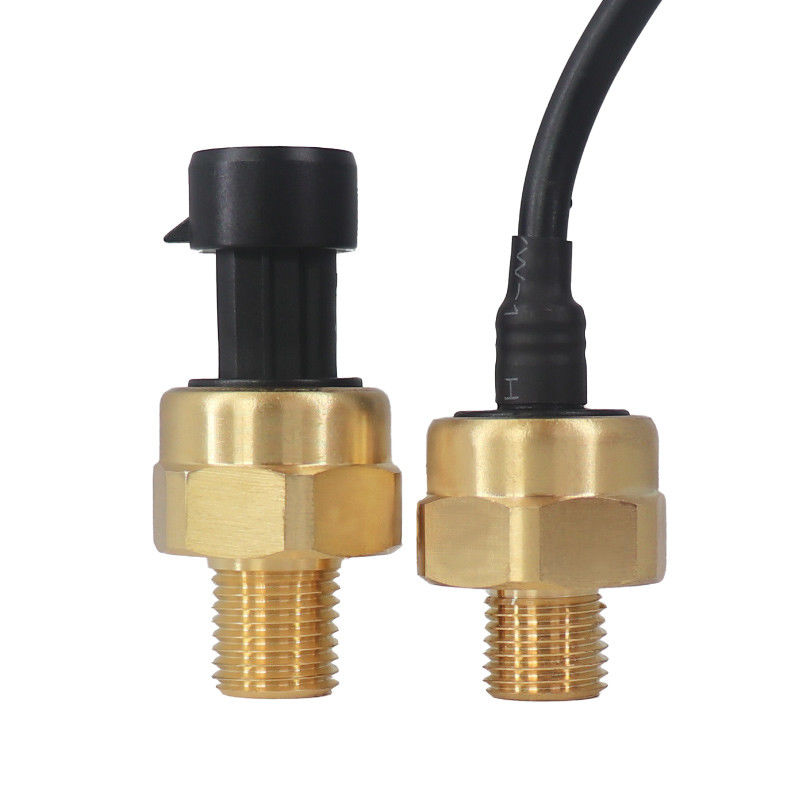

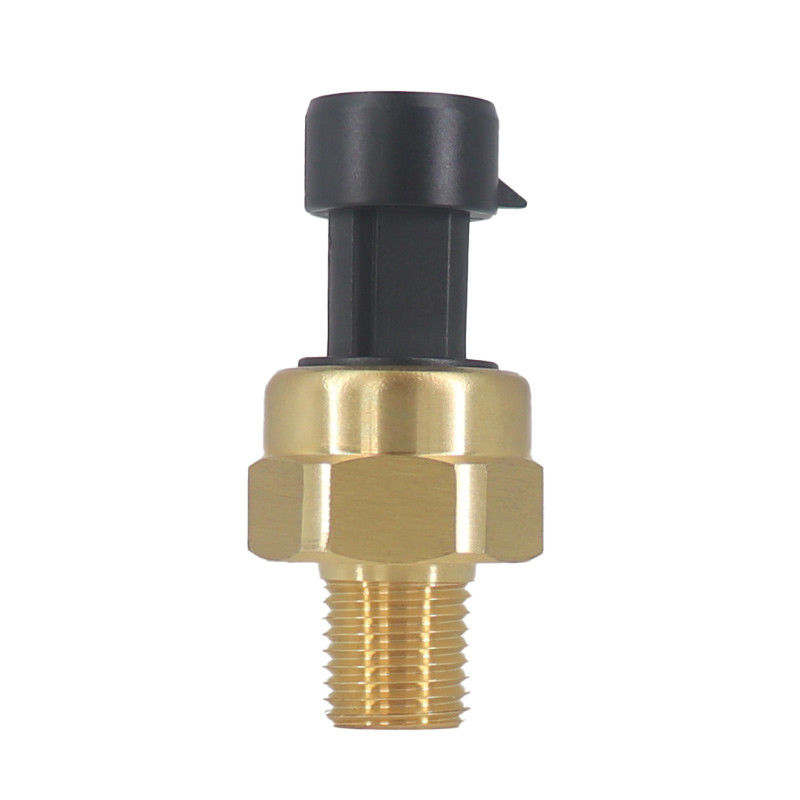

Low Cost Brass Ceramic Capacitive 0.5-4.5V Pressure Sensor For Air Gas Water

 Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.

This product is in stock, please place an order directly.

If you have any other questions, please feel free to contact us.



Applicable media Liquid, gas and steam
Pressure range 0-10bar,0-20bar
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply

4.75-5.25 VDC

Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Parkard/ Cable Outlet
Mechanical connection 1/4 NPT, G1/4
Housing material Brass





Dimension

 WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 0

WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 2

WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 4

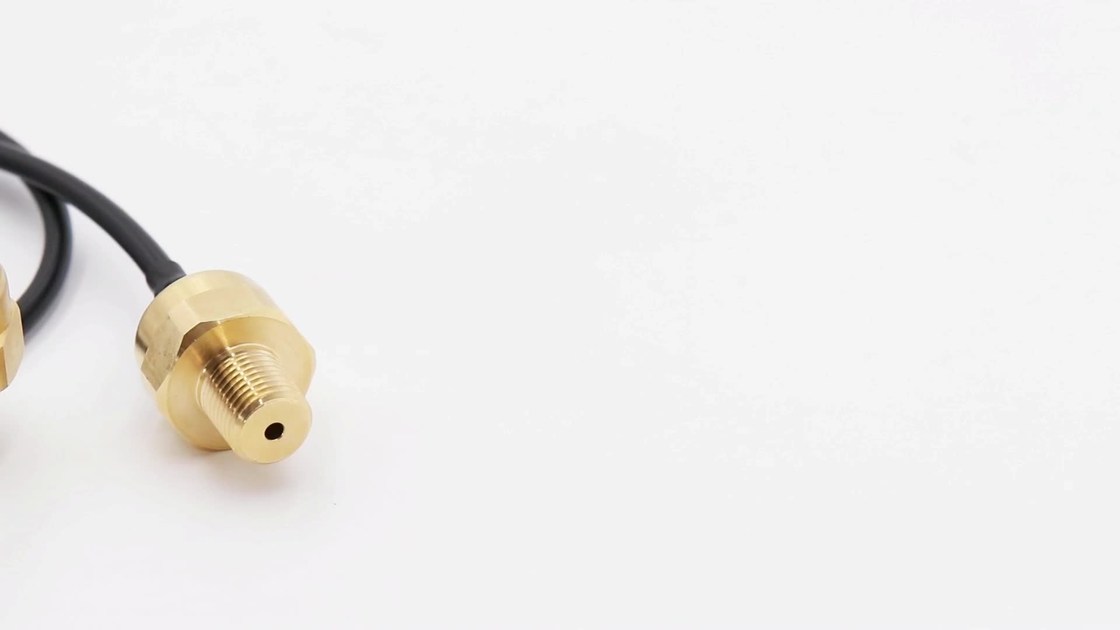

Product Show





WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 6WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 8WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 10



Applications

 WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 12WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 14







Company Information

WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 16WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 18WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 20WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 22WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 24WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 26

Packaging & Shipping

 WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 28WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 30WNK83MA High Temperature Pressure Transmitter Brass Ceramic  0-20 Bar 32


FAQ

 Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
