Place of Origin:
Anhui, China
Brand Name:
WNK
Model Number:
WNK59

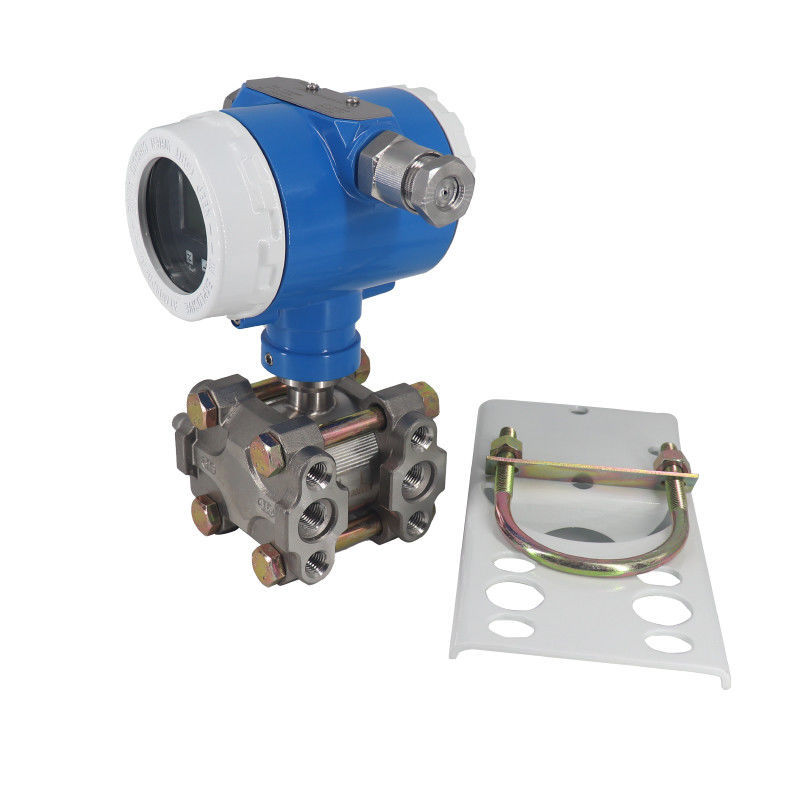

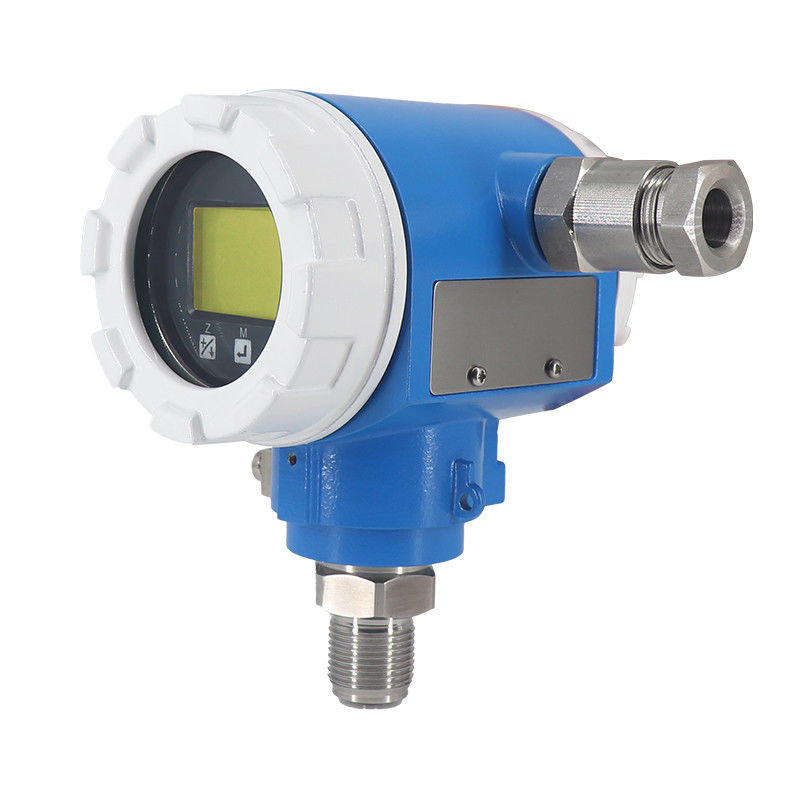

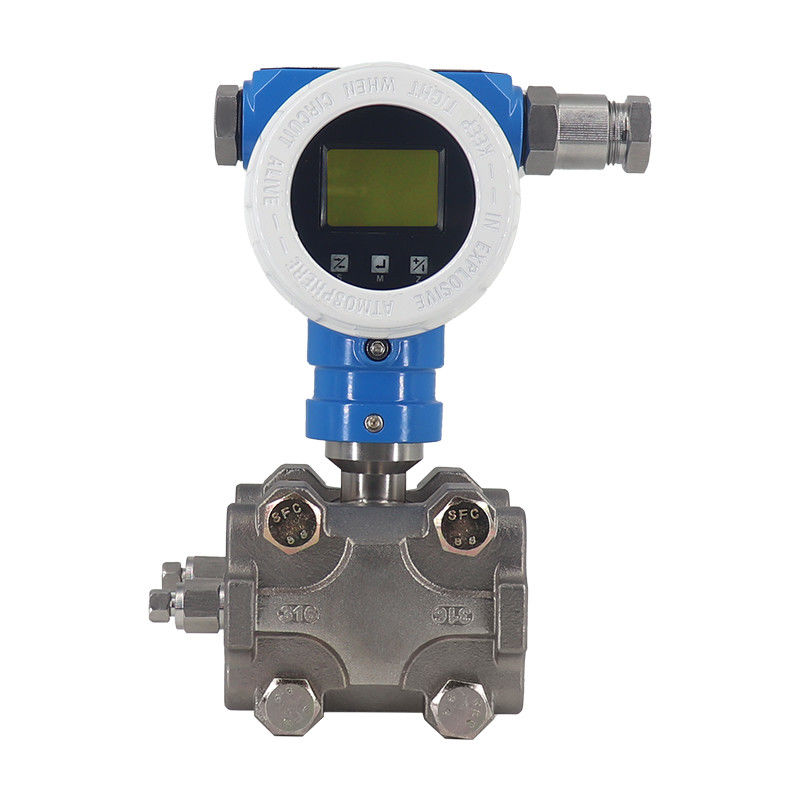

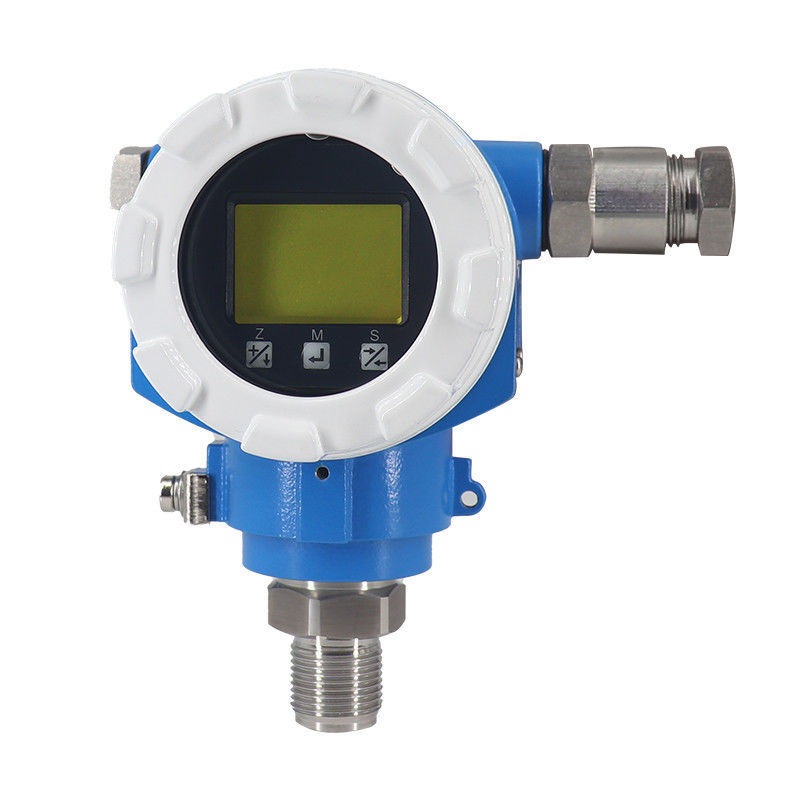

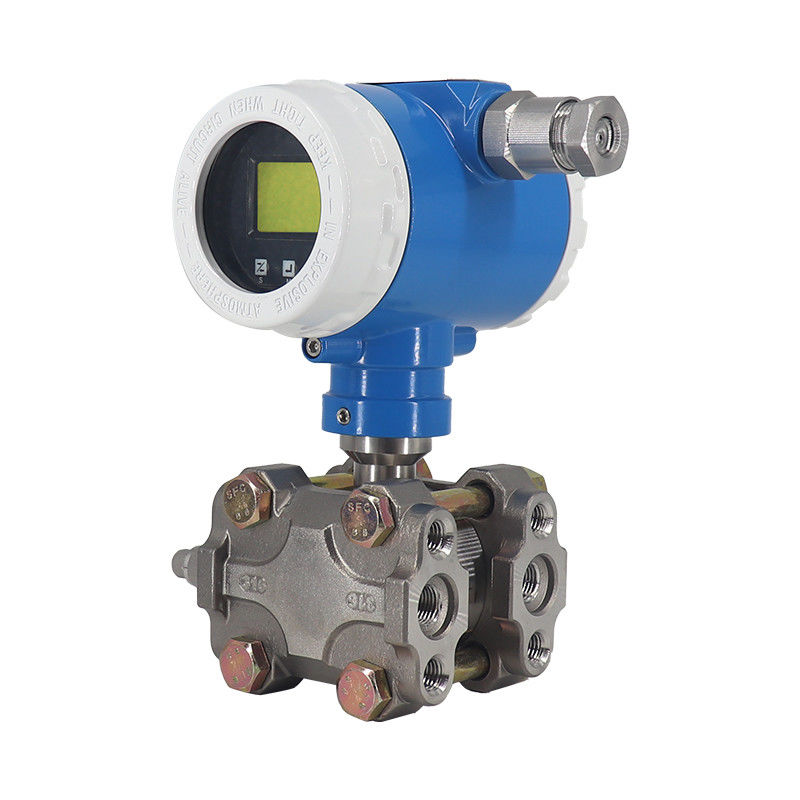

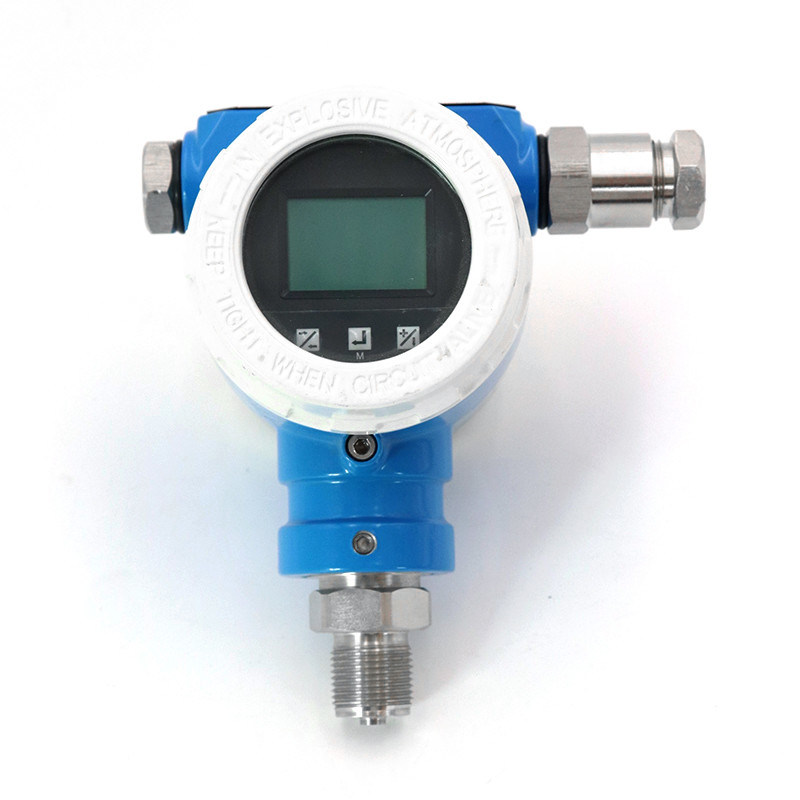

Explosion-proof 0.075% Accuracy 700bar 4-20ma Hart Gauge Absolute Pressure Transmitter
WNK5 series pressure transmitter is the high-performance products among WNK pressure transmitter series. It transforms physical signal of pressure, differential pressure and level to standard signal via collecting cell sensor and digital processing circuit.
WNK5 adopts advanced specified integrated circuit digital technology to realize best uniformity of accuracy and signal. Each set of transmitter is ambient temperature compensated, ensured highest accuracy and lowest drift of transmitters in wide working temperature range.
| >> Quick information |
1. High accuracy: up to 0.075%FS;
2. Output: 4~20mA, Hart, Profibus-Pa
3. Excellent long-term stability: long-term drift ≤±0.15%URL for 5 years;
4. Range ratio: 100: 1;
5. Module design: Changeable electronic module;
6. Explosion Proof: Exia II CT4, CT6;
7. Water Proof: IP66/67;
8. High Temperature Resistance: High temperature up to 280 ℃ with diaphragm sealing;
9. High Pressure Ability: Max Pressure up to 700bar.
Application:
1. Gauge and absolute pressure measurement of gas, vapour or liquid in various processing control fields
2. Level, volume or mass measurement in liquid;
3. Working with detecting elements to measure flow of gas, vapour and liquid ( volume and mass flow)
4. Highest measurement pressure up to 700bar.
| >> Dimensions |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
