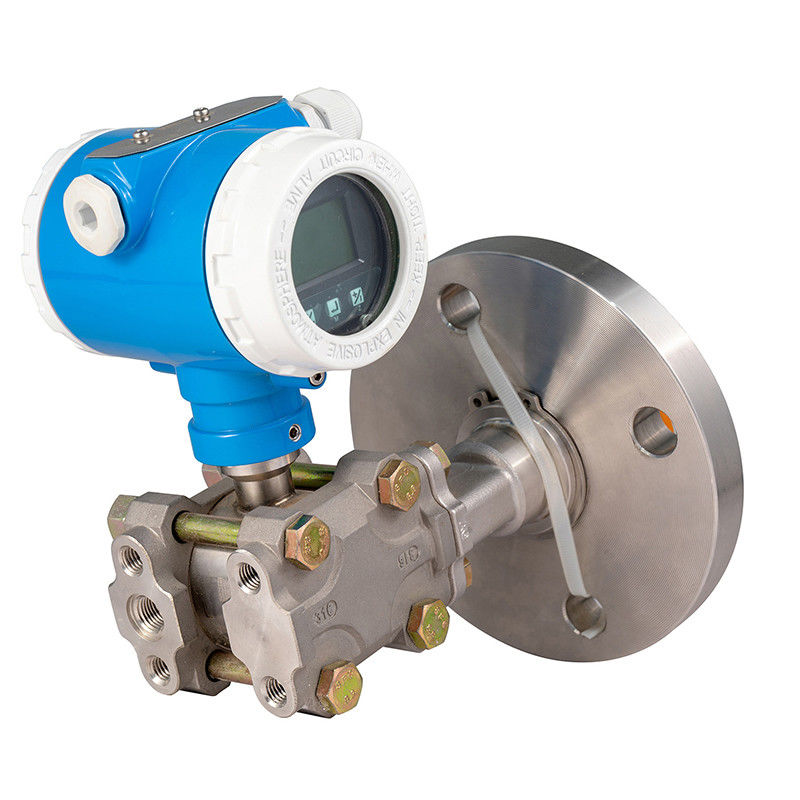

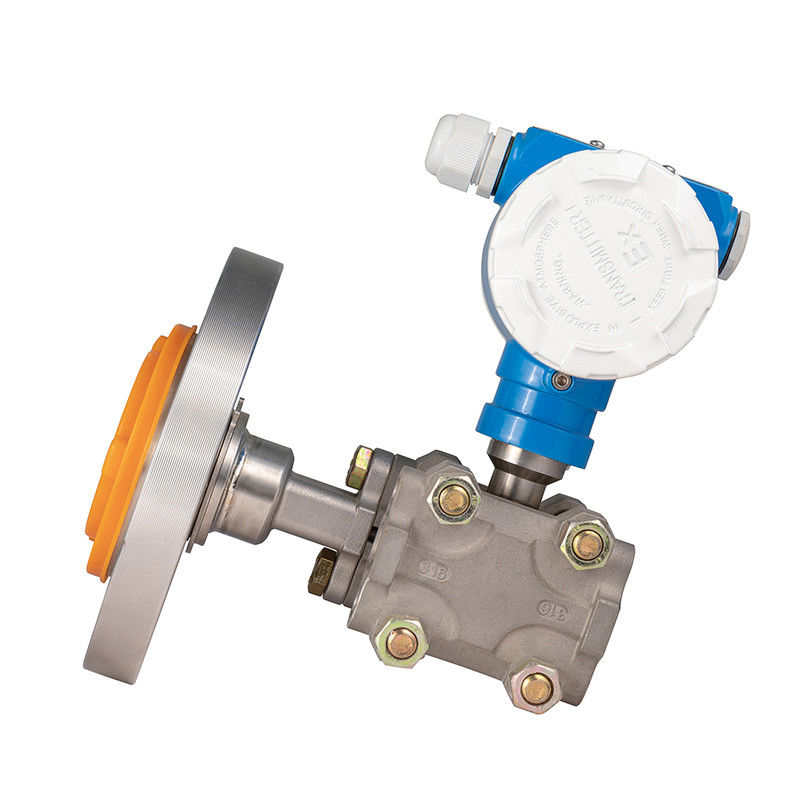

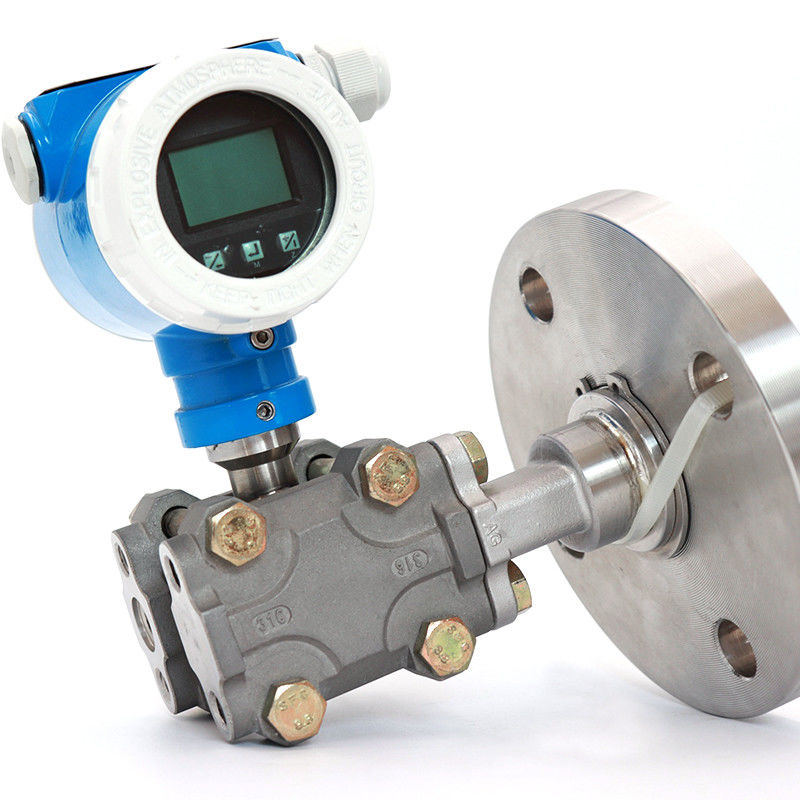

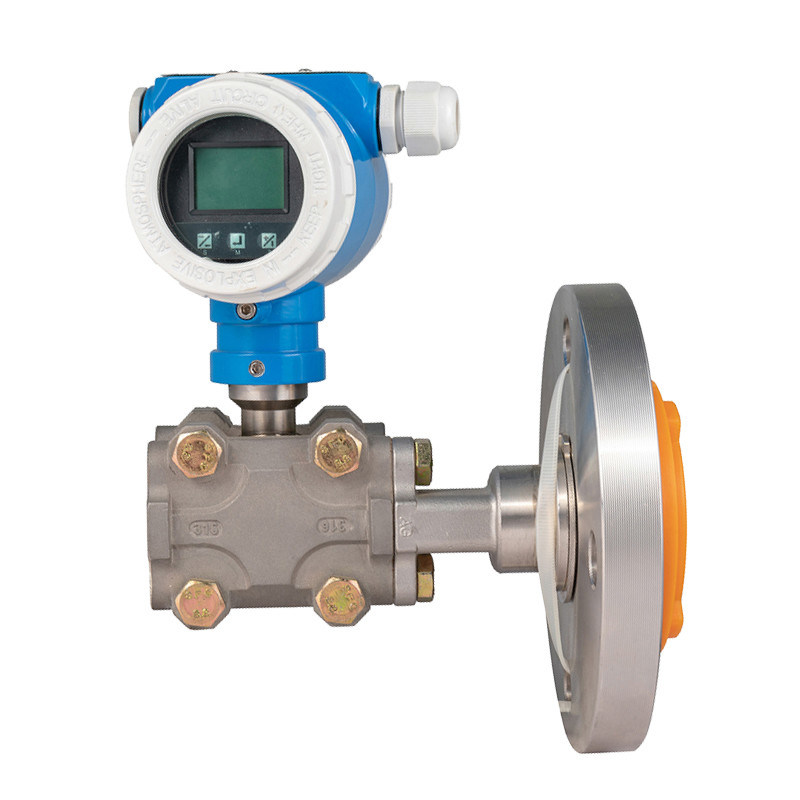

Explosion Proof Differential Pressure Transmitter 4-20mA Output With Hart
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK57 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $200.00 - $500.00/Sets |
Packaging Details: | Each set in one individual carton packing with protection |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 200 Set/Sets per Week Liquid Pressure Transmitter |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Measuring Medium: | Liquid, Gas And Steam | Accuracy: | 0.2% |
Range: | -100kPa~4000kPa | Output: | 4~20mA, Hart, PROFIBUS-PA |
Power Supply: | 12~36V DC | Process Connector: | G1/2, G1/4, 1/2NPT Etc |
Product Name: | 4-20mA Differential Pressure Transmitter With Hart | Ex-proof: | ExiaII CT4/CT6, ExidIICT6 |
Housing Material: | Aluminum14 | Port: | Shanghai |
High Light: | Differential Pressure Transmitter With Hart,Explosion Proof Differential Pressure Transmitter,4 20mA explosion proof pressure transmitter |
Product Description
Ex-proof 4-20mA Output Differential Pressure Transmitter With Hart
Product feature
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
WNK57 4-20mA Differential Pressure Liquid Level Transmitter |
|
Measured media |
liquid, gas and steam |
Pressure range |
-100kPa~4MPa, 10MPa |
Output signals |
4~20mA, Hart, PROFIBUS-PA for option |
Accuracy |
0.075%, higher on request |
Stability |
±0.25% of URL for 1 year |
Temperature drift |
±0.0625% of URL/10ºC |
Housing material |
Aluminum14 |
Diaphragm material |
316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option |
Fluid filled |
Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option |
Mechanical connection |
M20×1.5;G1/2;1/2NPT, Customization |
Protection class |
IP66/67 |
Ex-proof |
ExiaII CT4/CT6, ExidIICT6 |
Power Supply |
10.5-55V DC 10.5-30V DC |
Ambient temperature |
-40 to 85ºC,-40 to 80ºCfor LCD header |



Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
