WNK Dry Air Differential Pressure Sensor I2C With Aluminum Housing For Wind
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK268 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $45.00 - $55.00/Pieces |
| Packaging Details: | each product in one inner paper box with foam protection |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Set/Sets per Week Low Differential Pressure Transmitter |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Measured Media: | Air, Gas, Wind | Measurement Range: | -10Pa~100Pa, -100kPa~+100kPa |
| Output Signals: | 4-20mA, 1-5V | Accuracy: | 0.2%F.S; 0.5%F.S; |
| Housing Material: | Aluminum14 | Power Supply: | 10.5~45V DC |
| Working Temperature: | -10~65℃ | Ex-proof: | Exia II CT4 |
| Protection Class: | IP65 | Product Name: | Low Differential Pressure Transmitter |
| Port: | Shanghai Port | ||
| High Light: | Dry Air Differential Pressure Sensor,WNK Differential Pressure Sensor,Differential Pressure Sensor I2C |
||
Product Description
4-20ma Air Differential Pressure Sensor /Transmitter For Wind/Dry Air

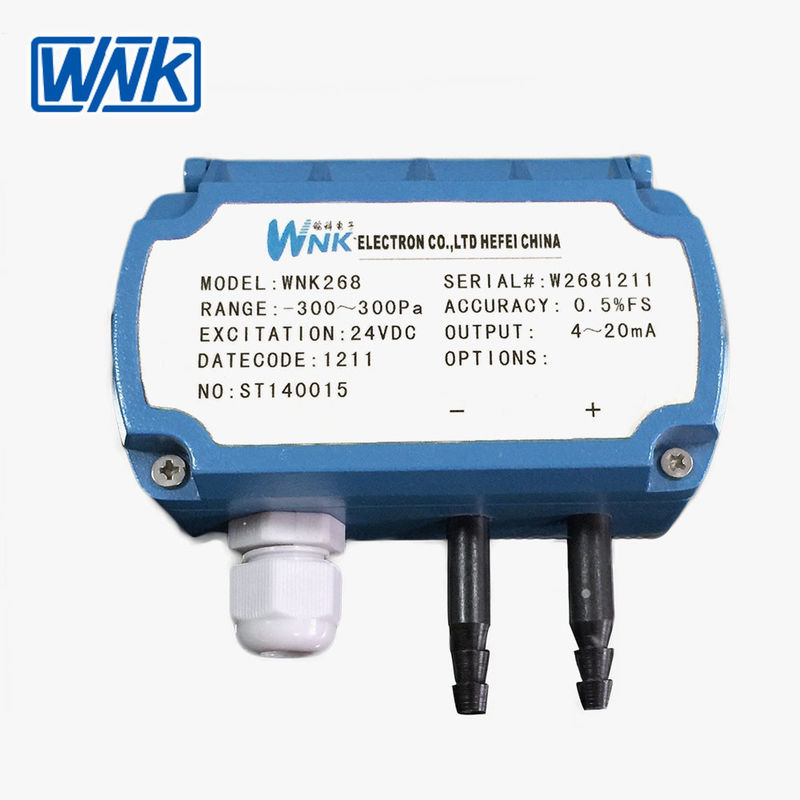

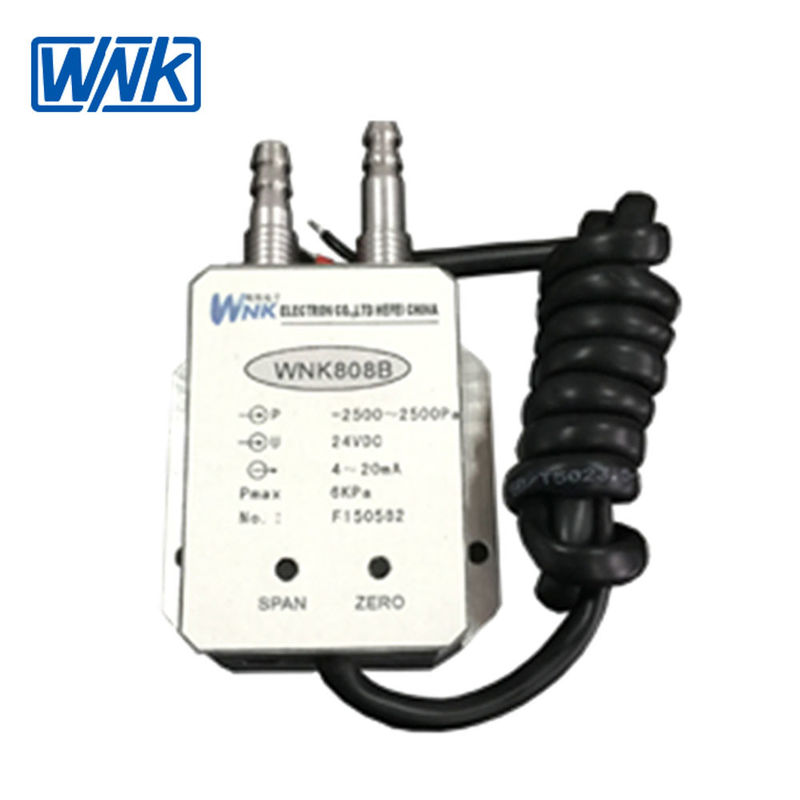

WNK268 ( New Model WNK808B ) intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
Applications
It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.
Product Specifications
|
Applicable media
|
Gas, Air, Wind
|
|
Pressure Measurement
|
Gauge pressure, Differential pressure, Negative, Vacuum
|
|
Pressure range
|
-10Pa~100Pa, -100kPa~+100kPa
|
|
Accuracy
|
0.2%, 0.5%
|
|
Stability
|
0.5%F.S/Year
|
|
Maximum static pressure
|
100kpa
|
|
Max overload
|
250% of sensor range
|
|
Output signals
|
4~20mA 1-5V
|
|
Housing material
|
Aluminum14
|
|
Induct Pressure Connection:
|
M 8x1 female or Ø 8 dowel connection
|
|
|
EEX ia:10.5~30 V DC
Non-explosion: 10.5~45V DC
|
|
Ambient temperature
|
-40~85℃
|
|
Compensation temperature
|
-10~70℃
|
|
Working temperature
|
-10~70℃ |
Product Show
