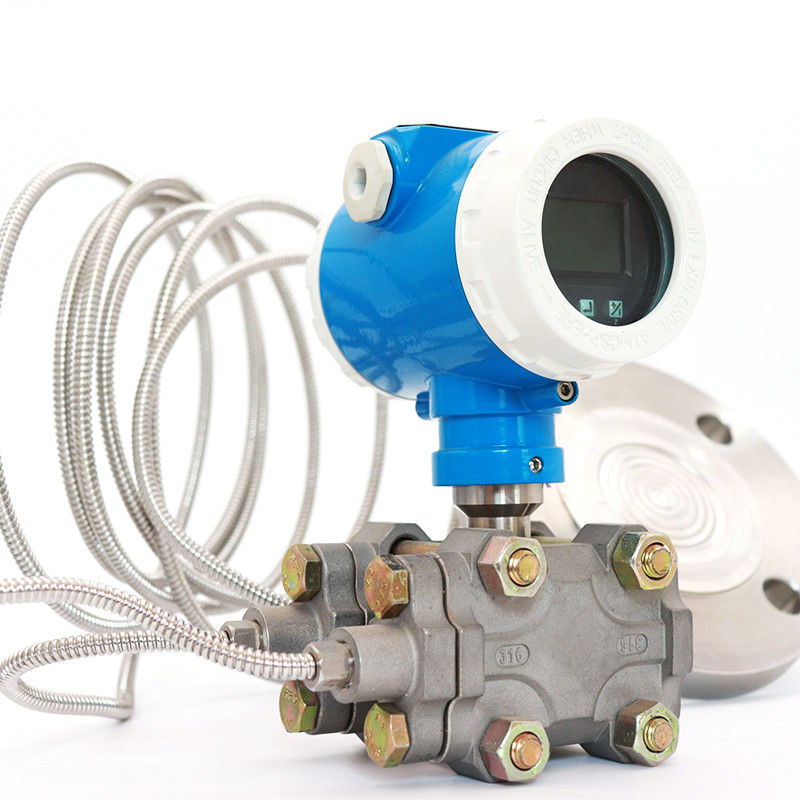

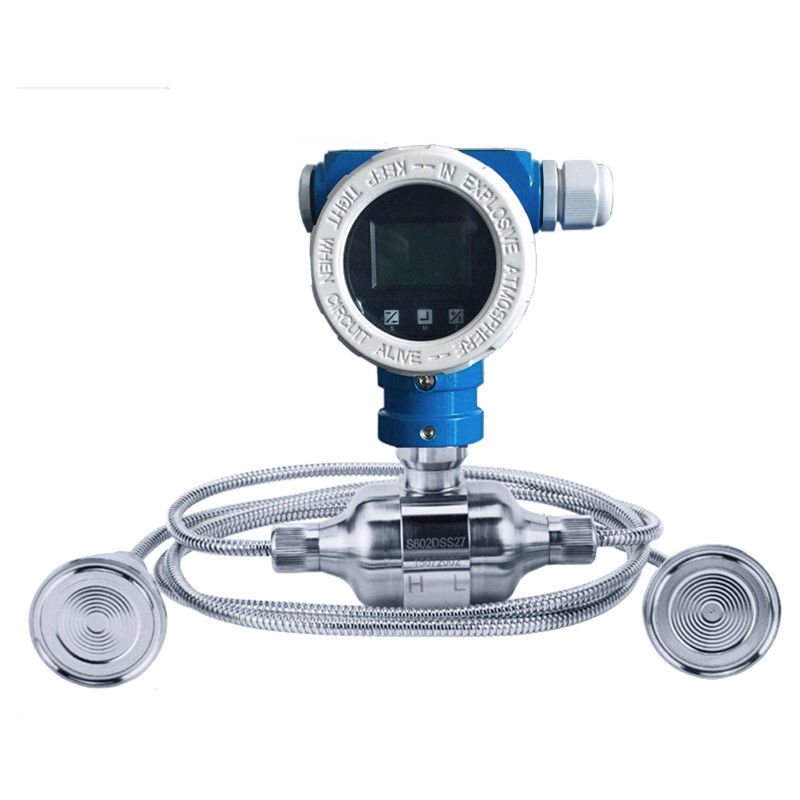

Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas

Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas

Double flange mounted pressure transmitter

Aluminum 14 Flange Mounted Pressure Transmitter

Place of Origin:

Anhui, China

Brand Name:

WNK

Model Number:

WNK58

Contact Us
Request A Quote
Product Details
Warranty:
1 YEAR
Customized Support:
OEM, ODM
Keywords:
Double Flange Pressure Transmitter/4-20ma Pressure Transmitter
Application:
Oil&gas, Petrol, Petrochemical, Chemical Industry, Metallurgy, Pharma
Protection Class:
IP66 /67
Output:
4~20mA, Hart, Profibus-Pa,FF
Housing Material:
Cast Aluminum Alloy
Transmitter Type:
Capacitive Pressure Transmitter
OEM Service:
OEM, ODM, Customization Available
Display:
Liquid Crystal Display (LCD)
Certificate:
ISO: 9001-2015, Ex-Proof
Stability:
0.25% Of Url For 1 Year
Port:
Shanghai
Highlight:

Double flange mounted pressure transmitter

,

Aluminum 14 Flange Mounted Pressure Transmitter

Payment & Shipping Terms
Price
$200.00 - $600.00/Pieces
Packaging Details
Paper carton or as clients' requirement
Supply Ability
2000 Piece/Pieces per Month 4-20ma pressure transmitter
Product Description

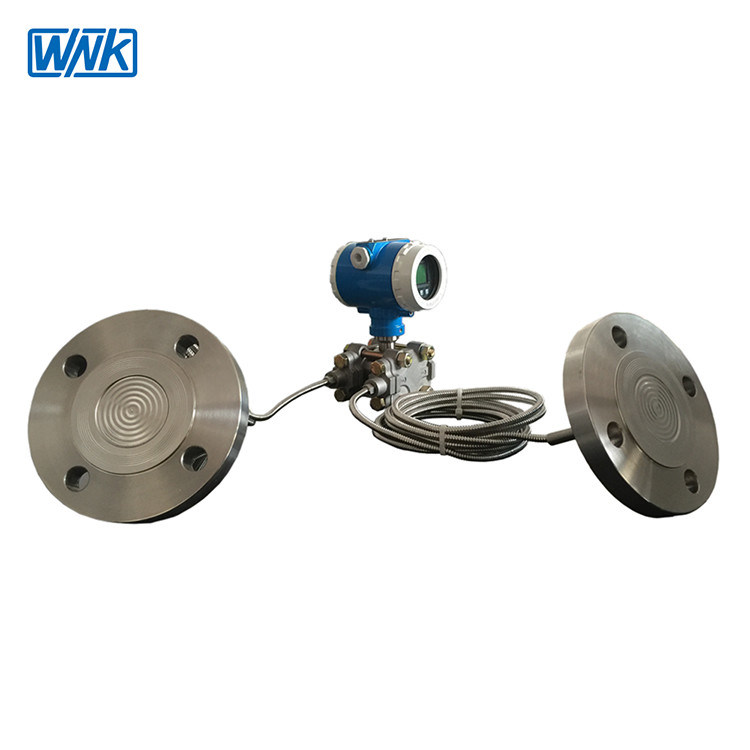

4-20ma Double Flange Differential Pressure Transmitter For Liquid and Gas
Features                    Applications:
1. High reference accuracy up to 0.075%, higher on request. Gauge & absolute pressure measurement in gases, steam or liquids in all areas of of engineering process and measurement.
2. Long-term drift  ≤±0.25%URL for 1 year.
3. Range down ratio 100:1; higher on request. Level measurement in liquids.
4. Replaceable display unit & electronic module.  High process temperatures up to 280ºC with diaphragm seals.
5. Universal electronics. It can be used below particular occasiaon
6. Menu-guided operation. 1. Need to isolate the high temperature medium with transmitter
7. Factory default data recovery is supportive 2. The measuring medium is corrosive to the transmitter
8. Hart, PROFIBUS-PA or FF protocol for option. 3. The measuring medium solidification or crystallization due to environmental or temperature changes
4. Suspended liquid or high viscosity medium





Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 0Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 2

Technical Data



Applicable media liquid, gas and steam
Pressure range -100KPa~6MPa
Accuracy 0.075%, higher on request
Stability ±0.25% of URL for 1 year
Temperature drift ±0.0625% of URL/10ºC
Output signals 4~20mA, Hart, PROFIBUS-PA for option
Housing material Aluminum 14
Mechanical connection M20×1.5;G1/2;1/2NPT
Protection class IP66/67

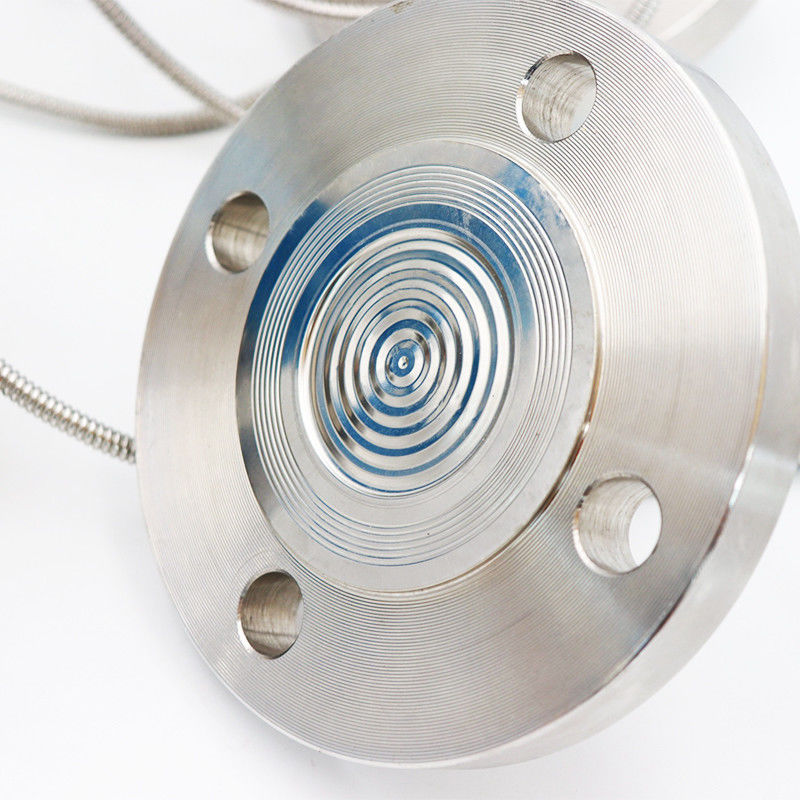

Diaphragm material 316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option
Fluid filled Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option
Ex-proof Exia II CT4, other option per request
Power Supply 10.5-55V DC   10.5-30V DC
Ambient temperature -40 to 85ºC,-40 to 80ºCfor LCD header
Storage temperature -45 to 85ºC,-40 to 80ºC for LCD header





Ordering Sheet
Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 4



Company Information

 Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 6Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 8Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 10Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 12Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 14Double Flange Mounted Pressure Transmitter Aluminum 14 For Liquid And Gas 16

FAQ

 Q1: What is the MOQ?

A: No MOQ required, 1 piece for trial or testing purpose is accepted.
Q2: Can we use our logo on the products?
A: Yes. OEM service is available
Q3: What's the production lead time?
A:   7-10 days for standard products, custom requirements are subject to negotiation.
Q4: What are the terms of warranty and after sale.
A:  12 months of warranty for regular products. During the warranty time, any quality issues will be sent back for after sale at our own expense
Q5: What are the means of transport?
A:  By Air, Sea, and Courier Express such as TNT,Fedex,DHL,UPS,
