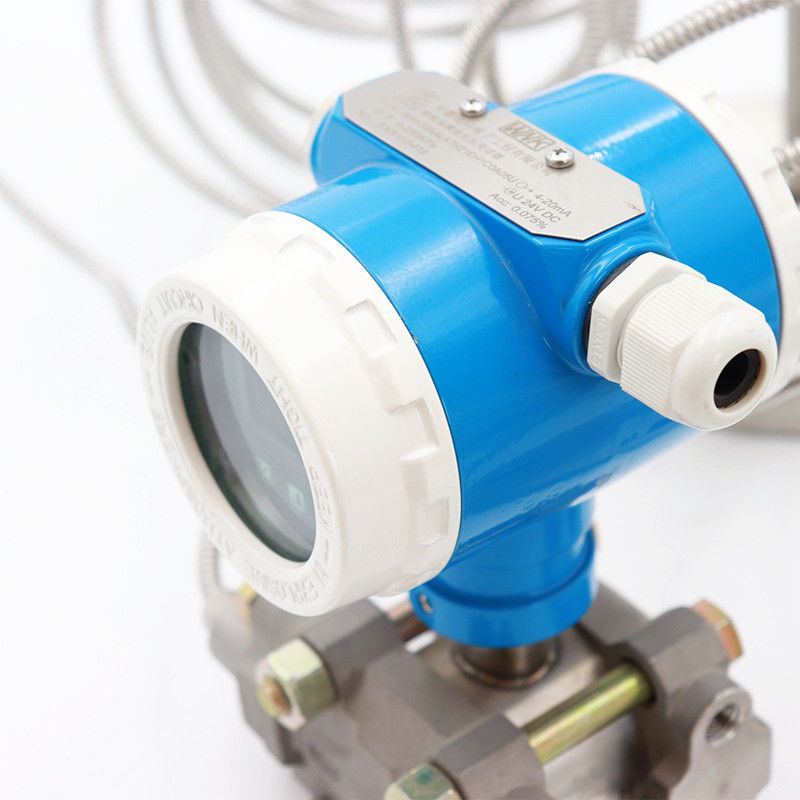

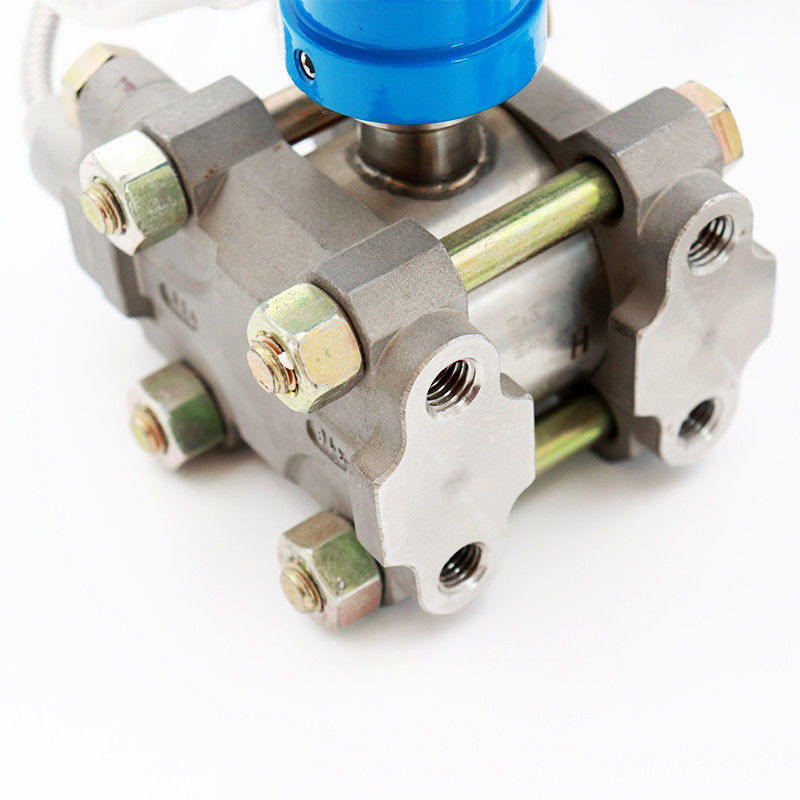

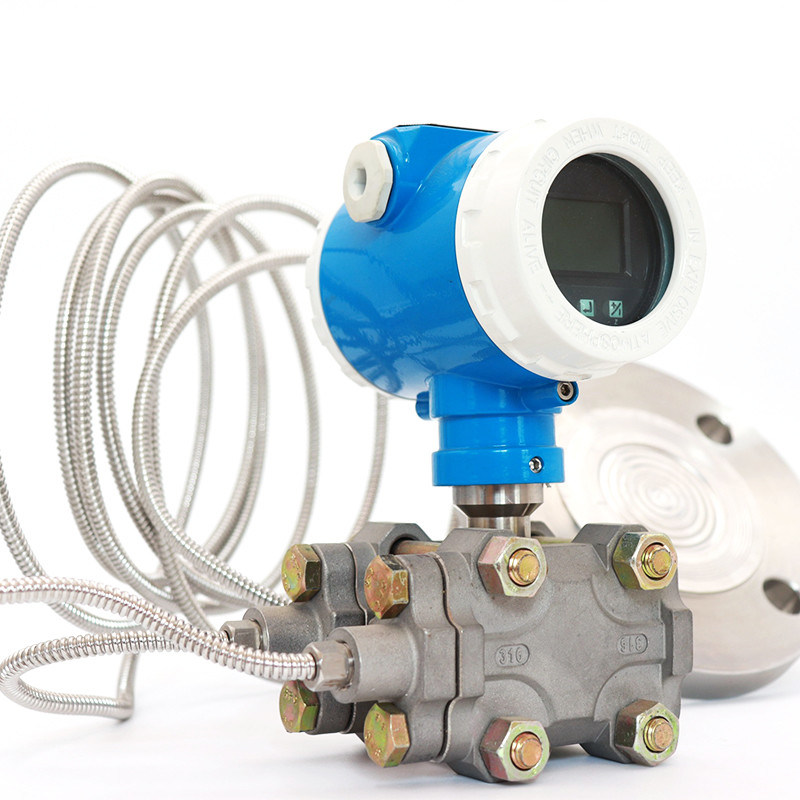

ODM Diaphragm Differential Pressure Transmitter LCD Indicator Smart type
|Place of Origin:||Anhui, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Price:||$200.00 - $500.00/Sets|
|Packaging Details:||Each set in one individual carton packing with protection|
|Delivery Time:||5-8 work days|
|Payment Terms:||T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||500 Set/Sets per Week|
|Warranty:||1 YEAR||Customized Support:||OEM, ODM|
|Measured Media:||Liquid, Gas And Steam||Pressure Range:||-4000kPa~4000kPa|
|Accuracy:||0.2%, 0.075%||Output Signals:||4~20mA, Hart, PROFIBUS-PA|

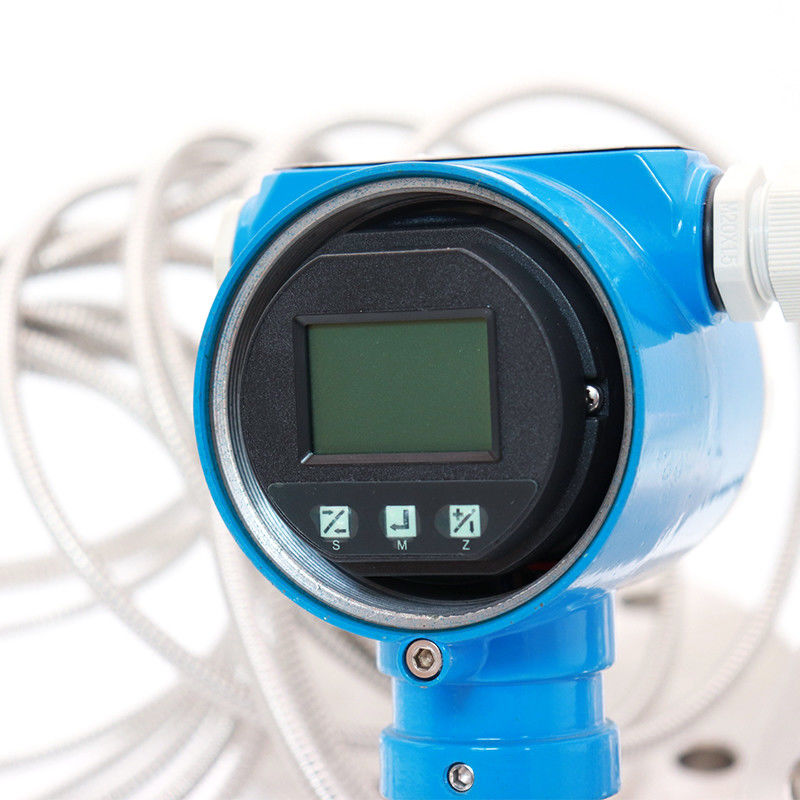

|Protection Class:||IP66/67||Display:||LCD Indicator|
|Process Connection:||G1/2, G1/4, 1/2NPT Etc||Power Supply:||12~36V DC|
|Ex-proof:||ExiaII CT4/CT6, ExidIICT6||Process Temperature:||-40~250 ℃|
LCD Indicator Diaphragm Differential Pressure Transmitter,
Smart Diaphragm Differential Pressure Transmitter,
ODM diaphragm type pressure transmitter
4-20mA Output Smart Diaphragm Differential Pressure Transmitter
1. High reference accuracy up to 0.075%.
2. Long-term drift ≤±0.25%URL for 1 year.
3. Hart, PROFIBUS-PA or FF protocol for option.
4. Intrinsically safe and flameproof explosion proof
5. Range down ratio 100:1
6. Smart type for easy calibration
It can be used below particular occasiaon:
1.Need to isolate the high temperature medium with transmitter.
2. The measuring medium is corrosive to the transmitter.
3.The measuring medium solidification or crystallization due to environmental or temperature changes.
4.Suspended liquid or high viscosity medium.
|WNK58 smart double flange differential pressure transmitter/liquid level transmitter|
|Measured media||liquid, gas and steam|
|Output signals||4~20mA, Hart, PROFIBUS-PA for option|
|Accuracy||0.075%, higher on request|
|Stability||±0.25% of URL for 1 year|
|Temperature drift||±0.0625% of URL/10ºC|

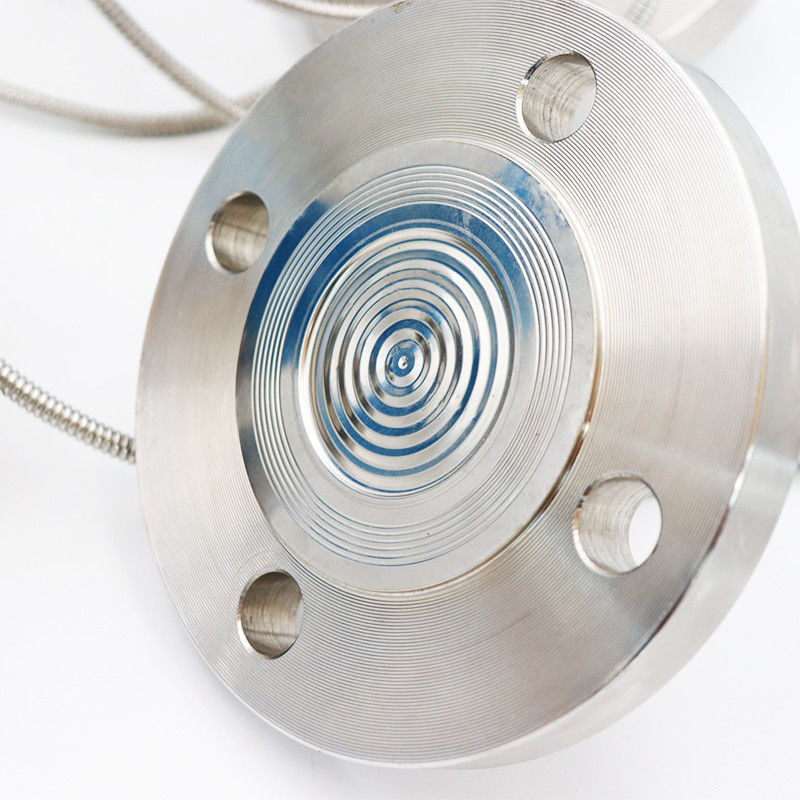

|Diaphragm material||316L, Alloy C-276, Monel, Tantalum diaphragm, 316L with PTFE coating etc for option|
|Fluid filled||Silicon oil,Vegetable oil,Inert oil ,High temperature oil etc for option|
|Mechanical connection||M20×1.5;G1/2;1/2NPT, Customization|
|Ex-proof||ExiaII CT4/CT6, ExidIICT6|
|Power Supply||10.5-55V DC 10.5-30V DC|
|Ambient temperature||-40 to 85ºC,-40 to 80ºCfor LCD header|
|Storage temperature||-45 to 85ºC,-40 to 80ºC for LC|
|Process temperature||-45 to 250ºC|
Product Installation Diagram
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
