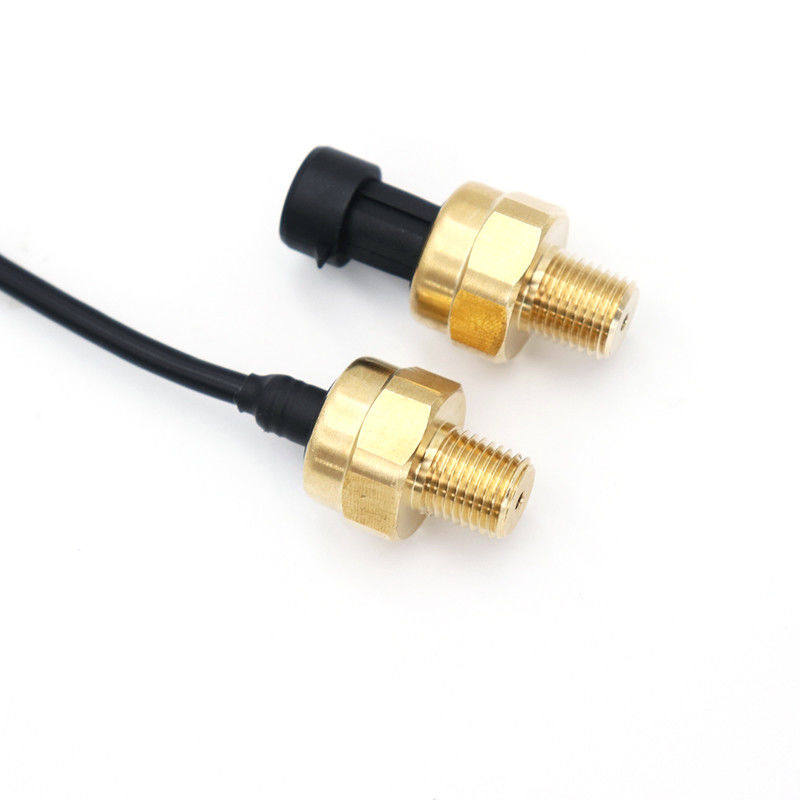

0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK83mA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | $6.50/Pieces >=10 Pieces |
| Packaging Details: | each product in one inner paper box with protection |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 2000 Set/Sets per Week 0.5-4.5V Pressure Sensor |
|
Detail Information |
|||
| Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
|---|---|---|---|
| Output Signals: | 0.5V-4.5V | Measured Media: | Liquid, Gas And Steam |
| Accuracy: | 1%F.S. | Protection Class: | IP65 |
| Housing Material: | 304SST | Power Supply: | 4.75V-5.25V |
| Electrical Connection: | Parkard | Product Name: | 0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application |
| Mechanical Connection: | NPT | Cell: | Ceramic Capacitive Pressure Sensor |
| Port: | Shanghai | ||
Product Description
0.5-4.5V Output Brass Pressure Sensor For Air Water HVAC Application
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply |
4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Working temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Parkard |
| Mechanical connection | NPT |
| Housing material | Brass |
3. Direct cable outlet, G1/4 thread

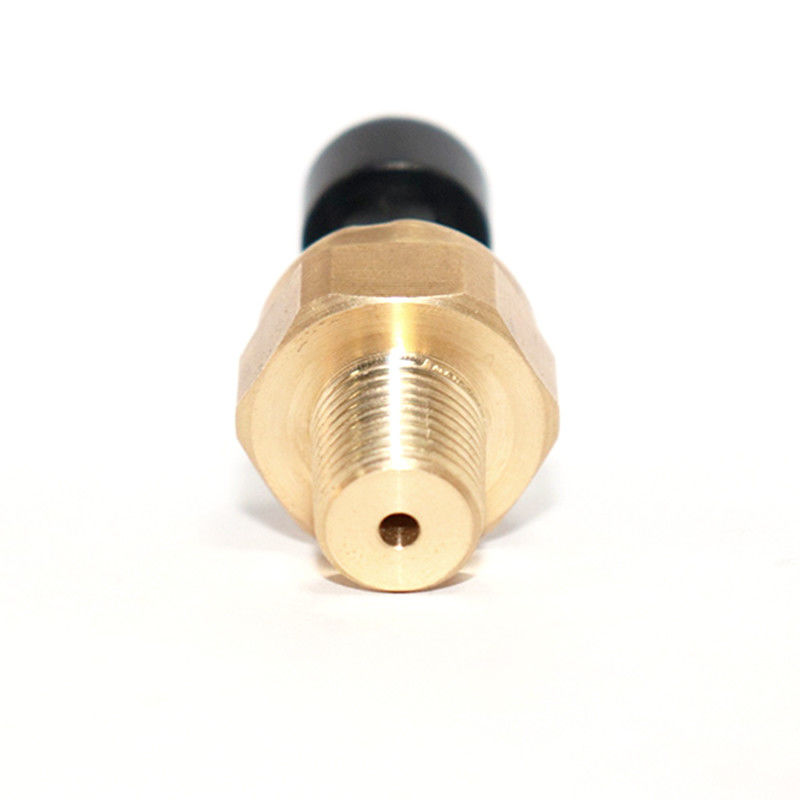

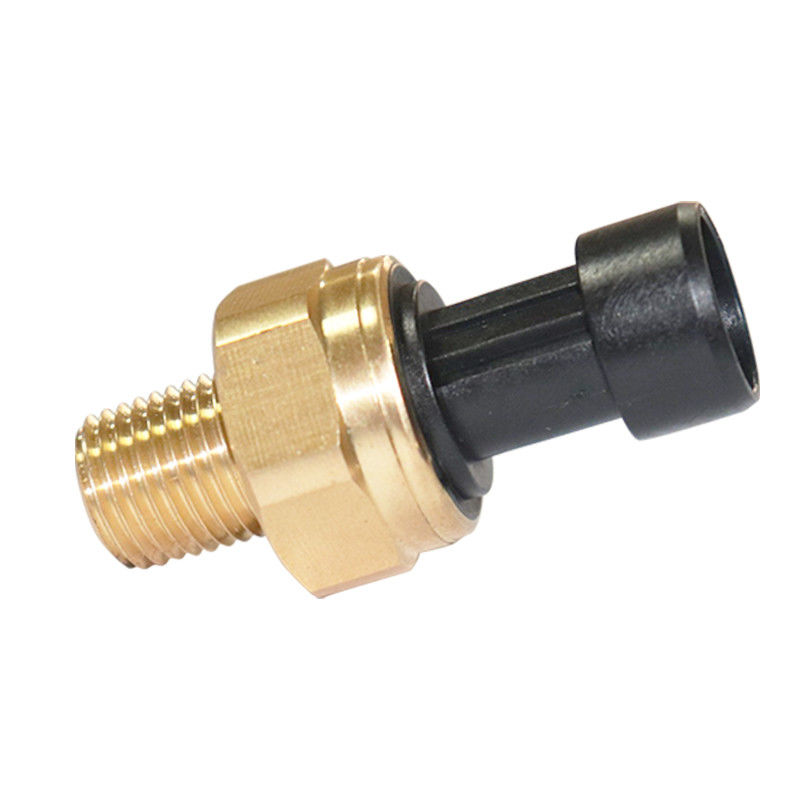

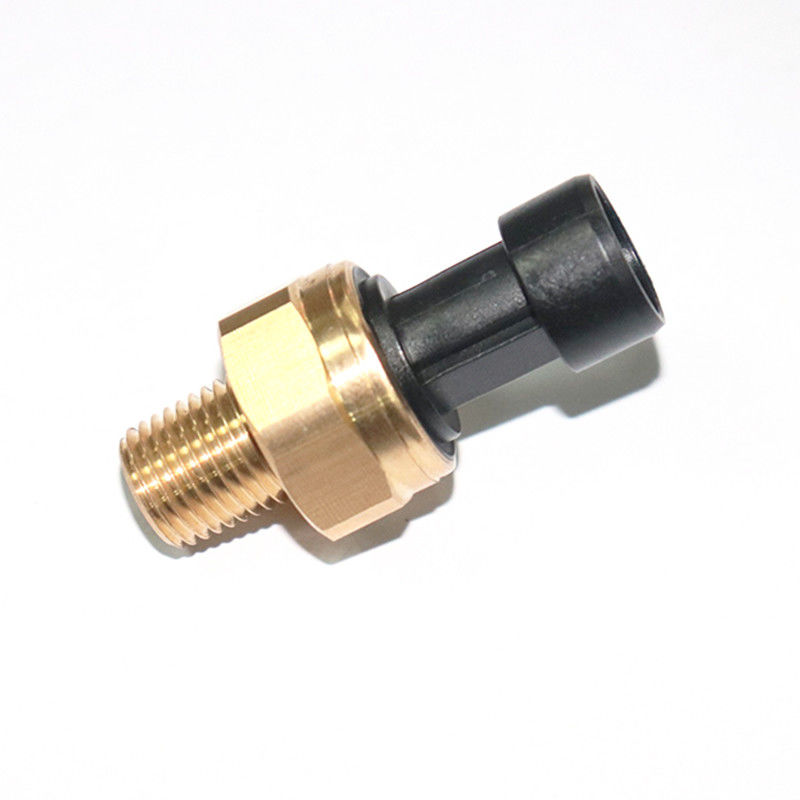

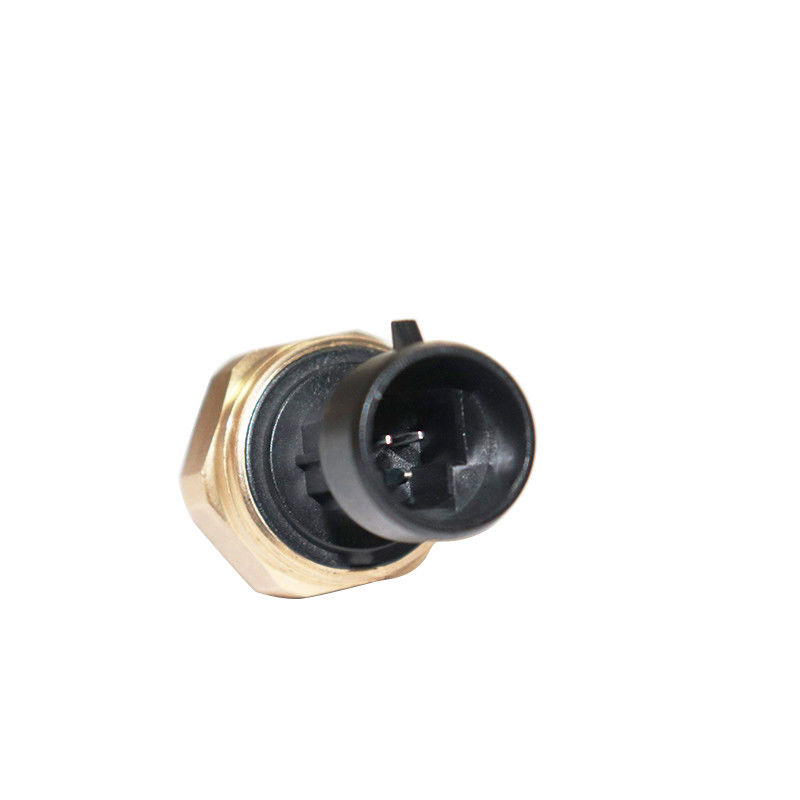

Product Show
Hot Product
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
Want to Know more details about this product
