Product Details:

Place of Origin: Anhui, China
Brand Name: WNK
Model Number: WNK808B

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: $21.00 - $45.00/Pieces
Packaging Details: each product in one inner paper box with foam protection;
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 2000 Piece/Pieces per Month Wind Pressure Transmitter 4-20ma
Get Best Price Contact Now

Detail Information

Measured Media: Air, Gas Measurement Range: -10Pa~100Pa, -100kPa~+100kPa
Output Signals: 4-20mA, 1-5V Accuracy: 0.2%F.S; 0.5%F.S;
Housing Material: Aluminum14 Power Supply: 10.5~45V DC
Working Temperature: -10~70℃ Protection Class: IP65
Product Name: Wind Differential Pressure Transmitter 4-20ma Wind Pressure Sensor Keywords: Wind Differential Pressure Transmitter
Port: Shanghai Port
High Light:

Wind Differential Pressure Transmitter

,

WNK808B Differential Pressure Transmitter

,

IP65 Wind Pressure Sensor

Product Description

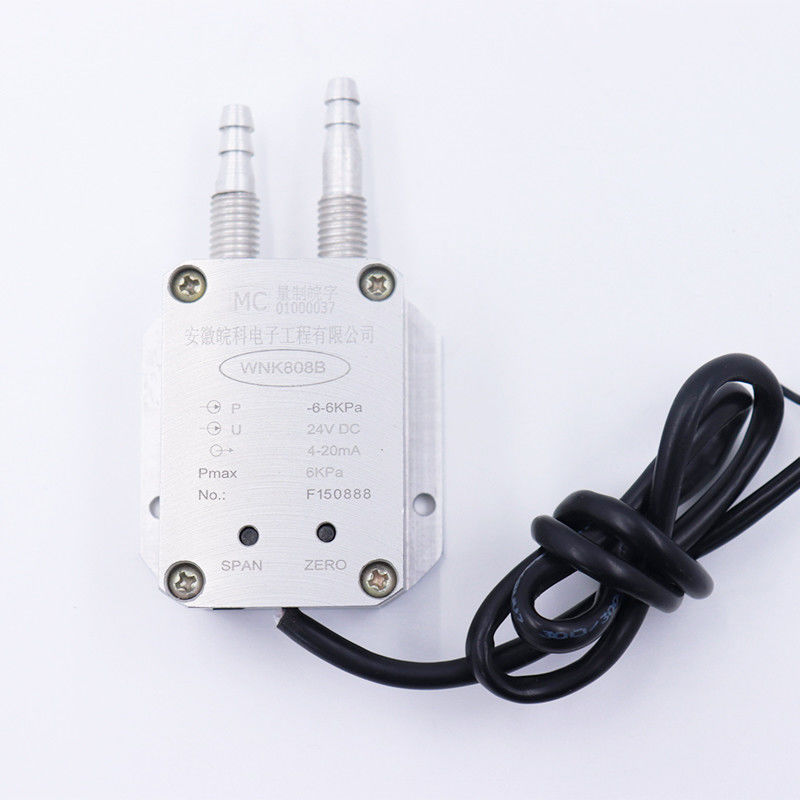

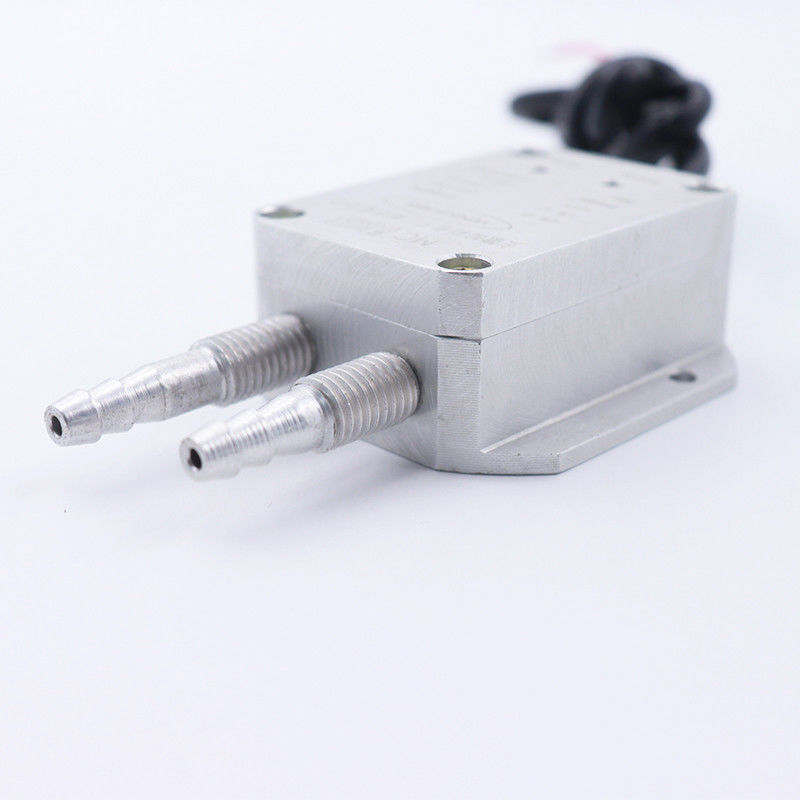

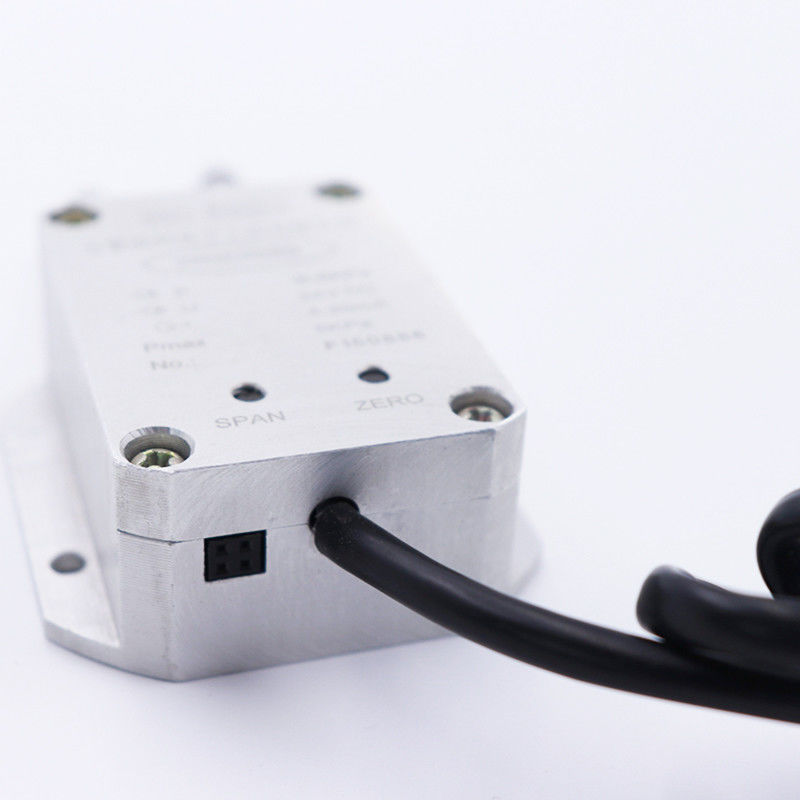

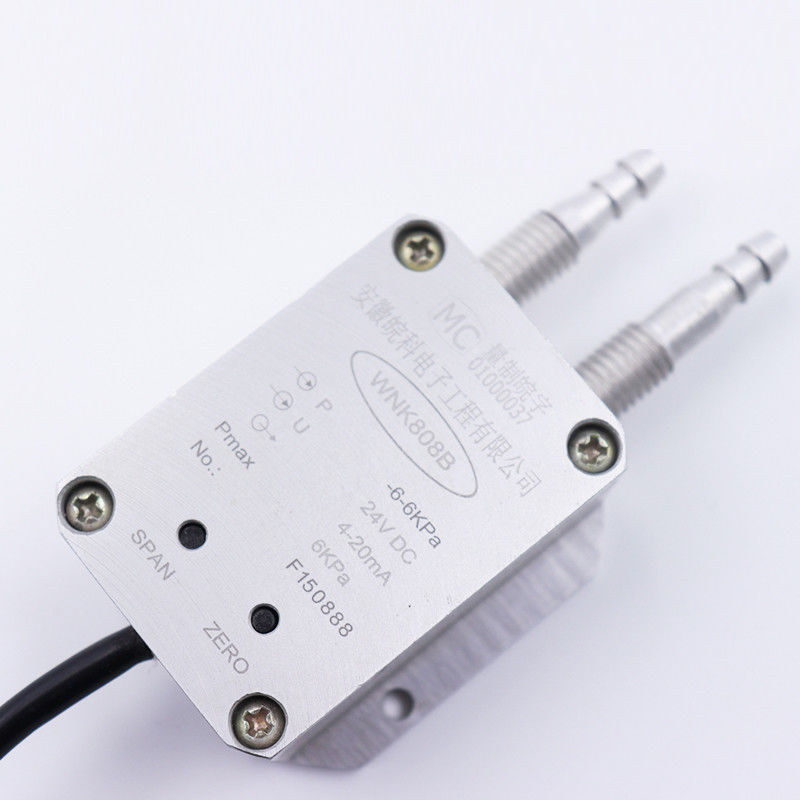

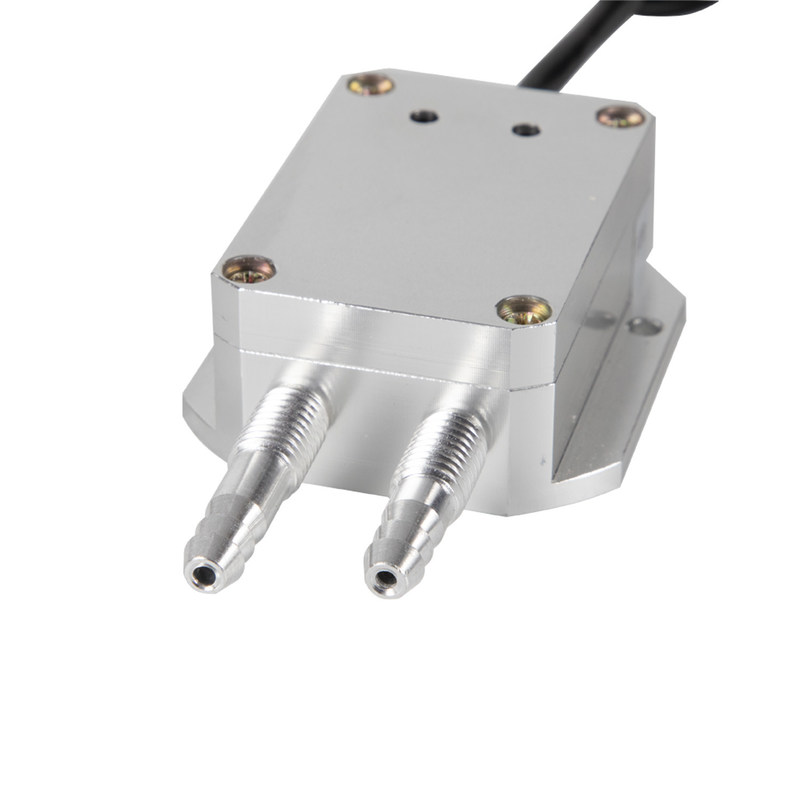

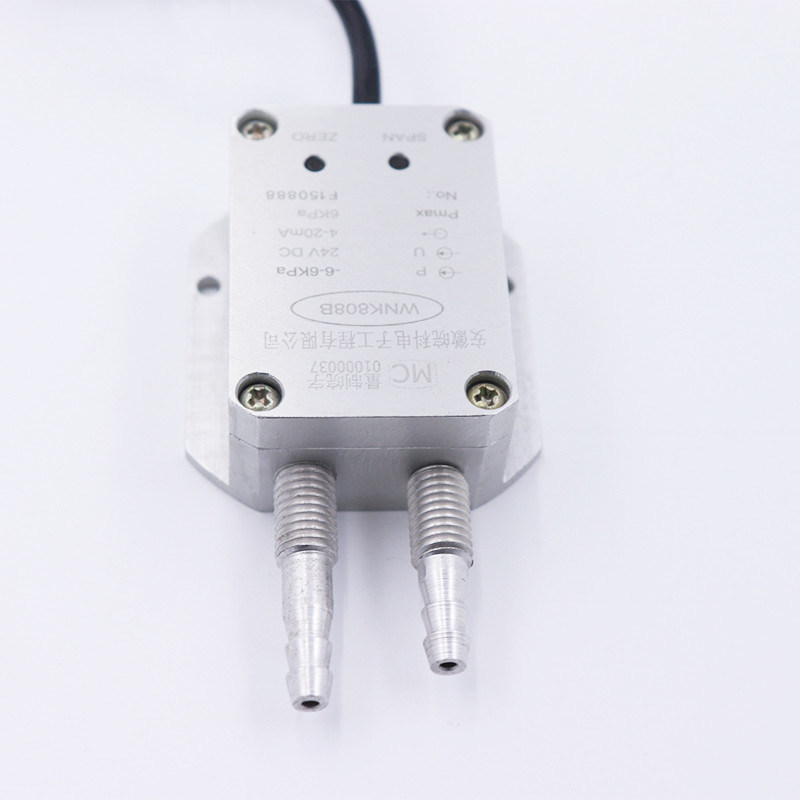

Wind Differential Pressure Transmitter 4-20ma Wind Pressure Sensor

 WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.

Application


It is the best micro pressure measurement equipment for textile machinery,natural gas pipeline monitoring,dust removal system, HVAC,clean laboratory and medical equipment etc.

Intelligent Macro Differential Pressure Transmitter
Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-10Pa~100Pa, -100kPa~+100kPa
Accuracy
0.2%, 0.5%
Stability
0.8%F.S./Year
Maximum static pressure
70 KPa
Max overload
250% of sensor range
Output signals
4~20mA
Housing material
Aluminum14
Induct Pressure Connection:
M 8x1 female or Ø 8 dowel connection

Power Supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Compensation temperature
-10~70℃
Working temperature
-10~70℃
