G1 4 Pressure Transducer Sensor 10bar For Water Liquid Air
Product Details:
| Place of Origin: | Anhui, China |
| Brand Name: | WNK |
| Model Number: | WNK83mA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | $6.50/Pieces >=1 Pieces |
| Packaging Details: | Each five pcs in one paper box 100 pcs in one carton |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 5000 Piece/Pieces per Month g1/4 Pressure Transducer Sensor/ Ceramic Pressure 10bar |
|
Detail Information |
|||
| Warranty: | 1 Year | Customized Support: | OEM, ODM |
|---|---|---|---|
| Pressure Type: | Gauge, Sealing, Absolute Pressure | Pressure Range: | 0.-10bar/ 0-20bar |
| Output Signal: | 0.5-4.5v | Accuracy: | 1% |
| Supply Voltage: | 4.75-5.25 VDC | Electrical Connection: | Cable Outlet/ Packard |
| Process Connection: | G1/4 | Material: | Brass |
| Measured Media: | Liquid, Gas And Steam | Keywords: | G1/4 Pressure Transducer Sensor/ Ceramic Pressure 10bar |
| Port: | Shanghai | ||
| High Light: | g1 4 pressure transducer sensor,10bar Pressure Transducer Sensor |
||
Product Description

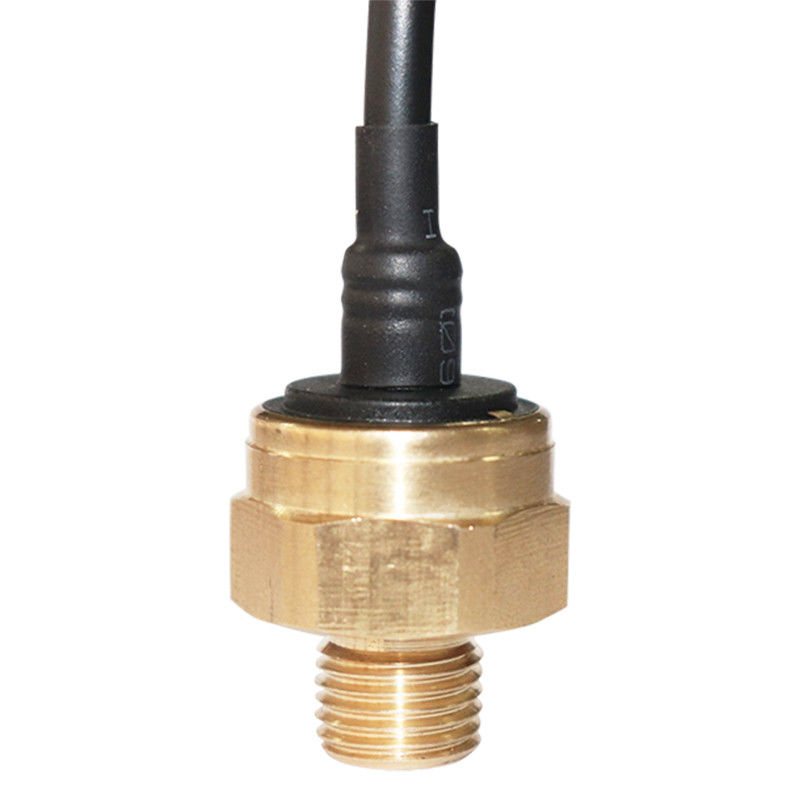

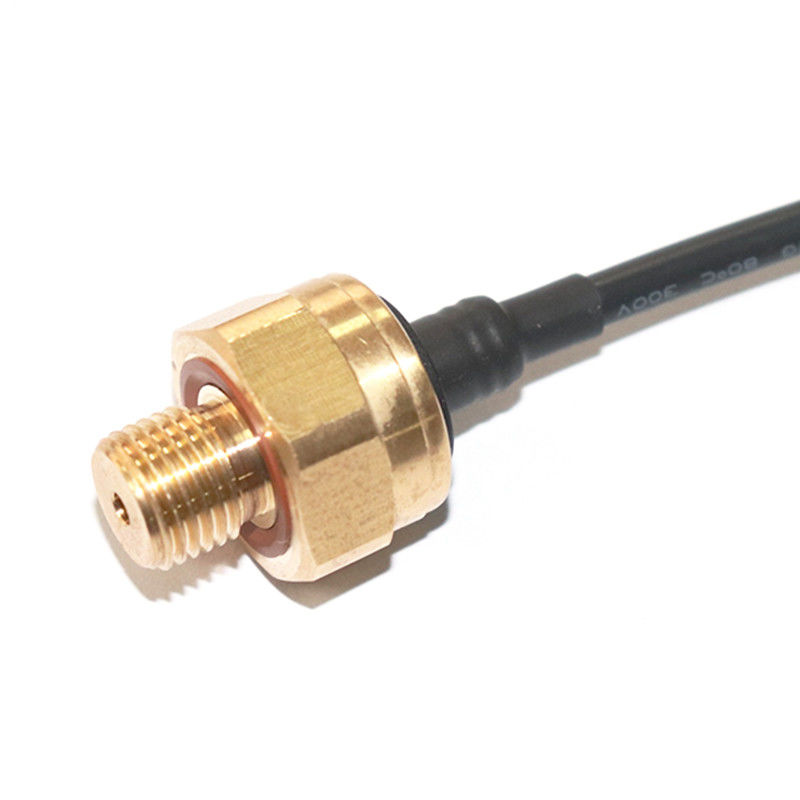

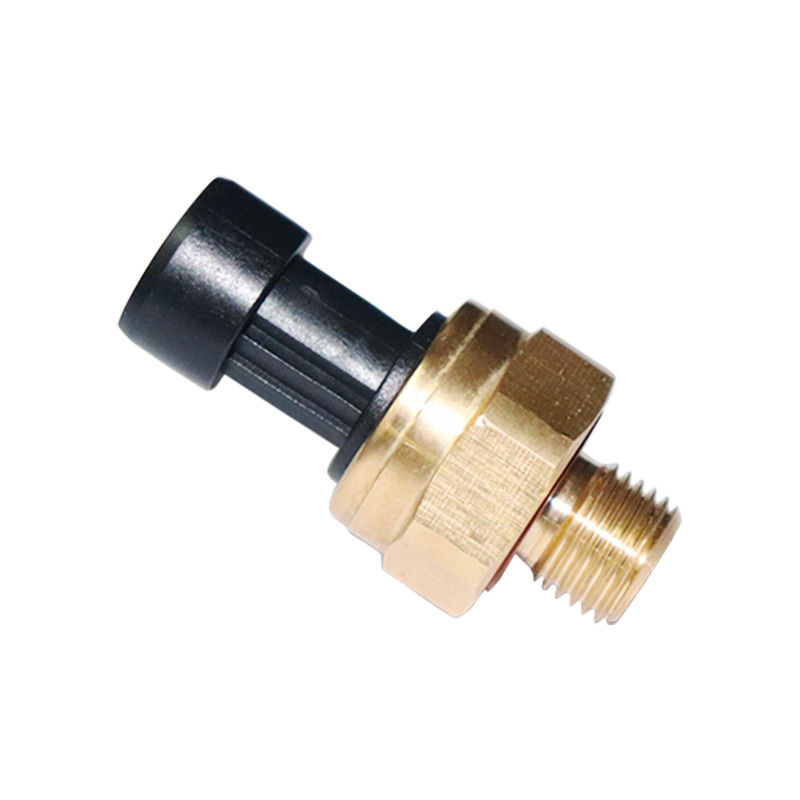

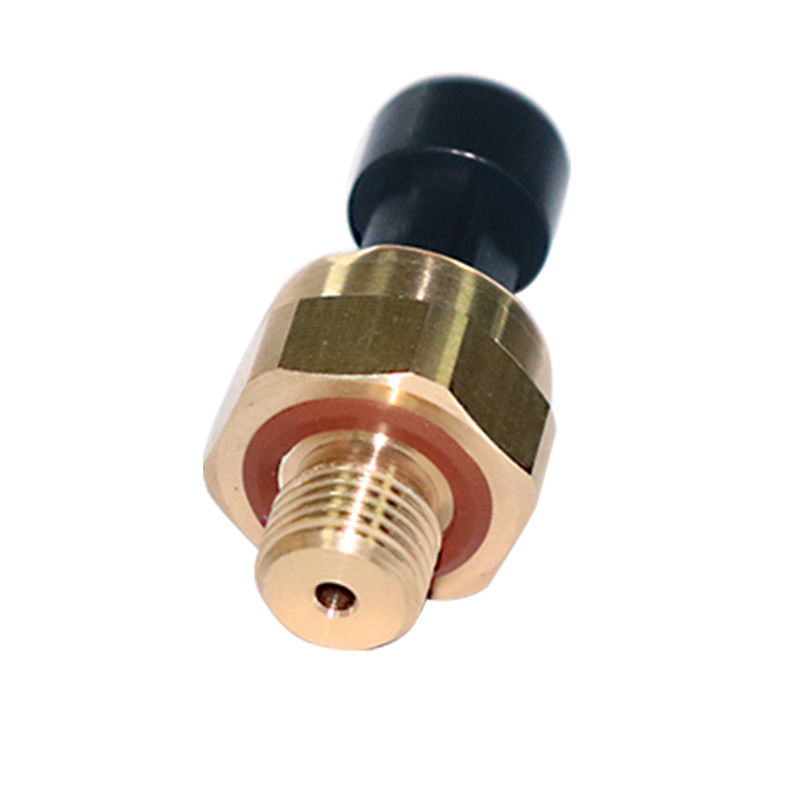

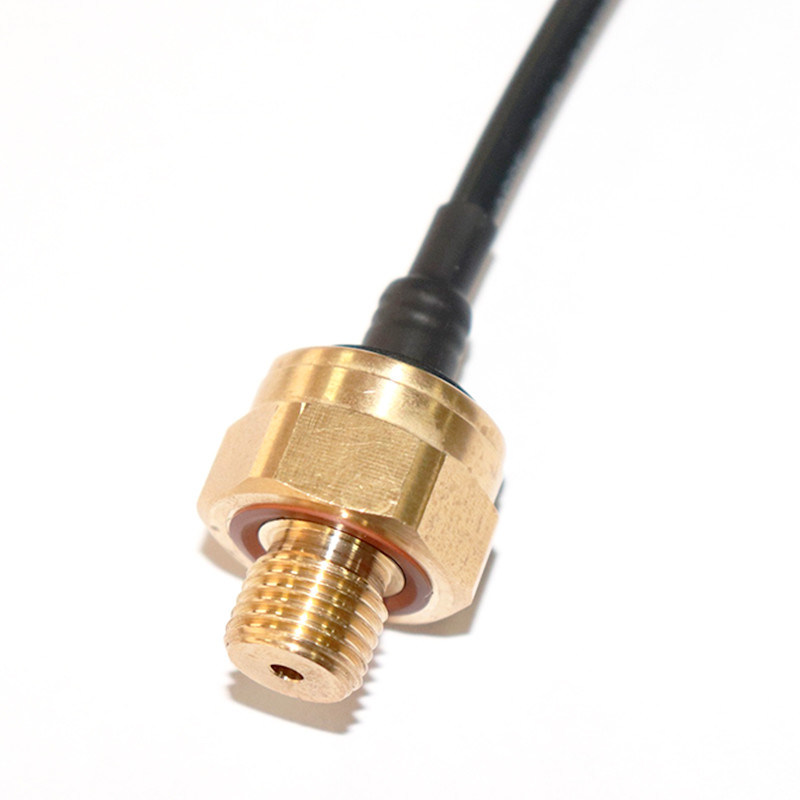

g1/4 Pressure Transducer Sensor Ceramic Pressure 10bar For Water Liquid Air
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
| Applicable Media | Liquid, Gas, Steam |
| Output | 0.5-4.5v dc |
| Power supply | 4.75-5.25v dc |
| Housing material | Brass |
| Electrical Connection | G1/4 |
| Mechanical Connection | Cable Outlet/ Packard |
| Cell | Ceramic capacitive pressure sensor |
| pressure range | 0-10bar/ 0-20bar |
| Accuracy | 1%FS |
| Working temperature | -20-70C |
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
