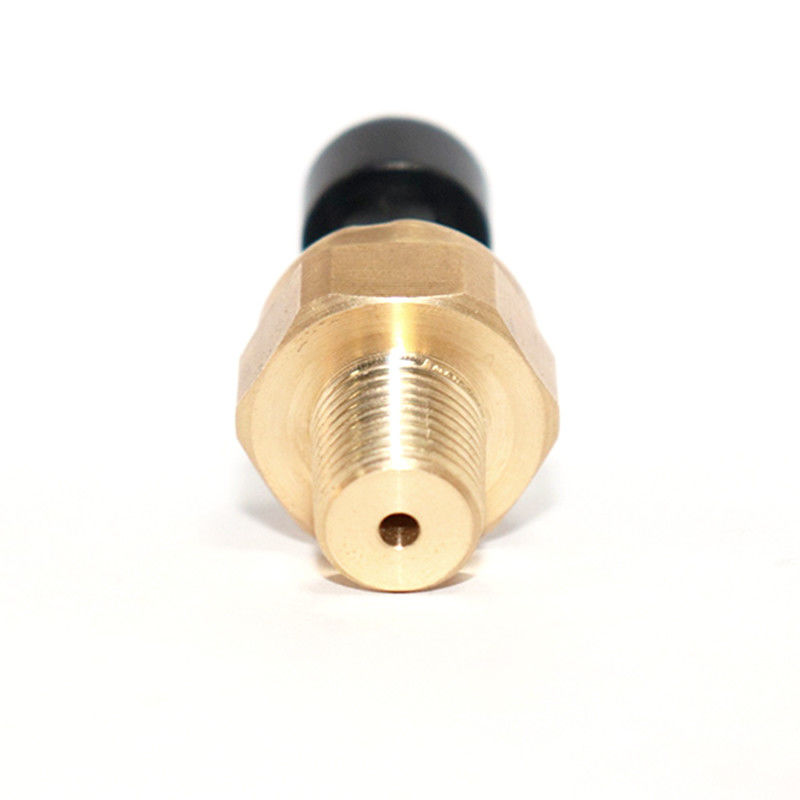

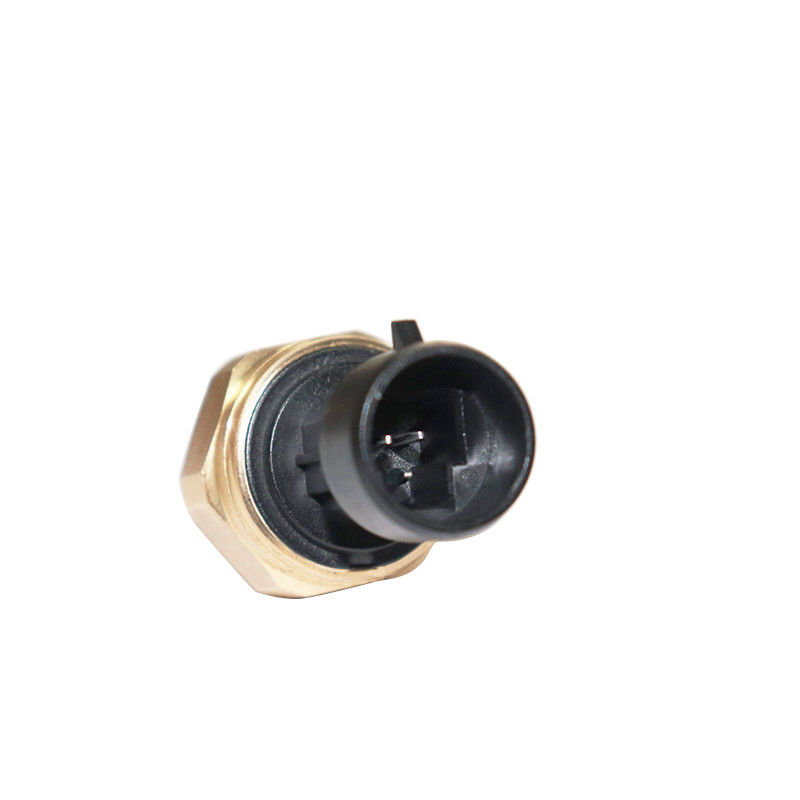

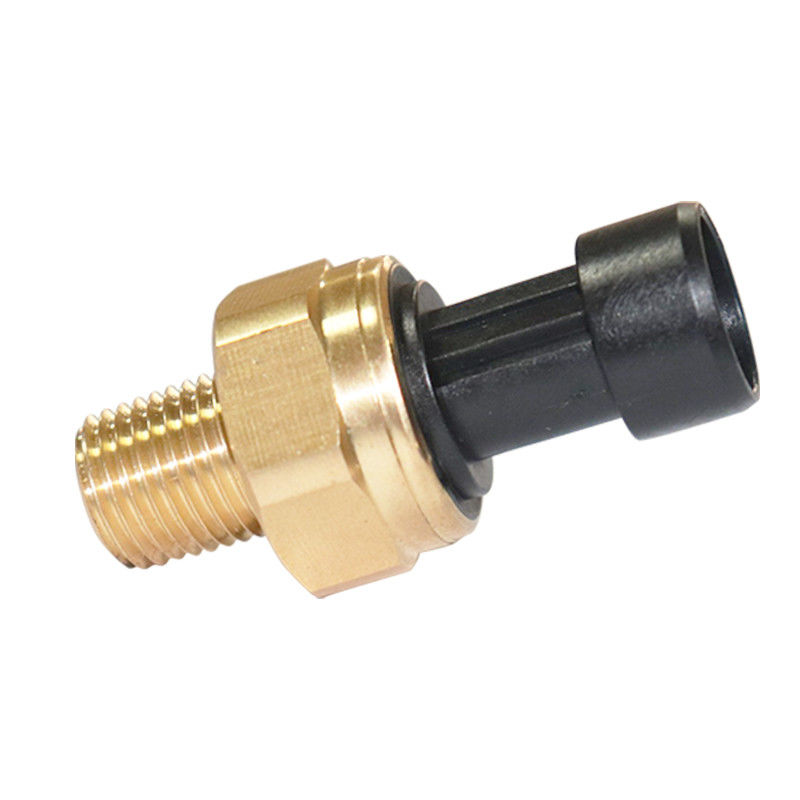

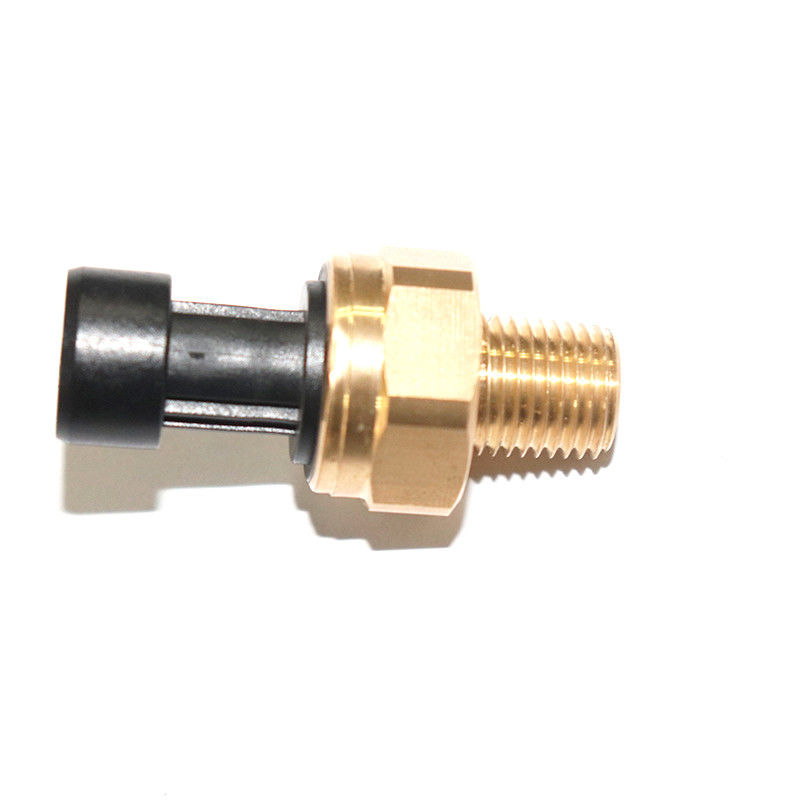

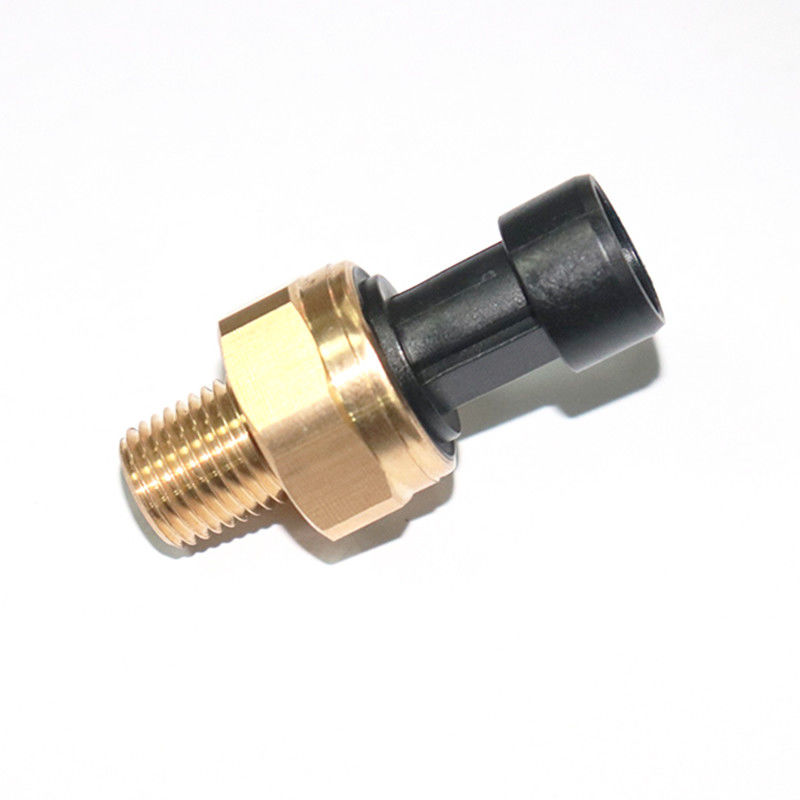

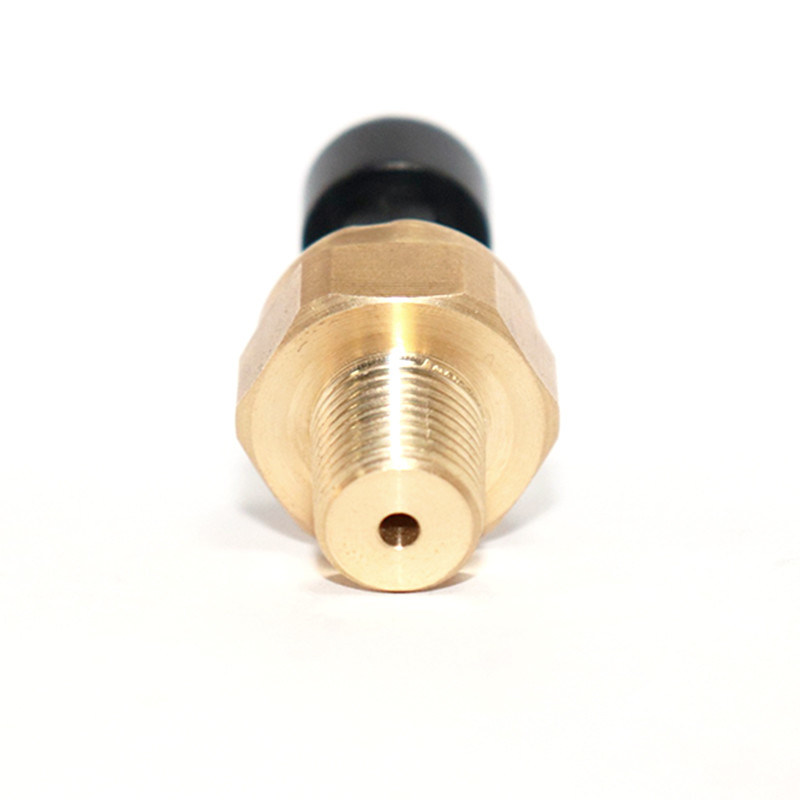

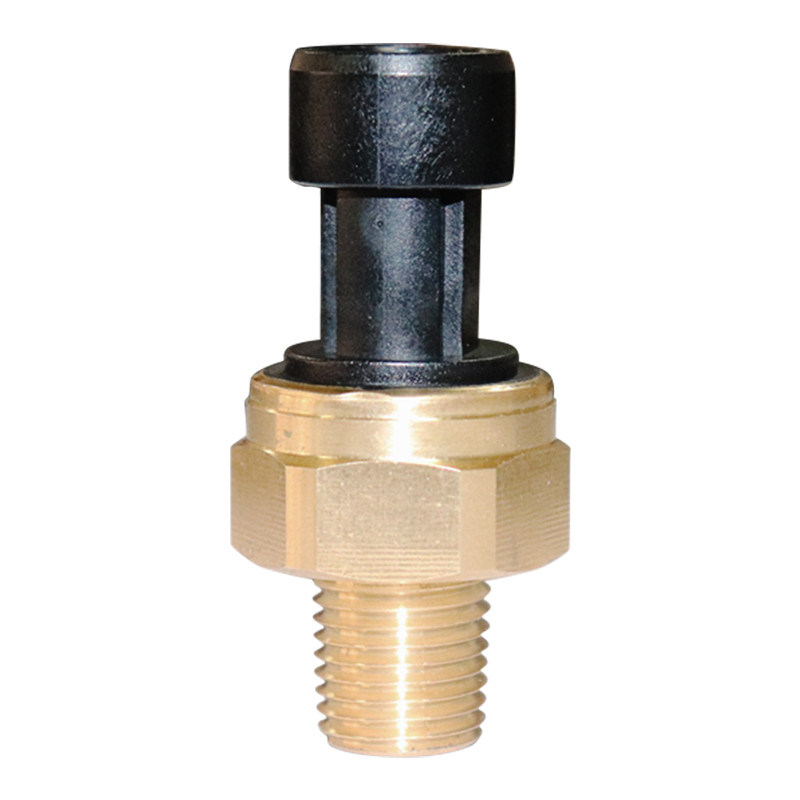

ODM Compact Brass Electronic Air Pressure Sensor With 1 Year Warranty
Product Details:
Place of Origin: | Anhui, China |
Brand Name: | WNK |
Model Number: | WNK83mA |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | $6.50/Pieces |
Packaging Details: | Each five pcs in one paper box 100 pcs in one carton |
Delivery Time: | 5-8 work days |
Payment Terms: | T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 5000/ Piece/ Month |
Detail Information |
|||
Warranty: | 1 YEAR | Customized Support: | OEM, ODM |
---|---|---|---|
Pressure Type: | Gauge, Sealing, Absolute Pressure | Measure Range: | 0-200bar |
Analog: | 0.5-4.5v | Accuracy: | 1% |
Supply Voltage: | 4.75-5.25 VDC | Electrical Connection: | Packard |
Process Connection: | 1/4 NPT | Material: | Brass |
Cell: | Ceramic Capacitive Pressure Sensor | Keywords: | Low Cost Pressure Sensor/water Pressure Sensor |
High Light: | Compact Brass Electronic Air Pressure Sensor,ODM Electronic Air Pressure Sensor,ODM Compact air pressure sensor |
Product Description
Low Cost 0.5-4.5V Output Compact Brass Pressure Sensor For Air Gas Water
Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.
Applicable media | Liquid, gas and steam |
Pressure range | 2MPa |
Cell | Ceramic capacitive pressure sensor |
Pressure measurment | Gauge Pressure, Sealing pressure |
Output | 0.5-4.5V |
Power supply |
4.75-5.25 VDC |
Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
Compensation temperature | -20~70ºC |
Ambient temperature | -40~110ºC |
Working temperature | -40~110ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
Electrical connection | Parkard |
Mechanical connection | 1/4 NPT |
Housing material | Brass |
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
