Ceramic Capacitive Water Pipe Pressure Sensor 0-10V For Liquid Gas
|Place of Origin:||Anhui, China|
Payment & Shipping Terms:
|Minimum Order Quantity:||10 Pieces|
|Price:||$12.00 - $19.00/Pieces|
|Packaging Details:||Each gauge pressure transmitter price in one inner paper box with foam protection|
|Delivery Time:||5-8 work days|
|Payment Terms:||T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||1000 Piece/Pieces per Week|
|Warranty:||1 YEAR||Customized Support:||OEM, ODM|
|Measured Media:||Liquid, Gas And Steam||Power Supply:||3.3V, 12-30V,5V And So On|
|Output Singal:||0.5-4.5V, 0-5V, 4-20mA, I2c, Customization||Housing Material:||304SS|
|Operating Temperature::||-20~85 ℃||IP Garde:||IP65/IP67|
|OEM Service:||OEM, ODM, Customization Available||Port:||Shanghai, Ningbo, Shenzhen|
Ceramic Capacitive water pipe pressure sensor,
10V water pipe pressure sensor

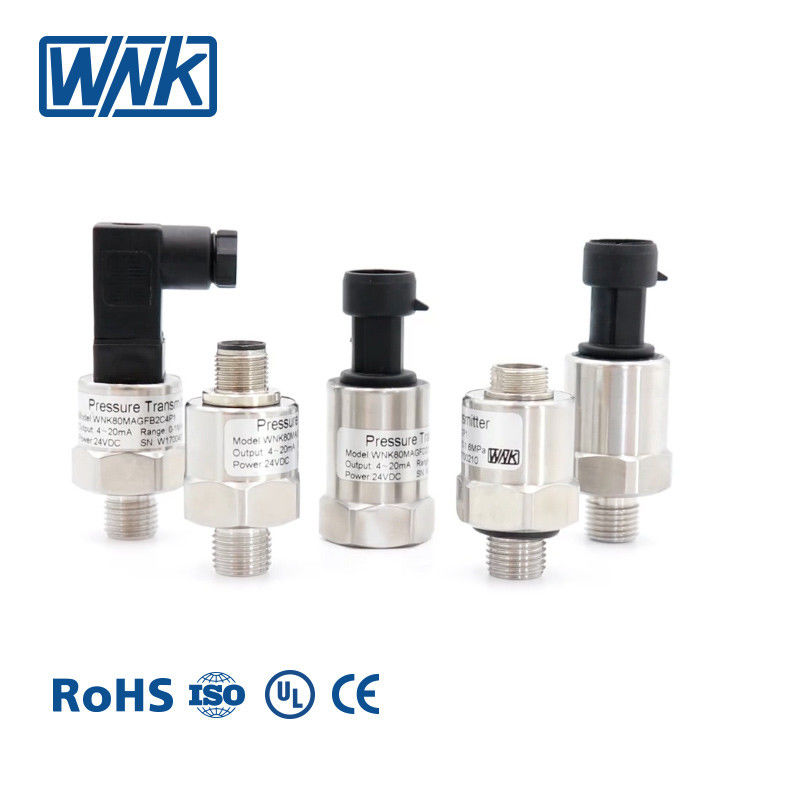

4-20mA I2C 0-10V Ceramic Capacitive Water Pressure Sensor For Liquid Gas
WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.
With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
|Applicable media||Liquid, gas and steam|
|Cell||Ceramic capacitive pressure sensor|
|Pressure measurment||Gauge Pressure, absolute pressure and sealing pressure|
|Accuracy(linearity,Hysteresis and Repeatability)||1%F.S.|
|Temperature drift(zero)||±0.15% F.S. (-20~85ºC)|
|Temperature drift(full range)||±0.15% F.S. (-20~85ºC)|
|Electrical connection||Parkard, Cable outlet, M12, mini DIN43650|
|Mechanical connection||G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation|
|Housing material||304 stainless steel(316SS for inner core)|
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
